Plan 666140RAF

3-Bed Modern Northwest Home with Open Main Level

Heated S.F.
2,067
Beds
3
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 666140RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666140RAF

M-F 9am-5pm EST |

1-203-761-8500

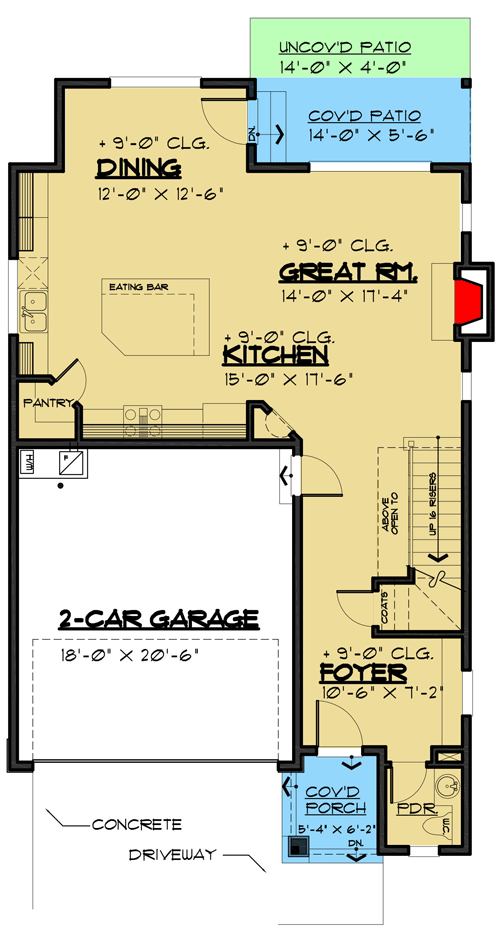

Main Level

Plan 666140RAF: 3-Bed Modern Northwest Home with Open Main Level - Floor Plan - Main Level - Contemporary, Modern, Northwest

2nd Floor

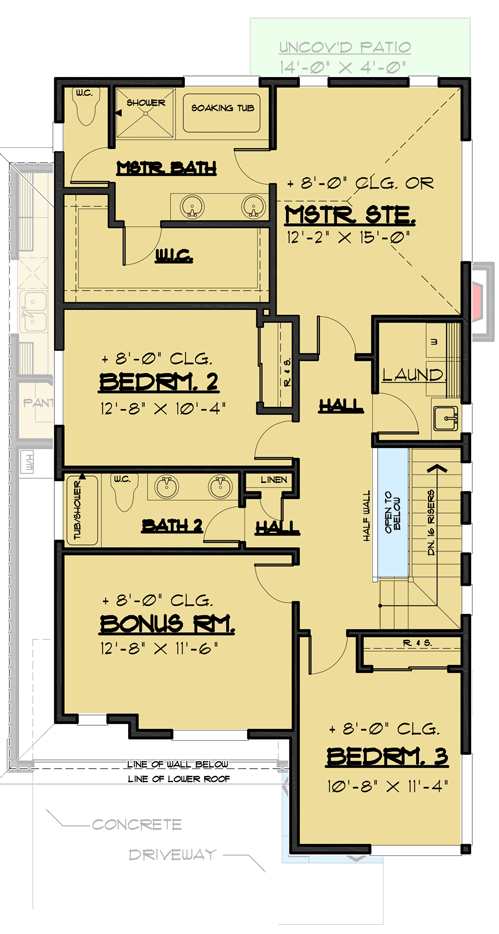

Plan 666140RAF: 3-Bed Modern Northwest Home with Open Main Level - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

Plan Details

  • This 3-bedroom, Modern Northwest home plan delivers a forward-facing garage and narrow width making it perfect for smaller lots.
  • The design packs a lot of features into just over 2,000 square feet, including a completely open main level, anchored by the kitchen island with a wraparound eating bar.
  • A covered patio just off the dining area lends a great space for BBQs.
  • Upstairs, the master suite offers rear views and the attached bath features a soaking tub beneath a picture window.
  • Two family bedrooms and a bonus room are located down the hall, and the laundry room on this level is an added bonus.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

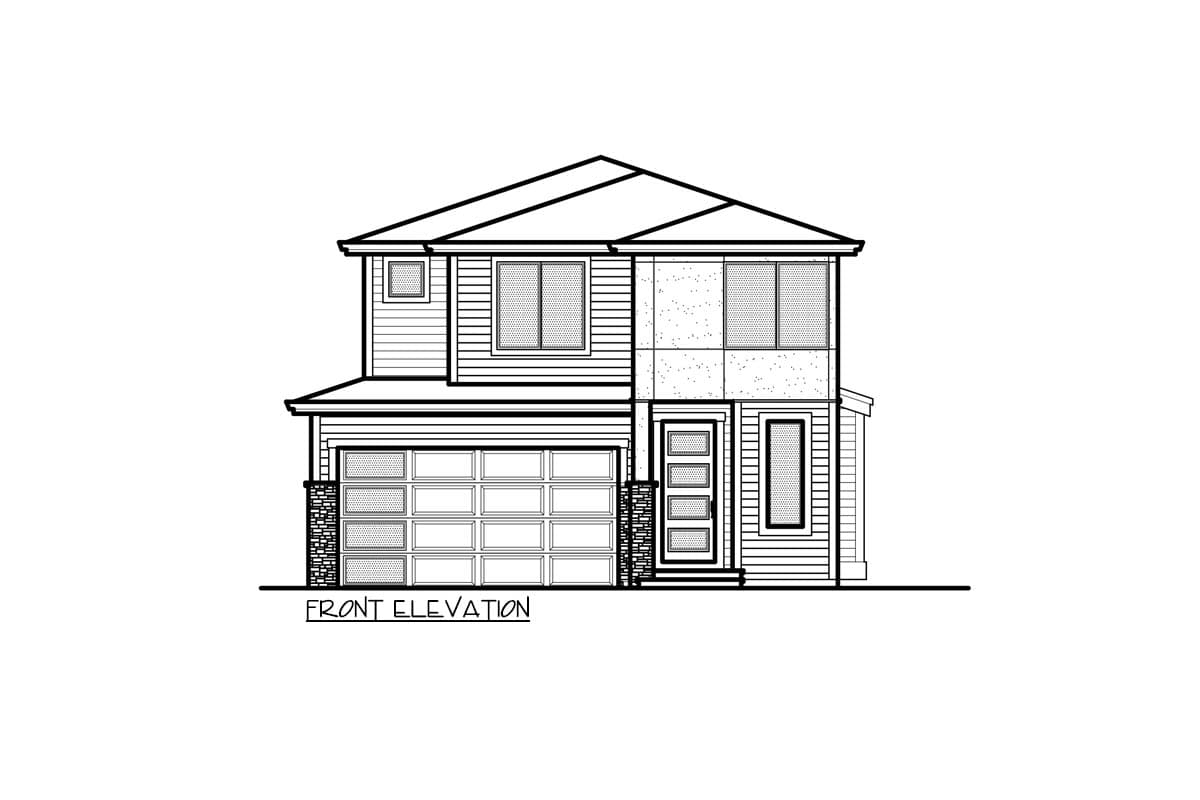

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,067 sq. ft.

1st Floor

895 sq. ft.

2nd Floor

1,172 sq. ft.

Porch, Front

33 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

50' 6"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

369 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Garage

10' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Square Footage Breakdown
