Plan 623535DJ

3-Bed Modern Ranch Farmhouse with Optional Lower Level

Heated S.F.
1,773
Beds
3
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 623535DJ

Main Level
Main Level
Optional Lower Level Layout ($ Paid Option)
Optional Lower Level Layout ($ Paid Option)
Main Level - Slab/Crawl Option ($ Paid Option)
Main Level - Slab/Crawl Option ($ Paid Option)

Plan 623535DJ

M-F 9am-5pm EST |

1-203-761-8500

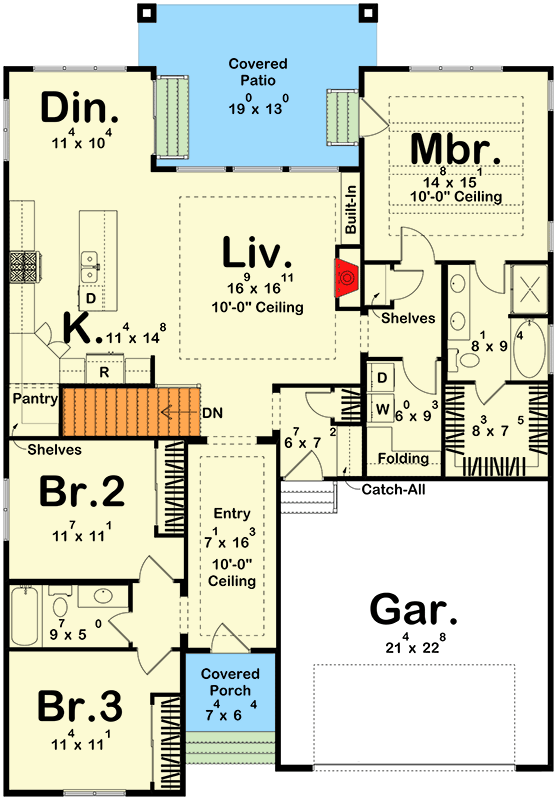

Main Level

Plan 623535DJ: 3-Bed Modern Ranch Farmhouse with Optional Lower Level - Floor Plan - Main Level - Country, Farmhouse, Ranch

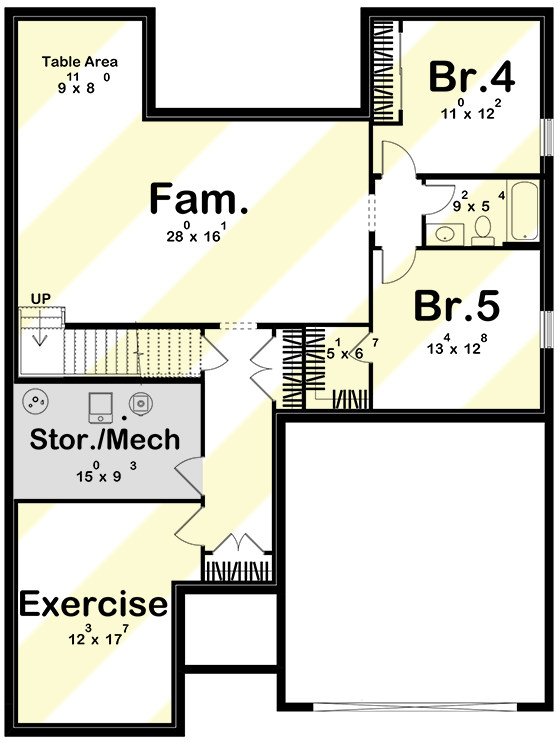

Optional Lower Level Layout ($ Paid Option)

Plan 623535DJ: 3-Bed Modern Ranch Farmhouse with Optional Lower Level - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Country, Farmhouse, Ranch

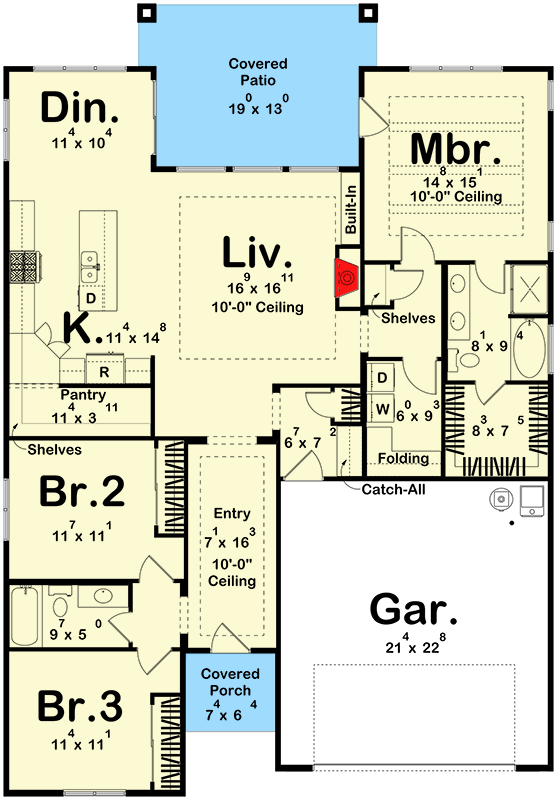

Main Level - Slab/Crawl Option ($ Paid Option)

Plan 623535DJ: 3-Bed Modern Ranch Farmhouse with Optional Lower Level - Floor Plan - Main Level - Slab/Crawl Option ($ Paid Option) - Country, Farmhouse, Ranch

Plan Details

  • This stylish 1,773 sq. ft. modern ranch farmhouse offers 3 bedrooms and 2 bathrooms with an attached 2-car garage spanning 501 sq. ft.
  • Enter through the inviting front porch into a spacious open floor plan featuring a living area with high ceilings and abundant natural light.
  • The main floor includes a well-appointed kitchen with a butler walk-in pantry and adjacent dining space, seamlessly connecting to the living area.
  • The master suite, located on the first floor, boasts convenient main-level laundry access, a perfect retreat with ample closet space.
  • Optional lower level adds 1,418 sq. ft. with two additional bedrooms, a family room, and an exercise area for versatile living.
  • Enjoy outdoor gatherings on the 272 sq. ft. combined porch and patio, perfect for relaxing and entertaining.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,773 sq. ft.

1st Floor

1,773 sq. ft.

Optional Lower Level

1,418 sq. ft.

Porch, Combined

272 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 8"

Depth

63' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

501 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,773 sq. ft.

1st Floor

1,773 sq. ft.

Optional Lower Level

1,418 sq. ft.

Porch, Combined

272 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

43' 8"

Depth

63' 0"

Max Ridge Height

21' 0"

Garage

Type

Attached

Area

501 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Country

Farmhouse

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
