Plan 623066DJ
3-Bed New American Home Plan with Outdoor Entertaining Space In Back
Heated S.F.
1,789
Beds
3
Baths
2
Stories
1
Cars
2
Tour
Flyer
Videos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

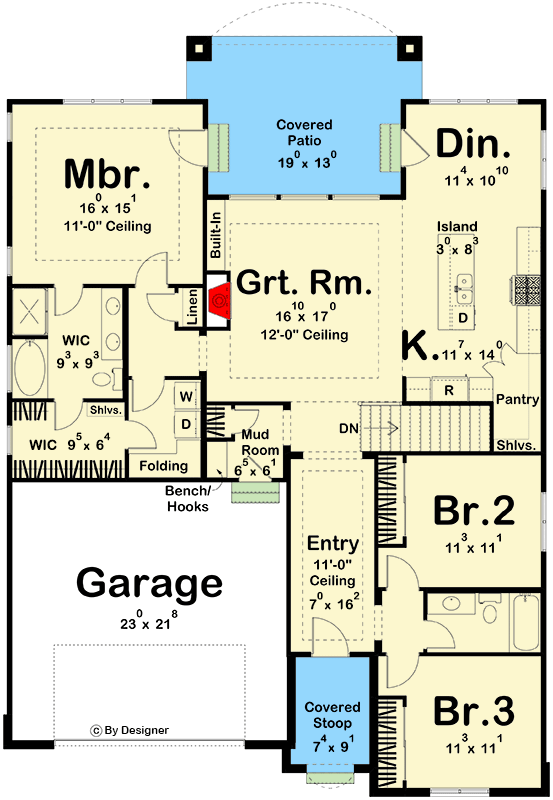

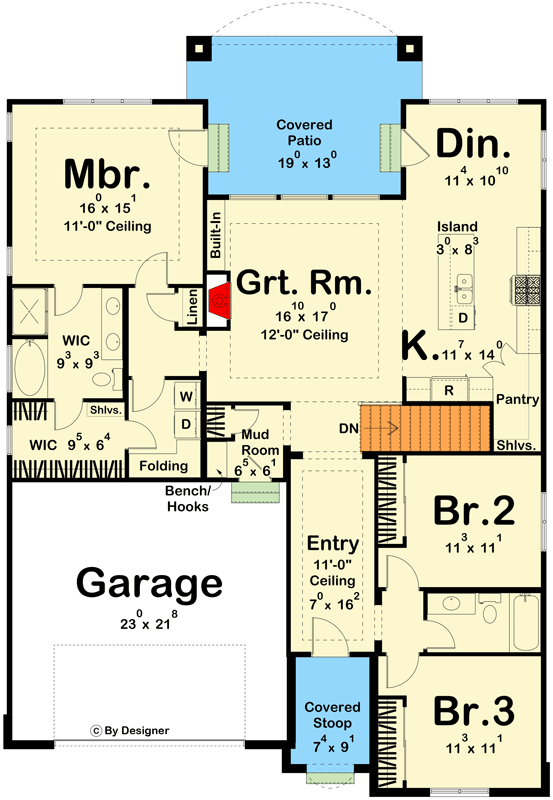

3-Bed New American Home Plan with Outdoor Entertaining Space In Back - 623066DJ floor plan - Main Level
Main Floor - Optional Slab/Crawl Foundation
Reverse Floor Plan

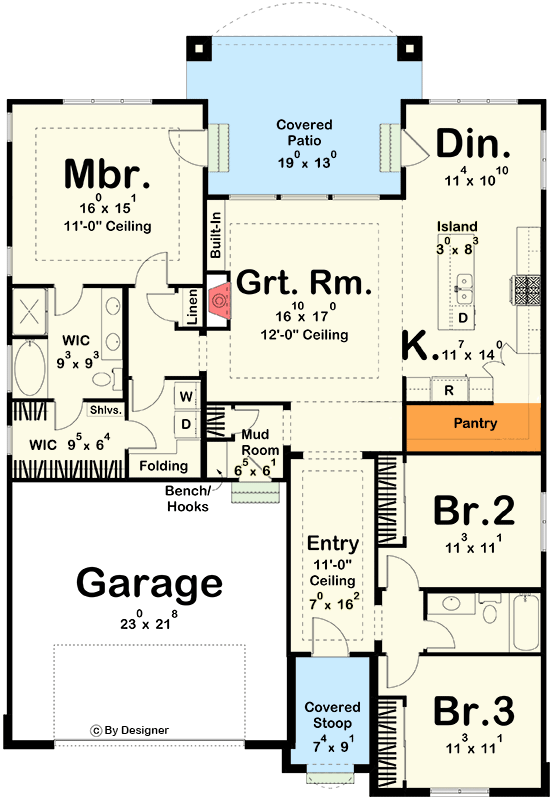

3-Bed New American Home Plan with Outdoor Entertaining Space In Back - 623066DJ floor plan - Main Floor - Optional Slab/Crawl Foundation
Plan Details
  • This one-story house plan has an attractive exterior with board and batten siding, brick, wood garage doors, and metal roof accents
  • A covered stoop leads guests into the wonderful entry way with its decorative trayed ceiling. Two bedrooms can be found right off the main entry. Further into the home, the kitchen, great room, and dining room are arranged in a wonderful open layout.
  • The kitchen includes a large island with a snack bar and a walk-in pantry. The great room is warmed by a fireplace that includes built-in bookshelves.
  • A covered patio - accessible from both the dining room and the master bedroom - gives you outdoor entertaining space.
  • The exquisite master suite is arranged on the left side of the home. The bedroom lies under a decorative trayed ceiling. The bathroom includes a dual vanity, a walk-in shower, a soaking tub, and a large walk-in closet with access to the laundry room.
  • A 2-car garage leads into the home through a convenient mud room.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
