3-Bed Mountain House Plan with 2-Story Living Room and Loft/Bunk Room Overlook
Heated S.F.
2,558
Beds
3
Baths
3.5
Stories
2
Cars
1
What's Included
Plan Details
  • Craftsman details adorn the exterior of this 3-bedroom mountain house plan, including natural wood elements and stone accents.
  • The heart of the home greets you upon entering and features a sizable prep island, plenty of workspace, and an oversized opening that leads to the living room.
  • Tall ceilings above the living room enlarge the space, and glass sliders invite you onto the wraparound covered patio.
  • Two bedroom suites line the left side of the main level, while bedroom 3 can be found upstairs, along with a loft / bunk room and covered balcony.
  • A single carport helps to protect your vehicle with a convenient powder bath just inside.
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Mountain House Plan with 2-Story Living Room and Loft/Bunk Room Overlook

  • 2,558

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 1

    Car garage

Floor Plan

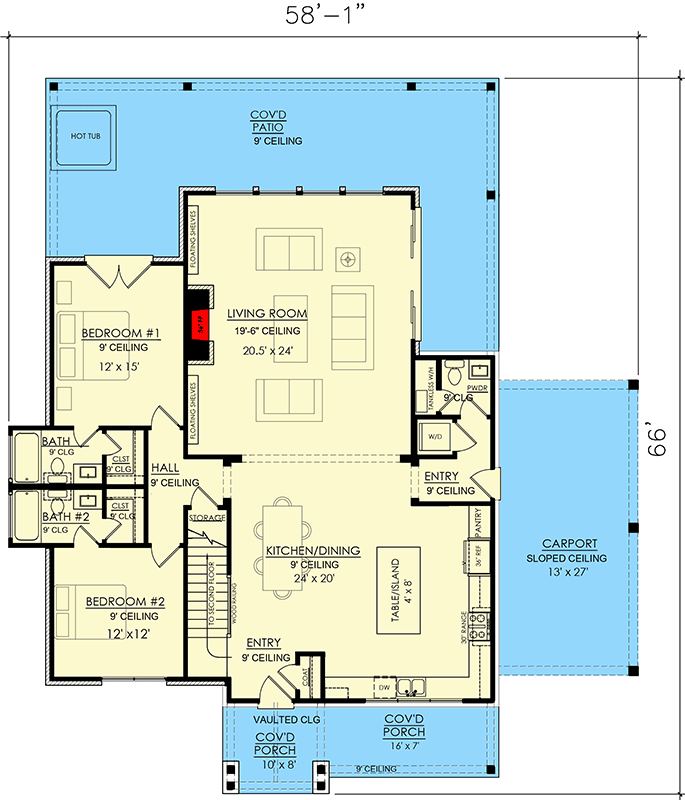

  • Main Level

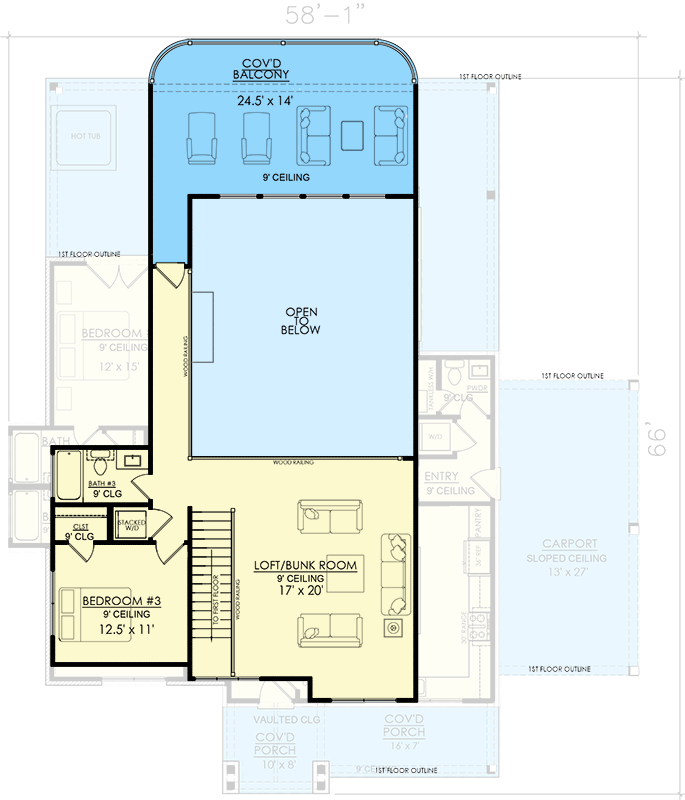

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,558 sq. ft.
  • 1st Floor: 1,822 sq. ft.
  • 2nd Floor: 736 sq. ft.

Dimensions

  • Width: 58' 1"
  • Depth: 66' 0"
  • Max ridge height: 32' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Carport
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
