Plan 85470MS

Exclusive

3-Bed Multi-Family House Plan with 2 Car Garage -1767 Sq Ft Per Unit

Heated S.F.
3,352
Units
2
Width
Depth

Floor Plan

Plan 85470MS

Main Level
Main Level
2nd Floor
2nd Floor

Plan 85470MS

M-F 9am-5pm EST |

1-203-761-8500

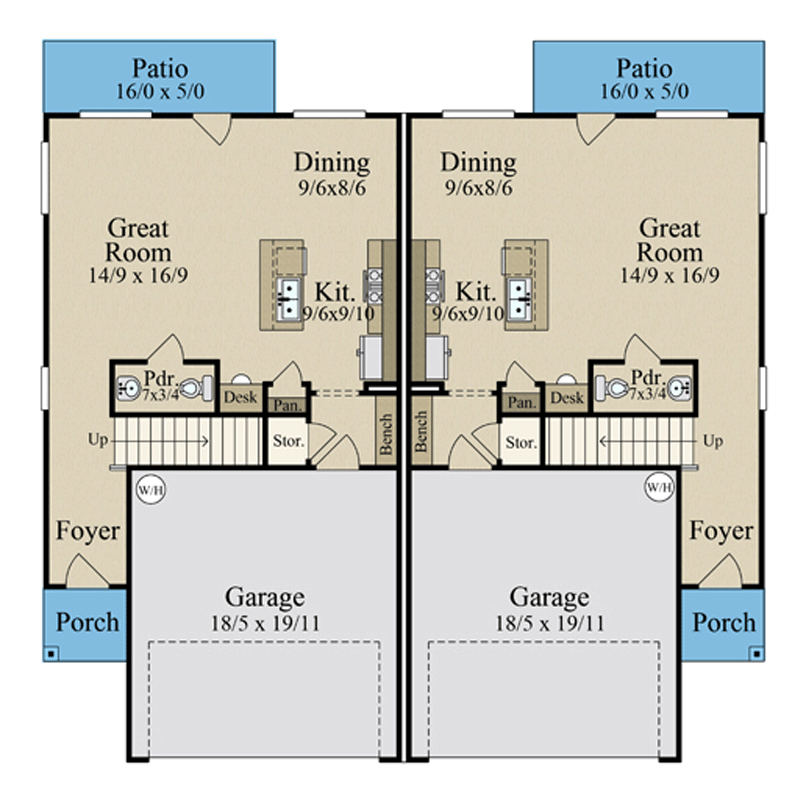

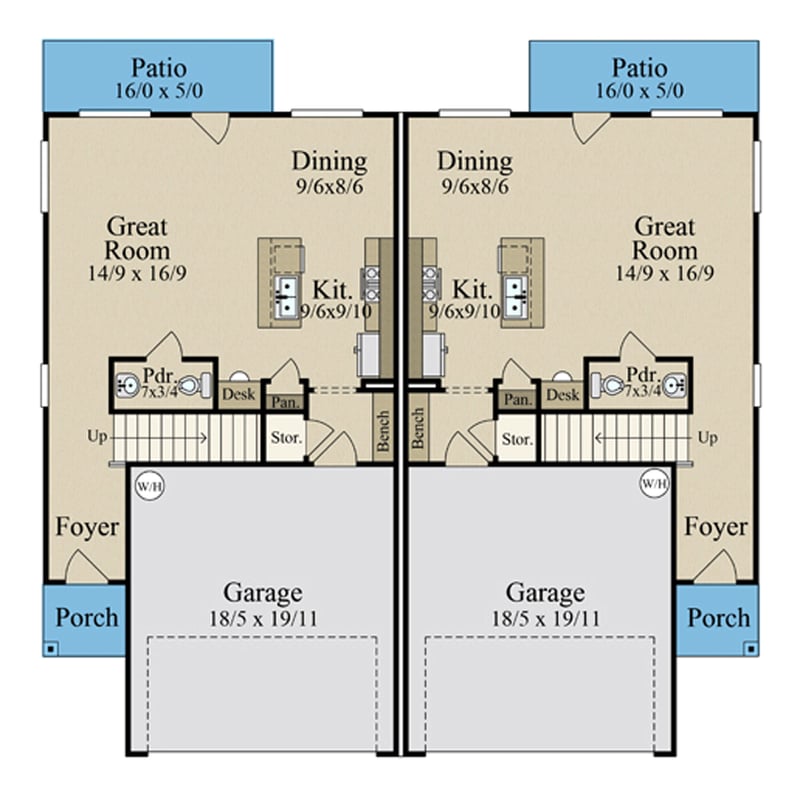

Main Level

Plan 85470MS: 3-Bed Multi-Family House Plan with 2 Car Garage -1767 Sq Ft Per Unit - Floor Plan - Main Level - Contemporary

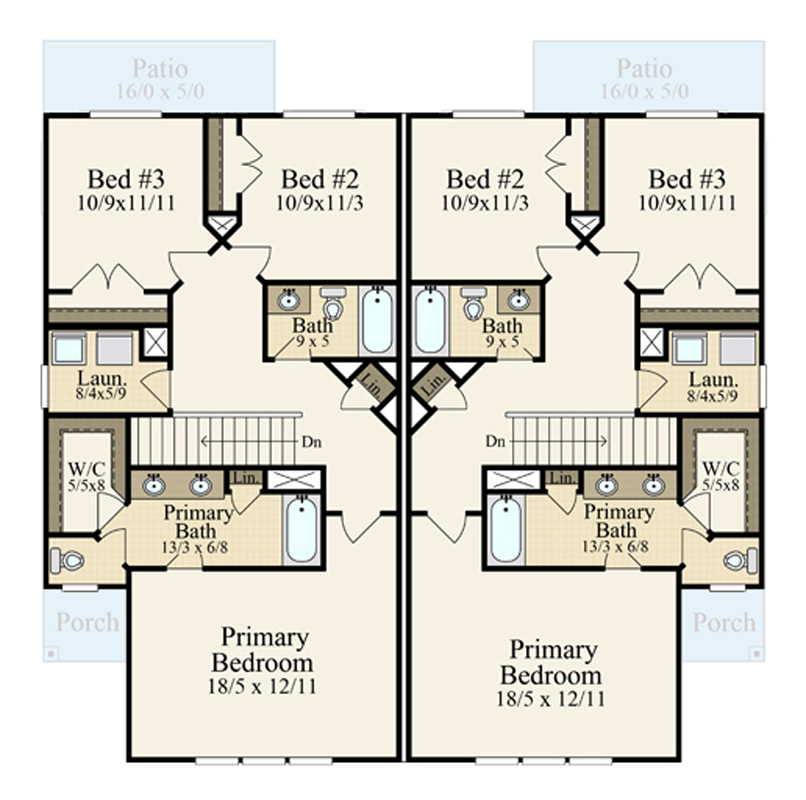

2nd Floor

Plan 85470MS: 3-Bed Multi-Family House Plan with 2 Car Garage -1767 Sq Ft Per Unit - Floor Plan - 2nd Floor - Contemporary

Plan Details

  • This duplex house plan gives you 2 units each with 1,767 square feet of heated living space (665 sq. ft. on the first floor, 1011 sq. ft. on the second floor), 3 beds,  2.5 baths and a 384 sq. ft. 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,767Sq. Ft.
665 Sq. Ft. 1st
1011 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
384 Sq. Ft.
Dimensions
25'width
50'depth
Unfinished Areas
384 Sq. Ft. Garage
Unit B
Heated Area
1,767Sq. Ft.
665 Sq. Ft. 1st
1011 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
384 Sq. Ft.
Dimensions
25'width
50'depth
Unfinished Areas
80 Sq. Ft. Porch, Rear
384 Sq. Ft. Garage

What's Included

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,352 sq. ft.

1st Floor

1,330 sq. ft.

2nd Floor

2,022 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

50' 0"

Max Ridge Height

30' 1"

Garage

Type

Attached

Count

4 Cars

Entry Location

Front

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

3,352 sq. ft.

1st Floor

1,330 sq. ft.

2nd Floor

2,022 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

50' 0"

Max Ridge Height

30' 1"

Garage

Type

Attached

Count

4 Cars

Entry Location

Front

Architectural Style

Contemporary

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Plan Collections

Exclusive
