Plan 430074LY

3-Bed New American Craftsman Plan with Split Bedrooms and Home Office

Heated S.F.
2,815
Beds
3
Baths
3.5
Stories
1
Cars
3
Client Photos

Floor Plan

Plan 430074LY

Main Level
Main Level

Plan 430074LY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

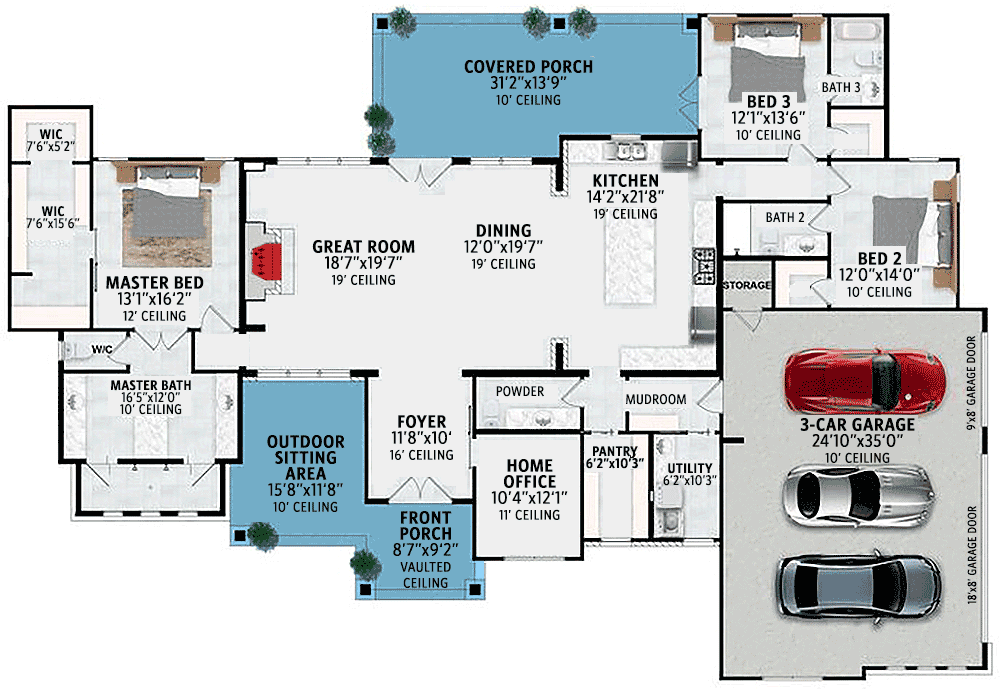

Plan 430074LY: 3-Bed New American Craftsman Plan with Split Bedrooms and Home Office - Floor Plan - Main Level - Craftsman, Hill Country, New American, Ranch, Rustic

Plan Details

  • A multitude of timber-framed gables line the front elevation of this 3-bedroom, New American Craftsman home plan, while front and rear porches allow you take in the surrounding scenery from all angles.
  • Inside, the combined great room and dining area is drenched in natural lighting, and an oversized opening connects the kitchen to the communal spaces. Cooking is a delight in this kitchen with its spacious prep island, large range, and nearby walk-in pantry.
  • The master bedroom is privately located on the left side of the design and features a walk-in closet for a good-sized wardrobe and a deluxe ensuite with a 2-person shower.
  • Bedrooms 2 and 3 reside on the opposite side of the home, each with their own full bath and walk-in closet.
  • Enter from the 3-car garage to find a mudroom with a powder bath and laundry room next door. A home office near the foyer completes the design.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Exclusive House Plan 430074LY Comes to Life in Texas

Exclusive House Plan 430074LY Comes to Life in Texas

54

Photos

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,815 sq. ft.

1st Floor

2,815 sq. ft.

Porch, Front

303 sq. ft.

Covered Patio

401 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 10"

Depth

63' 10"

Garage

Type

Attached

Area

897 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Architectural Style

Craftsman

Hill Country

New American

Ranch

Rustic

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Home Office

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,815 sq. ft.

1st Floor

2,815 sq. ft.

Porch, Front

303 sq. ft.

Covered Patio

401 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 10"

Depth

63' 10"

Garage

Type

Attached

Area

897 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

9 on 12

Architectural Style

Craftsman

Hill Country

New American

Ranch

Rustic

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Home Office

Photo Gallery
