Plan 871020JEN
3-Bed New American Home Plan with Basement Built for Entertaining
Heated S.F.
5,684
Beds
3
Baths
4.5+
Stories
3
Cars
3
What's Included
Plan Details

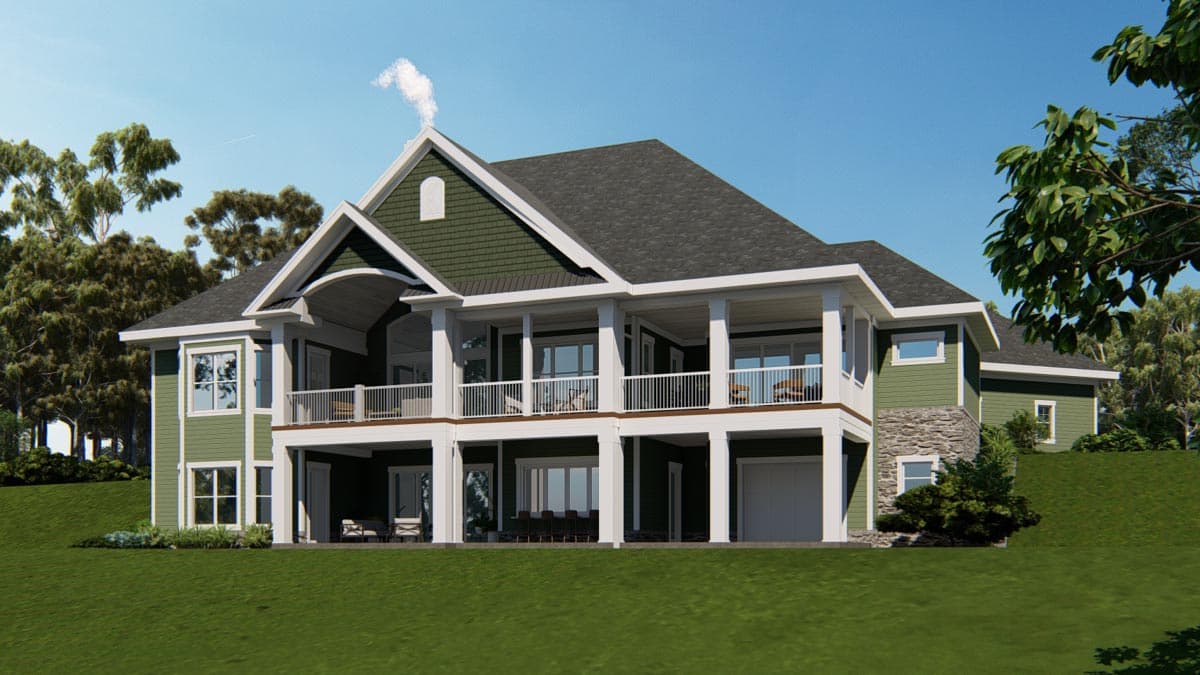

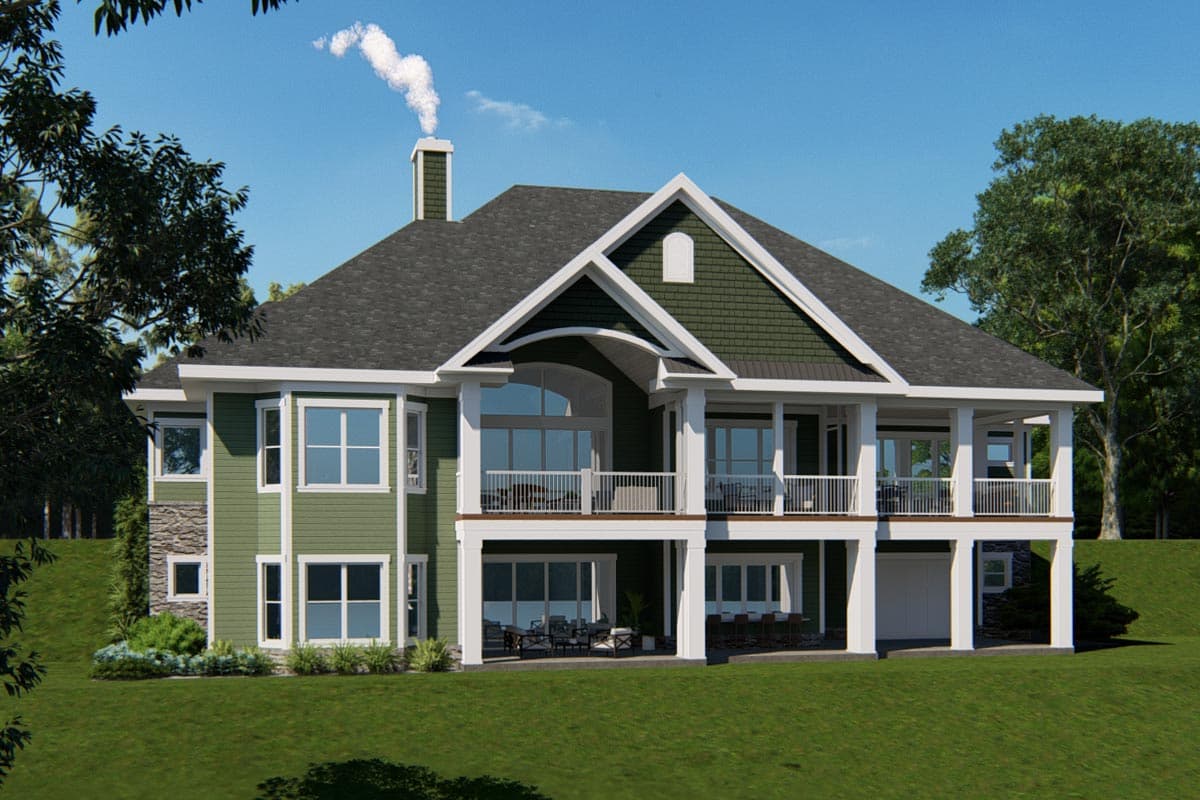

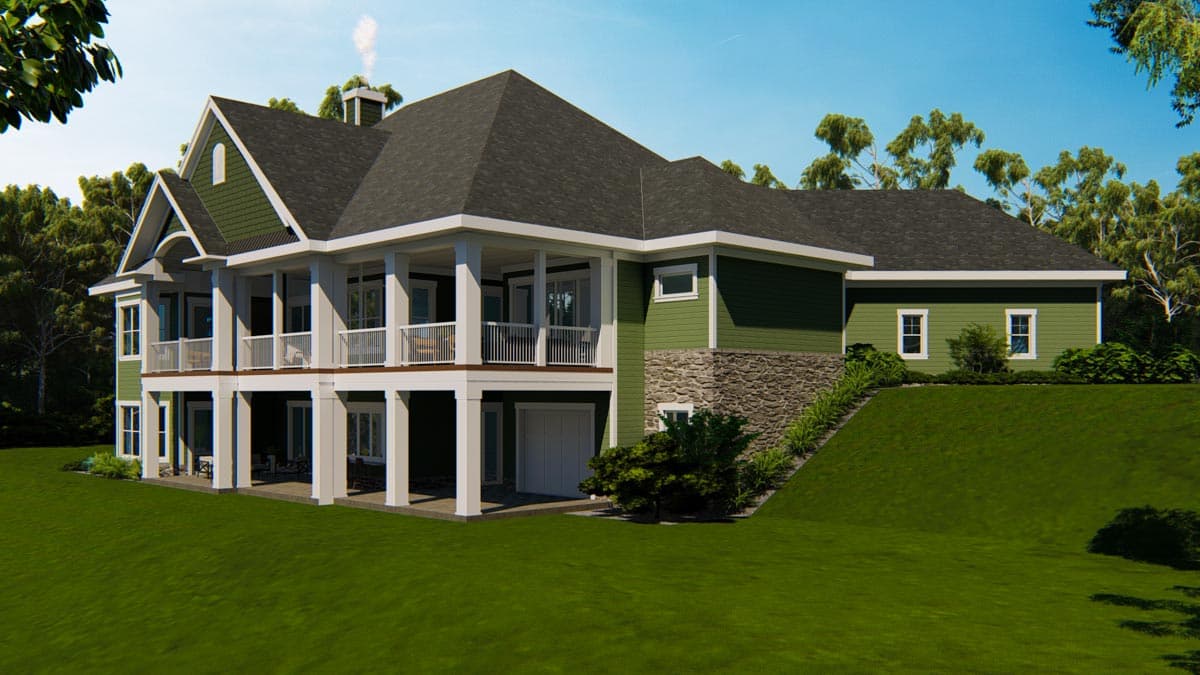

  • This 3-bed New American home plan is designed with a rear walkout basement making it perfect for your sloping lot.
  • The open floor plan with cathedral ceilings provides an expansiveness at the heart of the home, and the two-island kitchen provides an abundance of work space for multiple chefs.
  • The partially-screened outdoor living space provides a constant source of natural inspiration, while a library / music room offers a quieter space for creativity.
  • A bay window provides a sitting nook in the privately-situated master bedroom that boasts an ensuite with dual sinks, a soaking tub, stand-up shower, and separate his and hers walk-in closets.

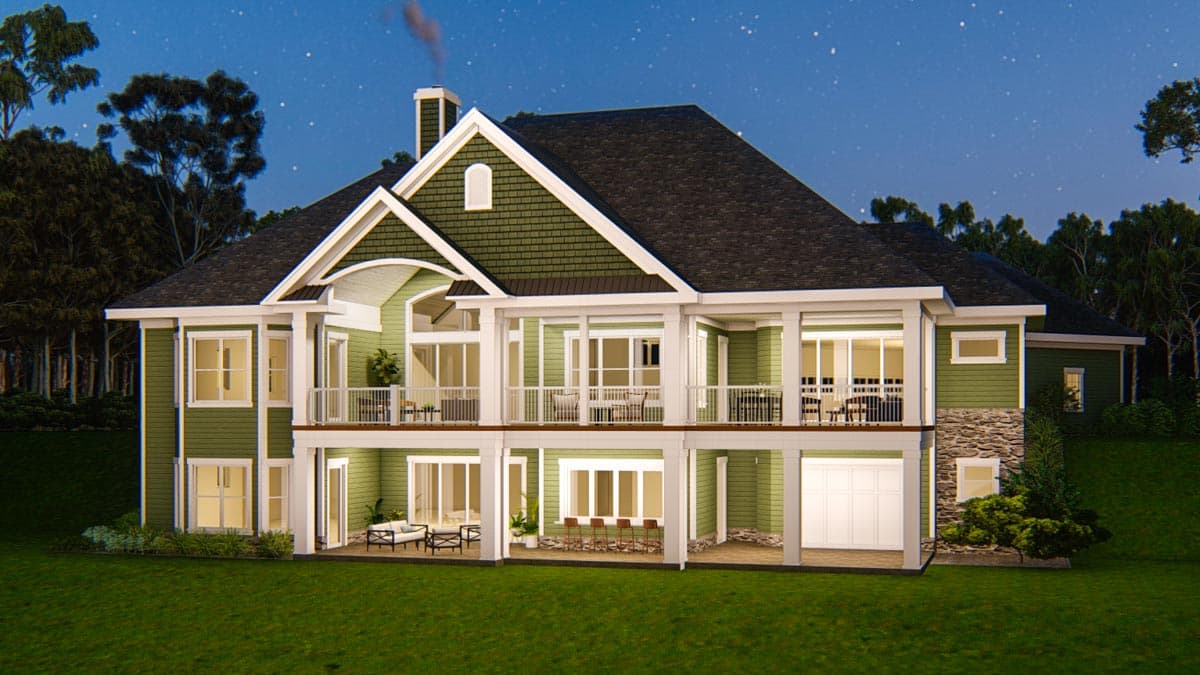

  • The lower level is a dream for entertainers with its built-in bar that connects to the covered patio. A large rec room, game room, and unfinished shop can also be found downstairs.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.
What's Included
  • Foundation plan
  • Detailed floor plans
  • Roof plan

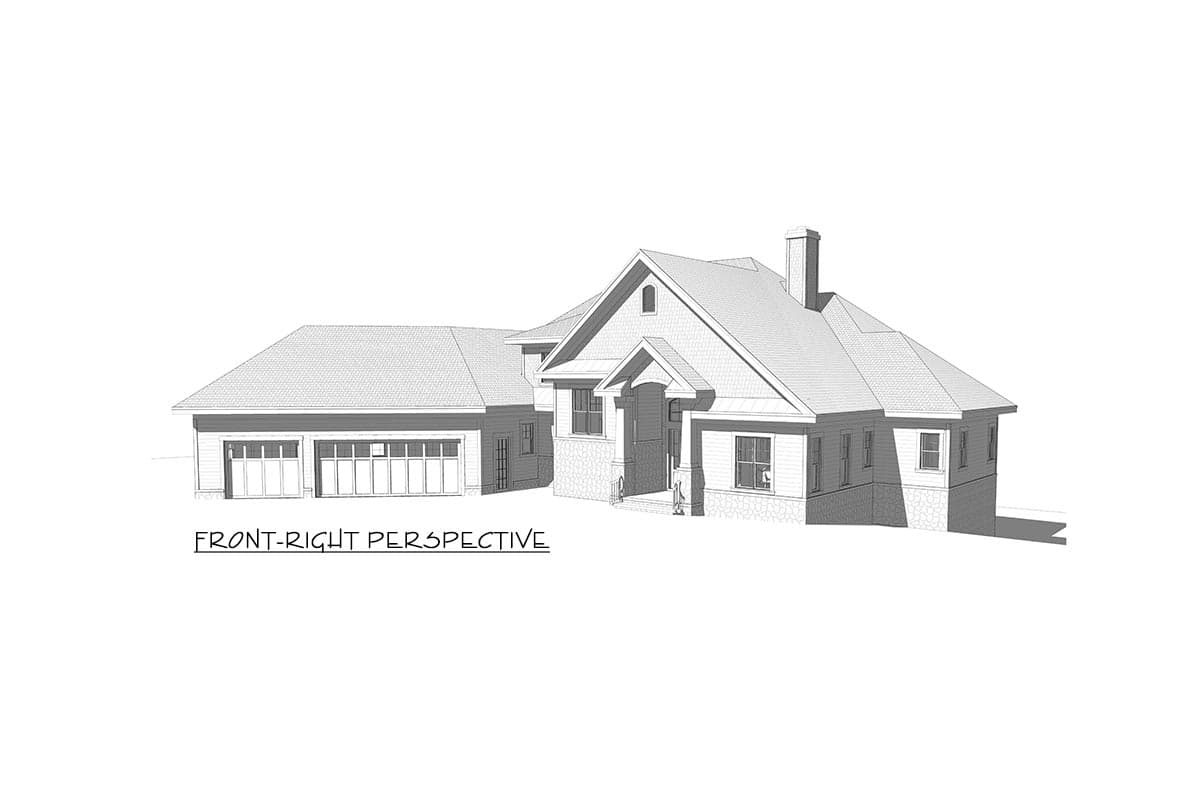

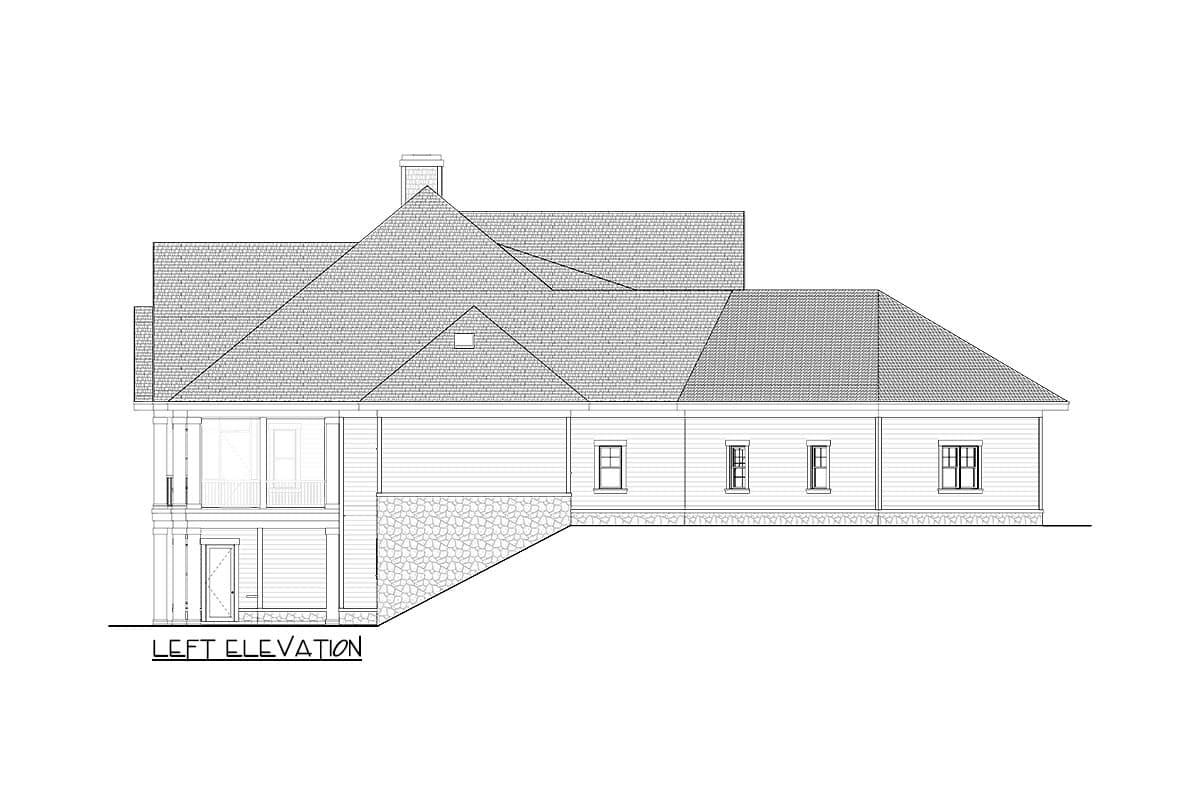

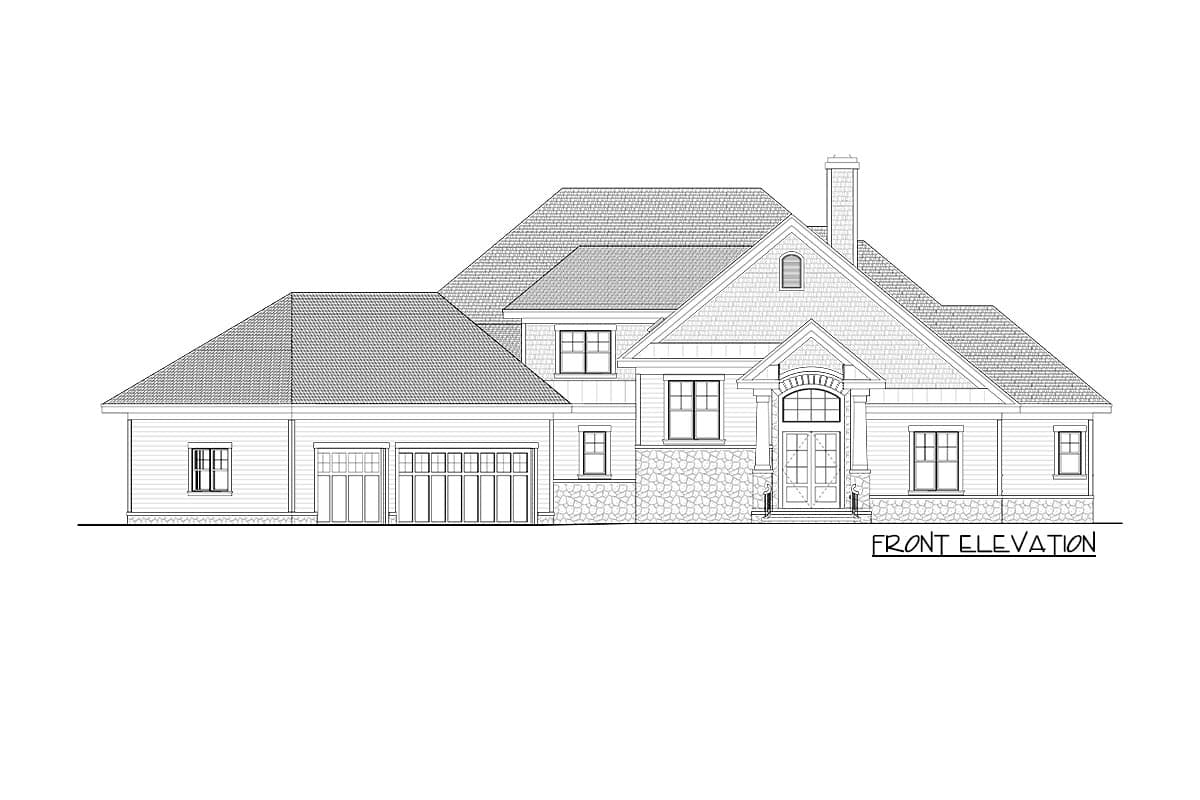

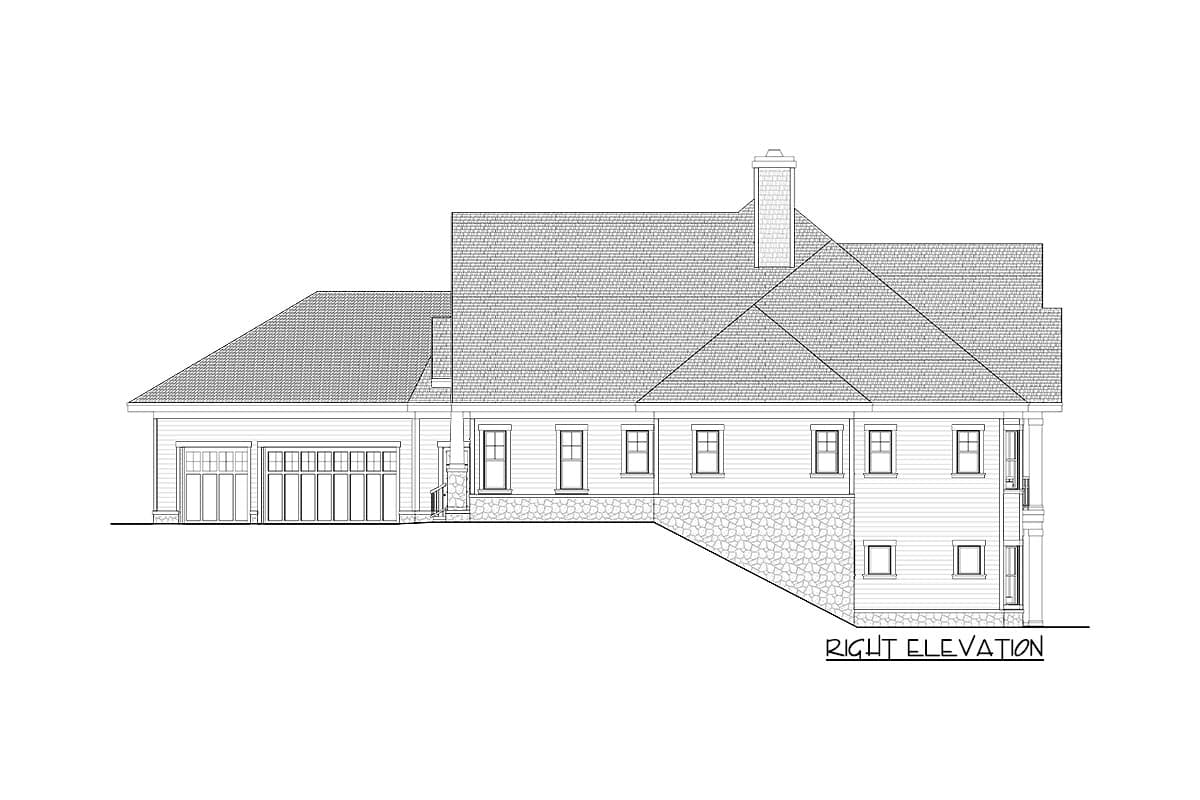

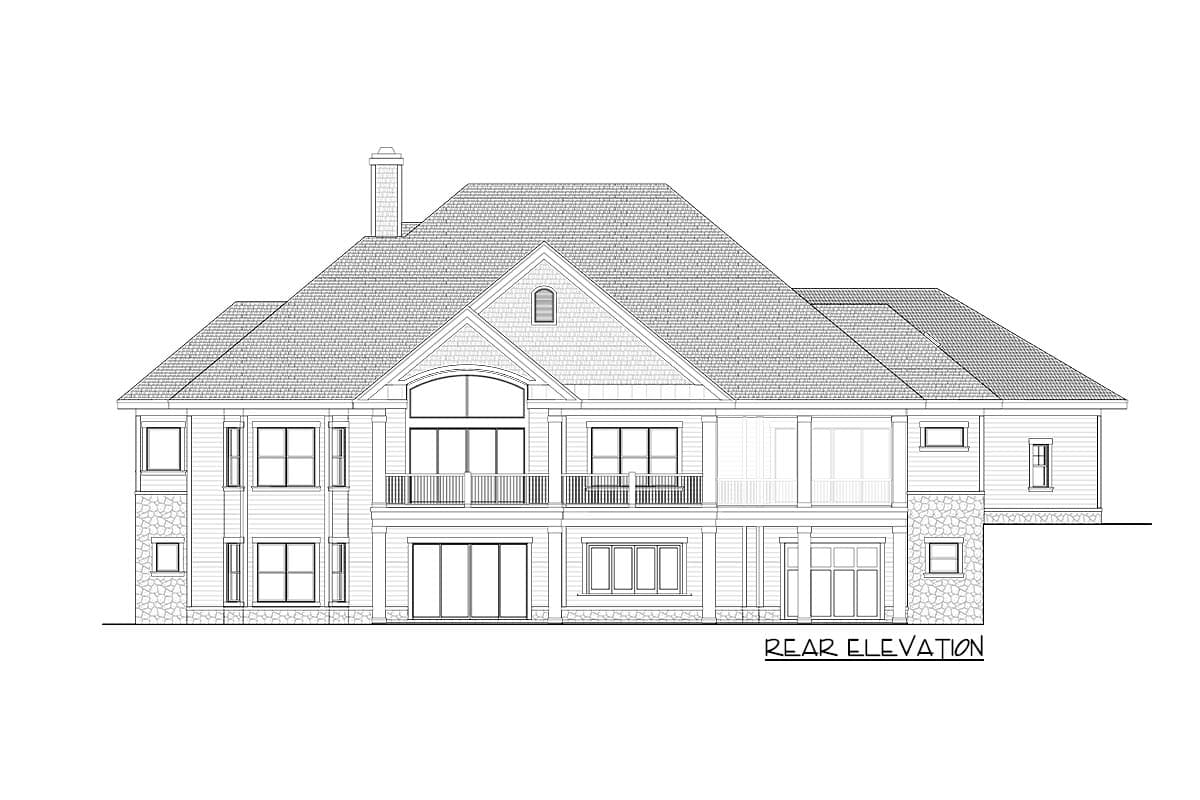

  • Elevations (all four sides)
  • Sections

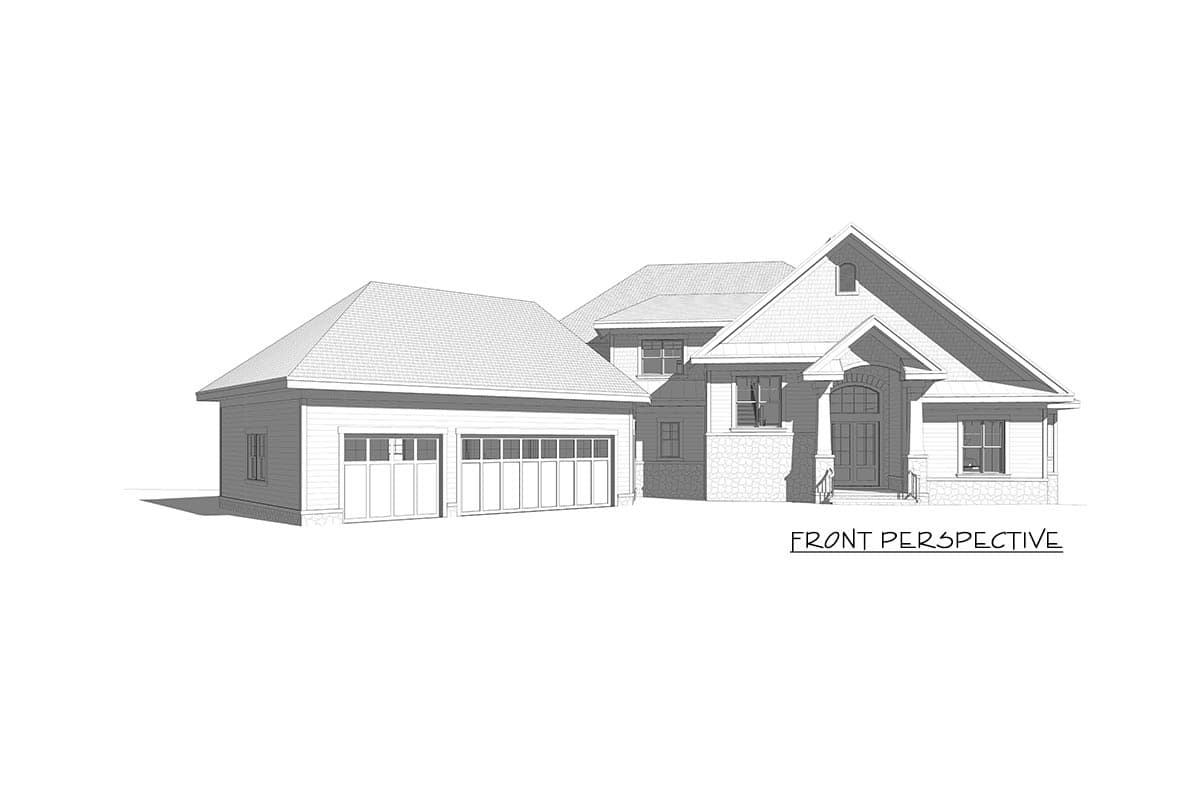

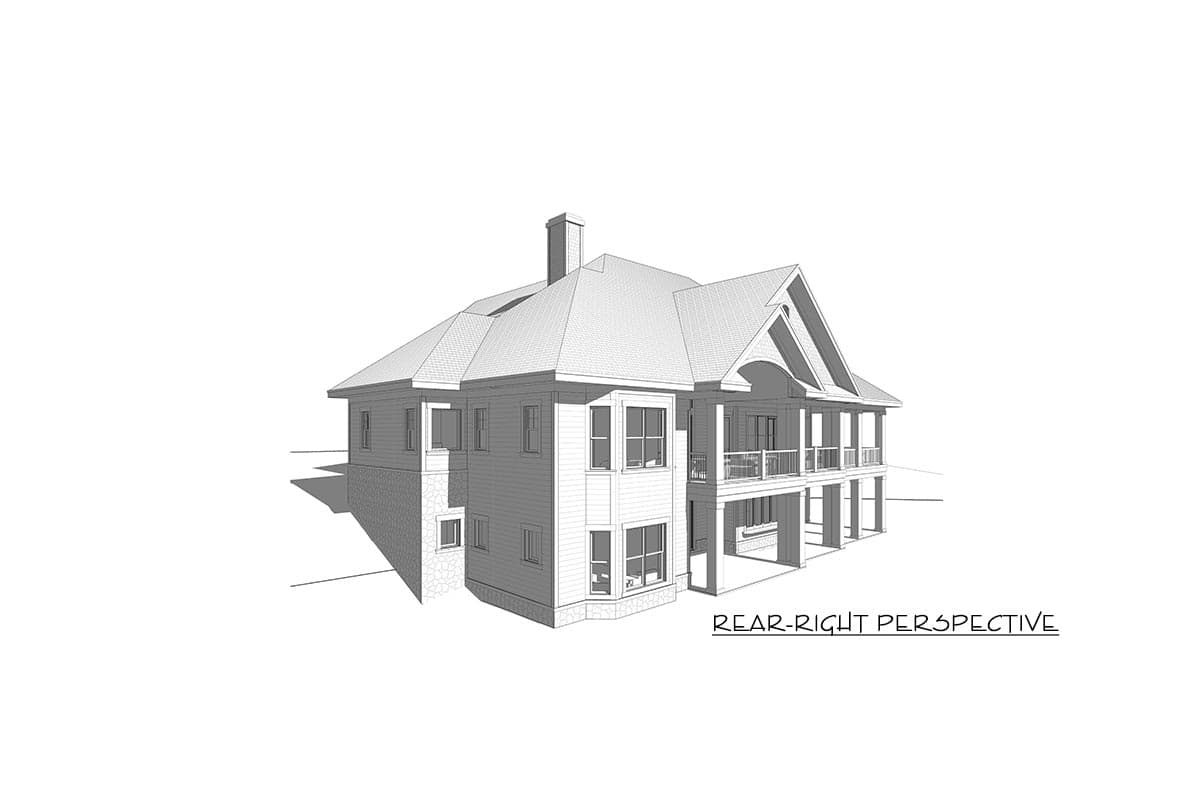

  • 3D model views
  • Electrical plans
  • Framing details
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed New American Home Plan with Basement Built for Entertaining

  • 5,684

    Heated s.f.

  • 3

    Beds

  • 4.5+

    Baths

  • 3

    Floors

  • 3

    Car garage

Floor Plan

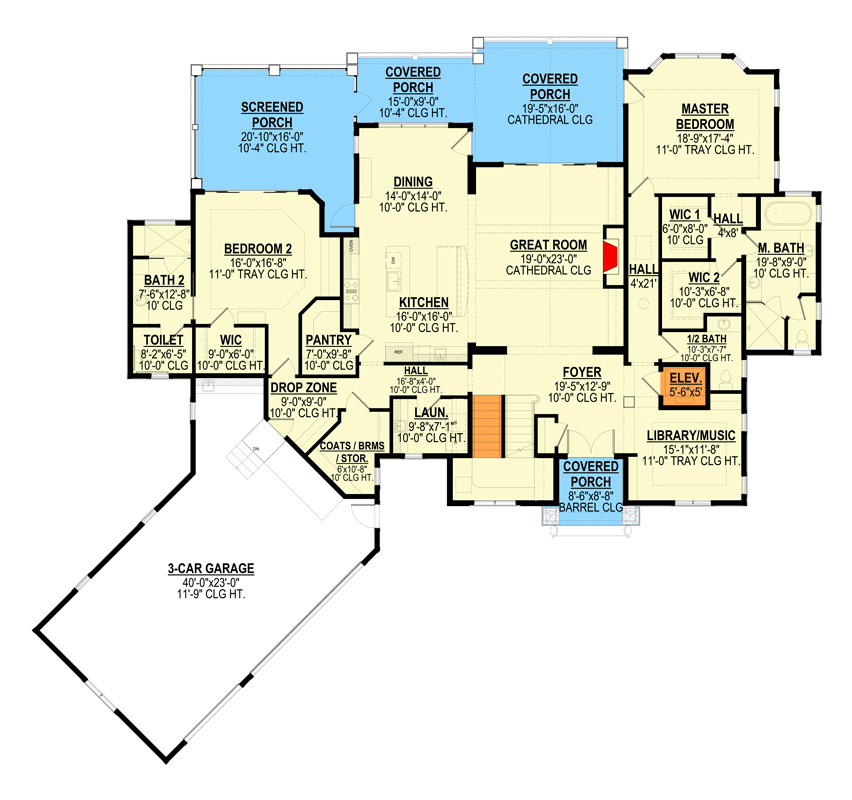

  • Main Level

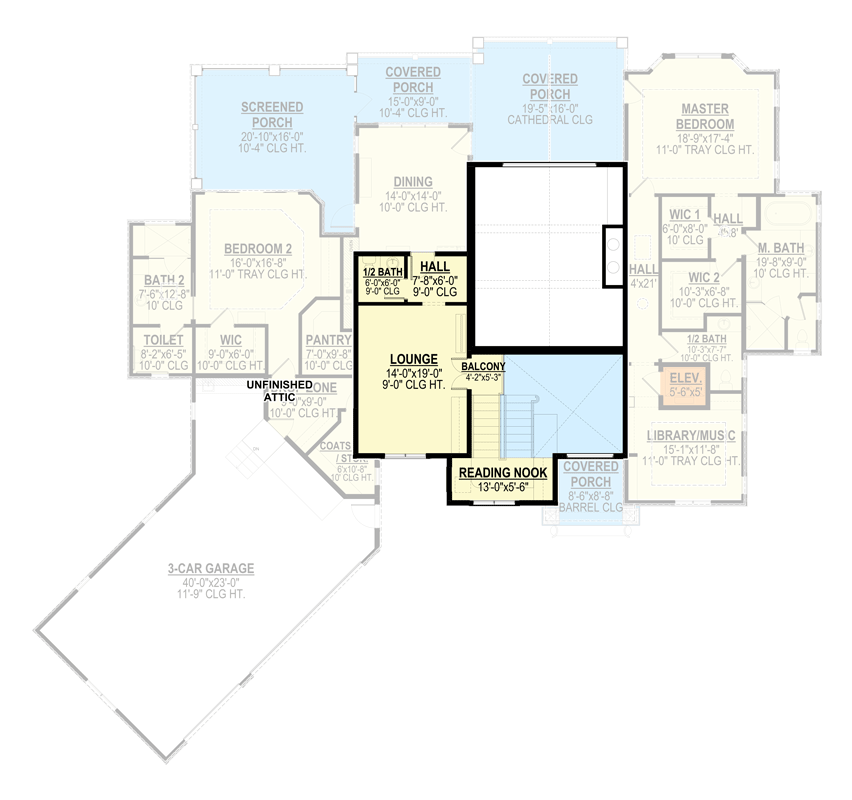

  • 2nd Floor

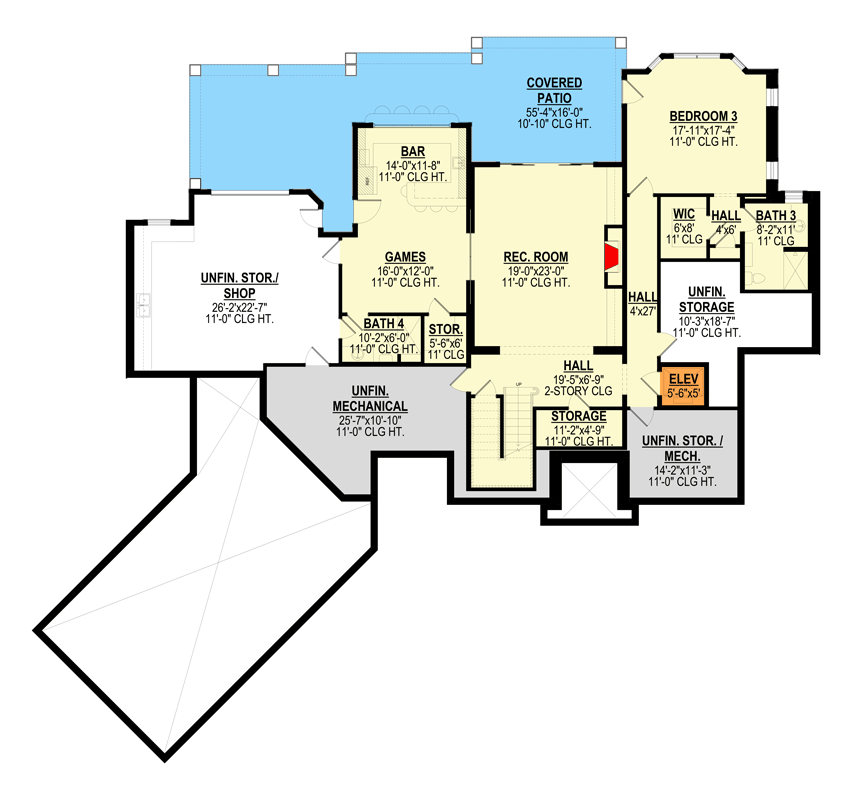

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 5,684 sq. ft.
  • Lower Level: 1,929 sq. ft.
  • 1st Floor: 3,333 sq. ft.
  • 2nd Floor: 422 sq. ft.

Dimensions

  • Width: 100' 5"
  • Depth: 92' 7"
  • Max ridge height: 33' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1035 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
