3-Bed Ranch House Plan
Heated S.F.
1,657
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This lovely, 3-bedroom, ranch house plan provides simple living at its finest. A wide, front porch enhances curb appeal and invites you to enjoy the outdoors.
  • The heart of this home greets you upon entering, providing a desirable, open layout. A large island in the kitchen offers plenty of workspace, and sliding doors near the breakfast nook lead to the back of the property.
  • Split bedrooms add privacy in this design. The master suite resides on one side of the home, and features dual closets and a 4-fixture bathroom.
  • Two additional bedrooms, located on the other side of the home, are separated by a full bathroom.
  • The 2-car, garage entry leads to the utility room with a coat closet.
What's Included
  • Cover Sheet
  • Sections and Plan Details
  • Foundation Plan and Details

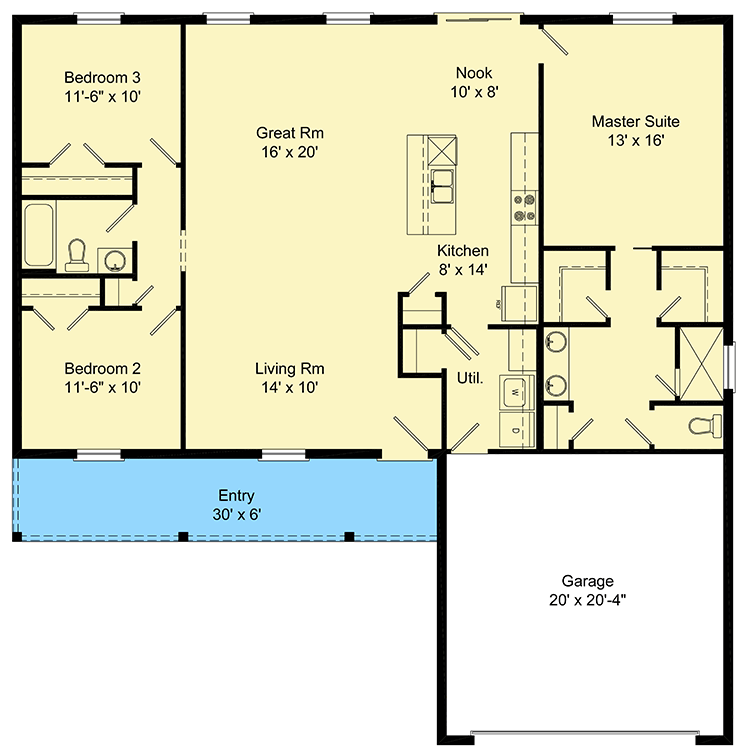

  • Floor Plan

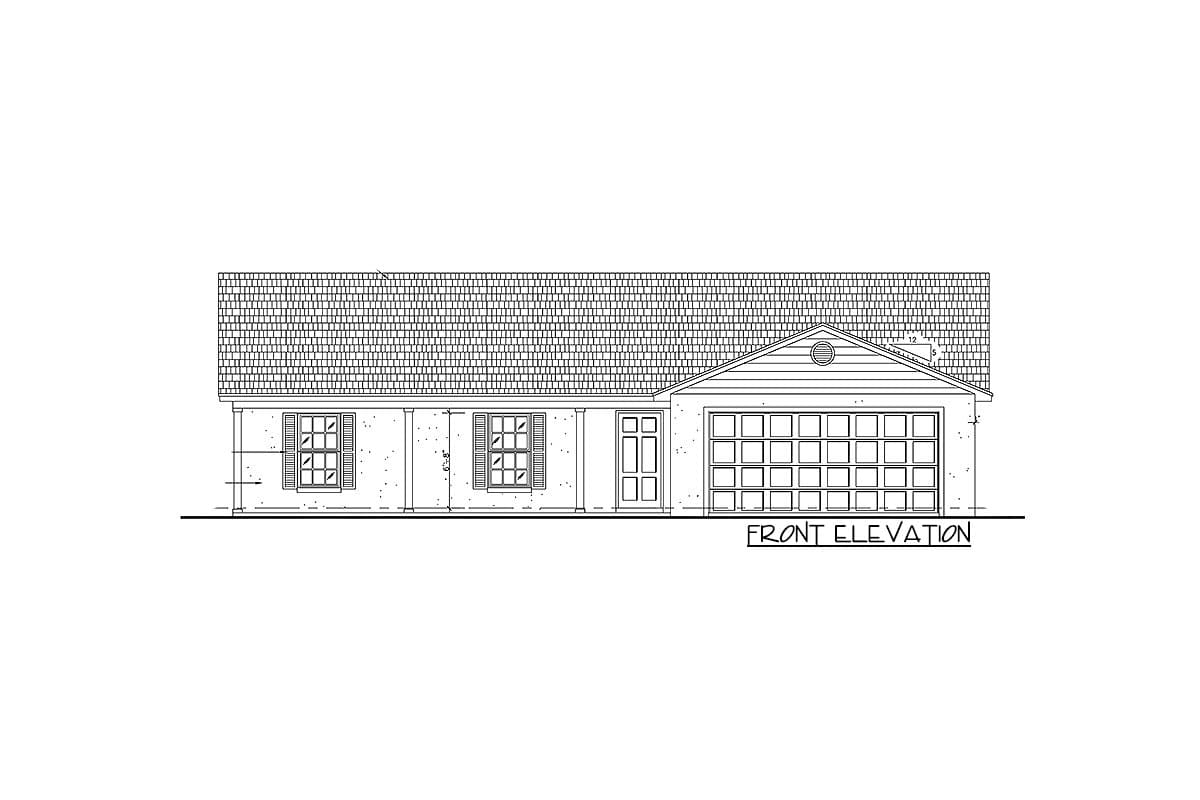

  • Exterior Elevations
  • Electrical Plan
  • Roof Plan
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Ranch House Plan

  • 1,657

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,657 sq. ft.
  • 1st Floor: 1,657 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 52' 8"
  • Max ridge height: 16' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 448 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
