Plan 580036DFT

Exclusive

3-Bed Ranch Plan under 2,800 Square Feet of Living Space

Heated S.F.
2,760
Beds
3
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 580036DFT

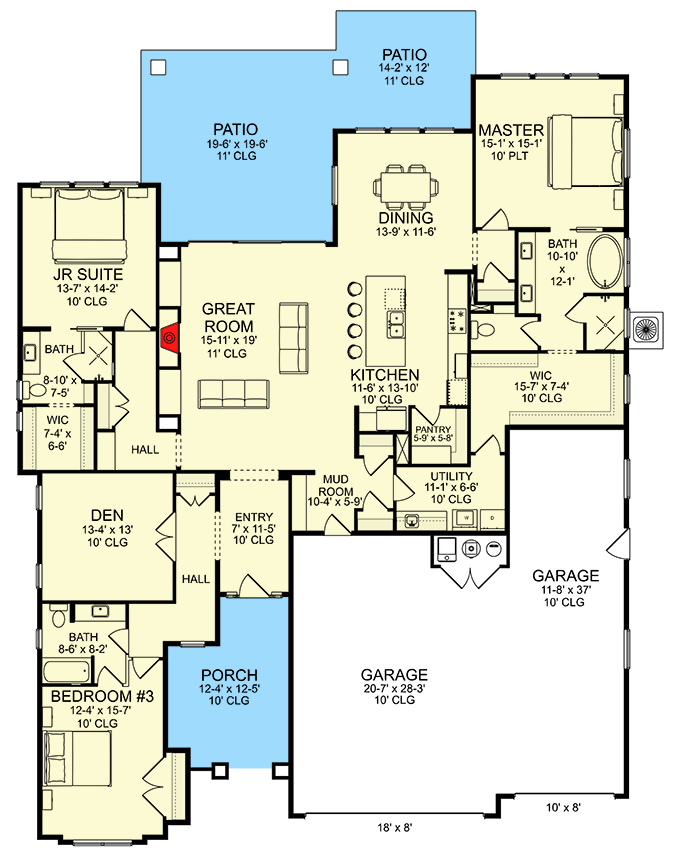

Main Level
Main Level

Plan 580036DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 580036DFT: 3-Bed Ranch Plan under 2,800 Square Feet of Living Space - Floor Plan - Main Level - Craftsman, New American, Ranch

Plan Details

  • This 3-bedroom Ranch plan provides one-level living at its finest with thoughtful design touches throughout the home.
  • A front porch welcomes you inside to find a quiet den to the left, down the hall from a bedroom suite.
  • The great room, kitchen, and dining area are open to one another with an oversized sliding door that expands the living space onto the rear patio.
  • Grab a snack or light meal at the kitchen island's eating bar and the nearby walk-in pantry will delight homeowner's that buy in bulk.
  • The master bedroom is privately situated away from the secondary bedrooms and includes access to the laundry room through the walk-in closet.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

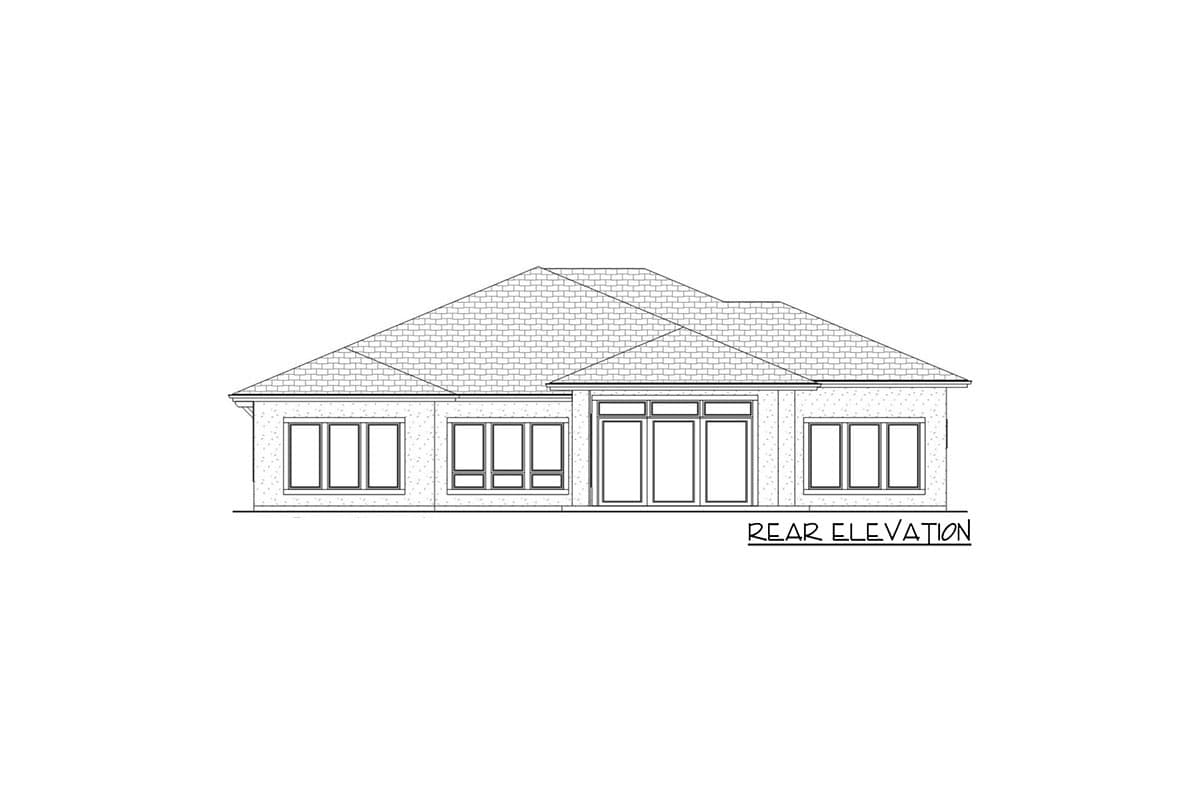

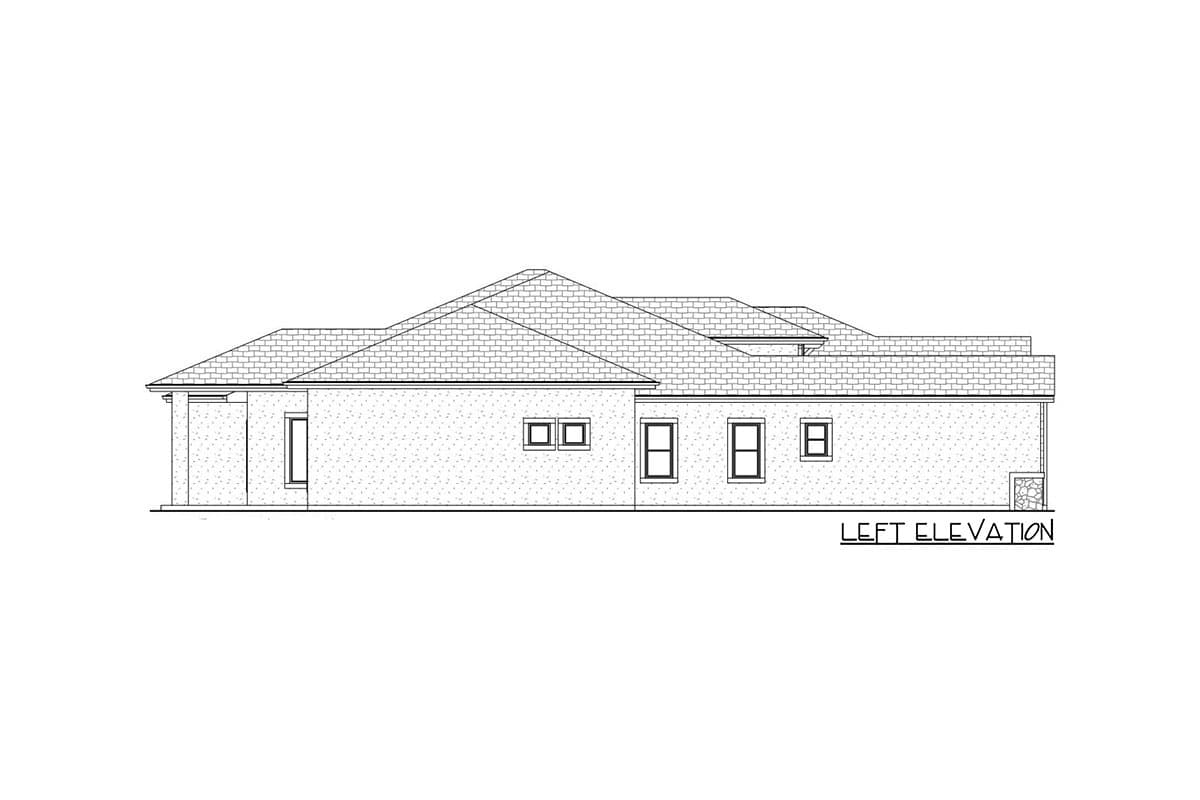

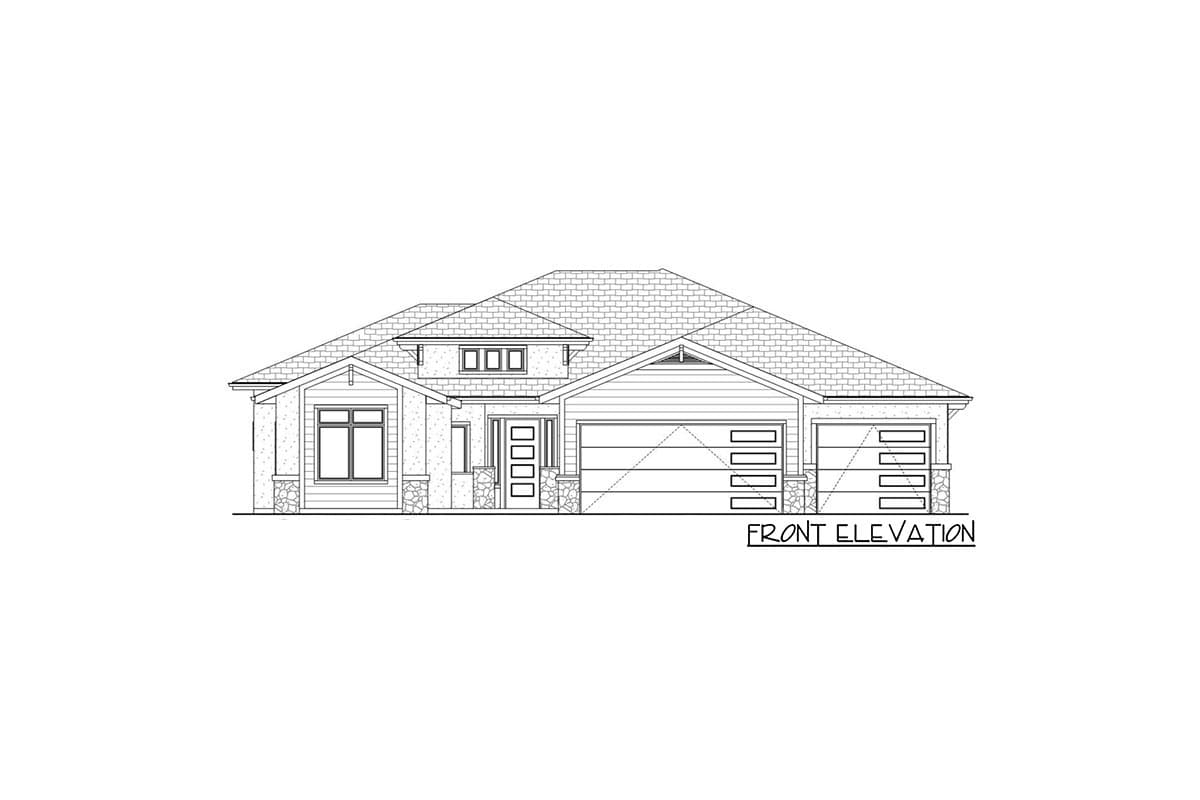

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,760 sq. ft.

1st Floor

2,760 sq. ft.

Porch, Front

35 sq. ft.

Covered Patio

347 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

79' 8"

Garage

Type

Attached

Area

1091 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Den

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Master Suites

Walk-in Pantry

Plan Collections

Exclusive

Home Office

Two Master Suites

Square Footage Breakdown

Total Heated Area

2,760 sq. ft.

1st Floor

2,760 sq. ft.

Porch, Front

35 sq. ft.

Covered Patio

347 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 0"

Depth

79' 8"

Garage

Type

Attached

Area

1091 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Den

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Two Master Suites

Walk-in Pantry

Plan Collections

Exclusive

Home Office

Two Master Suites
