Plan 68897VR
3-Bed Ranch Plan with Vaulted Living Room
Heated S.F.
1,251
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Enjoy easy living in this simple, 3-bedroom Ranch home plan; a total of 1,247 square feet. An open-gable front porch welcomes you inside.
  • The vaulted ceiling on the front porch carries through the living room, which connects with the eat-in kitchen.
  • A peninsula-style eating bar offers seating for five and links the kitchen with the living space, and a rear door opens to a small grilling porch.
  • The master bedroom occupies the right side of the design and features a large walk-in closet and a compartmentalized bathroom.
  • Bedrooms 2 and 3 are identical in size and share the hall bath.
  • Related house plans: Remove the garage with house plan 68896VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Ranch Plan with Vaulted Living Room

  • 1,251

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

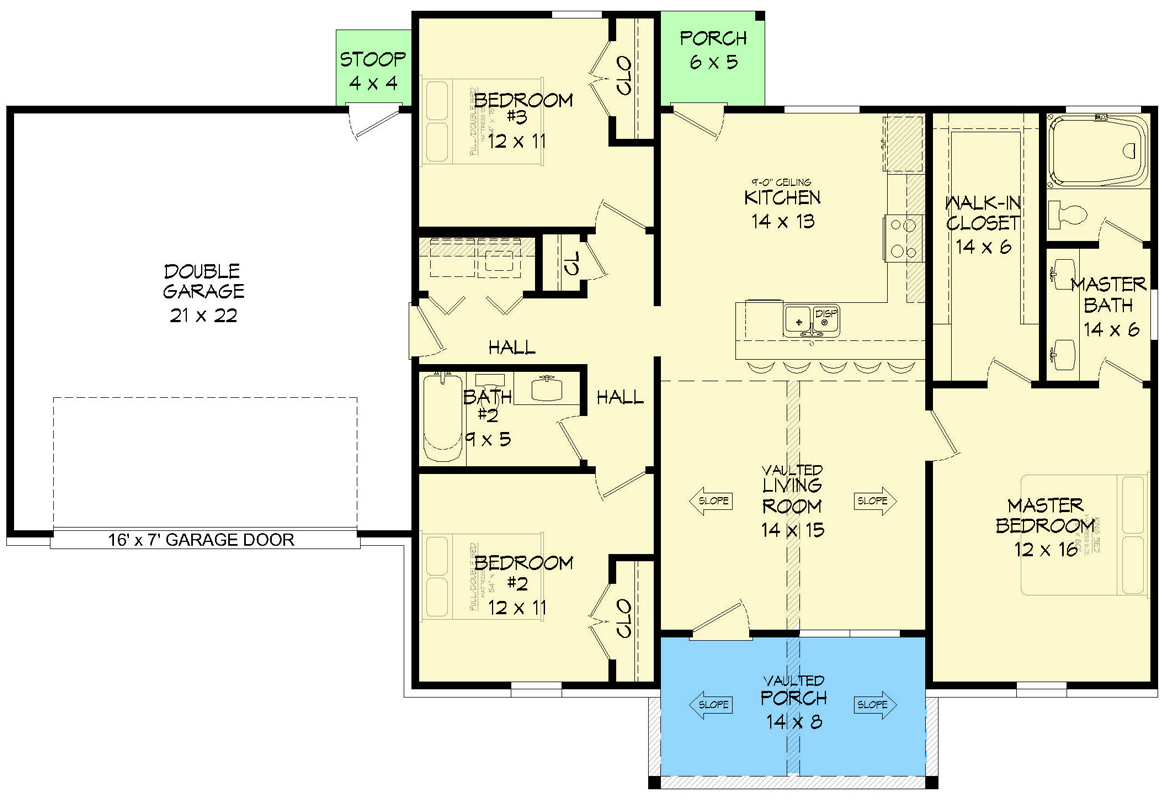

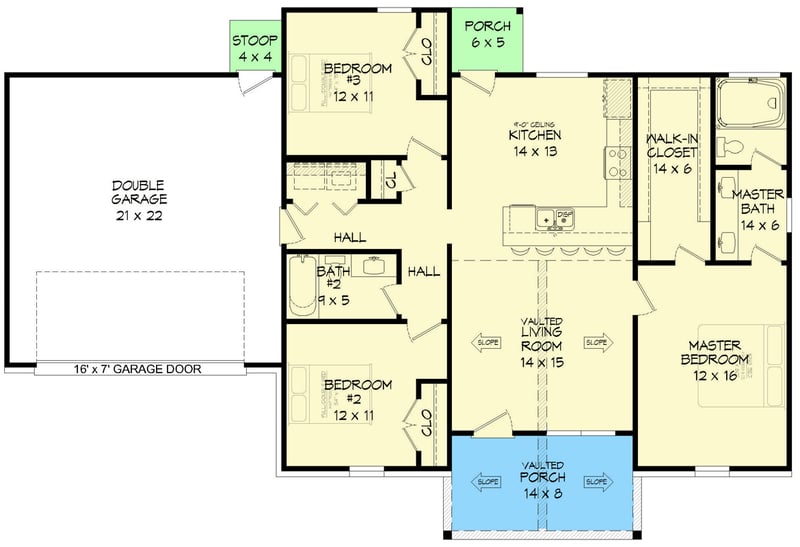

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,251 sq. ft.
  • 1st Floor: 1,251 sq. ft.

Dimensions

  • Width: 68' 8"
  • Depth: 41' 0"
  • Max ridge height: 18' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
  • Framing Type: Stick
