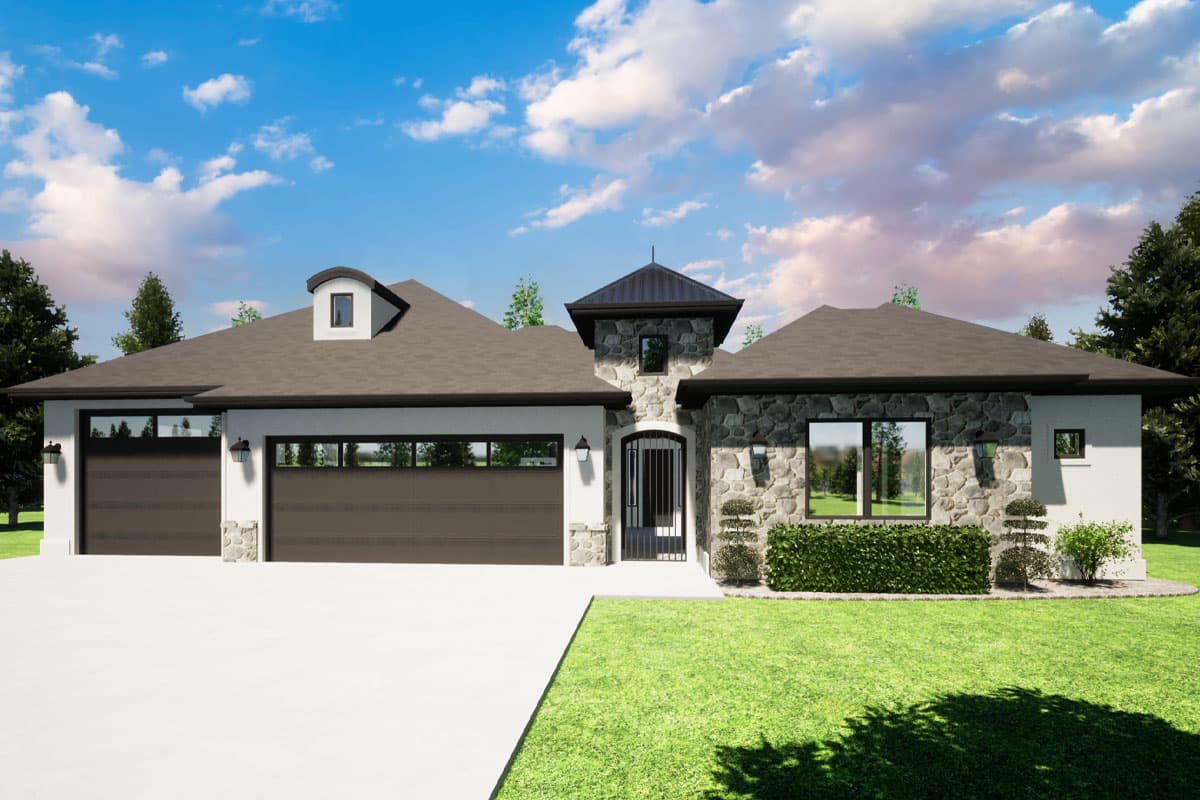

3-Bed Ranch with Open Concept Great Room and RV Garage - 2564 Sq FT

Heated S.F.
2,564
Beds
3
Baths
2.5
Stories
1
Cars
3

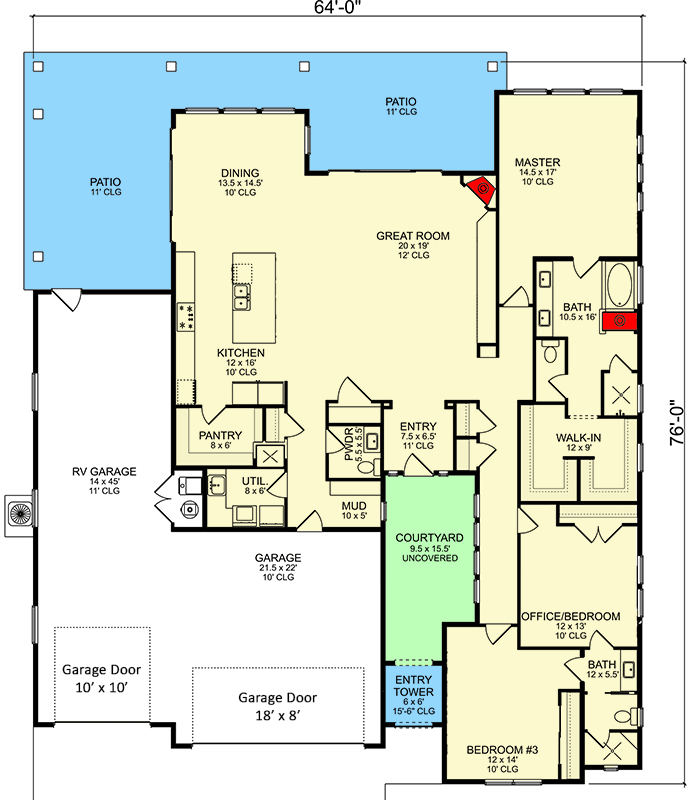

Floor Plan

Plan 580110DFT

Main Level
Main Level

Plan 580110DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 580110DFT: 3-Bed Ranch with Open Concept Great Room and RV Garage - 2564 Sq FT - Floor Plan - Main Level - European, Hill Country, Ranch, Tuscan

Plan Details

  • This 3 bed, 2 bath Tuscan home plan gives you 2,564 square feet of heated living and 3 car front load garage (1257 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

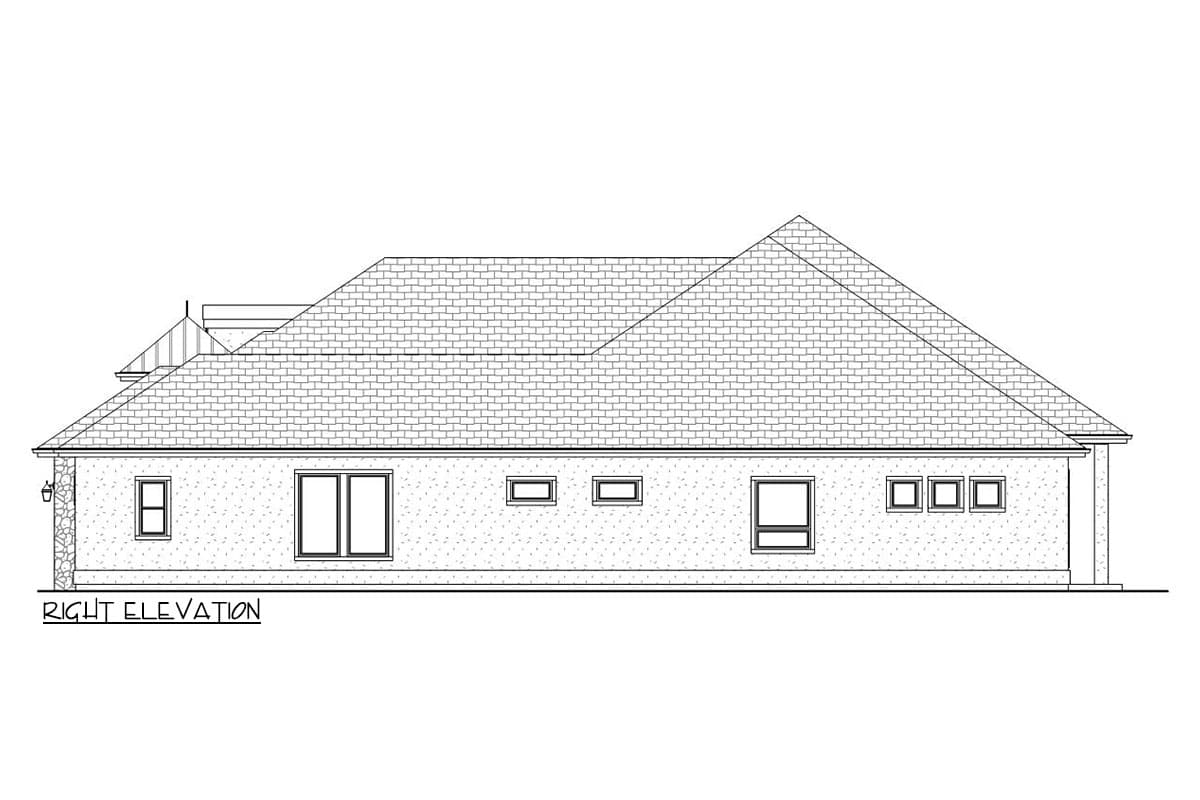

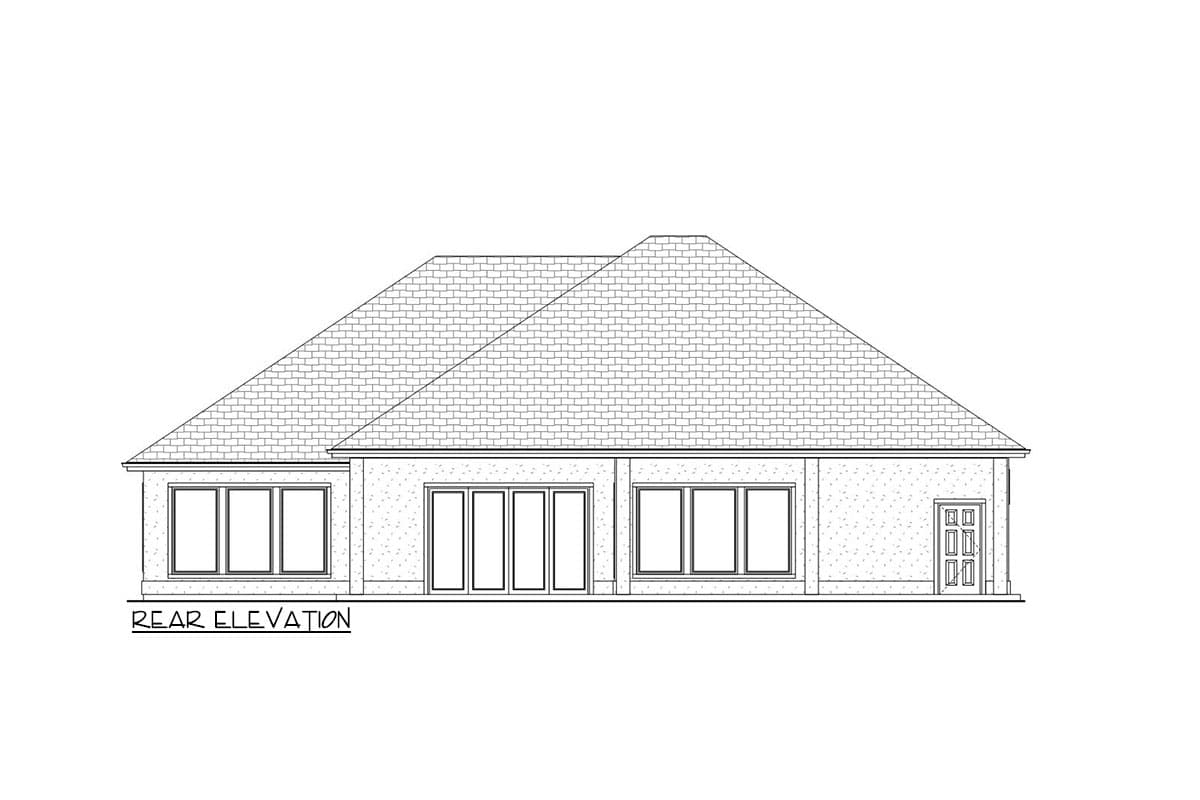

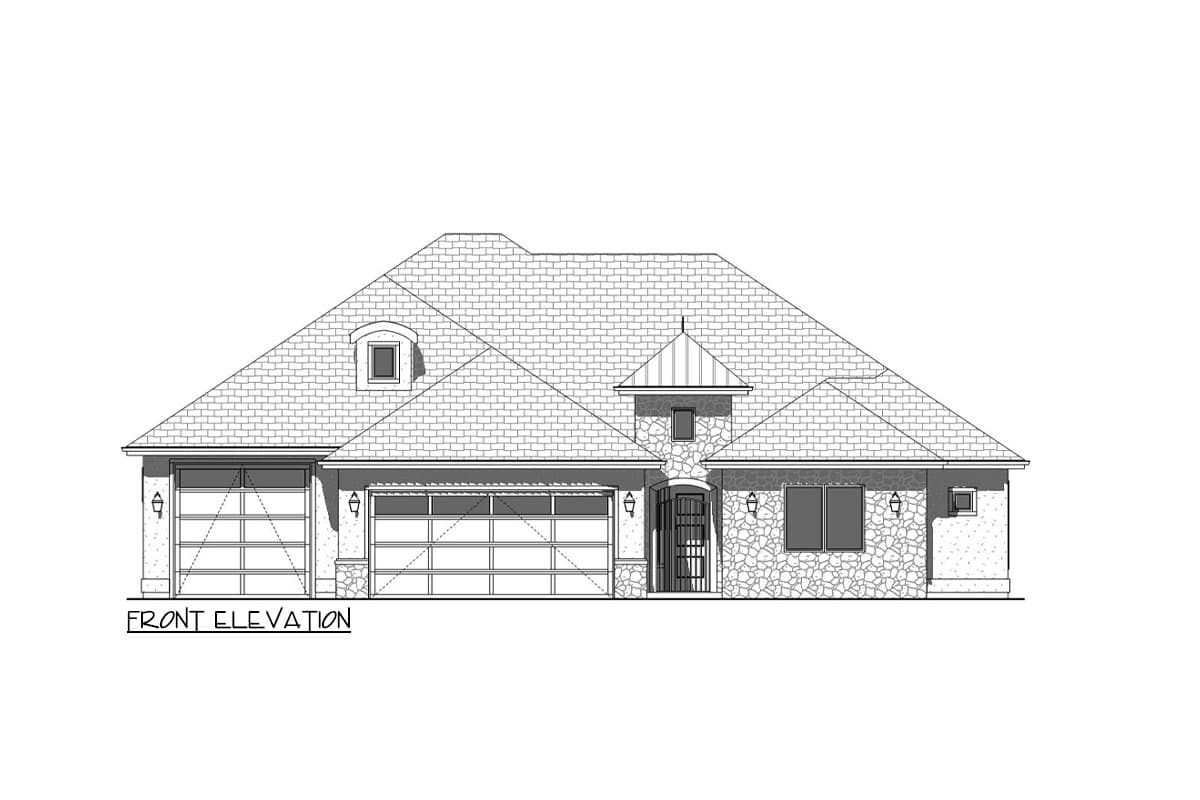

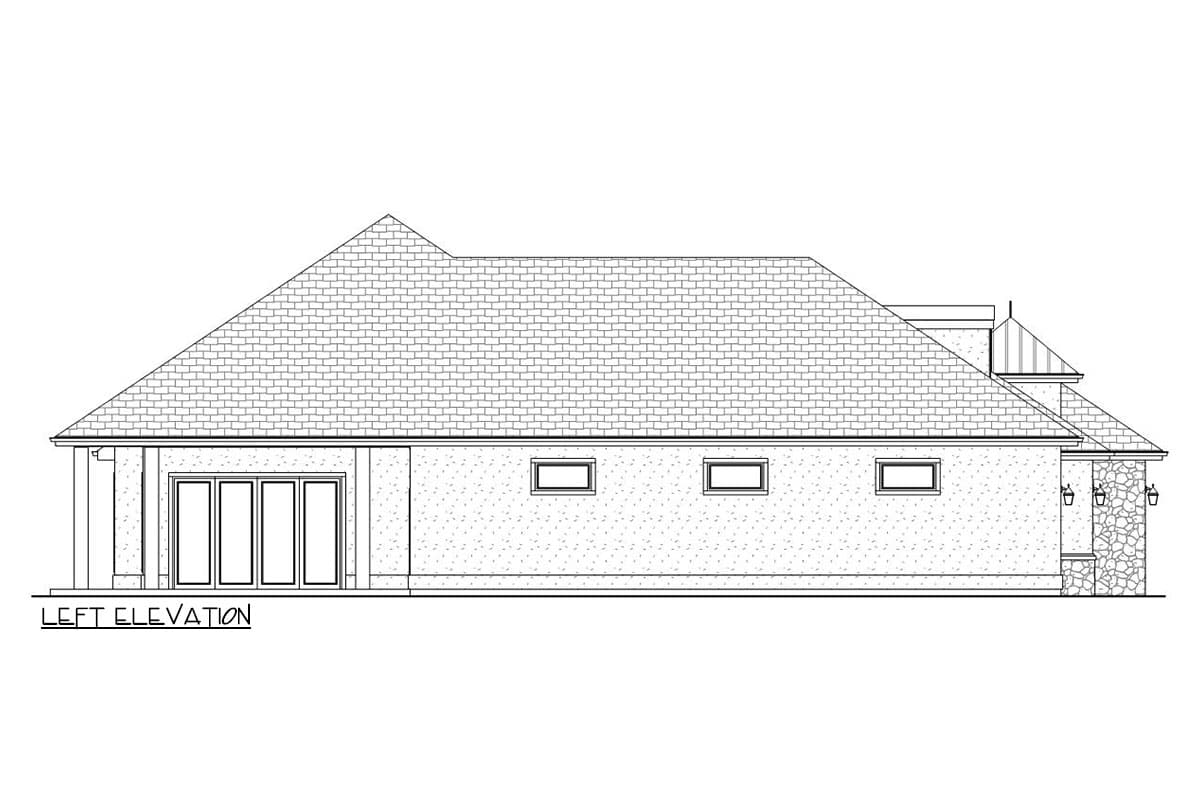

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,564 sq. ft.

1st Floor

2,564 sq. ft.

Porch, Front

42 sq. ft.

Covered Patio

807 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

76' 0"

Garage

Type

Attached

Area

1257 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

European

Hill Country

Ranch

Tuscan

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Courtyard

Flex Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,564 sq. ft.

1st Floor

2,564 sq. ft.

Porch, Front

42 sq. ft.

Covered Patio

807 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

76' 0"

Garage

Type

Attached

Area

1257 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

European

Hill Country

Ranch

Tuscan

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Courtyard

Flex Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
