Plan 22567DR 3-Bed Rugged Craftsman House Plan with 2-Car Attached Garage

3-Bed Rugged Craftsman House Plan with 2-Car Attached Garage

Plan 22567DR

  • 1,583

    Heated s.f.

  • 2-3

    Beds

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

  • Timbers, stone and clapboard siding grace the front of this 3-bed house plan, equally at home in the mountains or in a more urban environment.
  • The foyer gives you views straight through to the back of the home and a mudroom behind pocket doors gives you space to put coats and shoes, eliminating clutter from spreading to the main portion of the home.
  • Enjoy cathedral ceilings in back where an open concept floor plan combines the kitchen and living area into one entertaining space. Sliding doors on the back wall take you to the deck.
  • The bedrooms are clustered on the right side of the home. Bed 3 can be used as an office if needed.
  • The lower level gives you room to expand.
  • Related Plan: Get a 2-bed, 1-car version with house plan 22566DR.

Each plan includes the following:

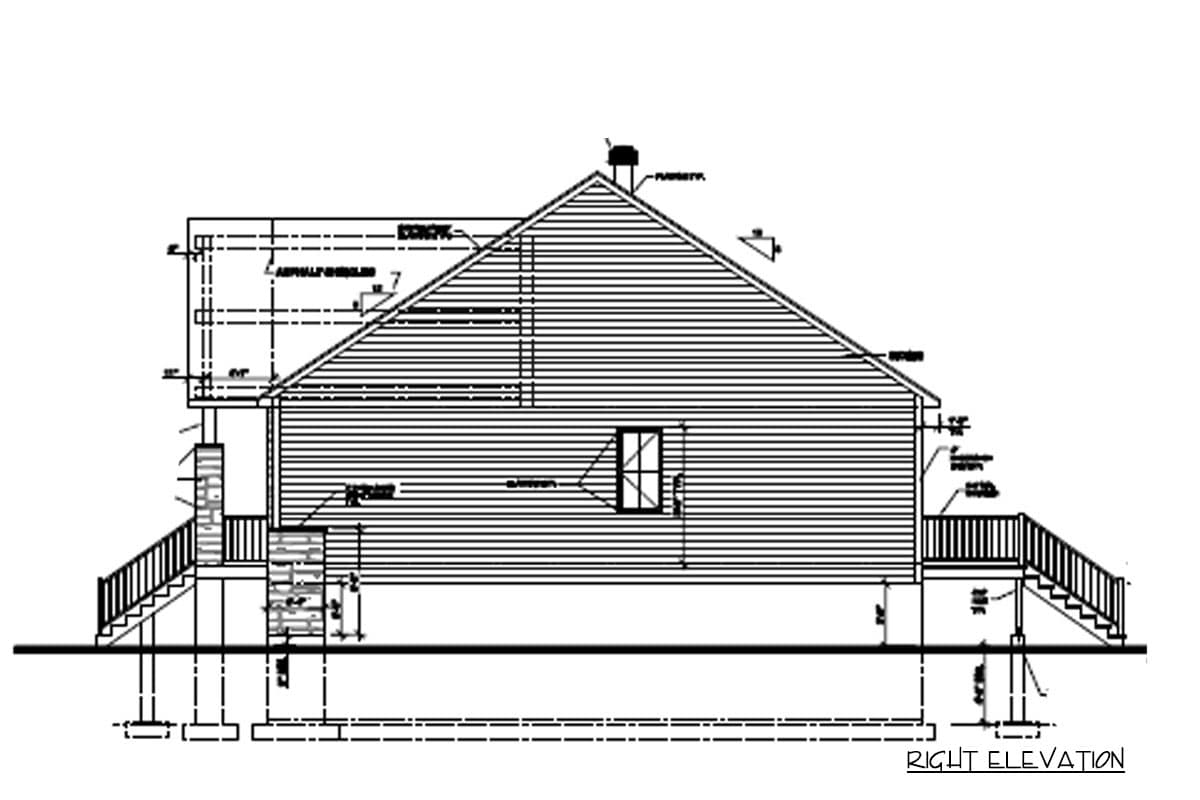

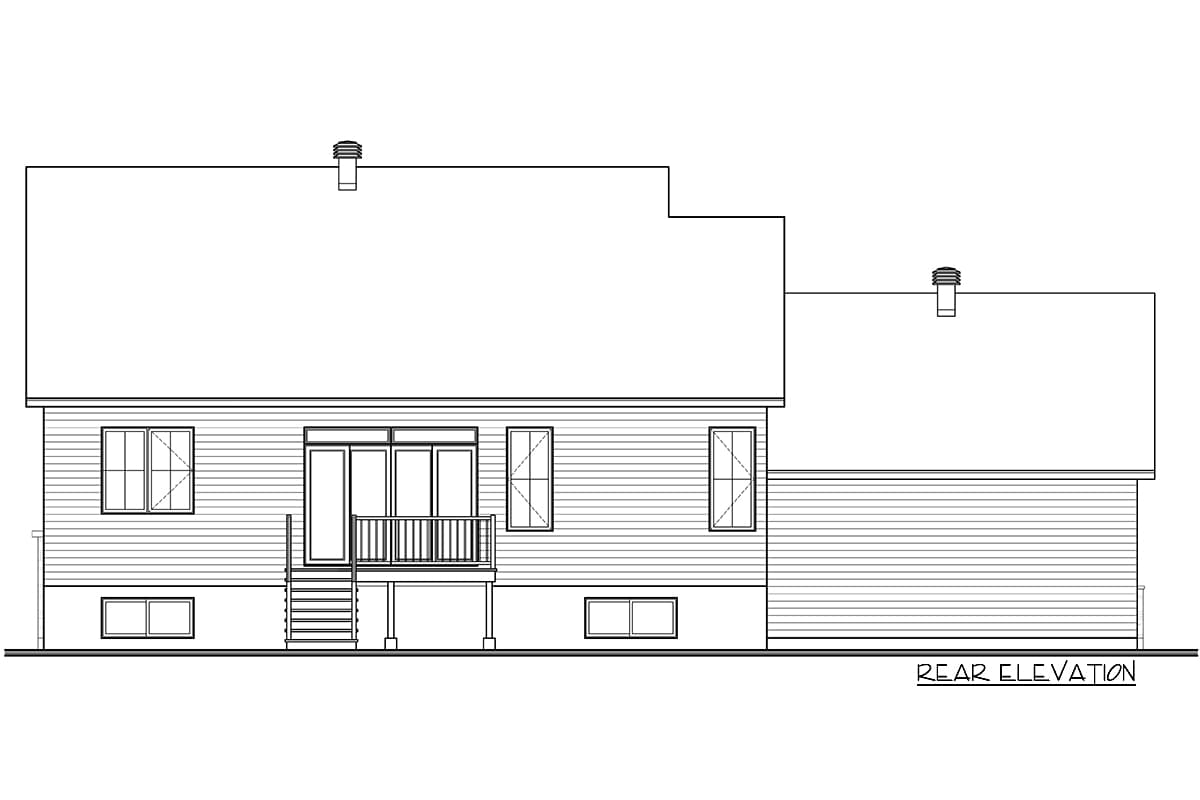

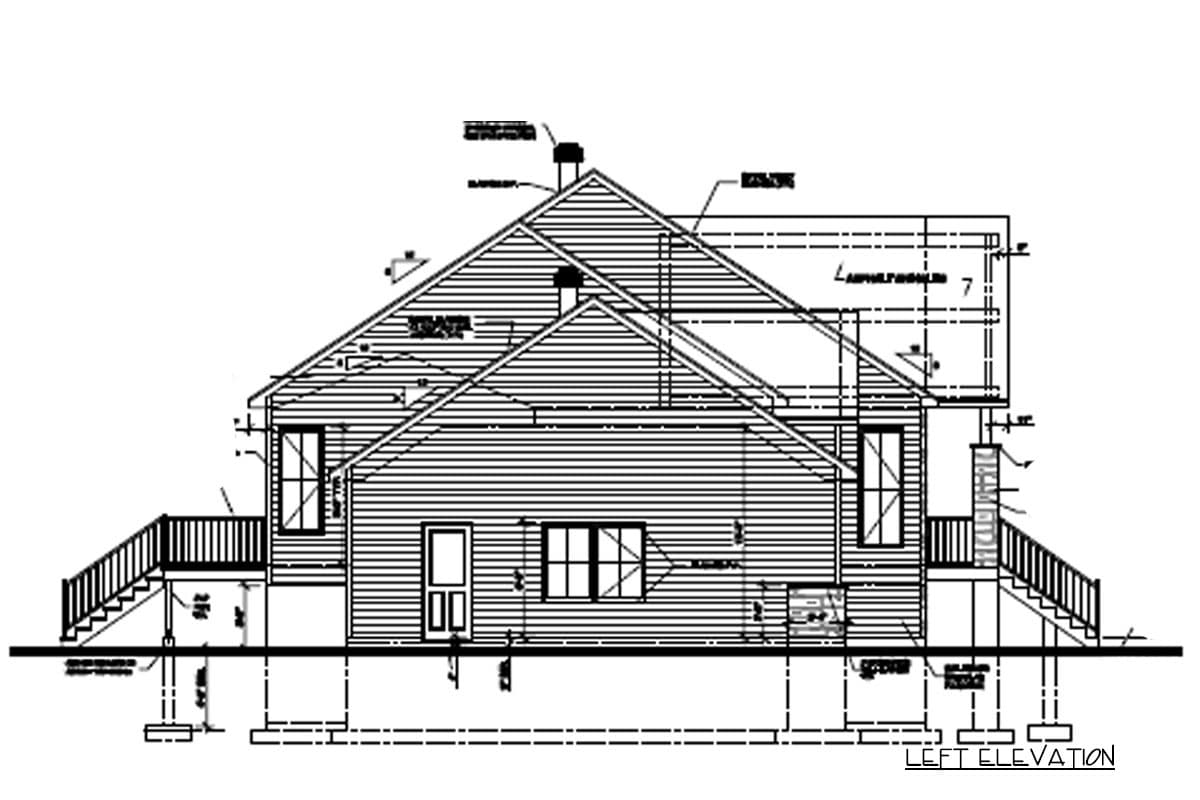

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Floor Plan

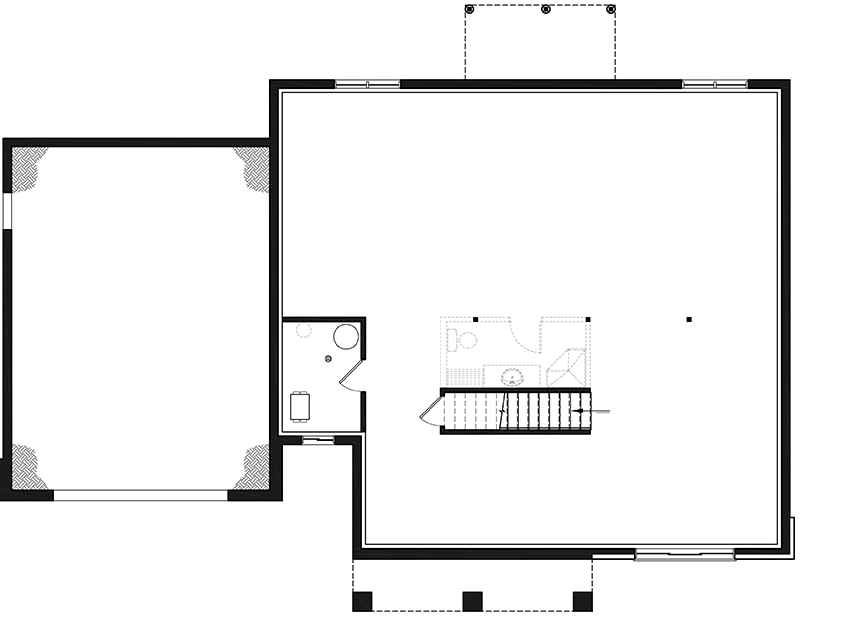

Basement Unfinished

3-Bed Rugged Craftsman House Plan with 2-Car Attached Garage - 22567DR floor plan - Basement Unfinished

Plan details



3-Bed Rugged Craftsman House Plan with 2-Car Attached Garage

  • 1,583

    Heated s.f.

  • 2 - 3

    Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $970
  • 8 Sets $1,000
  • PDF - Single-Build $1,020
  • Reproducible Set $1,020
  • CAD - Single-Build $1,700
  • View all purchase option online

About This Plan

  • Timbers, stone and clapboard siding grace the front of this 3-bed house plan, equally at home in the mountains or in a more urban environment.
  • The foyer gives you views straight through to the back of the home and a mudroom behind pocket doors gives you space to put coats and shoes, eliminating clutter from spreading to the main portion of the home.
  • Enjoy cathedral ceilings in back where an open concept floor plan combines the kitchen and living area into one entertaining space. Sliding doors on the back wall take you to the deck.
  • The bedrooms are clustered on the right side of the home. Bed 3 can be used as an office if needed.
  • The lower level gives you room to expand.
  • Related Plan: Get a 2-bed, 1-car version with house plan 22566DR.

Floor Plans

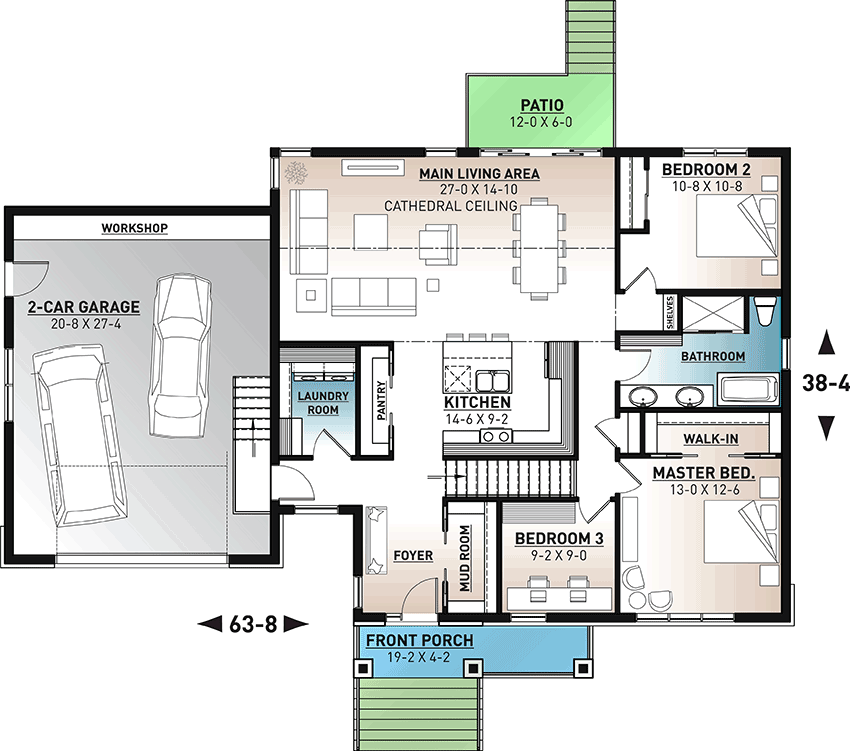

  • Main Level

  • Basement Unfinished

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,583 sq. ft.
  • 1st Floor: 1,583 sq. ft.
  • Basement Unfinished: 1,583 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Monolithic Slab, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 8"
  • Depth: 38' 4"
  • Max ridge height: 27' 2"

Garage

  • Type: Attached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12
