Plan 31209D
3-Bed Rustic Cabin Under 1300 Square Feet with Vaulted Living Room
Heated S.F.
1,267
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This split bedroom rustic cabin house plan has a great front porch with a timber trussed vaulted gable in the middle supported by a series of five square timbers. Clapboard siding, a stone skirt and metal roof give this 3-bed, 1,267 square foot house plan rustic appeal.
  • A vaulted ceilings runs down the center of the living room which is open to the kitchen with a double sink centered below a window looking out back.
  • The master suite occupies the entire right side of the home and two bedrooms share a bath that separates them on the left. A stackable washer/dryer is located in a hall closet.
  • Related Plan: Get a 2-Bed version with cabin house plan 31171D.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan

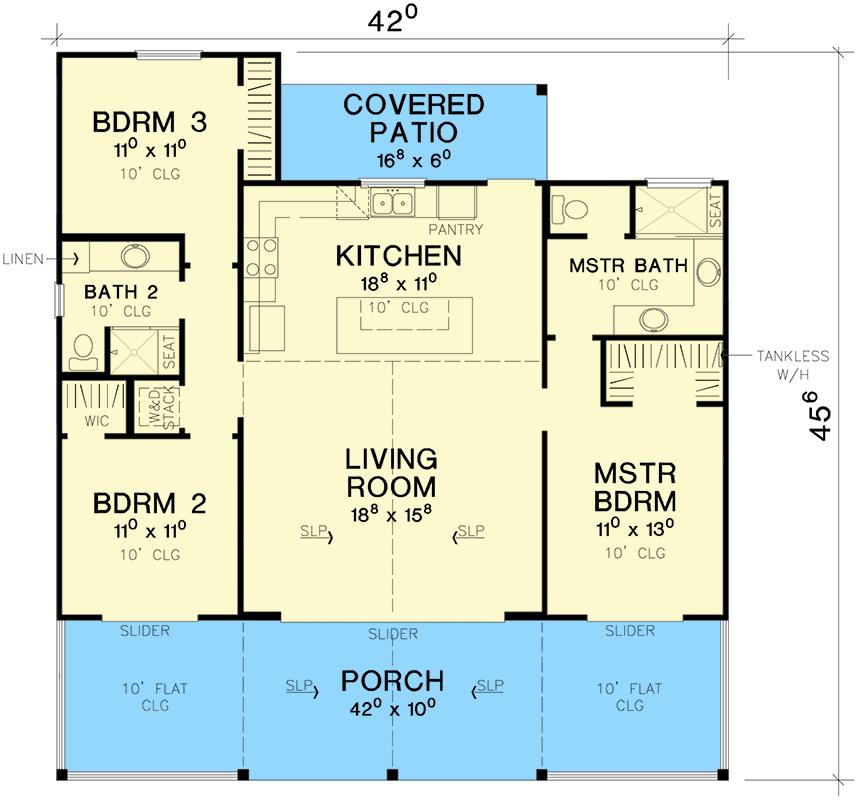

  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Rustic Cabin Under 1300 Square Feet with Vaulted Living Room

  • 1,267

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,267 sq. ft.
  • 1st Floor: 1,267 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 45' 6"
  • Max ridge height: 18' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Detached
  • Area: 480 sq. ft.
  • Count: 2 Cars

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Stick
