Plan 400010FTY

Exclusive

3-Bed Rustic Ranch Plan with 10'-Deep Porch

Heated S.F.
1,980
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 400010FTY

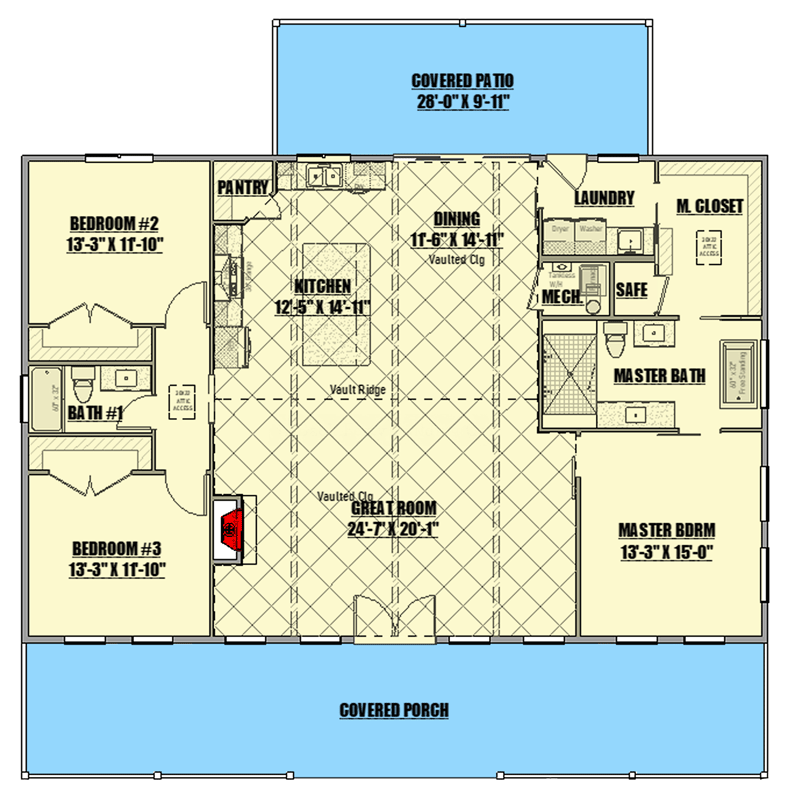

Main Level
Main Level

Plan 400010FTY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 400010FTY: 3-Bed Rustic Ranch Plan with 10'-Deep Porch - Floor Plan - Main Level - Country, Craftsman, Mountain, Ranch, Rustic

Plan Details

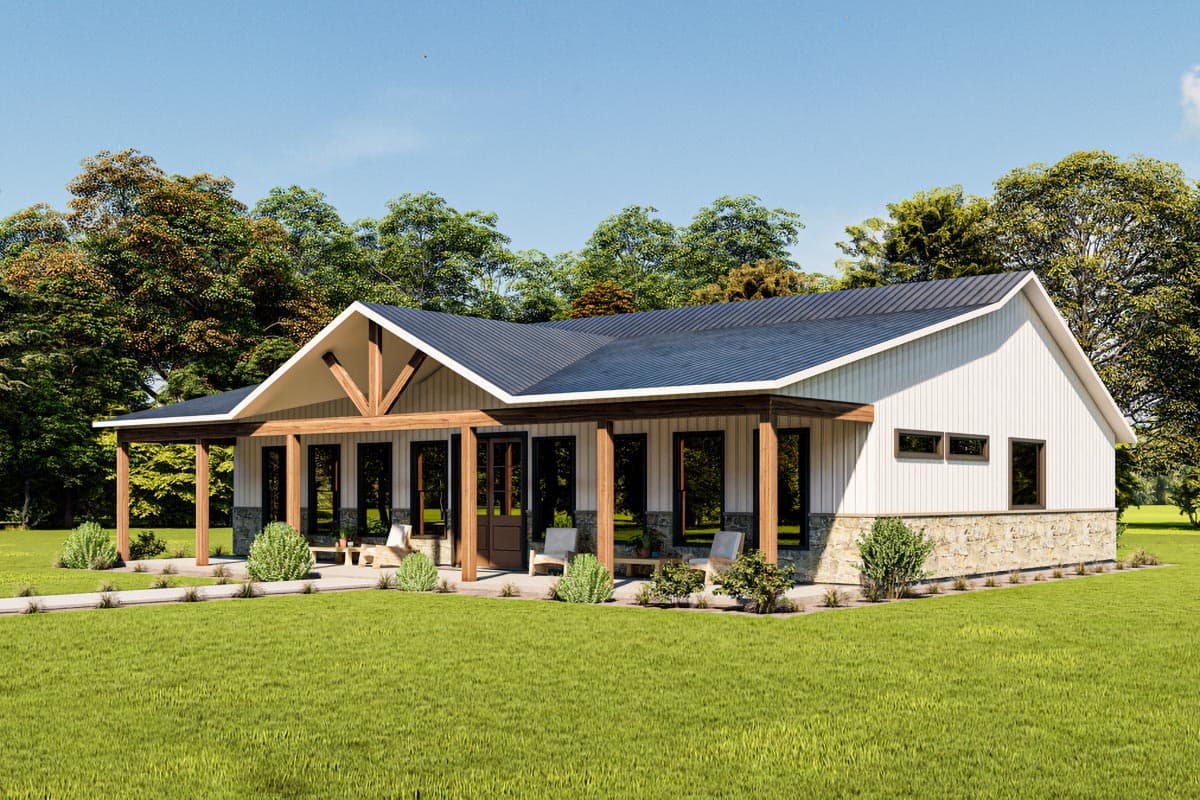

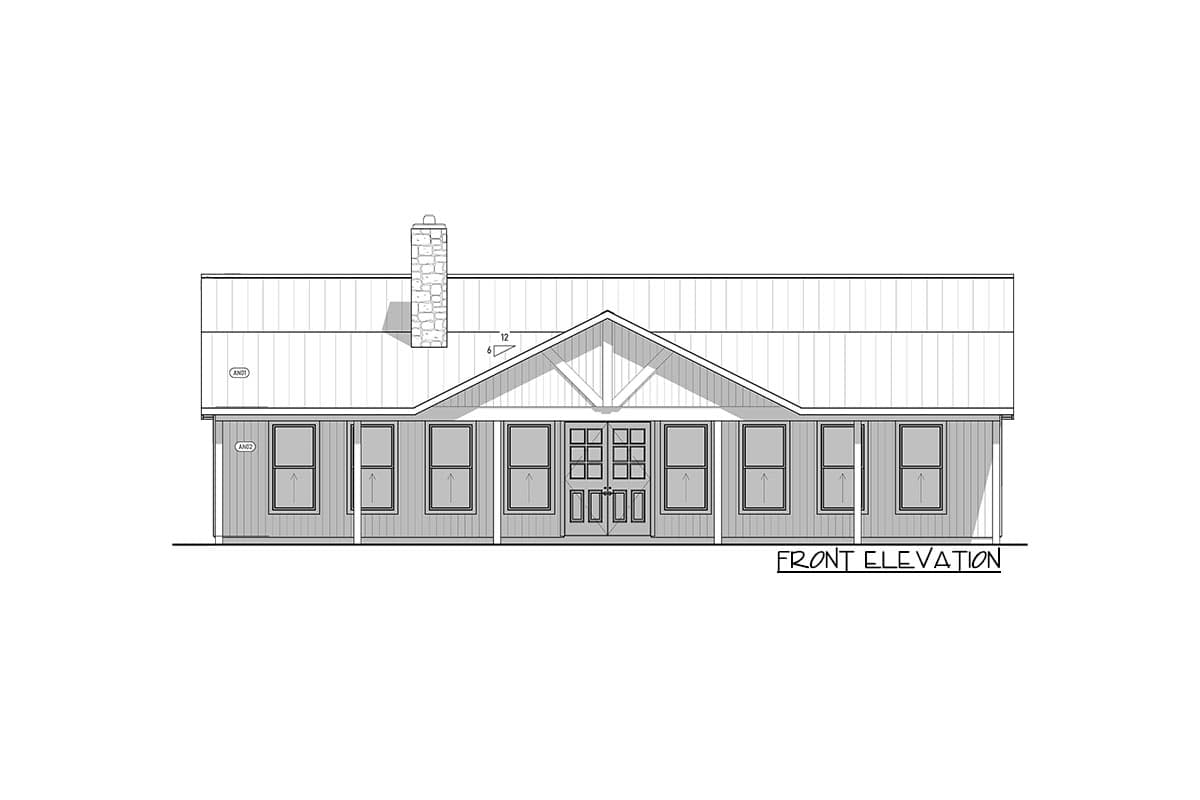

  • This exclusive Rustic Ranch plan presents a 10'-deep porch that spans the entire front elevation with an open gable centered above double doors.

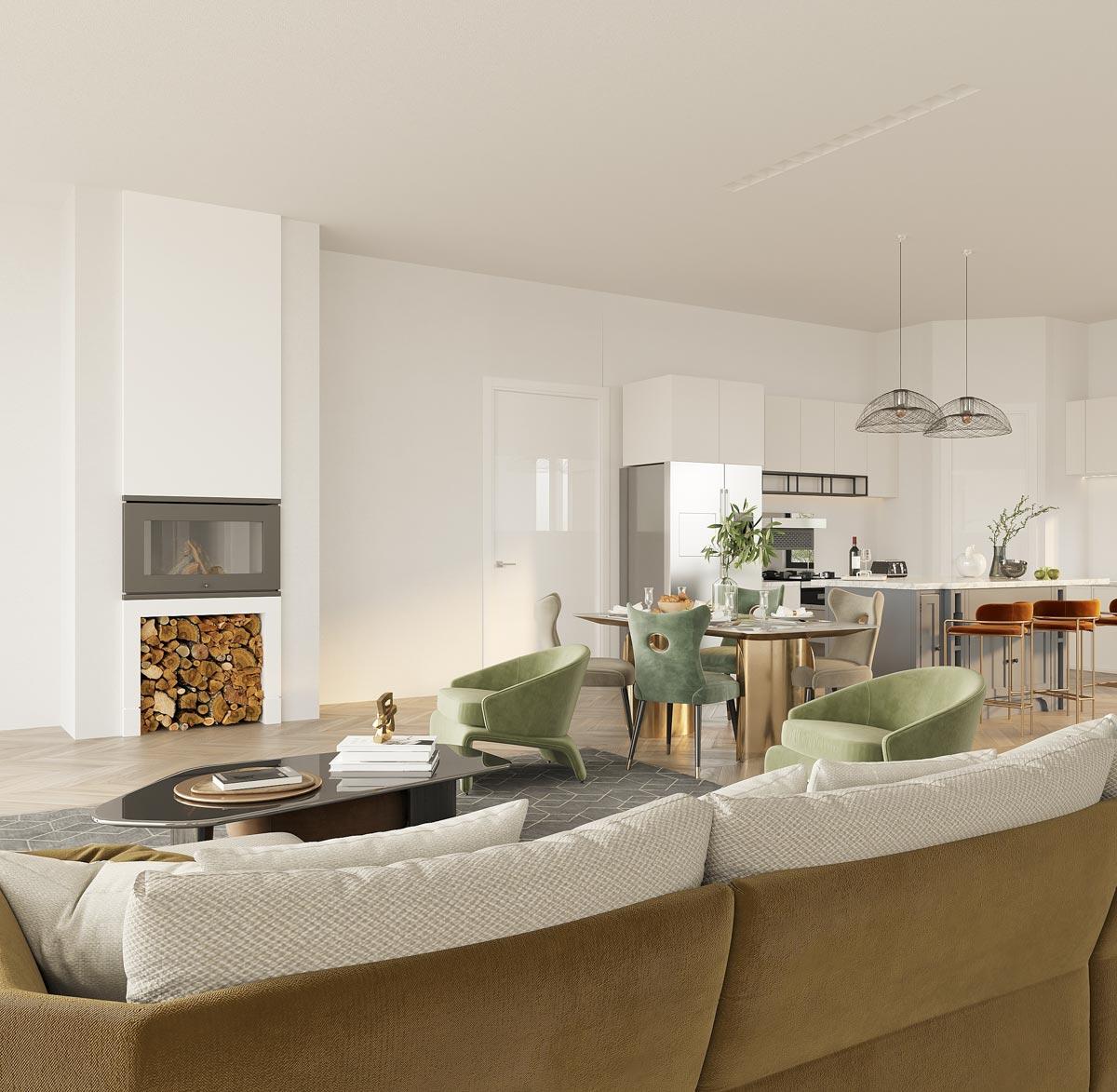

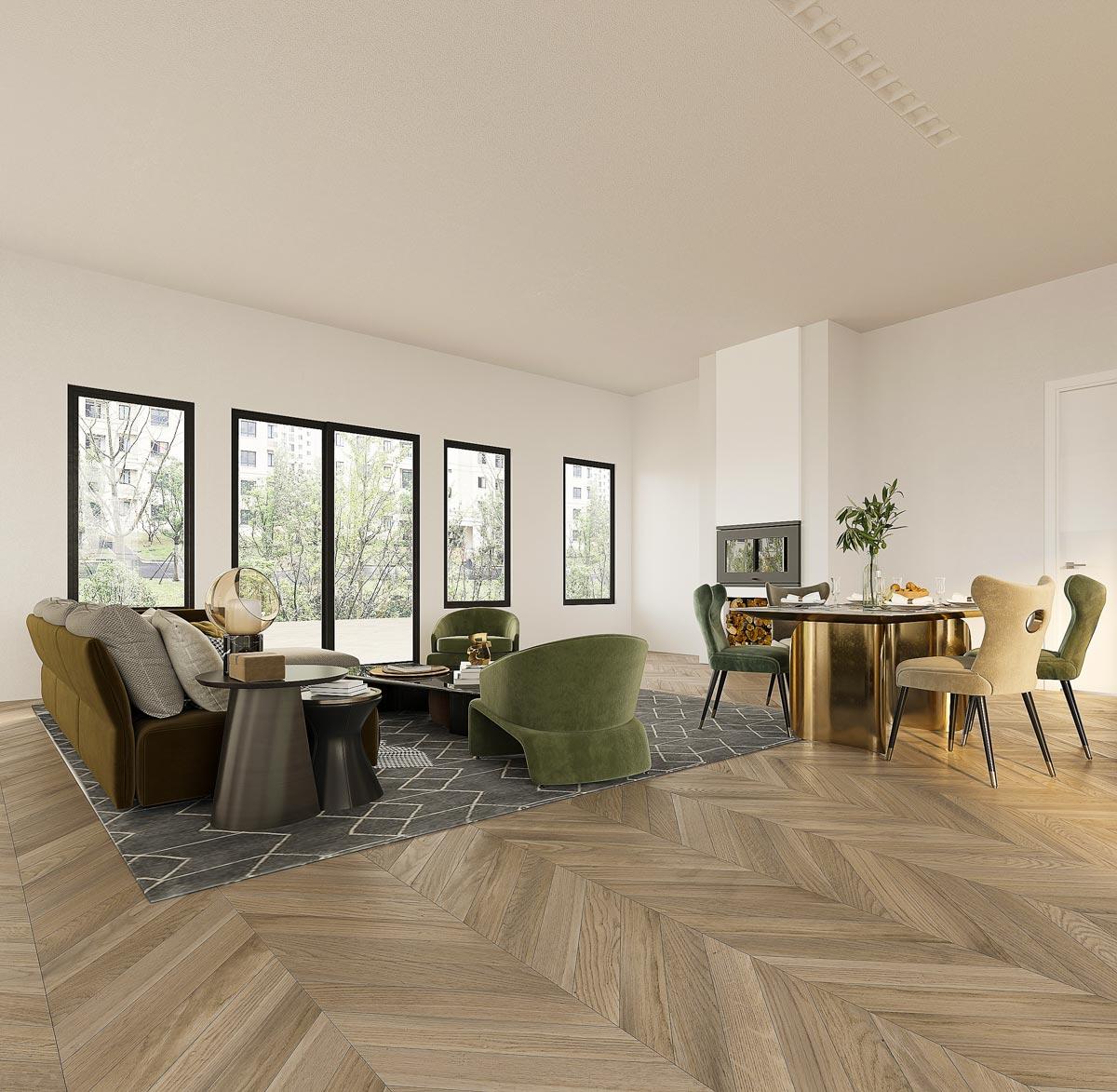

  • A vaulted ceiling soars above the combined great room, kitchen, and dining area; a comfortable space for family and friends to gather.

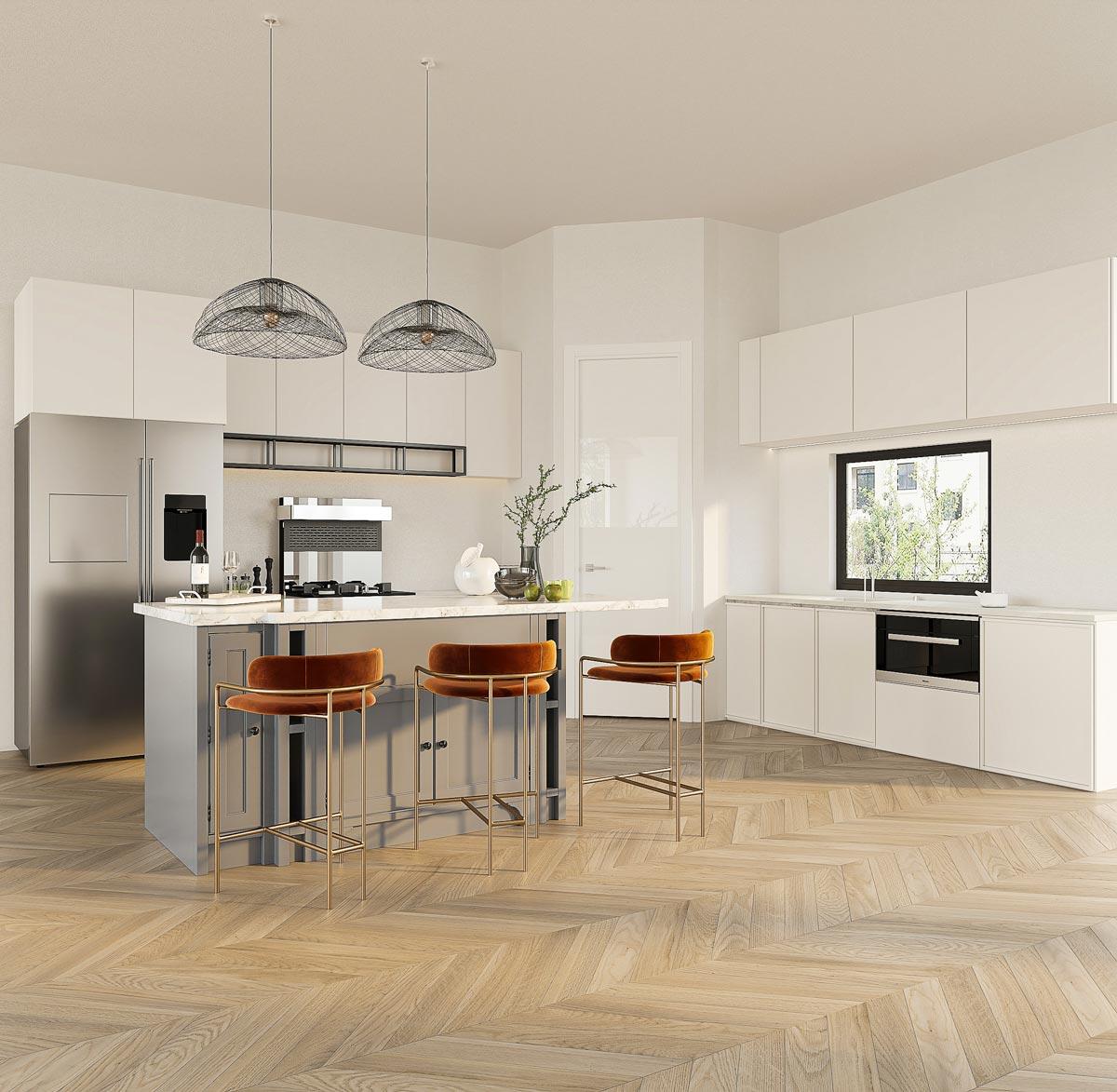

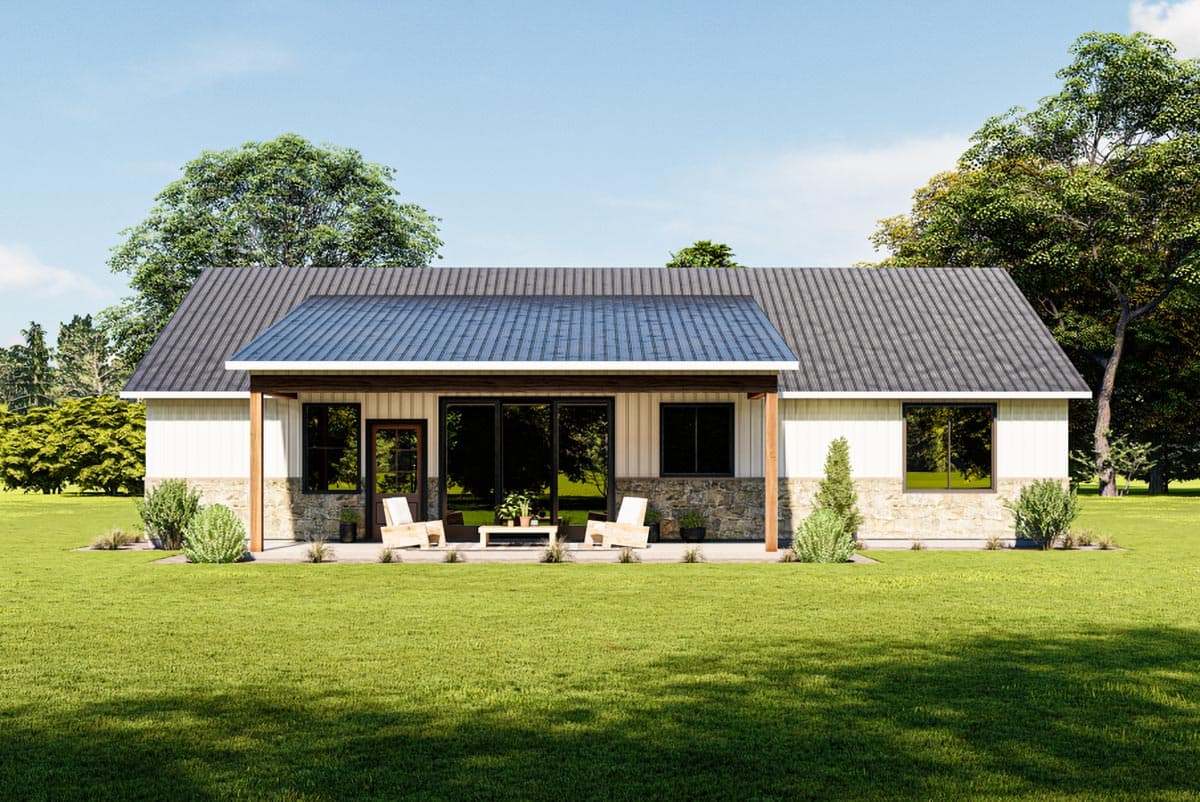

  • The island kitchen includes an eating bar and a corner pantry, and sliding doors permit access to a 28' by 9'9" covered patio.

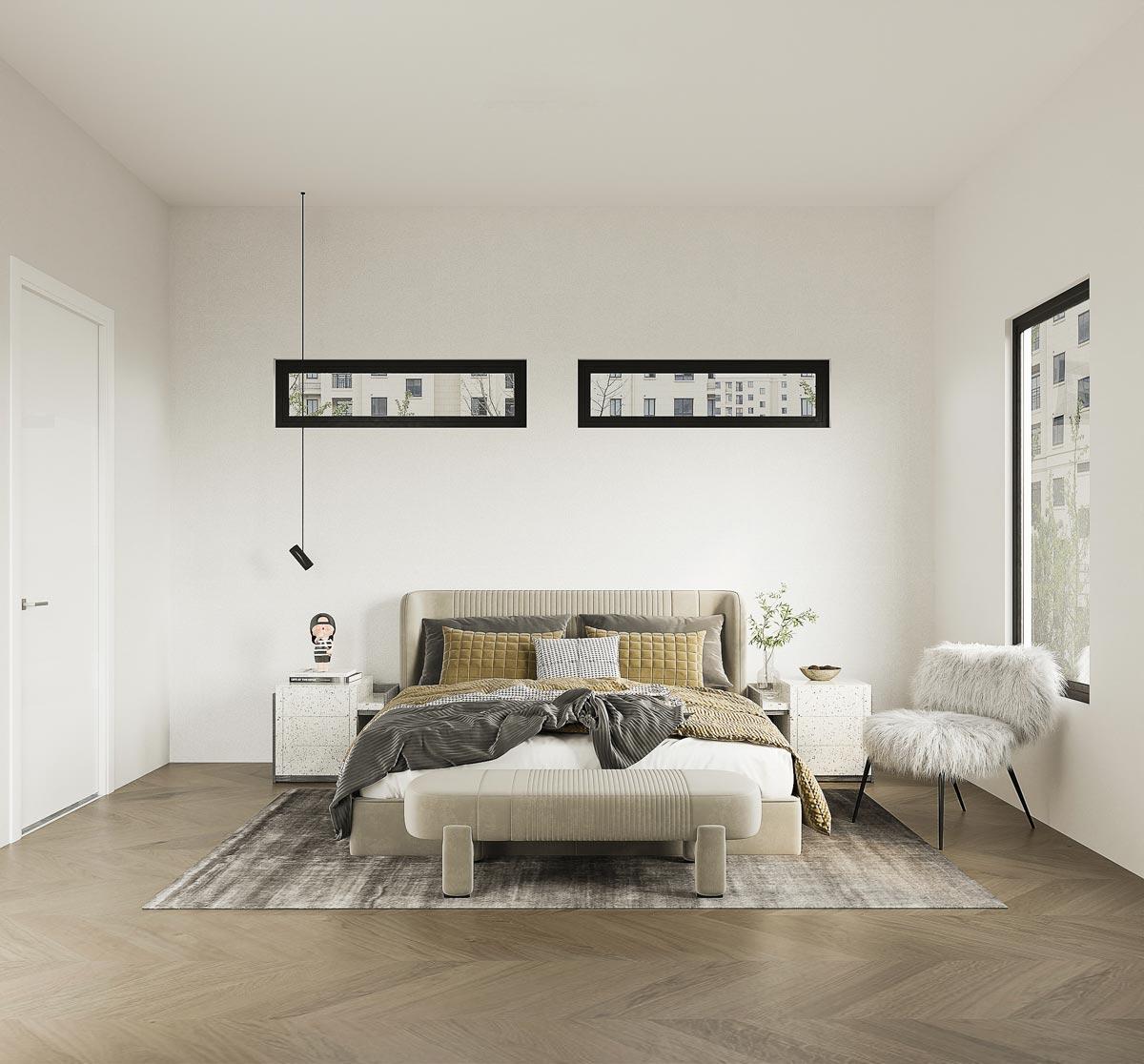

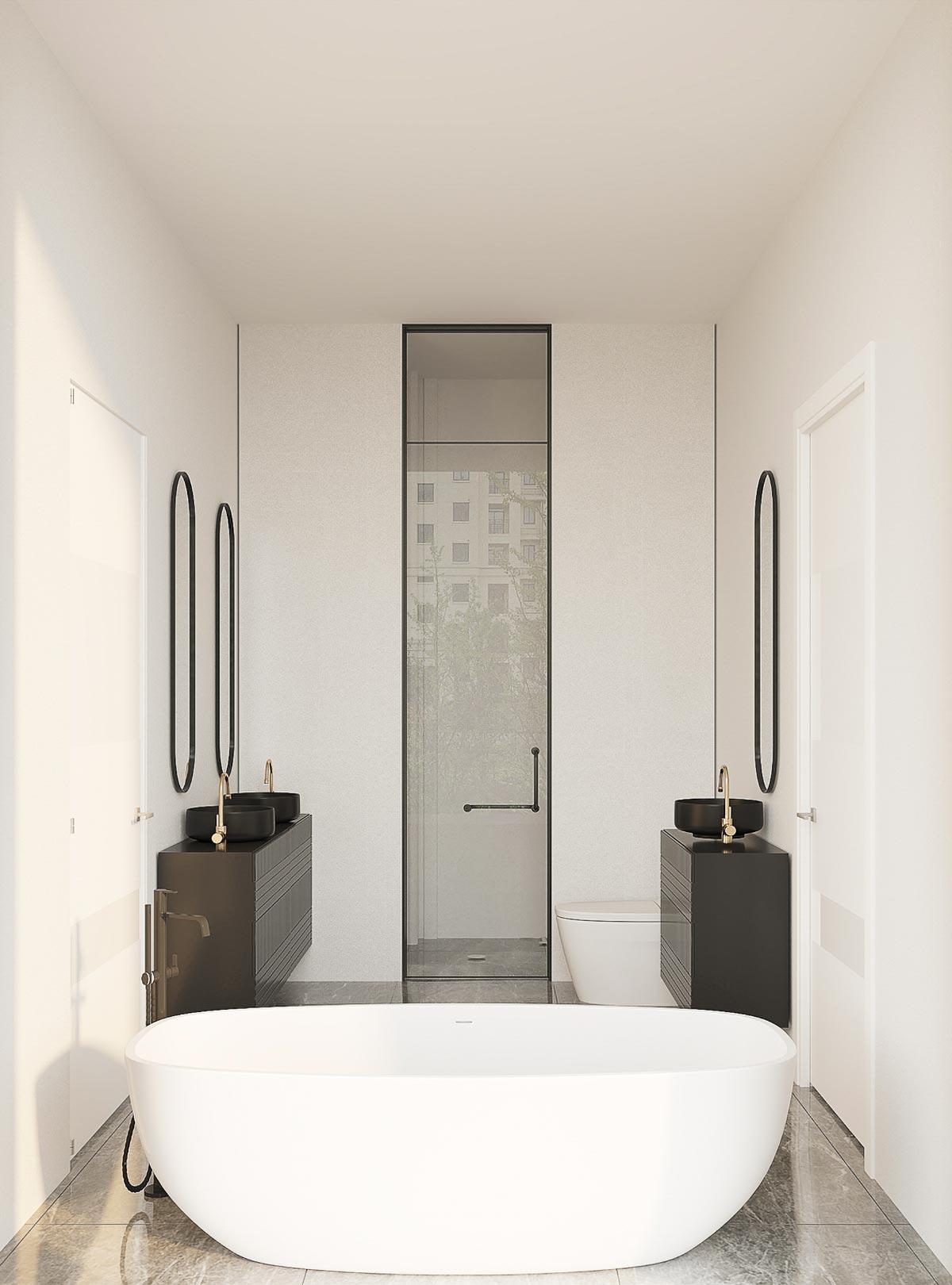

  • The master bedroom occupies the right side of the home and features an oversized shower in the attached bath and access to the laundry room through the master closet.
  • Bedrooms 2 and 3 are nearly identical in size and share the hall bath that separates them.

What's Included

  • Building elevations
  • Detailed Floor Plan
  • Window and Door schedules
  • Roof Plan
  • Electrical Plan - Suggested lighting, ceiling fan, switches and smoke/CO detector placement.
  • Standard and typical details
  • General notes and specifications
  • Foundation Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,980 sq. ft.

1st Floor

1,980 sq. ft.

Porch, Front

550 sq. ft.

Porch, Rear

280 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

56' 0"

Max Ridge Height

18' 5"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

Mountain

Ranch

Rustic

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
