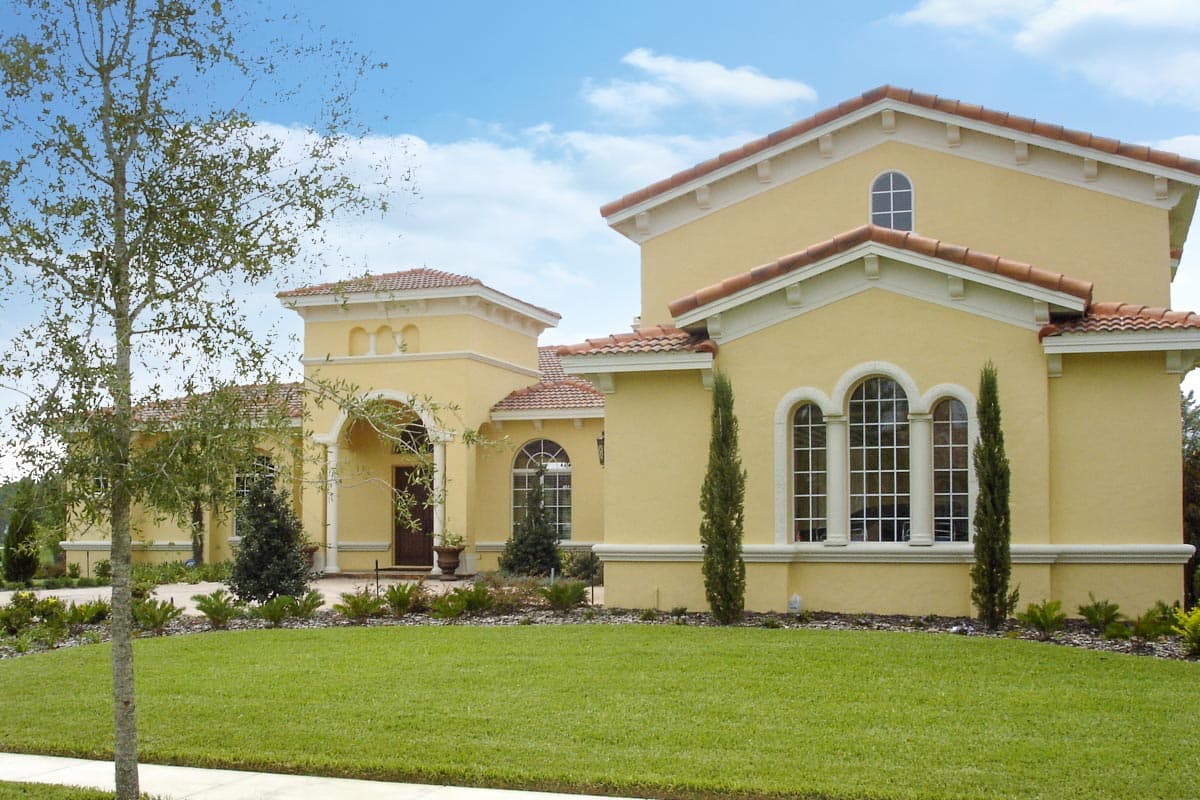

Plan 42043MJ

3-Bed Spanish Style Home Plan with Bonus Above

Heated S.F.
3,260
Beds
3
Baths
3.5+ - 4.5+
Stories
1-2
Cars
3

Floor Plan

Plan 42043MJ

Main Level
Main Level
Bonus
Bonus

Plan 42043MJ

M-F 9am-5pm EST |

1-203-761-8500

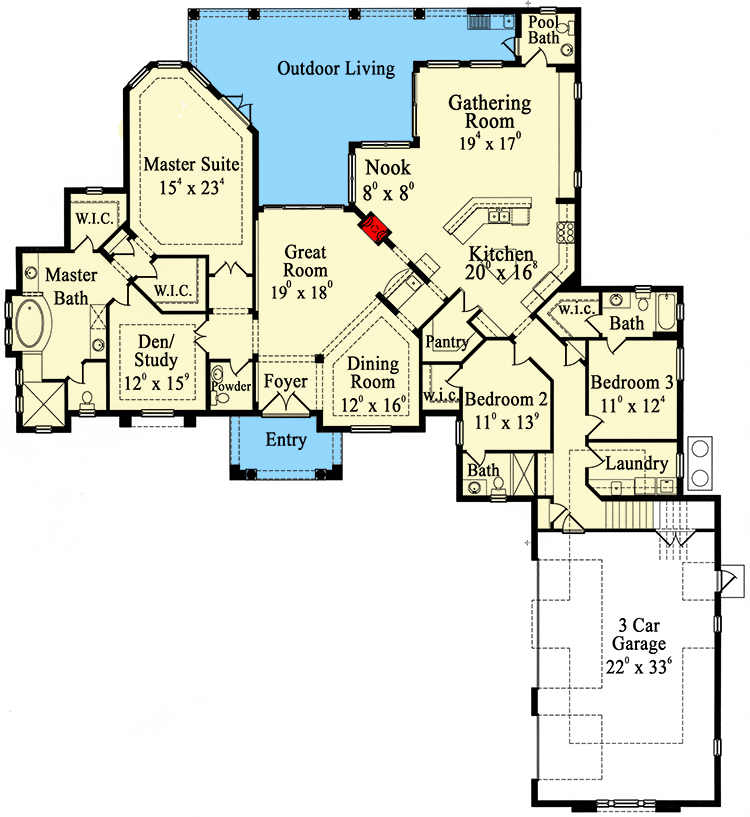

Main Level

Plan 42043MJ: 3-Bed Spanish Style Home Plan with Bonus Above - Floor Plan - Main Level - European, Florida-Style, Mediterranean, Spanish

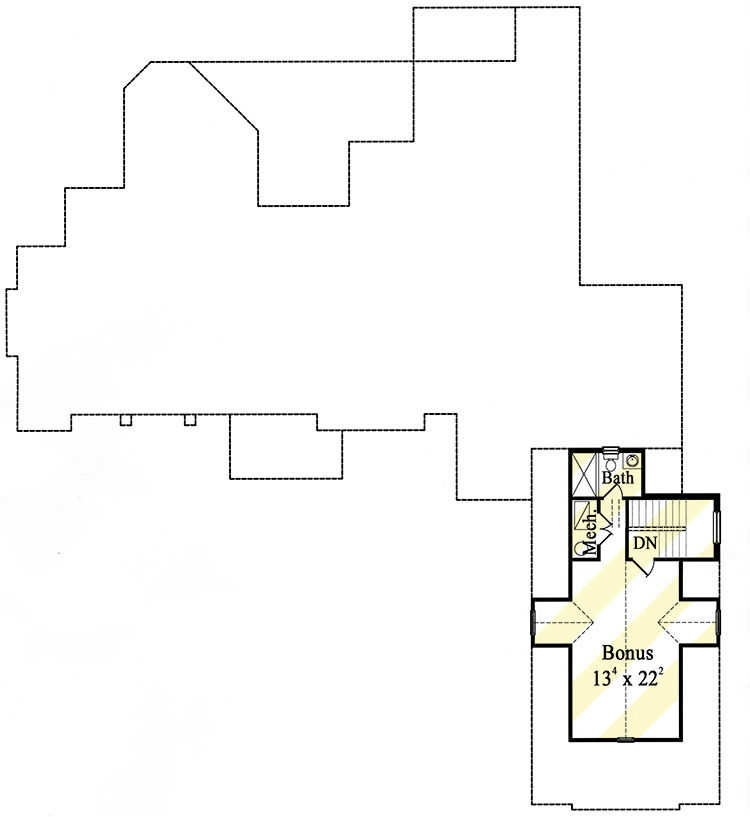

Bonus

Plan 42043MJ: 3-Bed Spanish Style Home Plan with Bonus Above - Floor Plan - Bonus - European, Florida-Style, Mediterranean, Spanish

Plan Details

  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.

What's Included

  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,260 sq. ft.

1st Floor

3,260 sq. ft.

Bonus

406 sq. ft.

Porch, Combined

578 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3 or 4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

88' 8"

Depth

100' 0"

Max Ridge Height

24' 4"

Garage

Type

Attached

Area

806 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

European

Florida-Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,260 sq. ft.

1st Floor

3,260 sq. ft.

Bonus

406 sq. ft.

Porch, Combined

578 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3 or 4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

88' 8"

Depth

100' 0"

Max Ridge Height

24' 4"

Garage

Type

Attached

Area

806 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

European

Florida-Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Photo Gallery
