Plan 62598DJ

3 Bed Spanish Style Ranch Home Plan

Heated S.F.
1,304
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 62598DJ

Main Level
Main Level

Plan 62598DJ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 62598DJ: 3 Bed Spanish Style Ranch Home Plan - Floor Plan - Main Level - Mediterranean, Ranch, Spanish

Plan Details

  • This Spanish style ranch house plan gives you three bedrooms with a split layout maximizing your privacy.
  • The exterior is stucco and the roof is clay tile.
  • A closet is right inside to minimize clutter and is convenient to both the front and garage entrances.
  • The kitchen is open to the dining room and great room and has counter seating. The dining room has a tray ceiling and a bayed front.
  • The great room has 10' ceilings and a fireplace with outdoor access.
  • The master has dual vanities and a 10' tray ceiling plus access to the covered porch in back.
  • one level house plan with a shared kitchen and dining area off a rear covered porch. There is a fireplace in the great room and a 594 sq. ft. 2 car garage.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

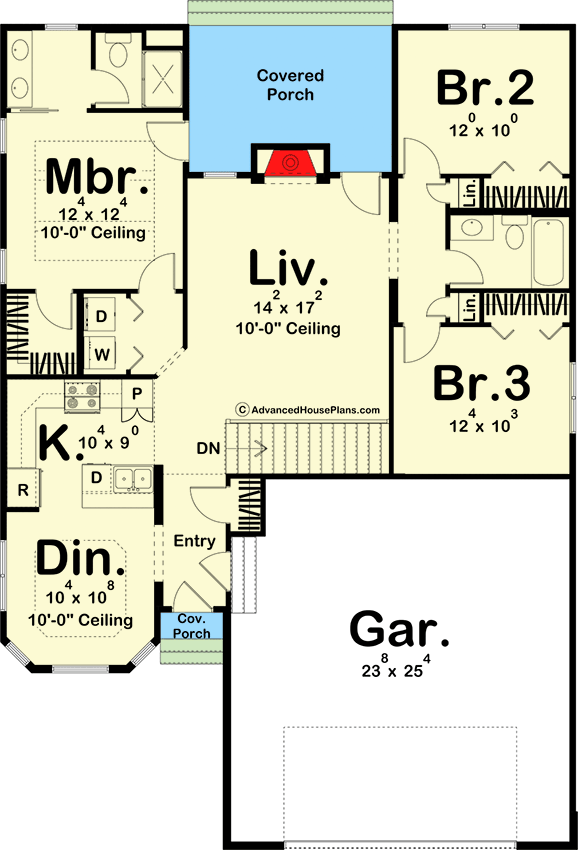

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,304 sq. ft.

1st Floor

1,304 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

58' 0"

Max Ridge Height

17' 0"

Garage

Type

Attached

Area

594 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Mediterranean

Ranch

Spanish

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,304 sq. ft.

1st Floor

1,304 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

40' 0"

Depth

58' 0"

Max Ridge Height

17' 0"

Garage

Type

Attached

Area

594 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Architectural Style

Mediterranean

Ranch

Spanish

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
