Plan 421505CHD 3-Bed Townhome Plan with 1-Bed Apartment Above Garage

1,630 3-4 2.5 - 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Townhome Plan with 1-Bed Apartment Above Garage

Plan 421505CHD

  • 1,630

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

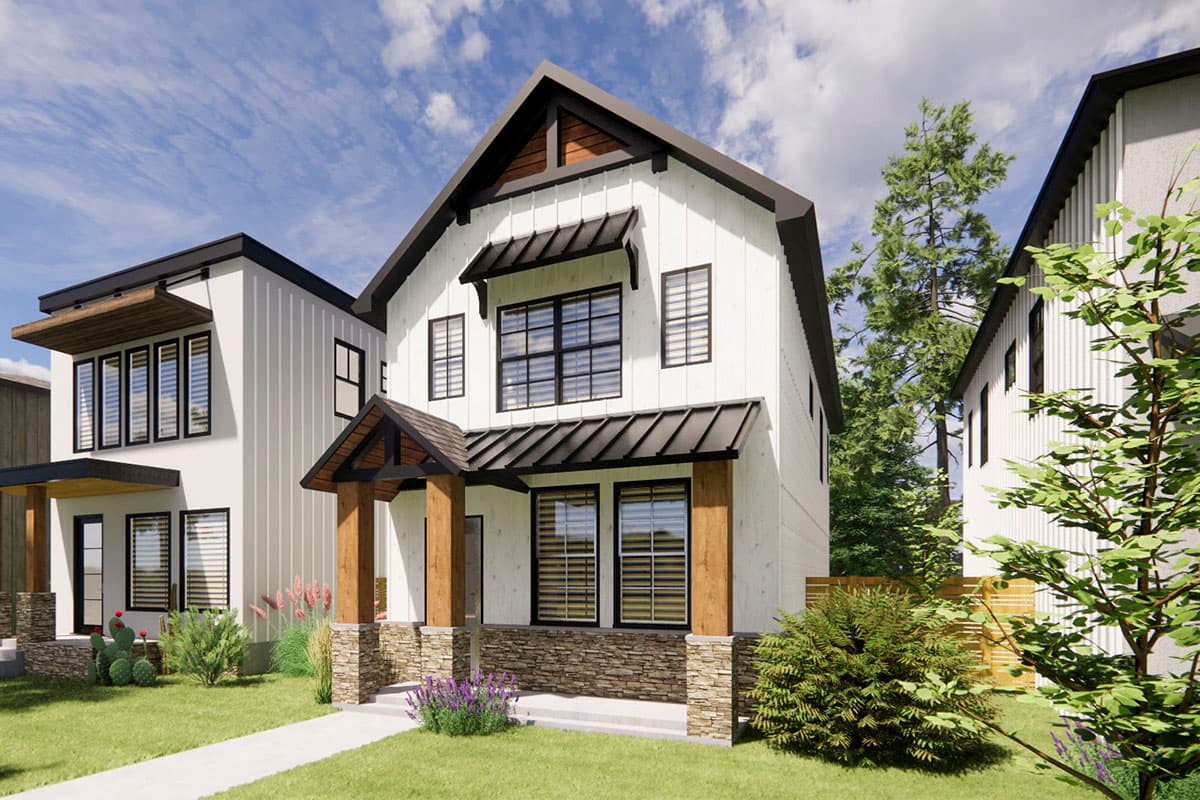

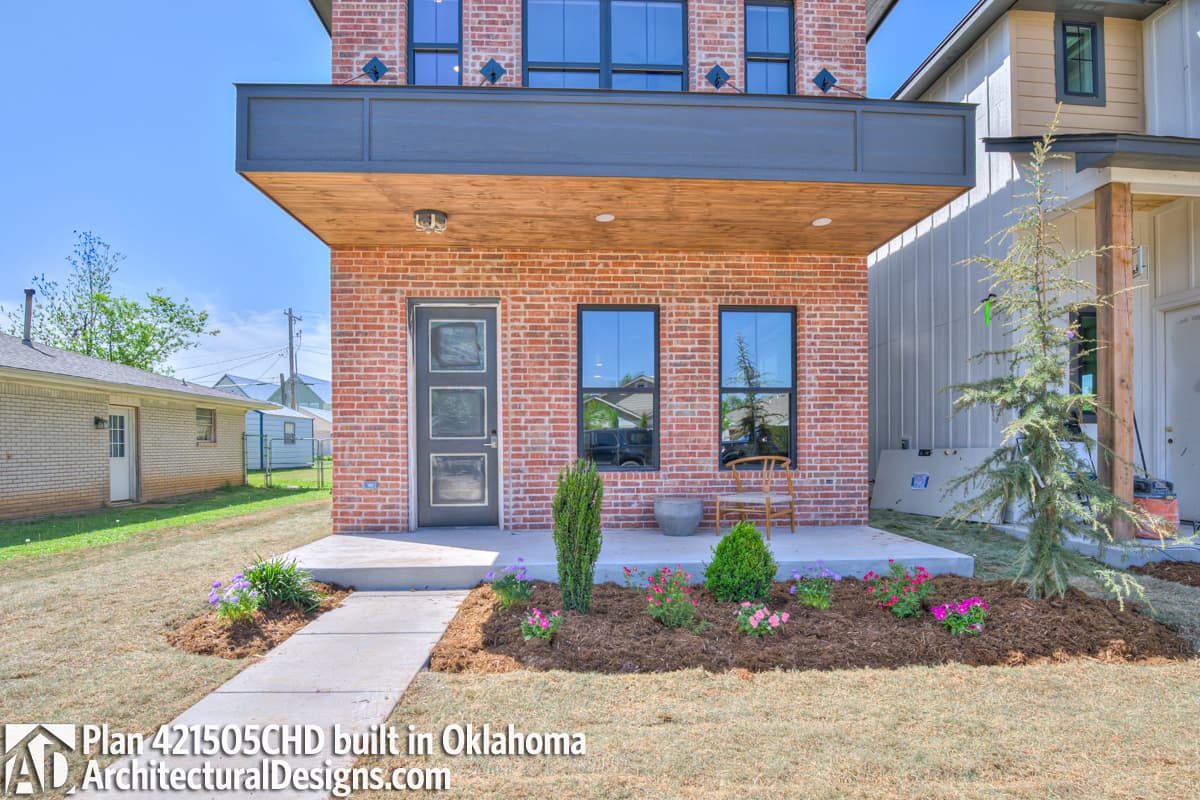

  • This 19'-wide house plan is great for your narrow lot. It gives you 3 beds and 2.5 baths in the main home and a separate apartment above the detached garage in back.

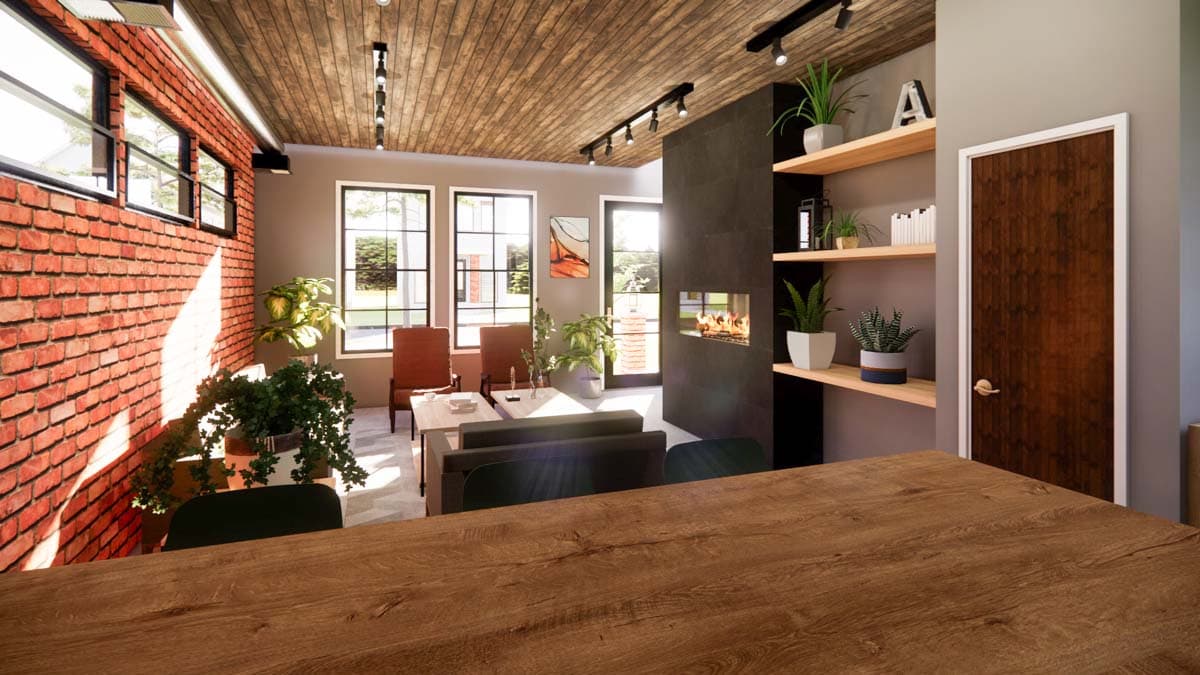

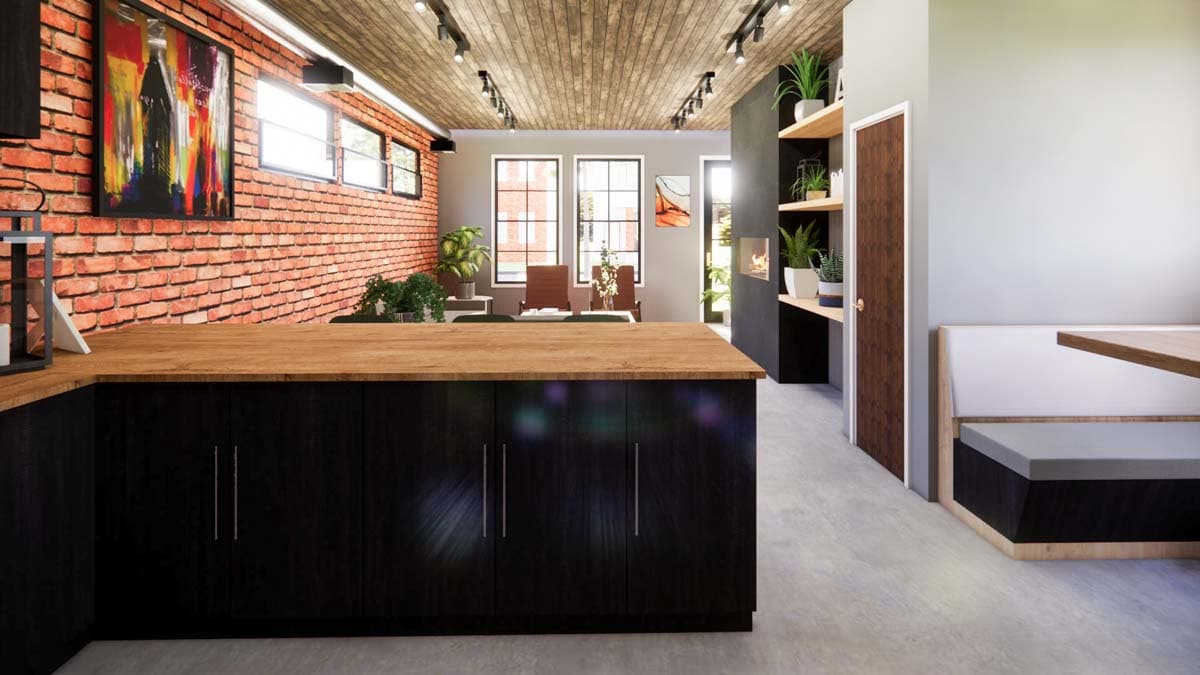

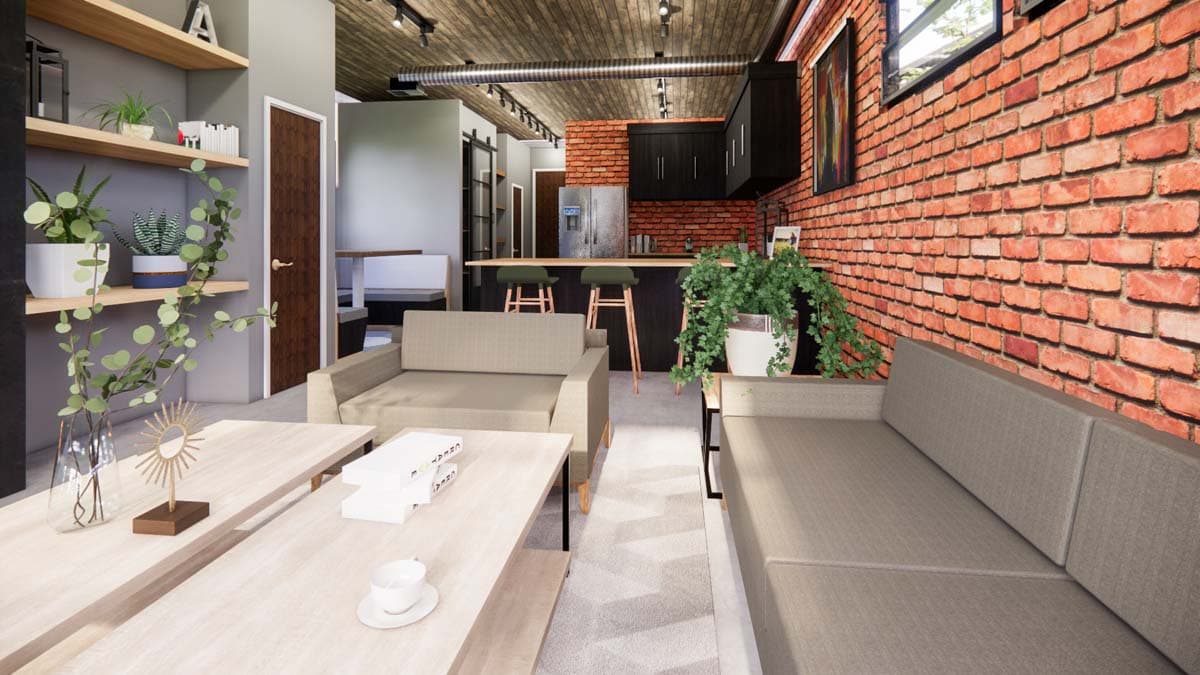

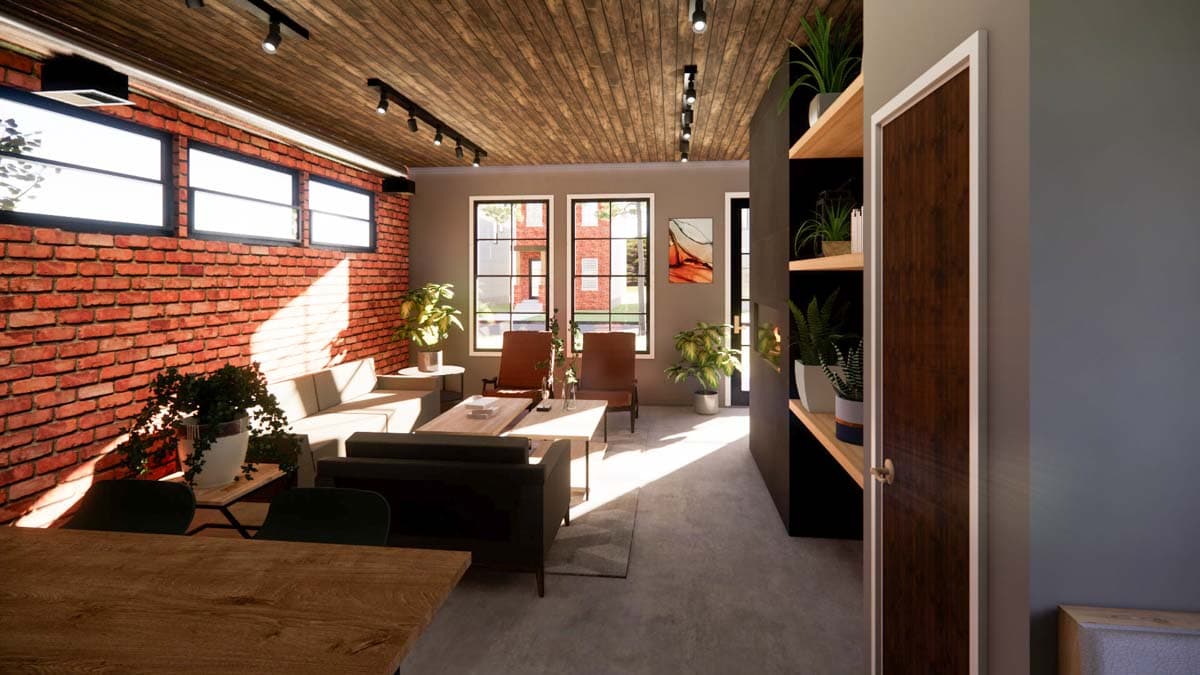

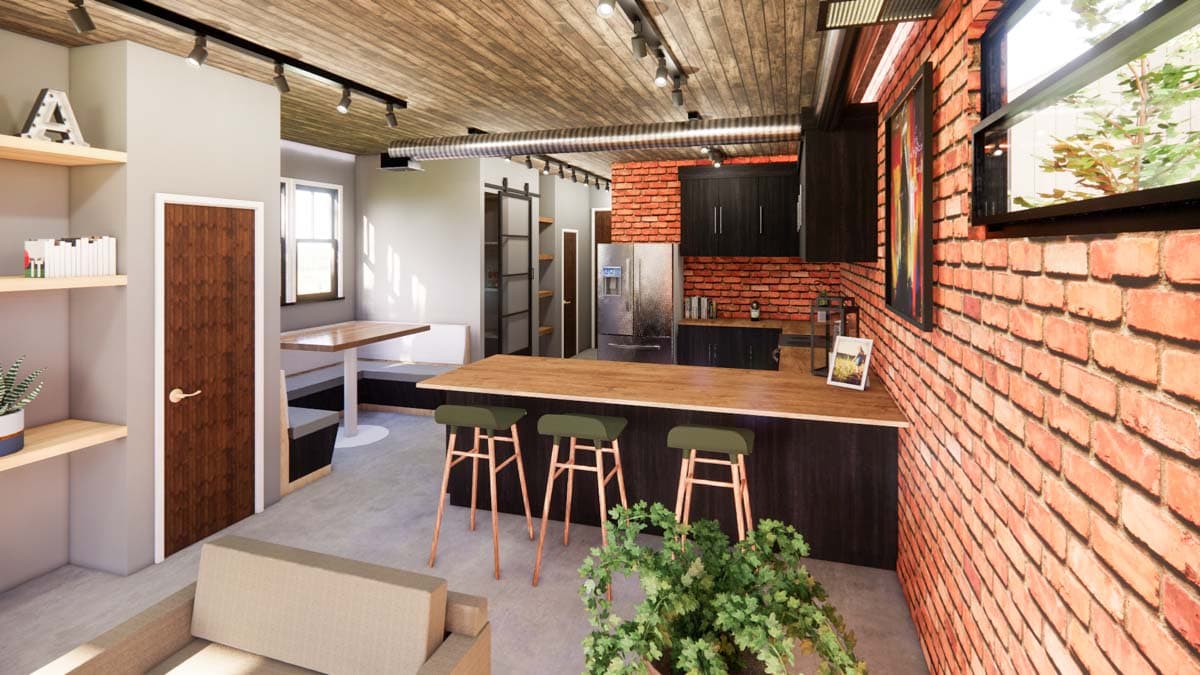

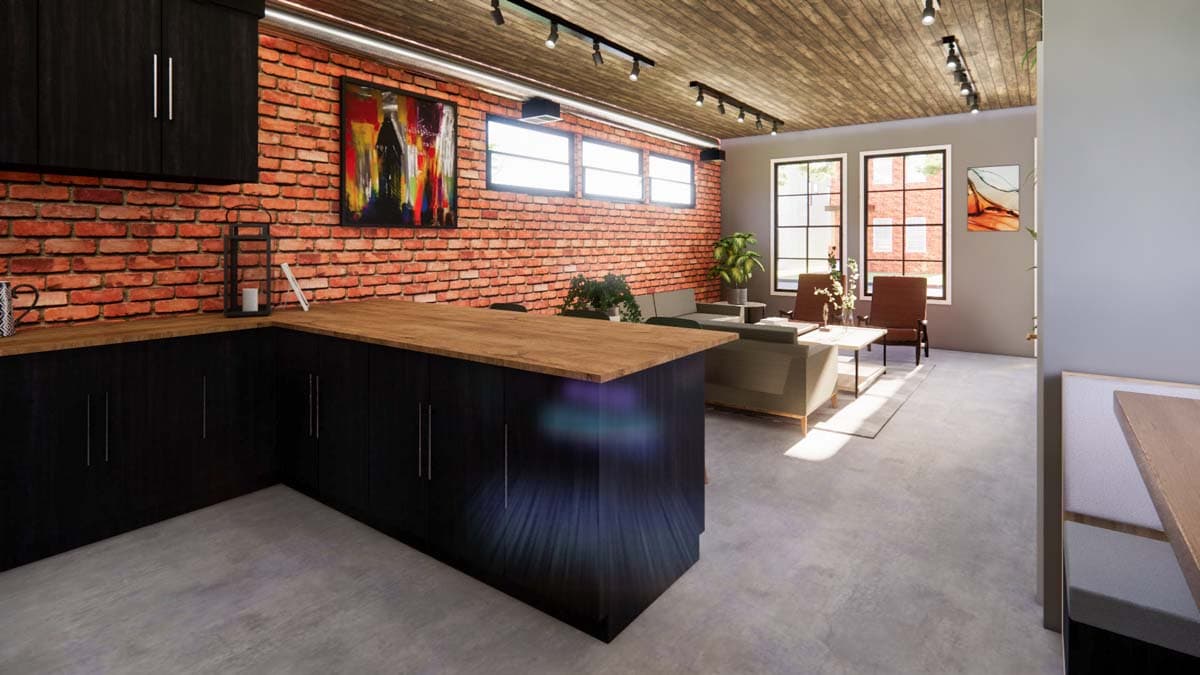

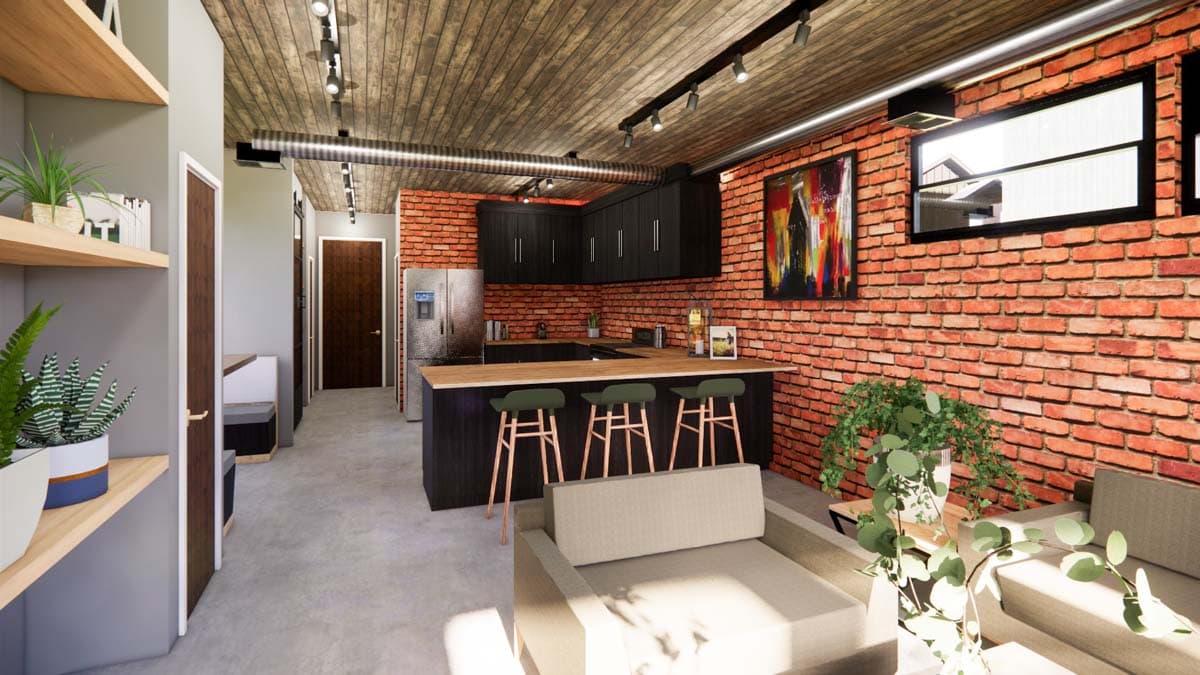

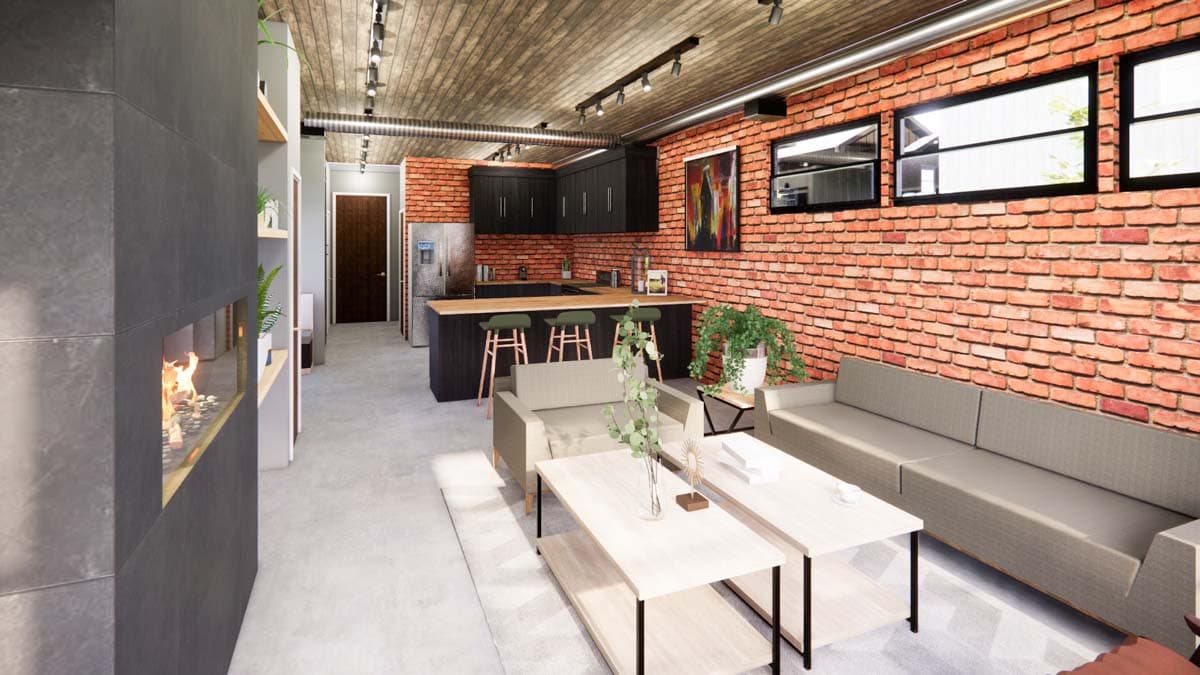

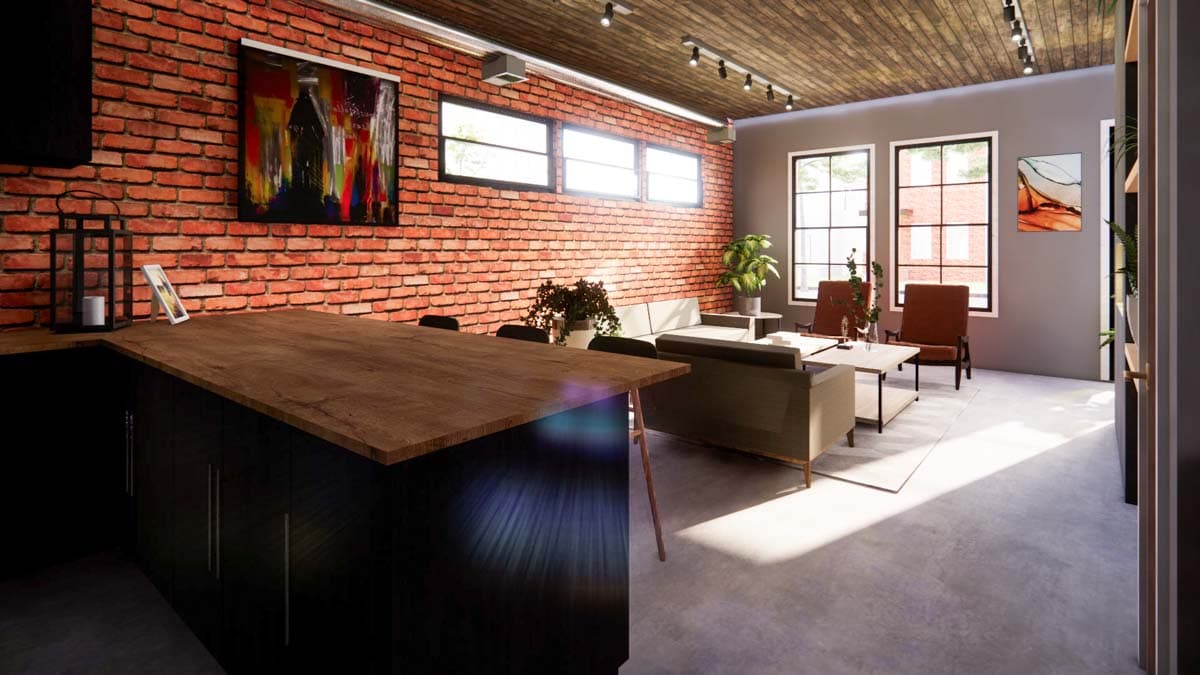

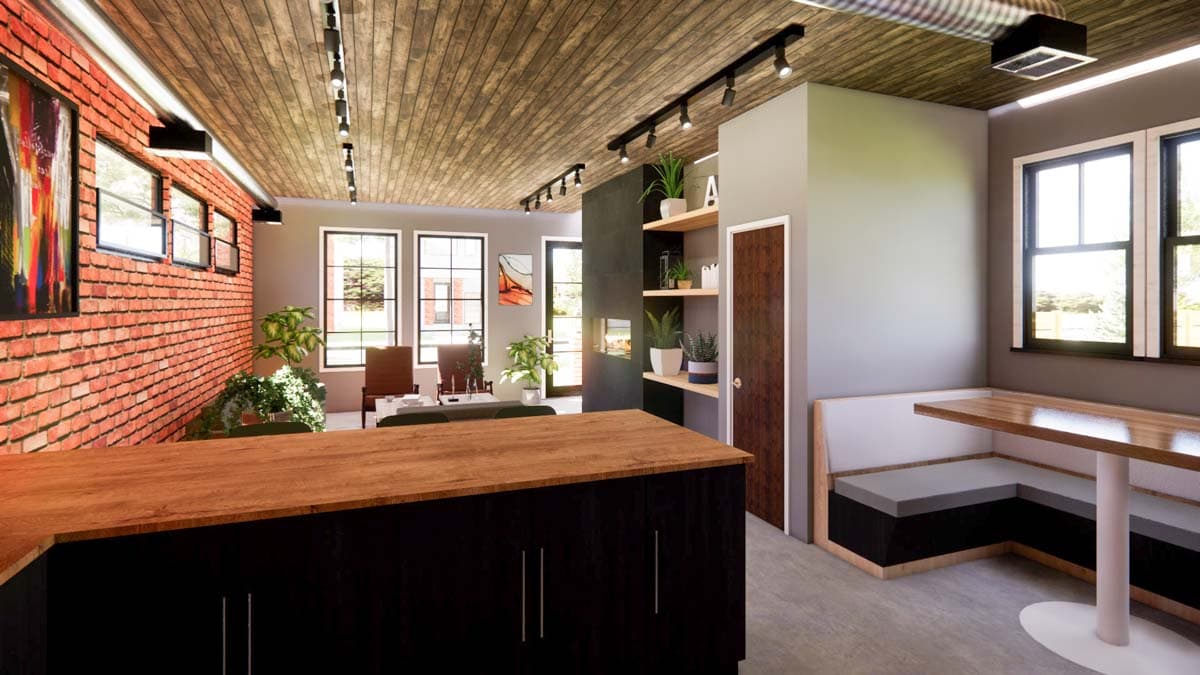

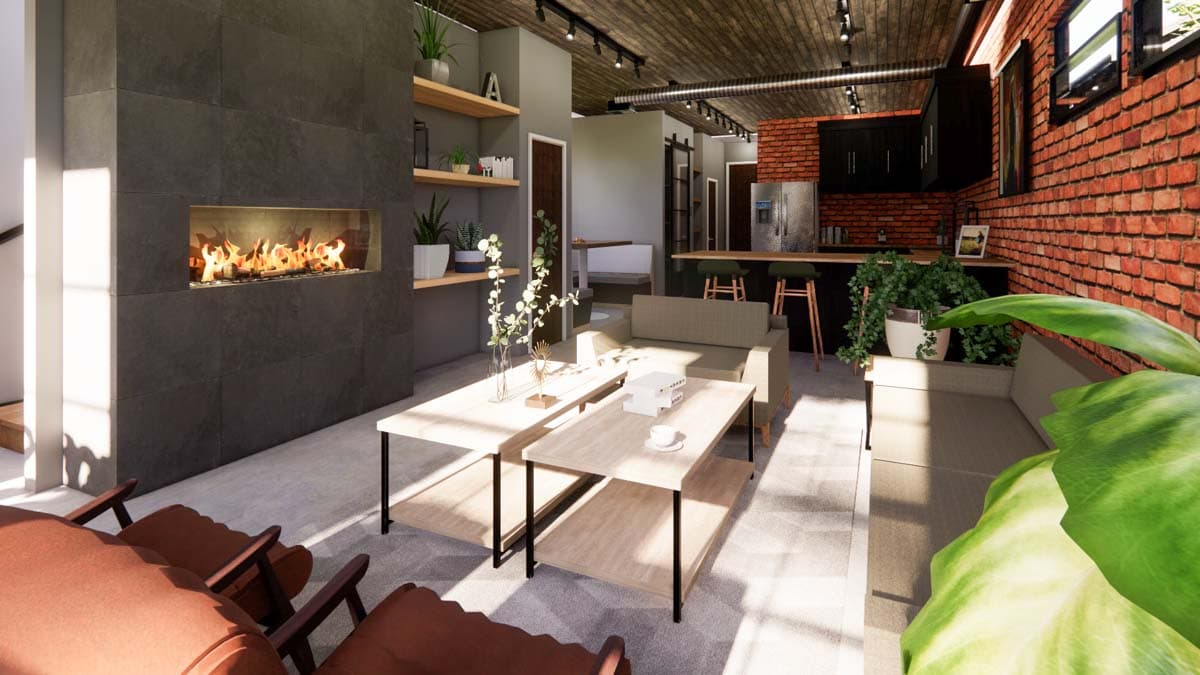

  • The main floor is open concept with the living room flowing seamlessly to the C-shaped kitchen with seating for up to 4 at the peninsula. A space-saving dining nook has built-in bench seating and there's even a nice-sized pantry as well.
  • In back, a powder room, a built-in desk and laundry room are split by the door taking you to a large covered patio.
  • Upstairs, the master suite is in front and two bedrooms in back share a bath.
  • An external staircase runs in back of the rear-facing 2-car detached garage and takes you to the apartment, perfect for use as a rental, an ADU, in-law or nanny space.
  • Related Plans: Get an alternate 19'-wide house plan with 421513CHD (1,551 sq. ft.) and 421514CHD (1,457 sq. ft.).

Each plan set includes the following:

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes and Window & Door Schedules

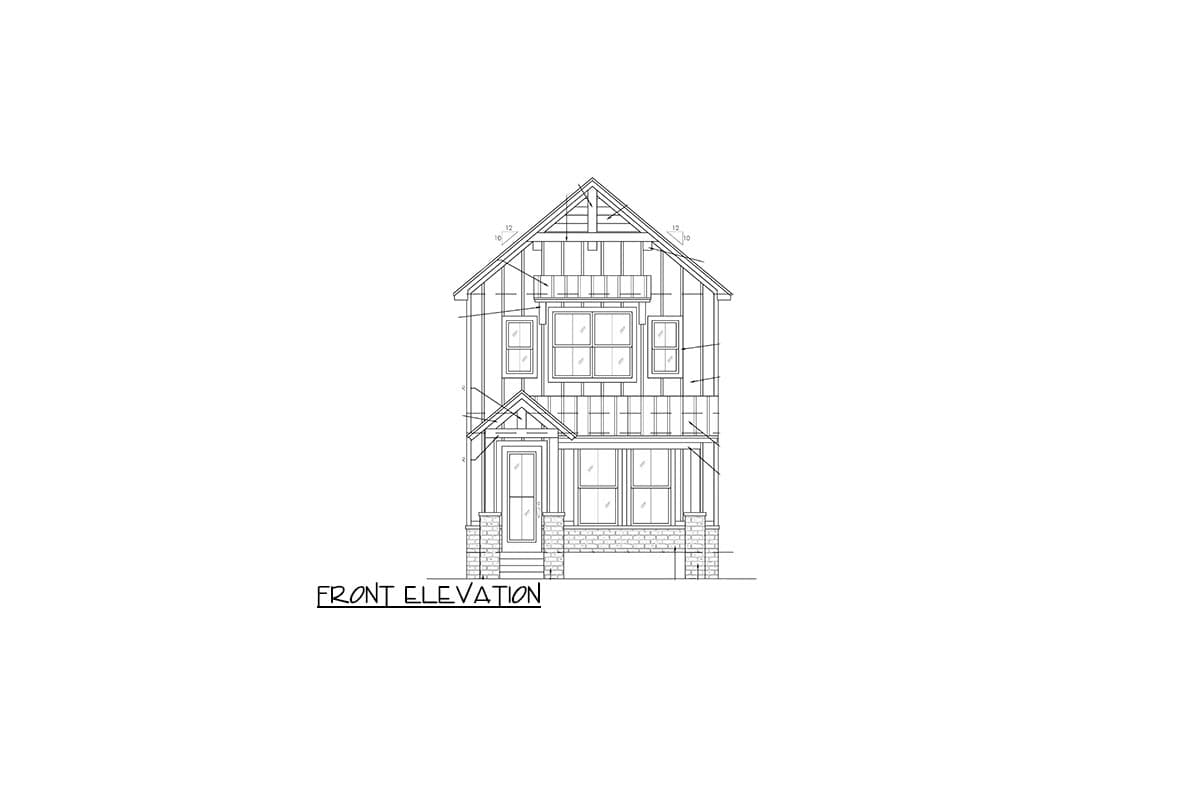

  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

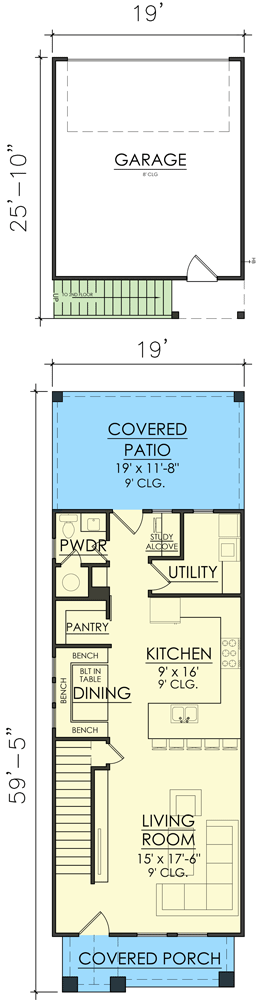

3-Bed Townhome Plan with 1-Bed Apartment Above Garage - 421505CHD floor plan - Main Level

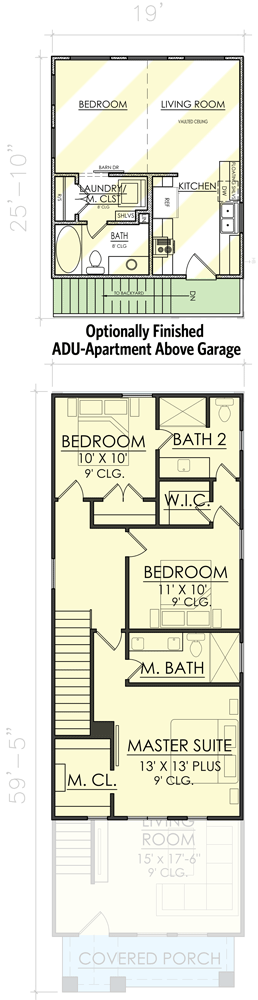

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Townhome Plan with 1-Bed Apartment Above Garage - 421505CHD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,630 sq. ft.
  • 1st Floor: 801 sq. ft.
  • 2nd Floor: 755 sq. ft.
  • Porch, Rear: 222 sq. ft.
  • Porch, Front: 88 sq. ft.
  • Apartment: 418 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 19' 0"
  • Depth: 91' 5"

Garage

  • Type: Detached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

3-Bed Townhome Plan with 1-Bed Apartment Above Garage

  • 1,630

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets + PDF $1,545
  • PDF - Unlimited Build $1,895
  • CAD Unlimited + PDF $2,295
  • View all purchase option online

About This Plan

  • This 19'-wide house plan is great for your narrow lot. It gives you 3 beds and 2.5 baths in the main home and a separate apartment above the detached garage in back.
  • The main floor is open concept with the living room flowing seamlessly to the C-shaped kitchen with seating for up to 4 at the peninsula. A space-saving dining nook has built-in bench seating and there's even a nice-sized pantry as well.
  • In back, a powder room, a built-in desk and laundry room are split by the door taking you to a large covered patio.
  • Upstairs, the master suite is in front and two bedrooms in back share a bath.
  • An external staircase runs in back of the rear-facing 2-car detached garage and takes you to the apartment, perfect for use as a rental, an ADU, in-law or nanny space.
  • Related Plans: Get an alternate 19'-wide house plan with 421513CHD (1,551 sq. ft.) and 421514CHD (1,457 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,630 sq. ft.
  • 1st Floor: 801 sq. ft.
  • 2nd Floor: 755 sq. ft.
  • Porch, Rear: 222 sq. ft.
  • Porch, Front: 88 sq. ft.
  • Apartment: 418 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 19' 0"
  • Depth: 91' 5"

Garage

  • Type: Detached
  • Area: 418 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
