3-Bed Traditional Duplex House Plan with Detached Garage - 1473 Per Unit

Heated S.F.
2,946
Units
2
Width
Depth

Floor Plan

Plan 48631FM

Main Level
Main Level
2nd Floor
2nd Floor
Detached Garage
Detached Garage

Plan 48631FM

M-F 9am-5pm EST |

1-203-761-8500

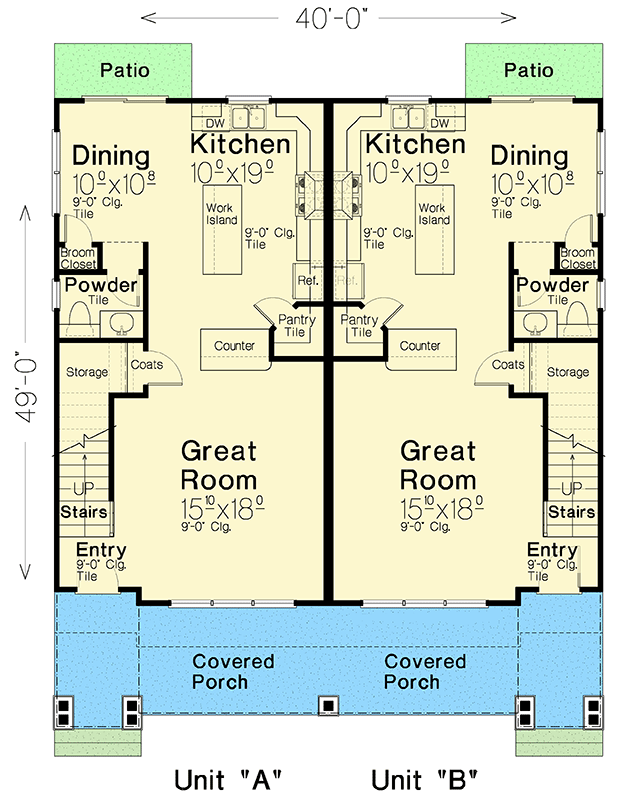

Main Level

Plan 48631FM: 3-Bed Traditional Duplex House Plan with Detached Garage - 1473 Per Unit - Floor Plan - Main Level - Country, Traditional

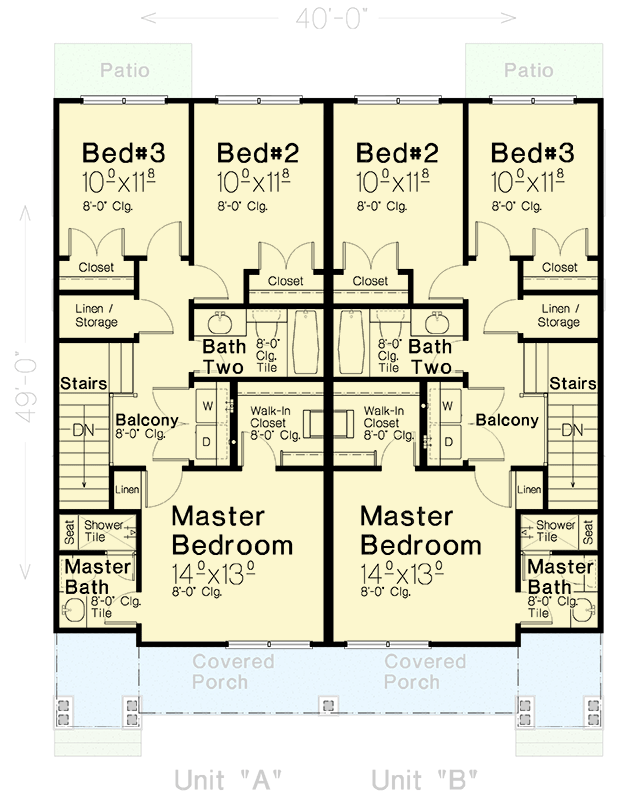

2nd Floor

Plan 48631FM: 3-Bed Traditional Duplex House Plan with Detached Garage - 1473 Per Unit - Floor Plan - 2nd Floor - Country, Traditional

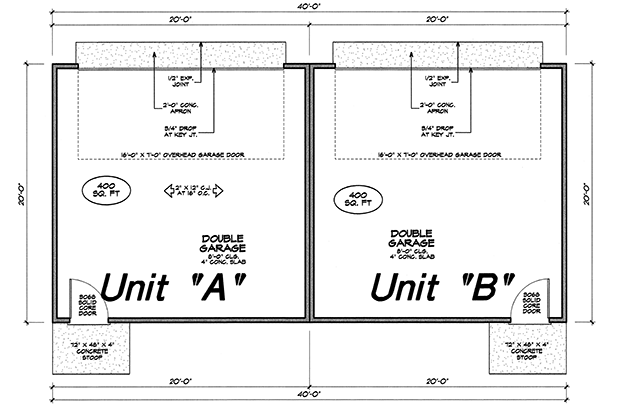

Detached Garage

Plan 48631FM: 3-Bed Traditional Duplex House Plan with Detached Garage - 1473 Per Unit - Floor Plan - Detached Garage - Country, Traditional

Plan Details

  • This two-story duplex-family house plan gives you 2 units each with 1,473 square feet of heated living space (739 sq. ft. on the first floor, 734 sq. ft. on the second floor), 3 beds, 2.5 baths and a detached 400 sq. ft. 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plan: Get an alternate elevation with duplex-family house plans 48630FM (2,946 sq ft) and 48632FM (2,946 sq ft).
Unit A
Heated Area
1,473Sq. Ft.
739 Sq. Ft. 1st
734 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Detached
400 Sq. Ft.
Dimensions
20'width
49'depth
29'height
Unfinished Areas
400 Sq. Ft. Garage
40 Sq. Ft. Covered Patio
332 Sq. Ft. Porch, Front
