Plan 86413HH

3-Bed Traditional House Plan with Wrap Around Rear Screen Porch - 2868 Sq Ft

Heated S.F.
2,868
Beds
3
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 86413HH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 86413HH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

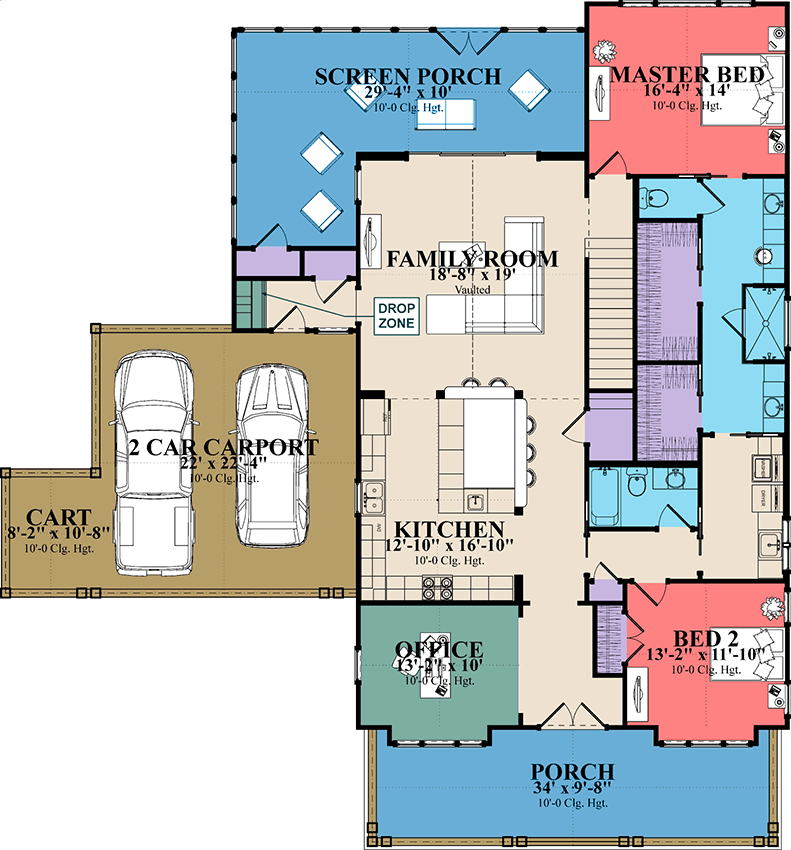

Plan 86413HH: 3-Bed Traditional House Plan with Wrap Around Rear Screen Porch - 2868 Sq Ft - Floor Plan - Main Level - Colonial, Country, New American, Traditional

2nd Floor

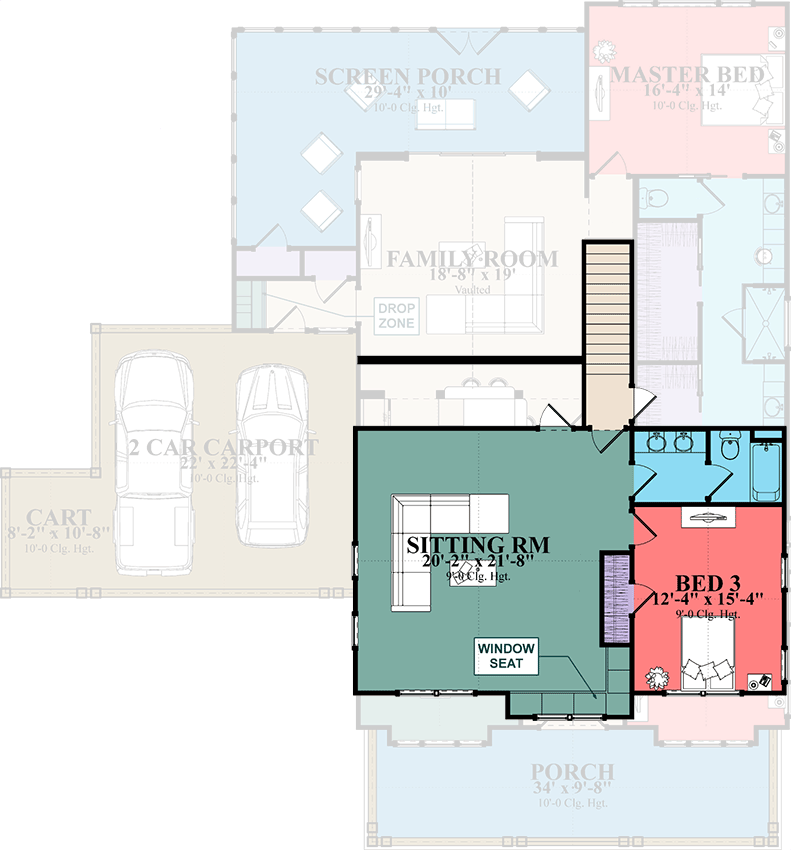

Plan 86413HH: 3-Bed Traditional House Plan with Wrap Around Rear Screen Porch - 2868 Sq Ft - Floor Plan - 2nd Floor - Colonial, Country, New American, Traditional

Plan Details

  • This traditional style house plan features 3-bedrooms, 3-baths, and 2,868 square feet of heated living space between the first and second floor.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,868 sq. ft.

1st Floor

2,024 sq. ft.

2nd Floor

844 sq. ft.

Porch, Combined

703 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 6"

Depth

70' 6"

Max Ridge Height

31' 3"

Garage

Type

Attached, Carport

Area

572 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Architectural Style

Colonial

Country

New American

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wraparound Porch

Square Footage Breakdown

Total Heated Area

2,868 sq. ft.

1st Floor

2,024 sq. ft.

2nd Floor

844 sq. ft.

Porch, Combined

703 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 6"

Depth

70' 6"

Max Ridge Height

31' 3"

Garage

Type

Attached, Carport

Area

572 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Architectural Style

Colonial

Country

New American

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Wraparound Porch
