Plan 470321REY

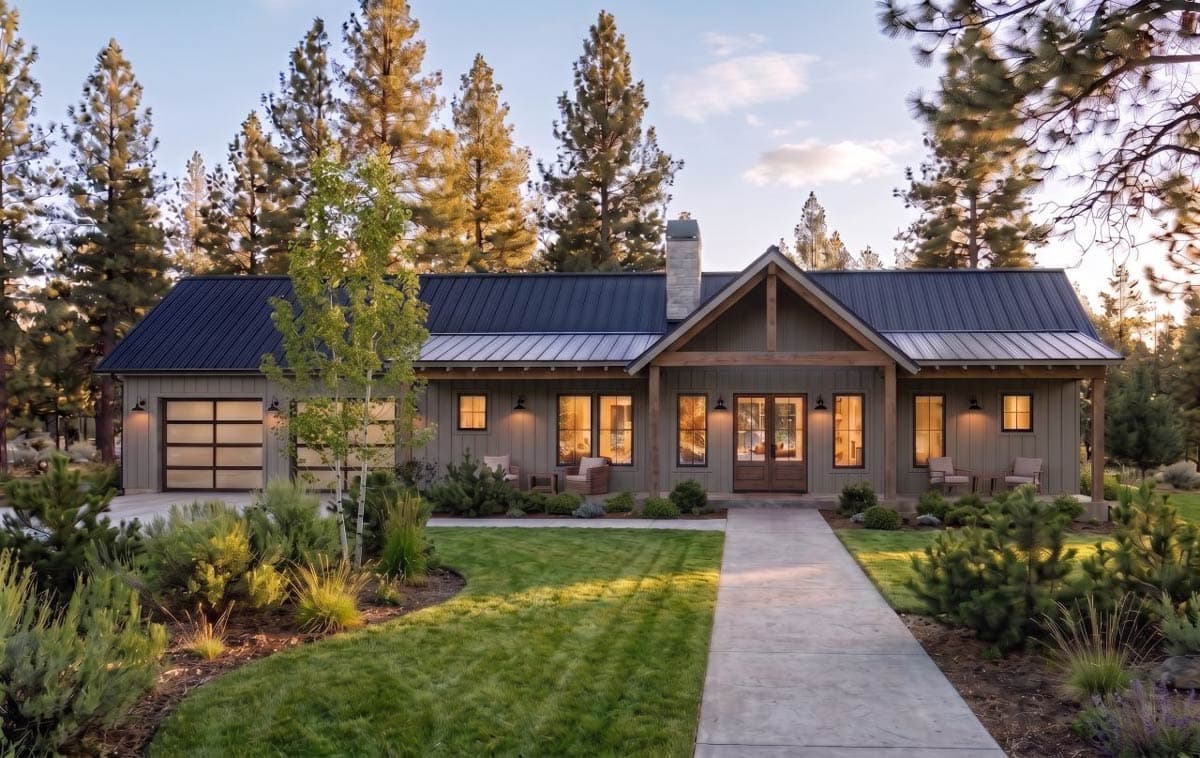

3-Bedroom Modern Farmhouse Ranch Home Plan with Drive-Thru Garage

Name: Plan 470321REY: 3-Bedroom Modern Farmhouse Ranch Home Plan with Drive-Thru Garage
Brand: Architectural Designs
SKU: 470321REY
Price: 1295.0 USD
Availability: InStock

Heated S.F.

1,664

Beds

Baths

2.5

Stories

Cars

Floor Plan

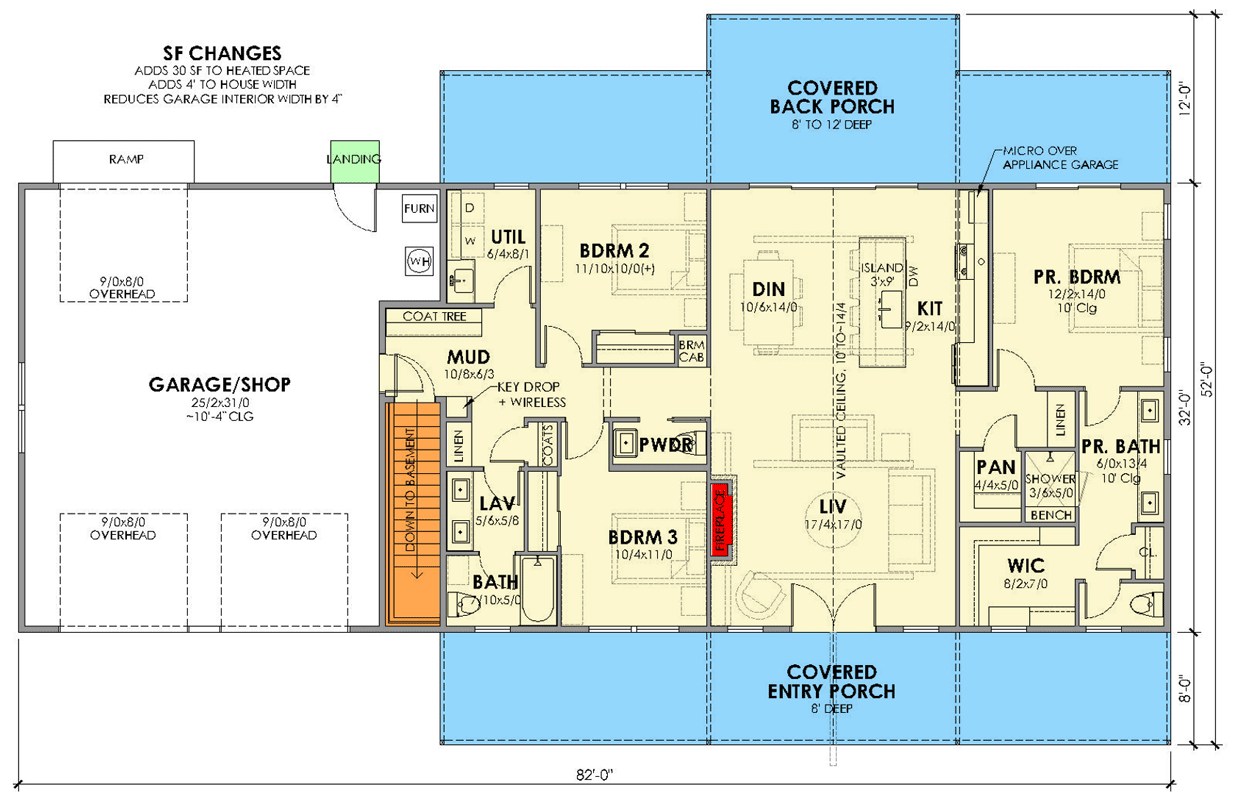

Main Level w/ Basement Stairs

Plan Details

Discover this stunning 1,664 sq. ft. Modern Farmhouse plan, featuring 3 bedrooms, 2.5 bathrooms, and a 2-car garage.
Step into an inviting open-concept living space, perfect for seamless entertaining, with a dedicated home office conveniently located near the entrance for productivity.
The heart of this home is its flowing living area, connecting the spacious living room, a charming dining area, and a well-appointed kitchen with a large island, creating an ideal atmosphere for gatherings.
Retreat to the luxurious primary suite, a private sanctuary boasting a generous walk-in closet and an en-suite bathroom, while two additional bedrooms offer comfortable accommodations for family or guests.
Extend your living space outdoors with a covered back porch, ideal for al fresco dining or enjoying the tranquil surroundings.
This plan also offers the flexibility of an optionally finished basement, providing ample opportunity to customize and expand your living area to suit your lifestyle.
Related Plan: Get more square footage and a 3-car side entry garage with house plan 470318REY (2,088 sq. ft.)

What's Included

Cover Sheet: Includes front elevation or perspective, plan description, general notes, building footprint, building area breakdowns, drawing sheet index, etc. These elements are not to scale.
Floor Plan: Includes layout of each floor with locations and dimensions of walls, doors, and windows. Overhead beams and vaults are indicated. Shows locations of cabinetry, appliances, plumbing fixtures, closets and shelf packs.

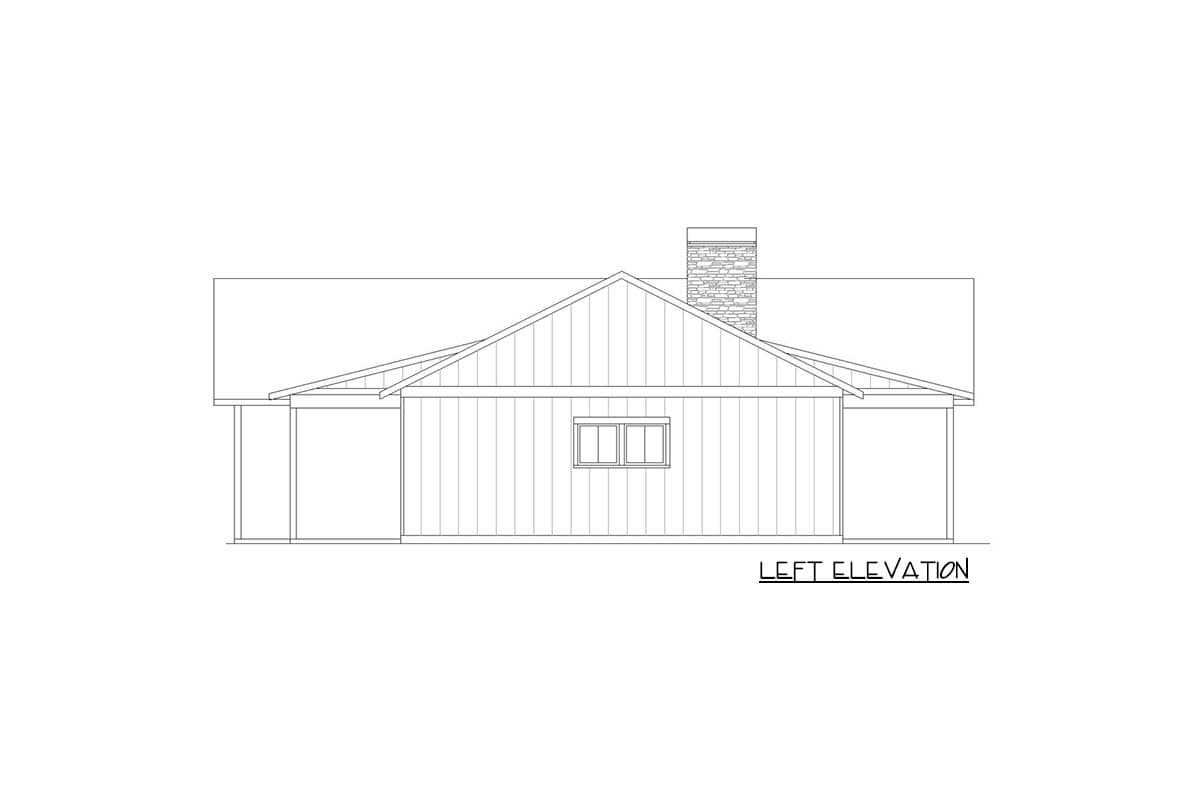

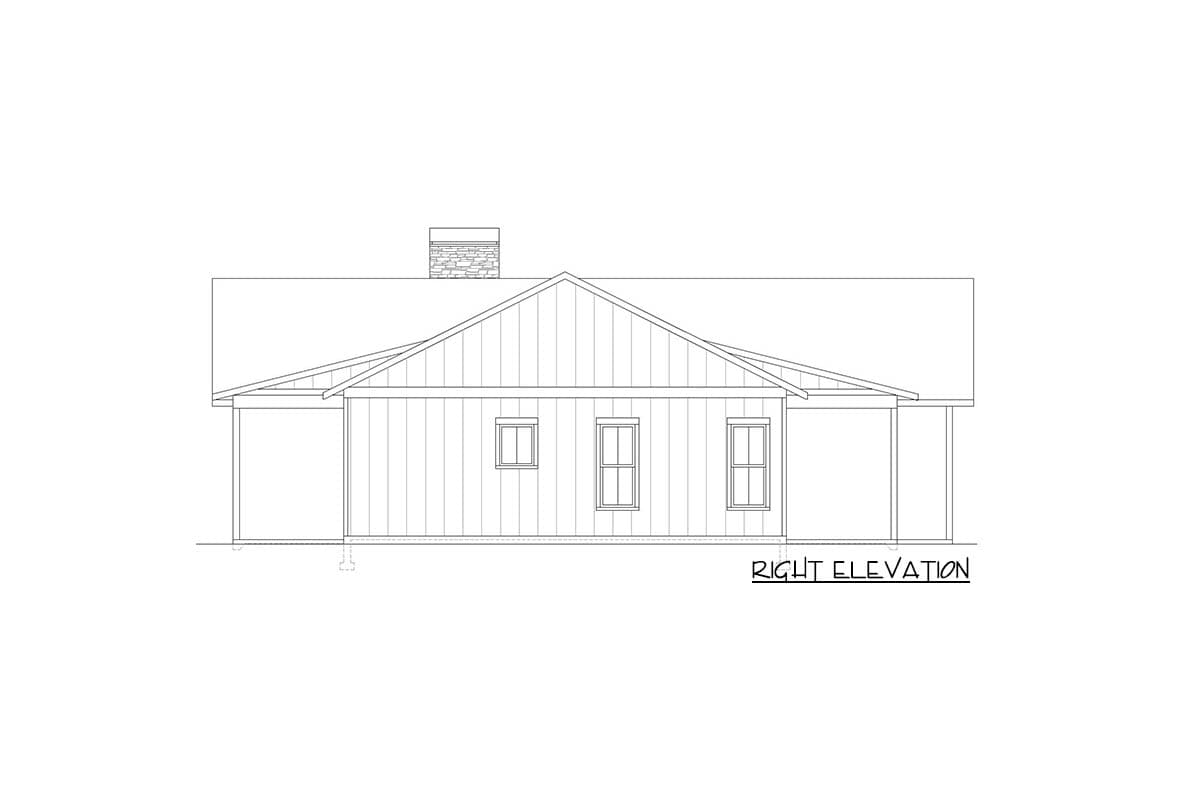

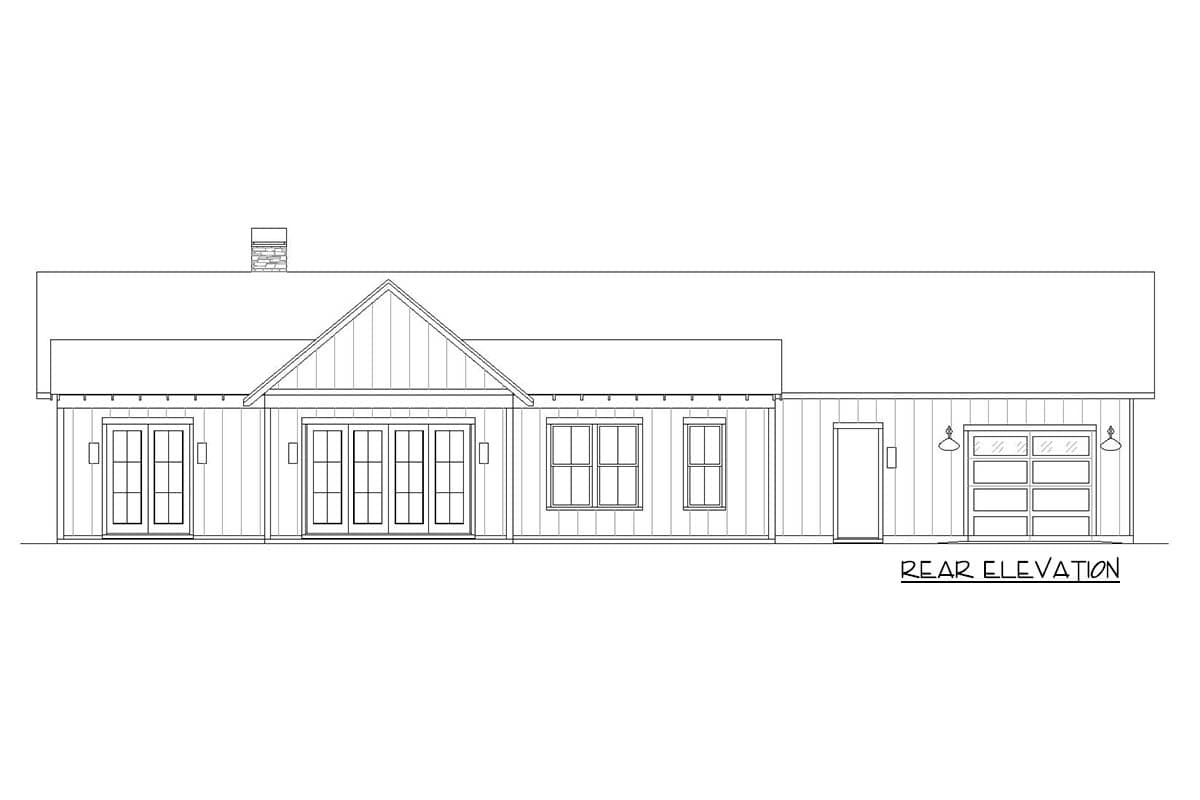

Exterior Elevations: Shows front, sides and back building elevations along with roof pitches, and exterior siding and trim materials.
Typical Section: Usually drawn to ½”=1’-0”. Shows a cross-section of the building with typical elements such as ceiling and header heights, roof style, insulation locations (thermal envelope), and foundation style. Specific details may be shown in an additional Typical Wall Section, if included.
Electrical Plan: Includes a general suggested layout of light fixtures, switches, and electrical outlets.
Foundation Plan: Shows locations of foundation walls, strip footings and pier pads.
Floor Framing Plan: First floor framing may be combined with Foundation Plan. Shows floor framing type, spacing and direction along with supporting element locations.
Roof Framing Plan: Shows truss/rafter spacing and direction, typical overhangs, roof outline, supporting member locations, and over framing locations (if any).
Typical Details: Scales may vary, typically at to ½”=1’-0” or to 1”=1’-0”, some not to scale. Shows the suggested typical details such as transitions from foundation to walls, walls to ceiling/roof, general flashing strategies, and other connection points. Other specific architectural finish details may be included at designer’s discretion.
Interior Elevations of Cabinetry may be included, but are not always part of a standard drawing set.

This is a general description of the content of each main drawing set element. Elements may be grouped on single sheets for smaller plans or over multiple sheets for larger plans. Additional information may be included. All information provided, and particularly any structural information, simply reflects the conditions of the original build location and may not be appropriate for the plan purchaser’s build location and are included for reference only. Therefore, all drawing information is to be verified by a person qualified to ensure compliance with the actual build location conditions and regulations as needed. Unless otherwise noted, elements are typically drawn to a scale of ¼”=1’-0”.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
