Plan 69707AM

3-Bedroom Modern Prairie-Style Home Plan

Pageloader

3-Bedroom Modern Prairie-Style Home Plan

Plan 69707AM

  • 2,710

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This fresh 3-bedroom modern Prairie-style house plan, featuring a variety of dramatic exterior components, includes a 2-car garage with a workshop.
  • The open-concept floor plan provides the utmost flexibility, and the dining room's close proximity to the kitchen, and oversized pantry, makes entertaining effortless. A charming wrap-around covered porch is just off the great room.
  • A quiet study in the front of the house exceeds expectations by including a built-in Murphy bed.
  • The upper level provides sight lines into the great room below and boasts a master suite with a 4-piece bath, linen closet, and grand walk-in closet.
  • Across from the master, you'll find two additional bedrooms and an upper-level laundry room with a utility sink.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



3-Bedroom Modern Prairie-Style Home Plan

  • 2,710

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $935
  • PDF - single-use $1,285
  • 5 Sets $1,435
  • 5 Sets PLUS $1,485
  • CAD - multi-use $2,570
  • View all purchase option online

About This Plan

  • This fresh 3-bedroom modern Prairie-style house plan, featuring a variety of dramatic exterior components, includes a 2-car garage with a workshop.
  • The open-concept floor plan provides the utmost flexibility, and the dining room's close proximity to the kitchen, and oversized pantry, makes entertaining effortless. A charming wrap-around covered porch is just off the great room.
  • A quiet study in the front of the house exceeds expectations by including a built-in Murphy bed.
  • The upper level provides sight lines into the great room below and boasts a master suite with a 4-piece bath, linen closet, and grand walk-in closet.
  • Across from the master, you'll find two additional bedrooms and an upper-level laundry room with a utility sink.

Floor Plans

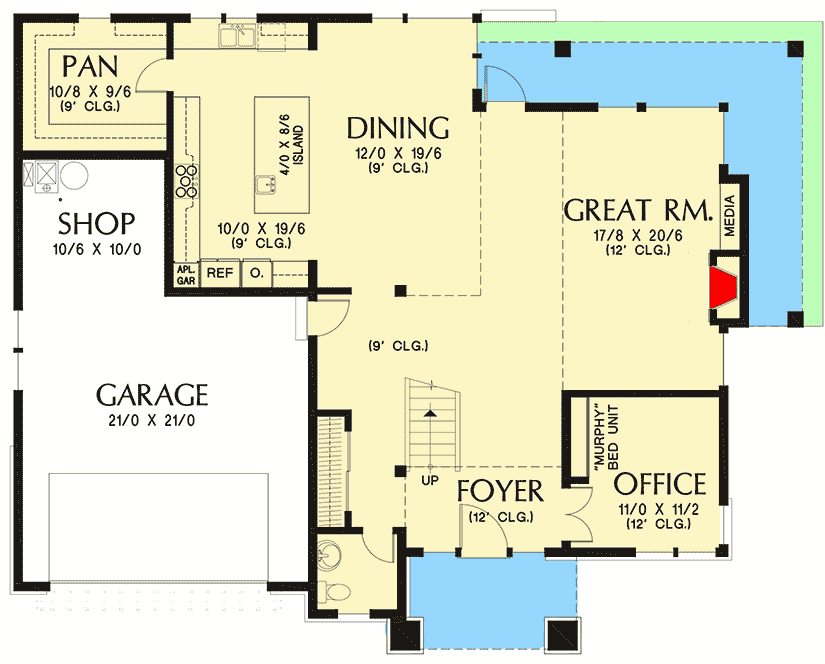

  • Main Level

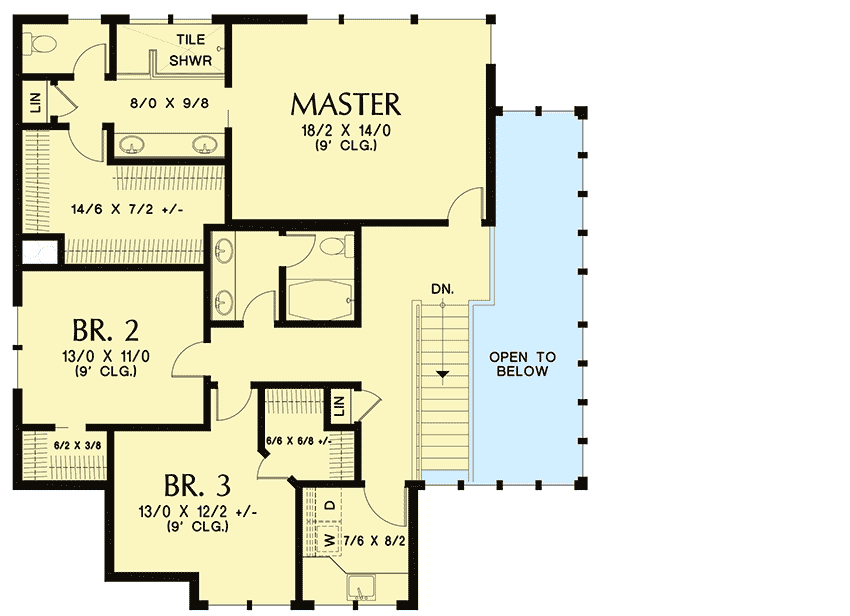

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,710 sq. ft.
  • 1st Floor: 1,467 sq. ft.
  • 2nd Floor: 1,243 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 53' 6"
  • Depth: 46' 4"
  • Max ridge height: 25' 5"

Garage

  • Type: Attached
  • Area: 572 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
