Plan 801173PM

3-Bedroom Split-Level House Plan - 1166 Square Feet

Heated S.F.
1,166
Beds
3
Baths
1
Stories
1

Floor Plan

Plan 801173PM

Main Level
Main Level

Plan 801173PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

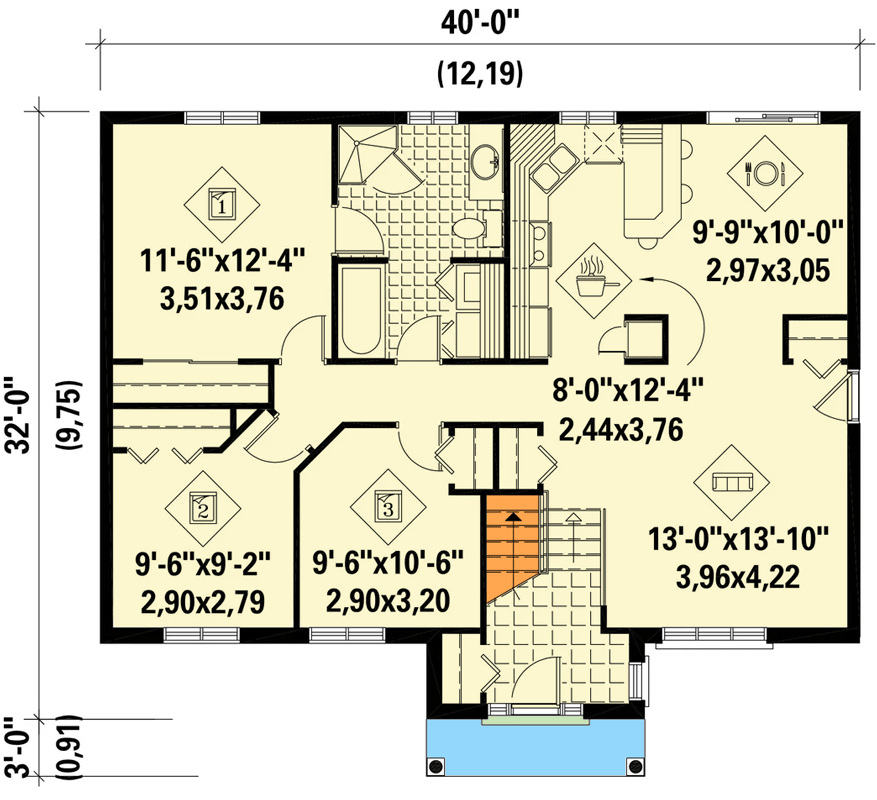

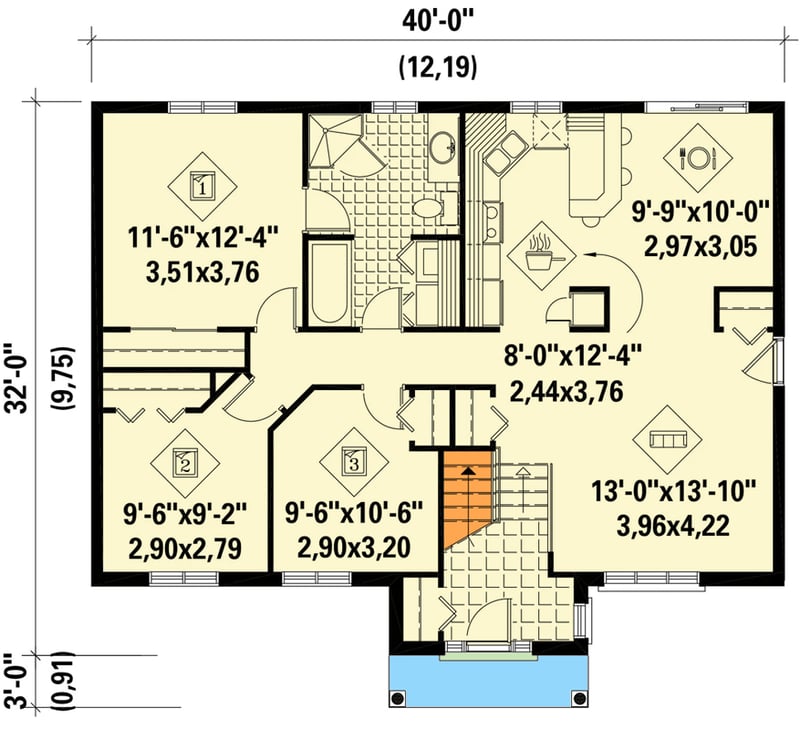

Plan 801173PM: 3-Bedroom Split-Level House Plan - 1166 Square Feet - Floor Plan - Main Level - Traditional

Plan Details

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,166 sq. ft.

1st Floor

1,166 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

20' 2"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,166 sq. ft.

1st Floor

1,166 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

32' 0"

Max Ridge Height

20' 2"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Split Level

Plan Collections

Canadian House Plans
