Plan 18255BE 3-Bedroom Storybook Bungalow with Fireplace

2,114 3 2.5 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bedroom Storybook Bungalow with Fireplace

Plan 18255BE

  • 2,114

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

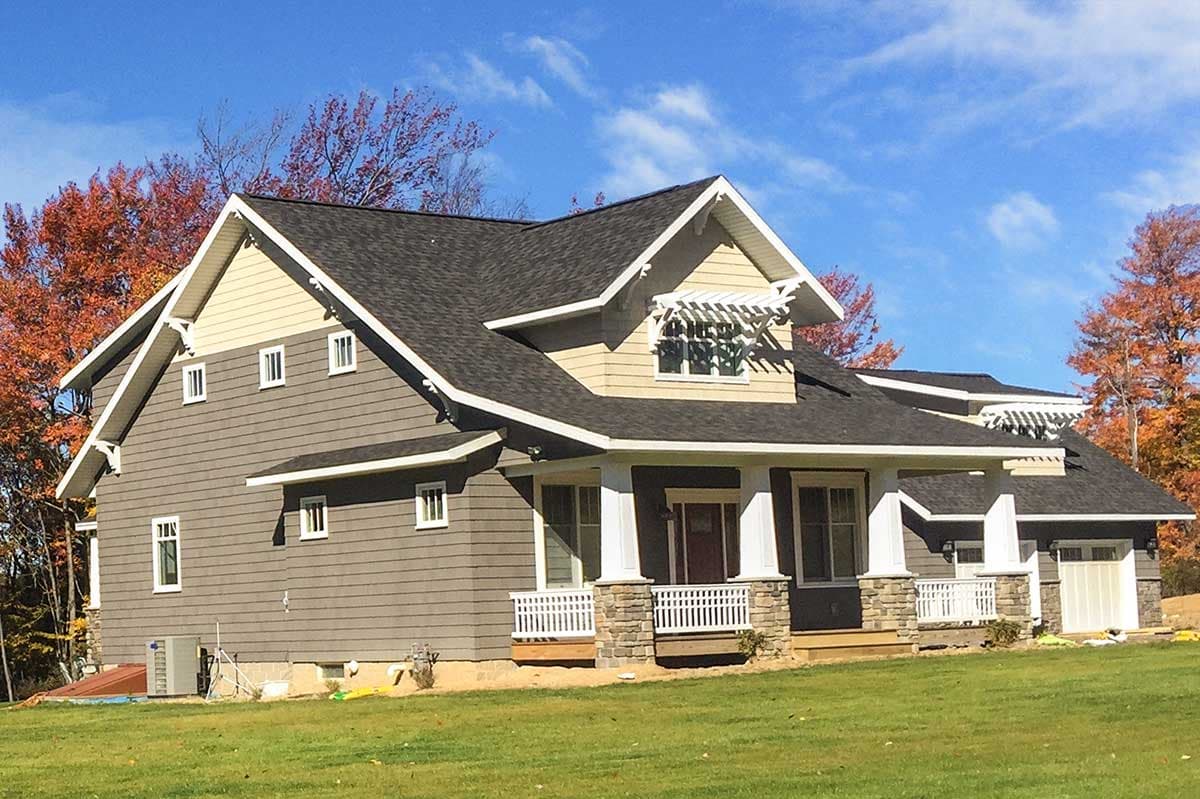

  • All the charming features of a storybook Bungalow home are captured in this stunning home plan, from the wide front porch to the big center gable. This home is the perfect size - not too big or too small.
  • The fireplace in the living room is flanked by built-ins that add an authentic feel.
  • The dining room is open to the kitchen and family room and french doors lead to the back covered porch.
  • A spacious island in the well-designed kitchen has room for an eating bar. A spacious pantry is a nice touch.
  • All the bedrooms are upstairs including the master with a vaulted ceiling.
  • Related Plans: Eliminate the side door and the fireplace with house plan 18298BE. Get an attached garage with house plans 18280BE (2,209 sq. ft.), 18240BE (2,597 sq. ft.) and 18252BE (3,423 sq. ft.). Buy a matching detached Craftsman garage with plan 18278BE.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

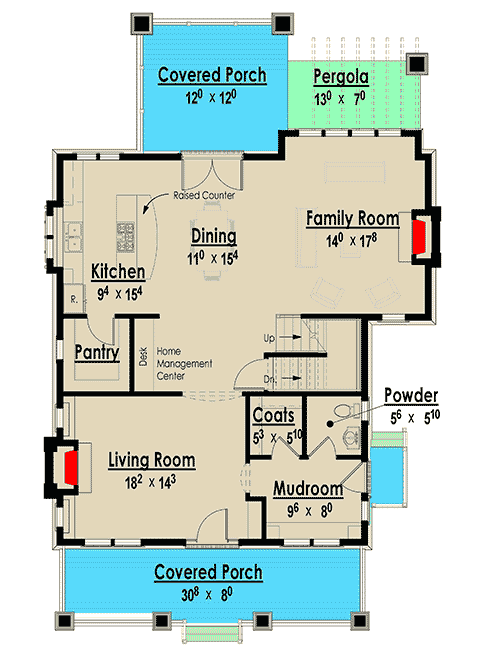

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bedroom Storybook Bungalow with Fireplace - 18255BE floor plan - Main Level

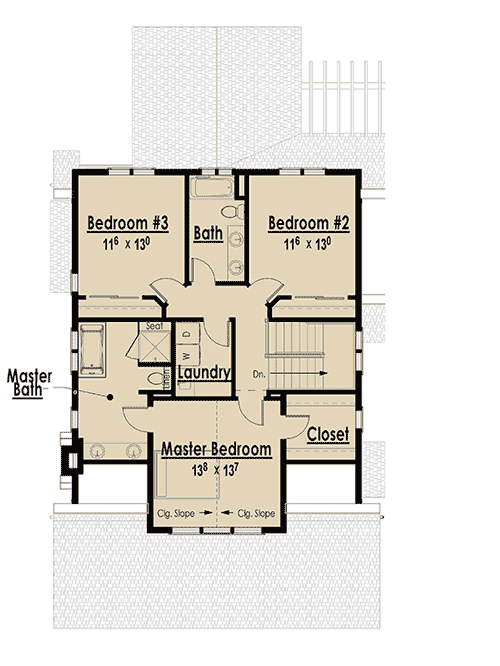

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bedroom Storybook Bungalow with Fireplace - 18255BE floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,114 sq. ft.
  • 1st Floor: 1,192 sq. ft.
  • 2nd Floor: 922 sq. ft.
  • Porch, Rear: 200 sq. ft.
  • Porch, Front: 250 sq. ft.
  • Basement Unfinished: 1,226 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 8"
  • Depth: 61' 2"
  • Max ridge height: 29' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3-Bedroom Storybook Bungalow with Fireplace

  • 2,114

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,085
  • CAD - Single-Build $1,645
  • View all purchase option online

About This Plan

  • All the charming features of a storybook Bungalow home are captured in this stunning home plan, from the wide front porch to the big center gable. This home is the perfect size - not too big or too small.
  • The fireplace in the living room is flanked by built-ins that add an authentic feel.
  • The dining room is open to the kitchen and family room and french doors lead to the back covered porch.
  • A spacious island in the well-designed kitchen has room for an eating bar. A spacious pantry is a nice touch.
  • All the bedrooms are upstairs including the master with a vaulted ceiling.
  • Related Plans: Eliminate the side door and the fireplace with house plan 18298BE. Get an attached garage with house plans 18280BE (2,209 sq. ft.), 18240BE (2,597 sq. ft.) and 18252BE (3,423 sq. ft.). Buy a matching detached Craftsman garage with plan 18278BE.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,114 sq. ft.
  • 1st Floor: 1,192 sq. ft.
  • 2nd Floor: 922 sq. ft.
  • Porch, Rear: 200 sq. ft.
  • Porch, Front: 250 sq. ft.
  • Basement Unfinished: 1,226 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 8"
  • Depth: 61' 2"
  • Max ridge height: 29' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
Plan 18255BE
View this and more for this plan by visiting www.architechtecturaldesigns.com/18255BE
|
