3 Bedrooms and Porches Front and Back

Plan 11782HZ

1,834
Heated s.f.
3
Beds
2
Baths
1
Stories
2
Cars

A 31-foot long porch graces the front of this this beautifully designed home plan.
Inside, you'll find 3 large bedrooms, an open living area, formal dining, and a large rear porch. The great room has a gas fireplace, and views into the kitchen and dining area.
The kitchen is large and inviting with a large cabinet style pantry, lots of counter space and cabinets for storage, and a sitting area off the raised bar area.
The split bedroom layout maximizes privacy in the master suite which features dual sinks, an enclosed toilet room, a large jet tub, a separate shower, and a large walk-in closet. Two beds across the home share a bath.
The rear porch is broad and leads to the optional patio giving you two great spaces two enjoy fresh air in back.
The roof has a 9:12 primary pitch and a 8:12 secondary pitch.

This designer's plans include the following details:

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

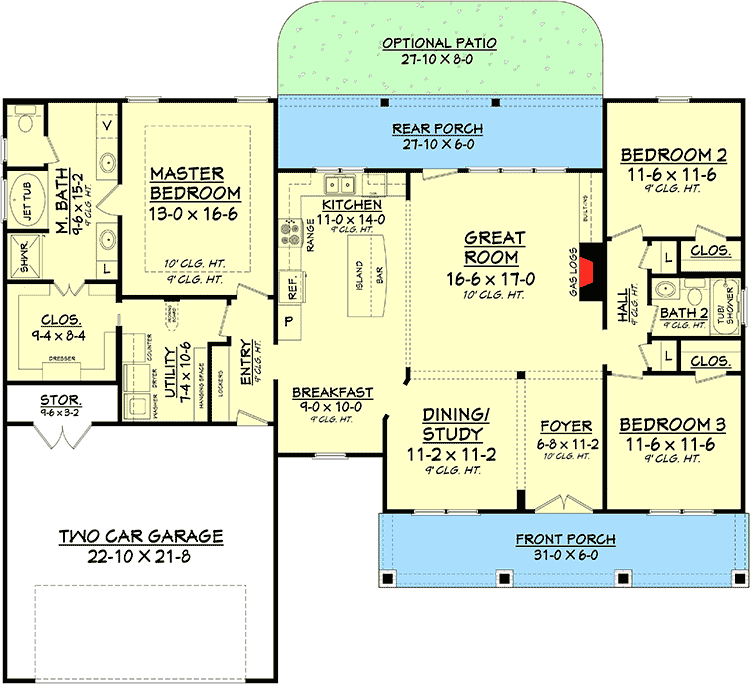

3 Bedrooms and Porches Front and Back - 11782HZ floor plan - Main Level

Optional

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

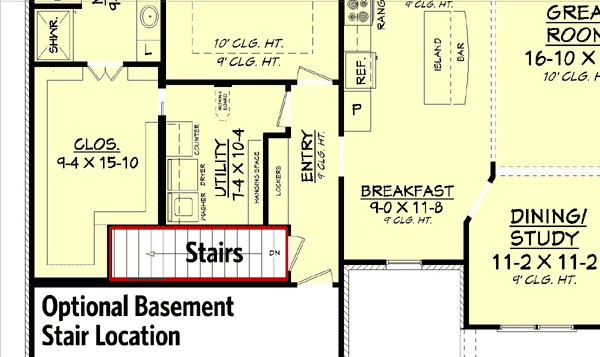

3 Bedrooms and Porches Front and Back - 11782HZ floor plan - Optional

Plan details

Square Footage Breakdown

Total Heated Area: 1,834 sq. ft.
1st Floor: 1,834 sq. ft.

Storage: 34 sq. ft.
Porch, Combined: 353 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Slab, Crawl

Optional Foundations: Basement, Walkout

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 63' 6"
Depth: 50' 0"
Max ridge height: 22' 0"

Garage

Type: Attached
Area: 516 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 9 on 12

Framing Type: Stick

Architectural Style
