Plan 360063DK
3-Car Carriage House Plan with Two Upstairs Bedrooms
Heated S.F.
1,221
Beds
2
Baths
2.5
Stories
2
Cars
3
Plan Details

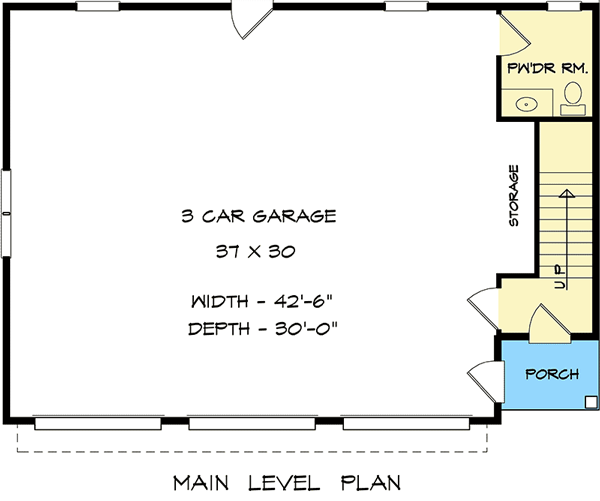

  • This 3 bed carriage house plan is great as a guest house, an ADU, an income-producing property or use as a workshop or man cave. Four double-hung windows sit above the three garage doors. A man door gives you access off the covered entry and takes you either to the garage or upstairs. A half bath on the ground floor is a nice touch.

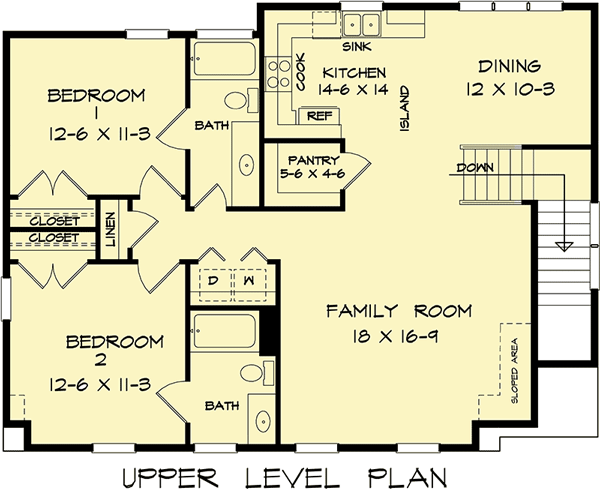

  • The upper floor gives you an open area combining a full kitchen with bar seating, a family and dining area. Laundry is tucked out of the way. The bedroom has a walk-in closet and a window seat.

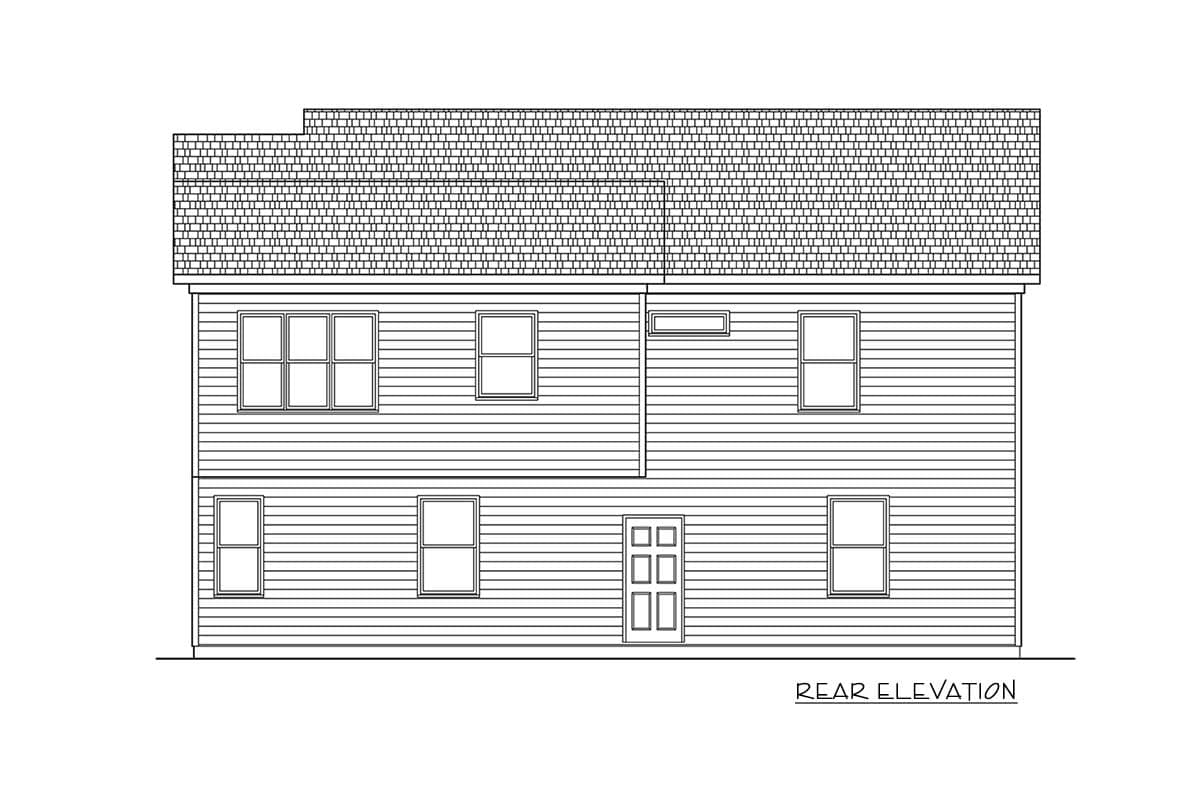

  • In back, a shed roof provides cover above the terrace.
  • Related Plans: Get an alternate exterior with house plan 36057DK and 360047DK. Get a 2-car garage apartment with plans 360067DK and 360076DK.
What's Included

This plan includes the following elements:

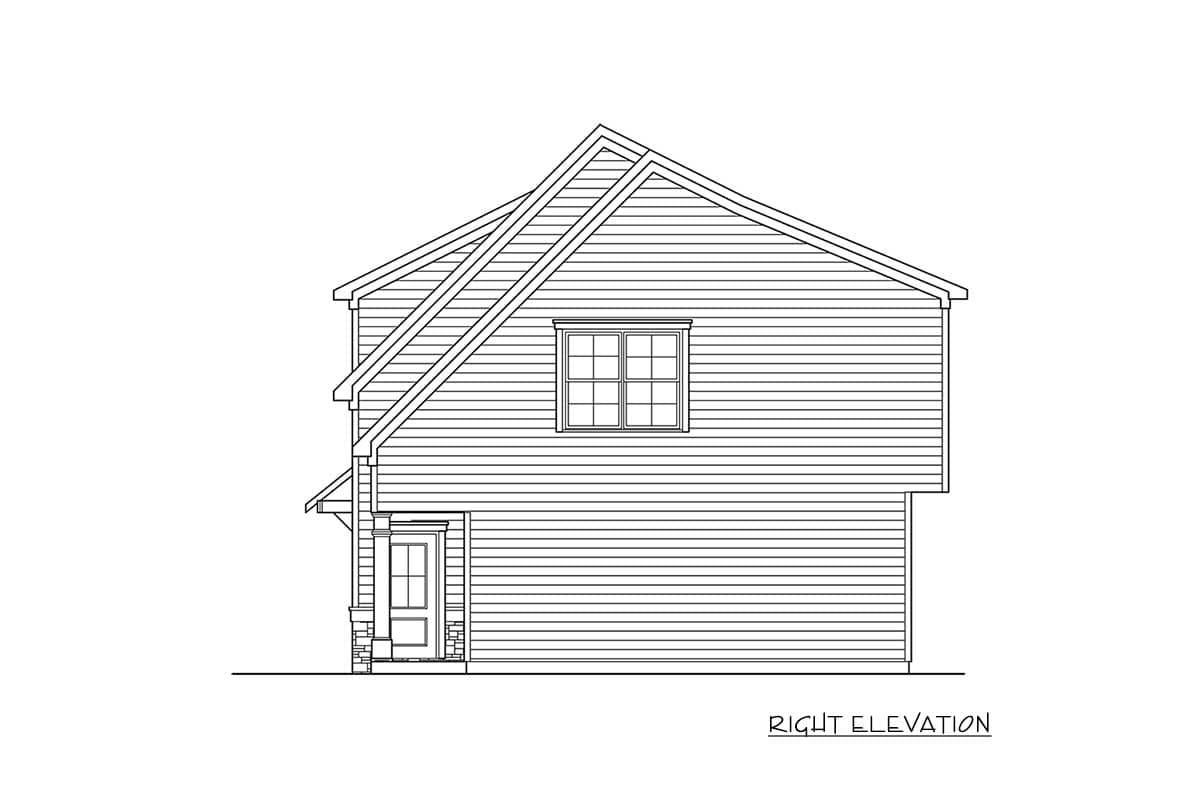

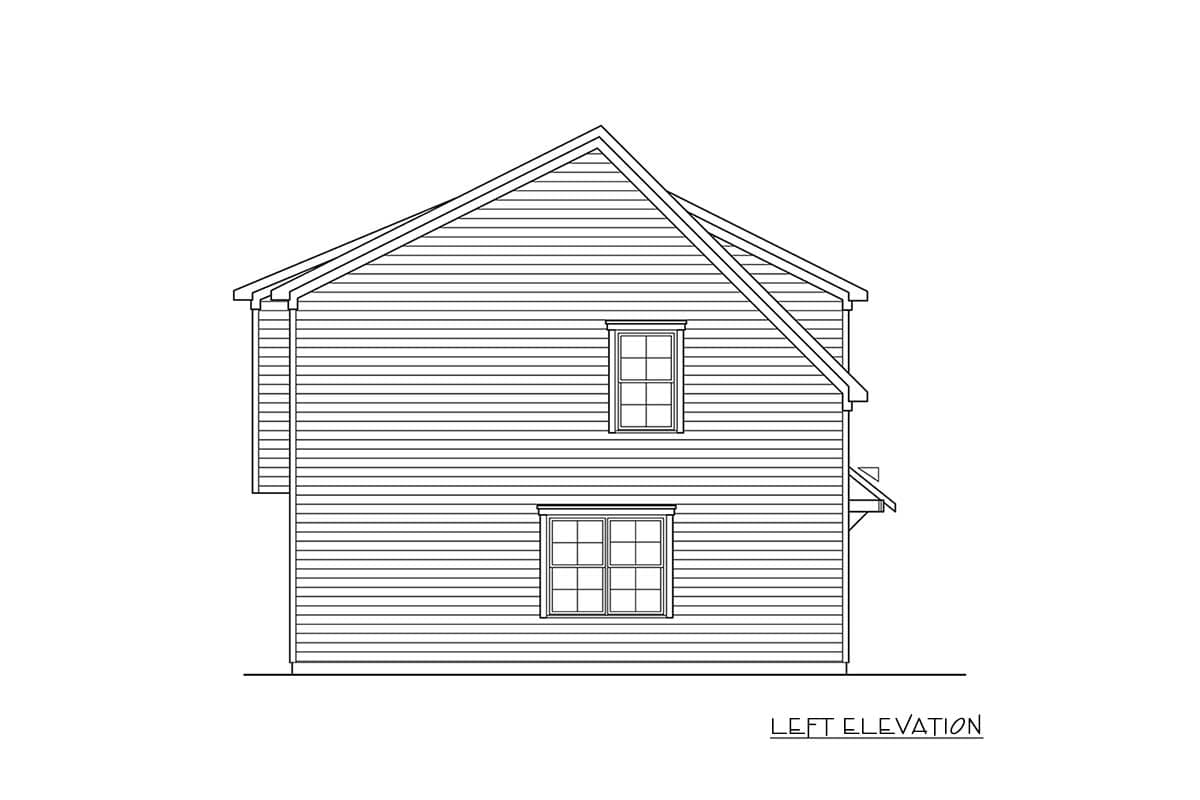

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Car Carriage House Plan with Two Upstairs Bedrooms

  • 1,221

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,221 sq. ft.

Dimensions

  • Width: 42' 6"
  • Depth: 30' 0"
  • Max ridge height: 28' 10"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 1233 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
