Plan 14631RK
3 Car Garage with Apartment Above - 988 Sq Ft Garage and 938 Sq Ft Apartment
Heated S.F.
938
Beds
1
Baths
1
Stories
2
Cars
3
Plan Details

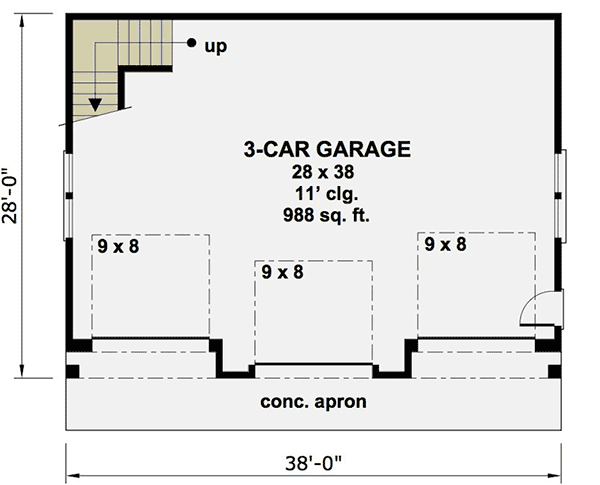

  • The main level of this shingle style garage apartment gives you parking for 3 cars behind 9'x8' doors. A man door on the right gives you access to your property.

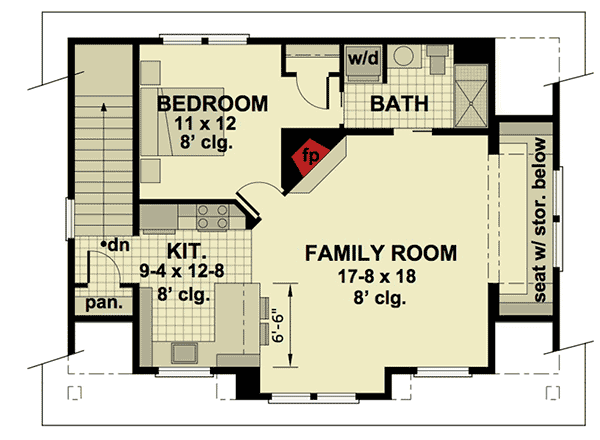

  • The upper floor is a fully-functioning apartment complete with family room open to the kitchen, a bedroom suite with laundry and a large window seat looking out over the right.
  • An angled fireplace and seating at the kitchen are two nice touches in this tidy plan.
  • The foundation is a slab on frost footings.
What's Included
  • Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.

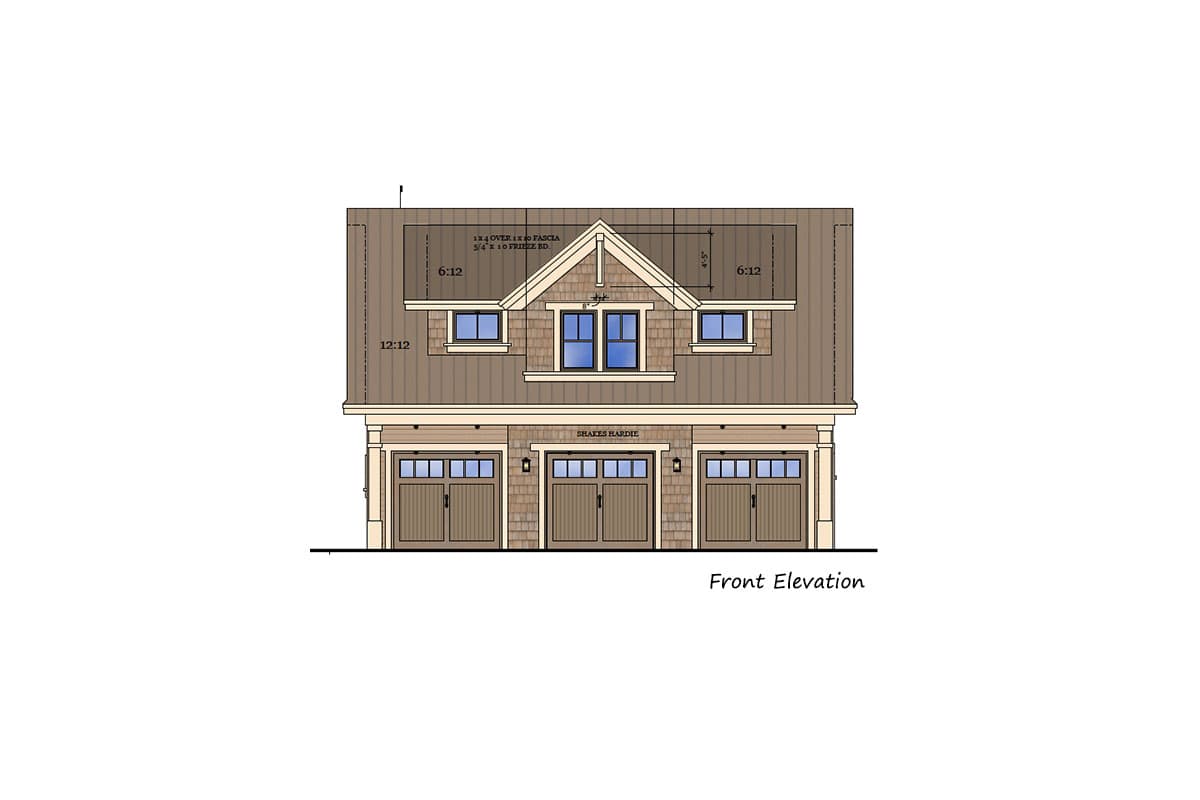

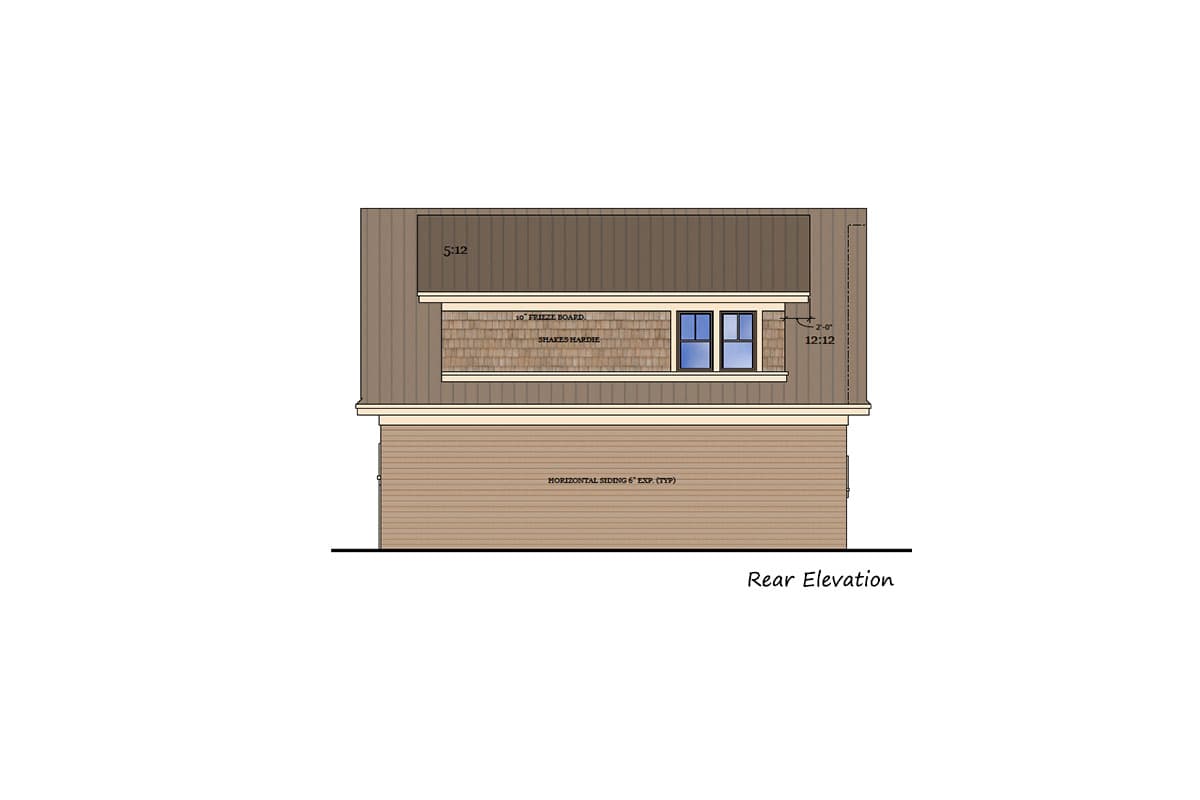

  • Elevations: Four completed elevations with dimensions and notes.
  • Floor Plan(s): Complete with dimensions and notes.
  • Roof Plan: Complete with roof pitches overhangs and notes.
  • Building Sections
  • General Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy Calculations - handled locally when required
IMPORTANT NOTE:  Not all plans come with a lighting layout.  Please contact us to check for availability.
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Car Garage with Apartment Above - 988 Sq Ft Garage and 938 Sq Ft Apartment

  • 938

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 938 sq. ft.
  • 2nd Floor: 938 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 28' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 988 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
