3 Family Home Plan

Plan 21946DR

  • 3,162

    Heated s.f.

  • 3

    Units

  • 32' 4"

    Width

  • 33'

    Depth

  • This three-family home plan gives each unit its own discreet entrance to maximize privacy.
  • Each unit delivers two bedrooms and a spacious family room and kitchen.
  • The main and lower level units give you 1,054 sq. ft. of living area and the upper floor unit gives you 1,050 sq. ft. of living area.
  • Related Plan: For an alternate version see house plan 21208DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Unit Details

A
1,054 Sq. Ft.
1054 Sq. Ft. 1st Floor
2 Beds
1 Full Bath
32' 4" w 33' d 32' 1" h
B
1,050 Sq. Ft.
1050 Sq. Ft. 2nd Floor
2 Beds
1 Full Bath
32' 4" w 33' 3" d 32' 1" h
C
1,054 Sq. Ft.
1054 Sq. Ft. Lower Level
2 Beds
1 Full Bath
32' 4" w 33' d 32' 1" h

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Family Home Plan - 21946DR floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

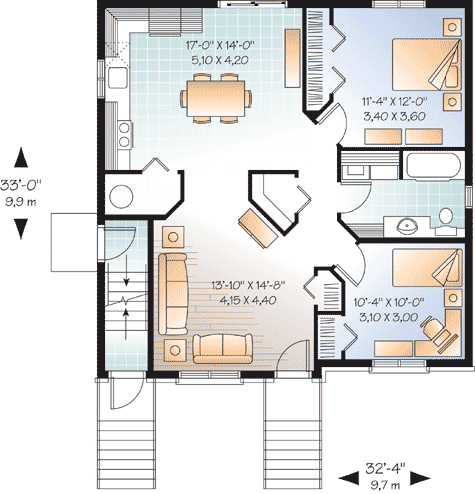

3 Family Home Plan - 21946DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

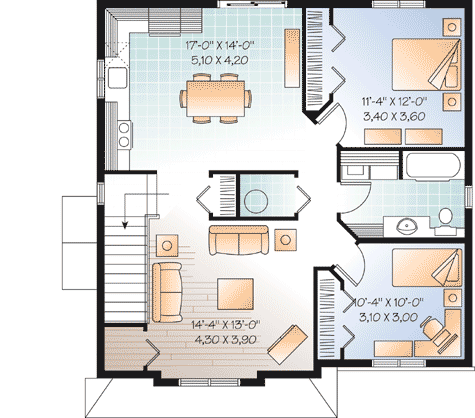

3 Family Home Plan - 21946DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,162 sq. ft.
  • Lower Level: 1,054 sq. ft.
  • 1st Floor: 1,054 sq. ft.
  • 2nd Floor: 1,050 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 4"
  • Depth: 33' 0"
  • Max ridge height: 32' 1"

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Truss

Special features

Plan Collections

3 Family Home Plan

  • 3,162

    Heated s.f.

  • 3

    Units

  • 32' 4"

    Width

  • 33'

    Depth

Floor Plan

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,162 sq. ft.
  • Lower Level: 1,054 sq. ft.
  • 1st Floor: 1,054 sq. ft.
  • 2nd Floor: 1,050 sq. ft.

Dimensions

  • Width: 32' 4"
  • Depth: 33' 0"
  • Max ridge height: 32' 1"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 8' 0" Second Floor / 8' 0"
