Plan 21208DR Two Family with Three Family Option

2,136 2 32' 0" 33' 8"
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Two Family with Three Family Option

Plan 21208DR

  • 2,136

    Heated s.f.

  • 2

    Units

  • 32' 0"

    Width

  • 33' 8"

    Depth

  • This two-family home plan gives each unit its own discreet entrance to maximize privacy.
  • Each unit delivers two bedrooms and a spacious family room and kitchen.
  • The main level unit gives you 1,065 sq. ft. of living area and the upper floor unit gives you 1,051 sq. ft. of living area.
  • Related Plan: Add a lower level apartment with house plan 21946DR.

Each plan includes the following:

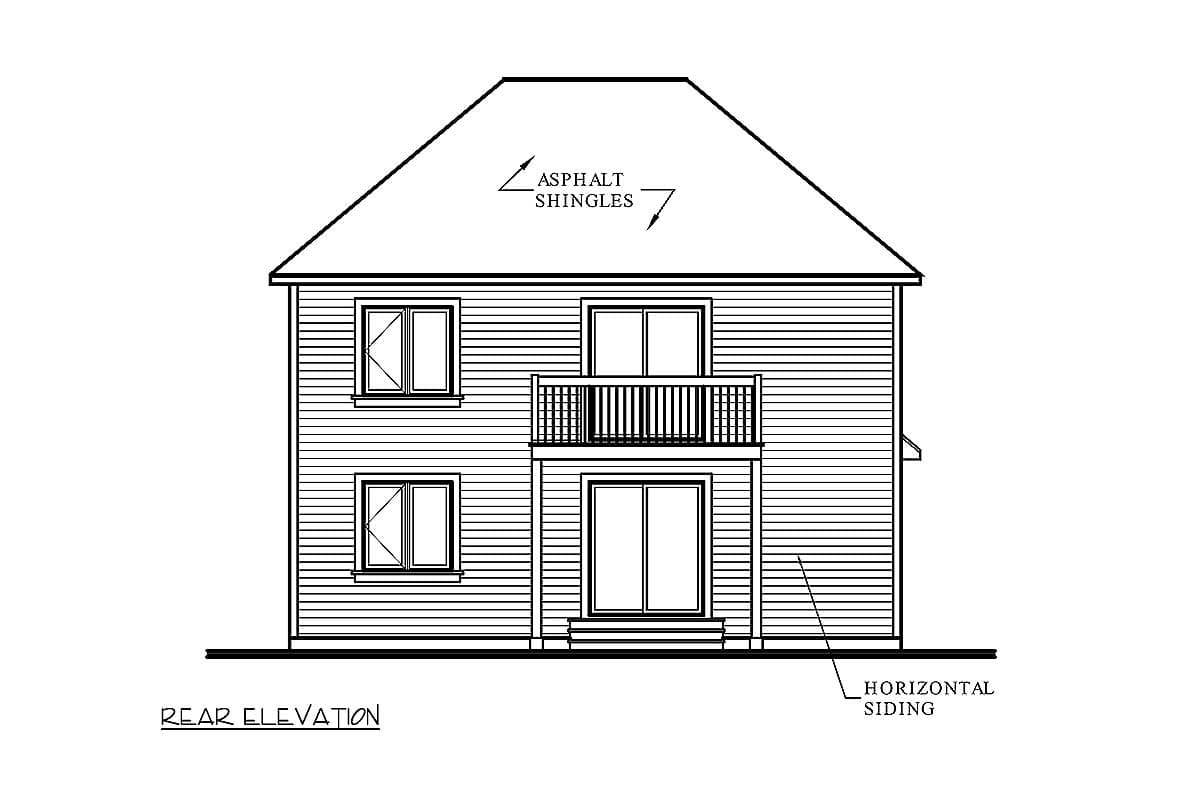

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

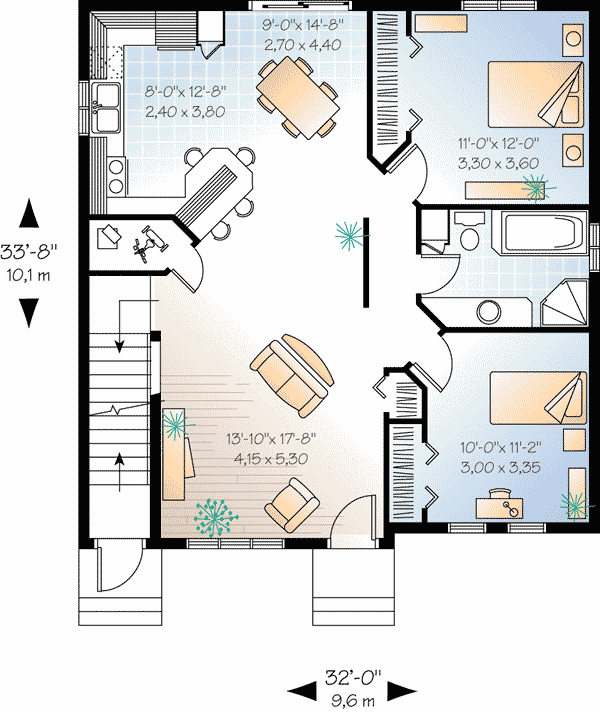

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two Family with Three Family Option - 21208DR floor plan - Main Level

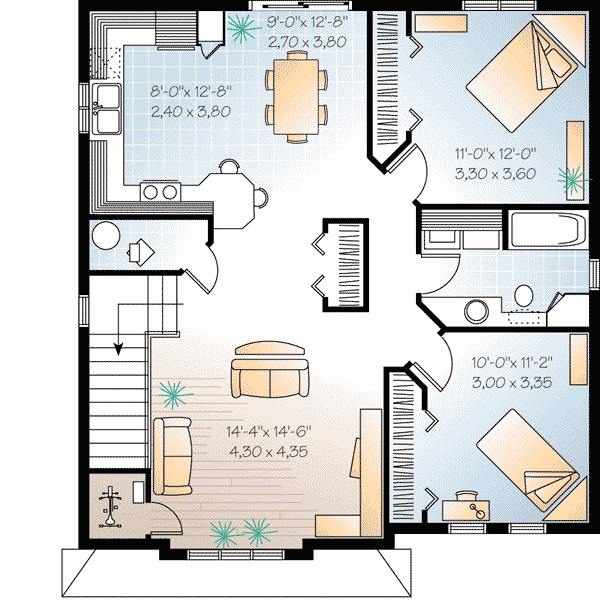

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Two Family with Three Family Option - 21208DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,136 sq. ft.
  • 1st Floor: 1,065 sq. ft.
  • 2nd Floor: 1,071 sq. ft.
  • Basement Unfinished: 1,065 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 33' 8"
  • Max ridge height: 29' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Special features

Plan Collections

Two Family with Three Family Option

  • 2,136

    Heated s.f.

  • 2

    Units

  • 32' 0"

    Width

  • 33' 8"

    Depth

Buy This Plan
  • PDF - Single-Build $1,835
  • 3 Sets + PDF $1,960
  • CAD + PDF - Single-Build $2,435
  • View all purchase option online

About This Plan

  • This two-family home plan gives each unit its own discreet entrance to maximize privacy.
  • Each unit delivers two bedrooms and a spacious family room and kitchen.
  • The main level unit gives you 1,065 sq. ft. of living area and the upper floor unit gives you 1,051 sq. ft. of living area.
  • Related Plan: Add a lower level apartment with house plan 21946DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,136 sq. ft.
  • 1st Floor: 1,065 sq. ft.
  • 2nd Floor: 1,071 sq. ft.
  • Basement Unfinished: 1,065 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 33' 8"
  • Max ridge height: 29' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
Plan 21208DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21208DR
|
