3 or 4 Bed Craftsman House Plan with Bonus Room Above - 2898 Sq Ft

Name: Plan 86405HH: 3 or 4 Bed Craftsman House Plan with Bonus Room Above - 2898 Sq Ft
Brand: Architectural Designs
SKU: 86405HH
Price: 1462.34 USD
Availability: InStock

Heated S.F.

2,898

Beds

3 - 5

Baths

Stories

1-2

Cars

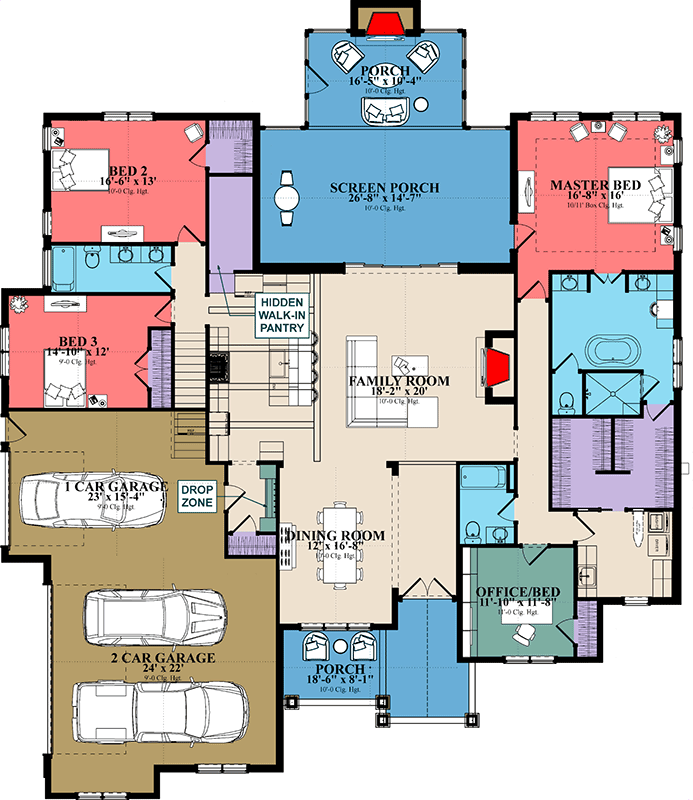

Floor Plan

Main Level

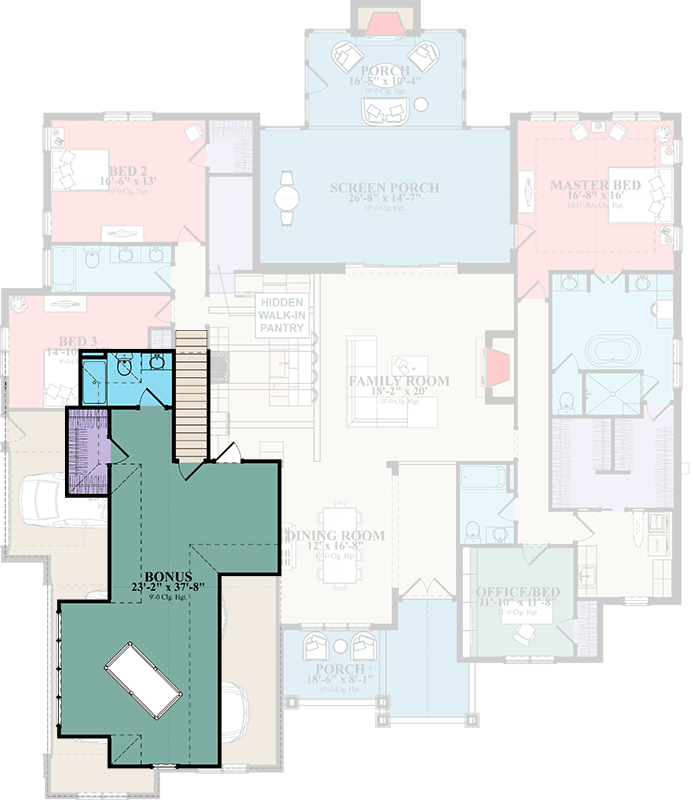

Bonus Level

Plan Details

This two-story Craftsman House Plan gives you 3 or 4 bedrooms, depending on how you use the flex room, and 2,898 square feet of heated living space.
Step into the foyer, where a formal dining area awaits on your left, seamlessly flowing into the family room featuring a cozy fireplace. The spacious kitchen, complete with a hidden pantry and mudroom, is integrated into this inviting space. Step out to the screened porch at the back, complete with an outdoor fireplace, perfect for enjoying the outdoors in comfort.
On the right side of the home, discover the master suite, boasting an ensuite bathroom and walk-in closet with direct access to the laundry room for added convenience. Adjacent to the master suite is a flexible room, ideal for use as an office or a fourth bedroom.
On the opposite side of the home, find two additional bedrooms and a bathroom. Ascend the stairs to the second floor bonus space, complete with its own bathroom, offering versatility and additional living space.

What's Included

Cover Sheet
Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
