Plan 680561VR

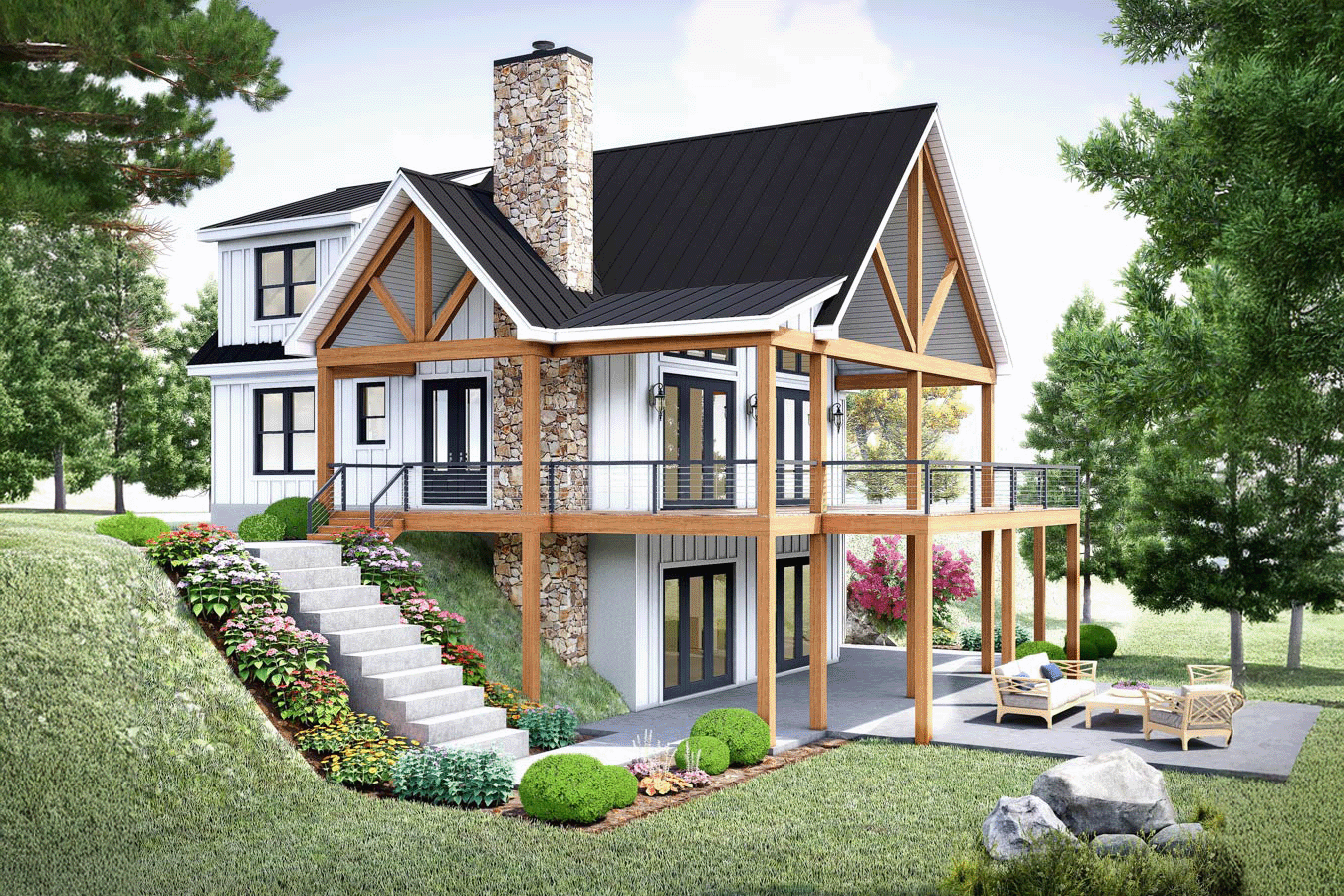

3 or 4 Bed Mountain Lake House Plan with Wrap-Around Porch - 3482 Sq Ft

Heated S.F.
3,482
Beds
3 - 4
Baths
4.5
Stories
2

Floor Plan

Plan 680561VR

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 680561VR

M-F 9am-5pm EST |

1-203-761-8500

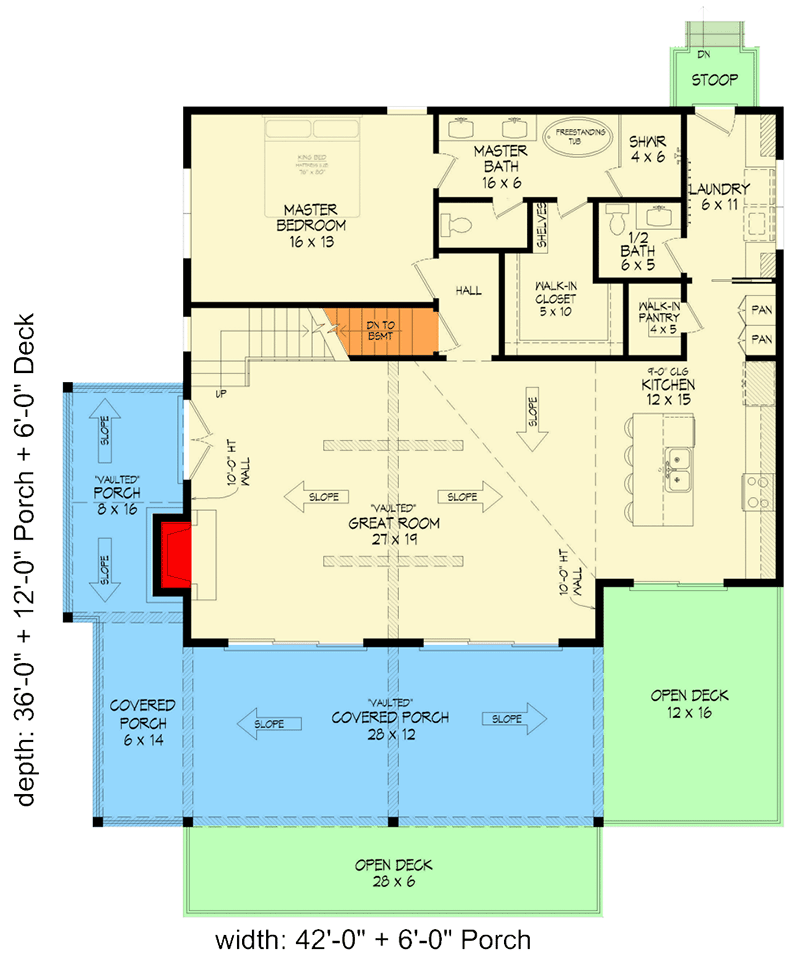

Main Level

Plan 680561VR: 3 or 4 Bed Mountain Lake House Plan with Wrap-Around Porch - 3482 Sq Ft - Floor Plan - Main Level - Contemporary, Mountain, New American

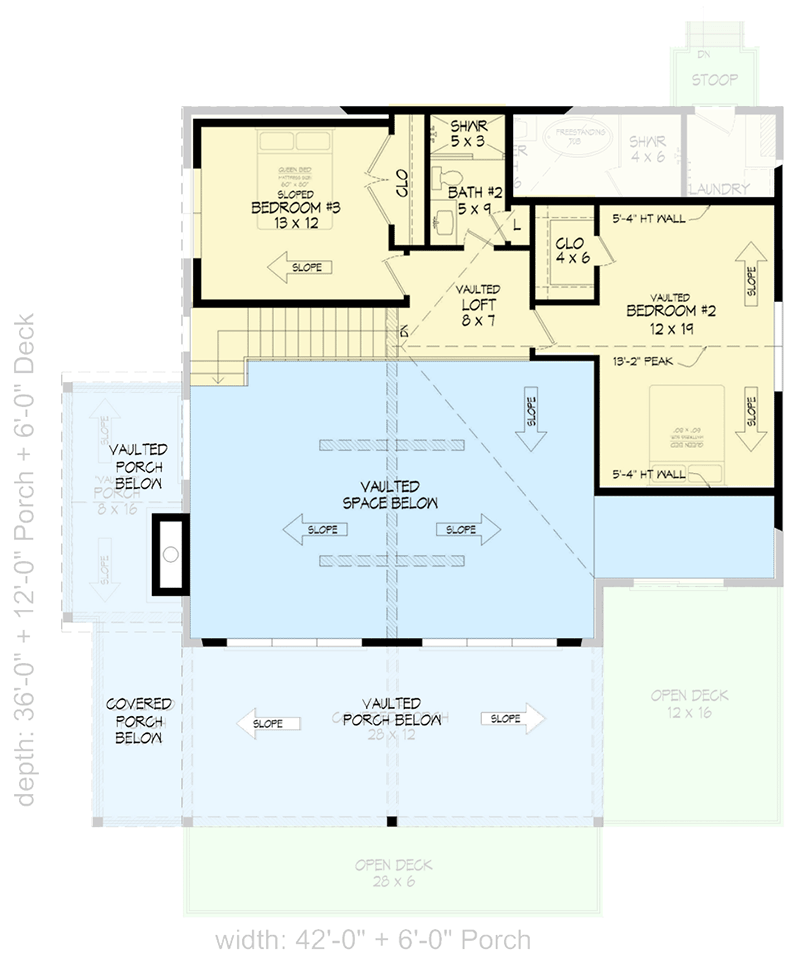

2nd Floor

Plan 680561VR: 3 or 4 Bed Mountain Lake House Plan with Wrap-Around Porch - 3482 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mountain, New American

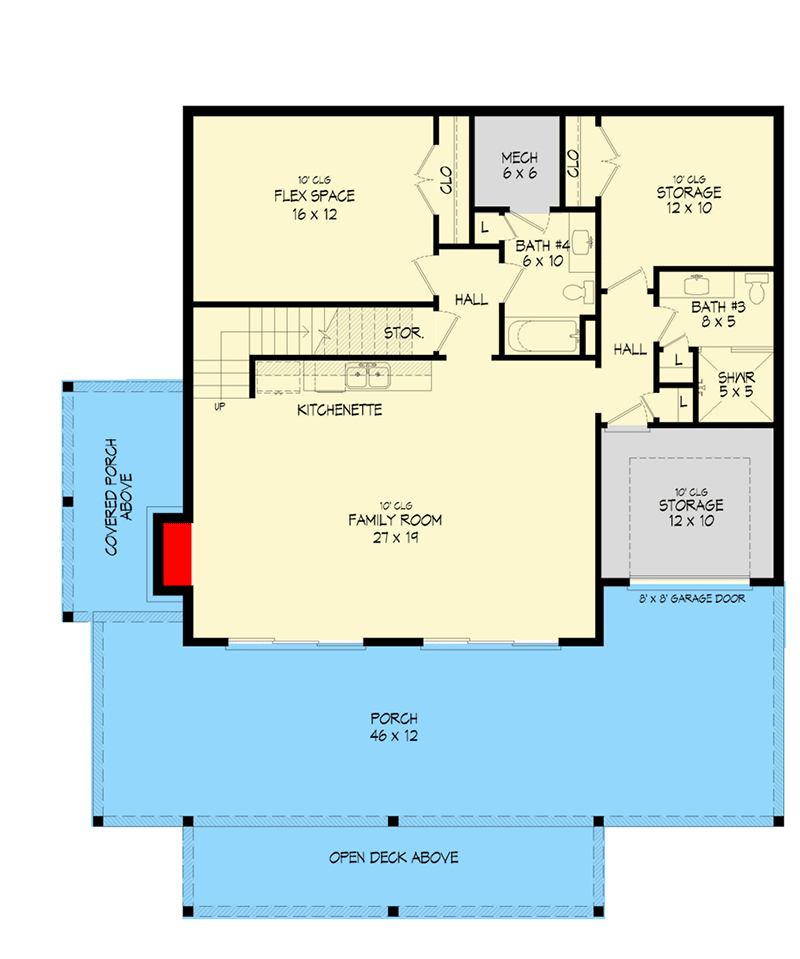

Lower Level

Plan 680561VR: 3 or 4 Bed Mountain Lake House Plan with Wrap-Around Porch - 3482 Sq Ft - Floor Plan - Lower Level - Contemporary, Mountain, New American

Plan Details

  • This mountain lake house plan offers you 3,482 square feet of heated living space with 3-4 beds and 4.5 baths.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

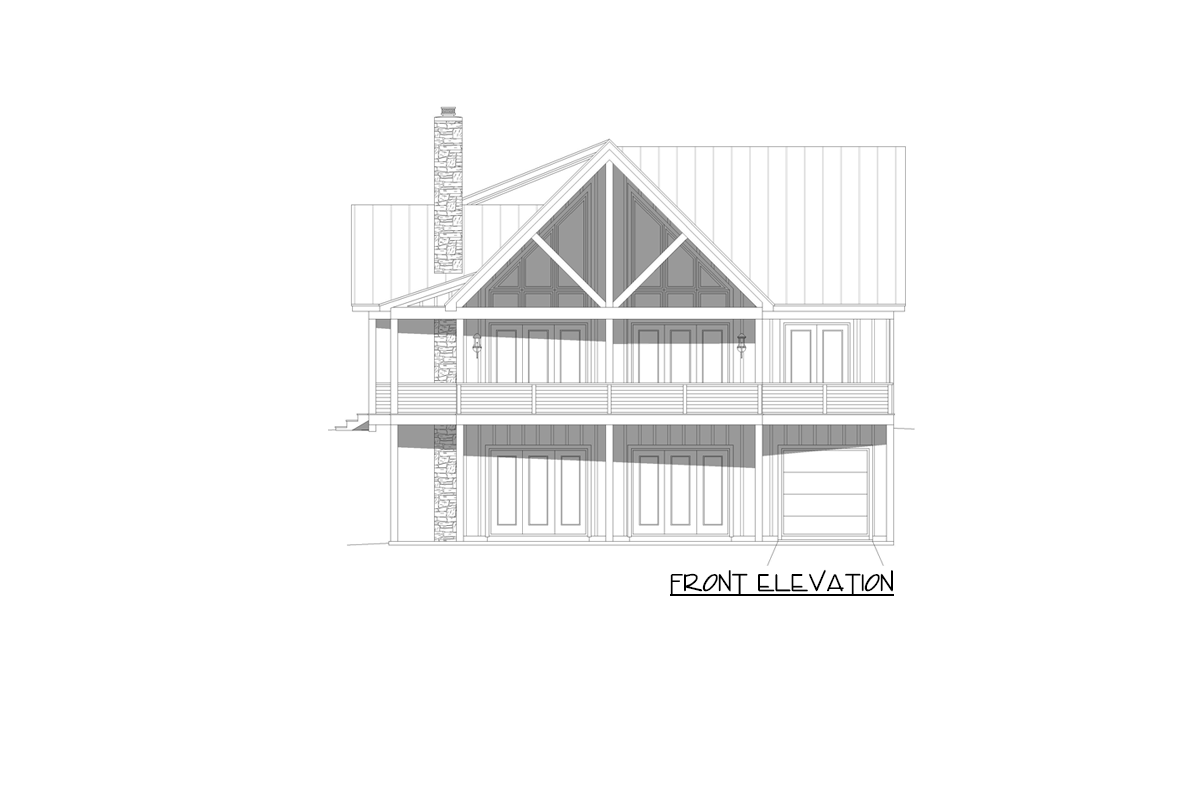

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,482 sq. ft.

Lower Level

1,403 sq. ft.

1st Floor

1,403 sq. ft.

2nd Floor

676 sq. ft.

Porch, Rear

535 sq. ft.

Deck

360 sq. ft.

Covered Patio

614 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

48' 0"

Depth

54' 0"

Max Ridge Height

24' 10"

Ceiling Heights

Lower Level

10'

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mountain

New American

Special Features

Bedrooms - Split

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Wet Bar

Wraparound Porch

Plan Collections

Lake House Plans
