Plan 46501LA
3 Story 2002 Square Foot House Plan Under 30-Feet Wide
Heated S.F.
2,002
Beds
4
Baths
3.5
Stories
3
Cars
2
What's Included
Plan Details
  • This 3-story house plan gives you 2,002 square feet of heated living with 4 beds, 3.5 baths and a 508 square foot 2- car garage and is designed for a narrow lot (it has a 29'5"-wide footprint).
  • The ground level has a tandem drive-through garage on the left with access to the home with a bench with hooks. A home office and one of the four bedrooms is also on this level.
  • The second floor is open front to back on the left with a two-story living room in front. The master bedroom and laundry is on the right. The dining area has access to a covered deck.
  • There is an overlook at the top of the stairs and in addition to the two remaining bedrooms, there is a bonus room - included in the total living area - which has sliding door access to the rear open deck.
What's Included
  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Story 2002 Square Foot House Plan Under 30-Feet Wide

  • 2,002

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 3

    Floors

  • 2

    Car garage

Floor Plan

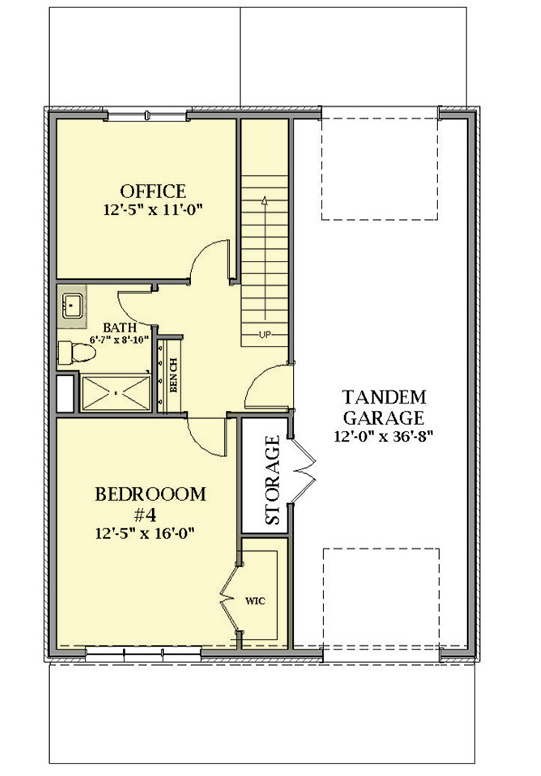

  • Main Level

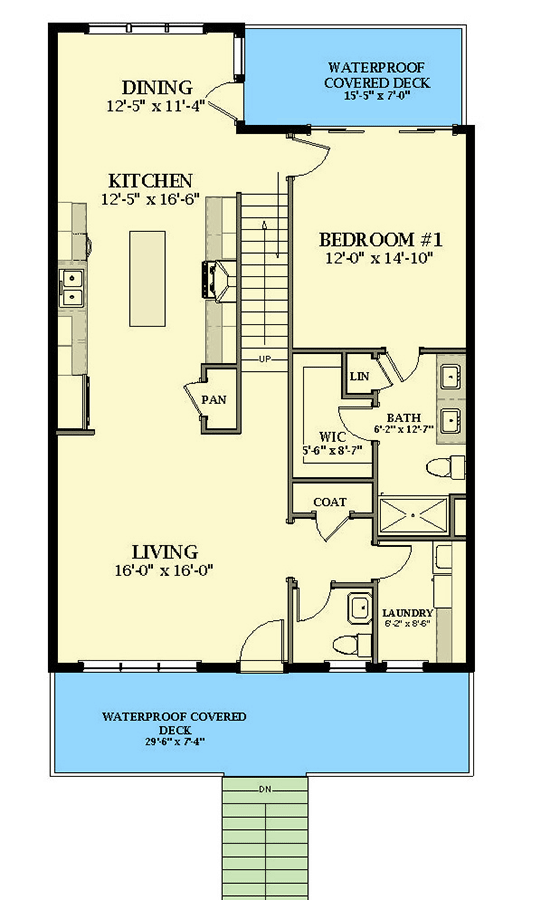

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,002 sq. ft.
  • 1st Floor: 1,206 sq. ft.
  • 2nd Floor: 796 sq. ft.

Dimensions

  • Width: 29' 5"
  • Depth: 52' 10"
  • Max ridge height: 46' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Drive Under
  • Area: 508 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"
