Plan 666147RAF
3-Story Contemporary House Plan with Rooftop Deck
Heated S.F.
4,761
Beds
5-6
Baths
5.5
Stories
3
Cars
3
What's Included
Plan Details
  • This 3-story Contemporary house plan delivers a stunning exterior and a thoughtful interior, spread throughout three levels.
  • The kitchen and great room act as one space, enhanced by a fireplace and 10' ceilings. Loads of storage space are provided by the walk-in pantry and butler's pantry that connects the kitchen with the formal dining room.
  • The extra-deep garage can be used for a third bay, storage space, or as a workshop for the hobbyist.
  • Four bedroom suites consume the second level with the largest reserved for the homeowner. The master closet can host even the largest of wardrobes and the nearby laundry room is an added bonus.

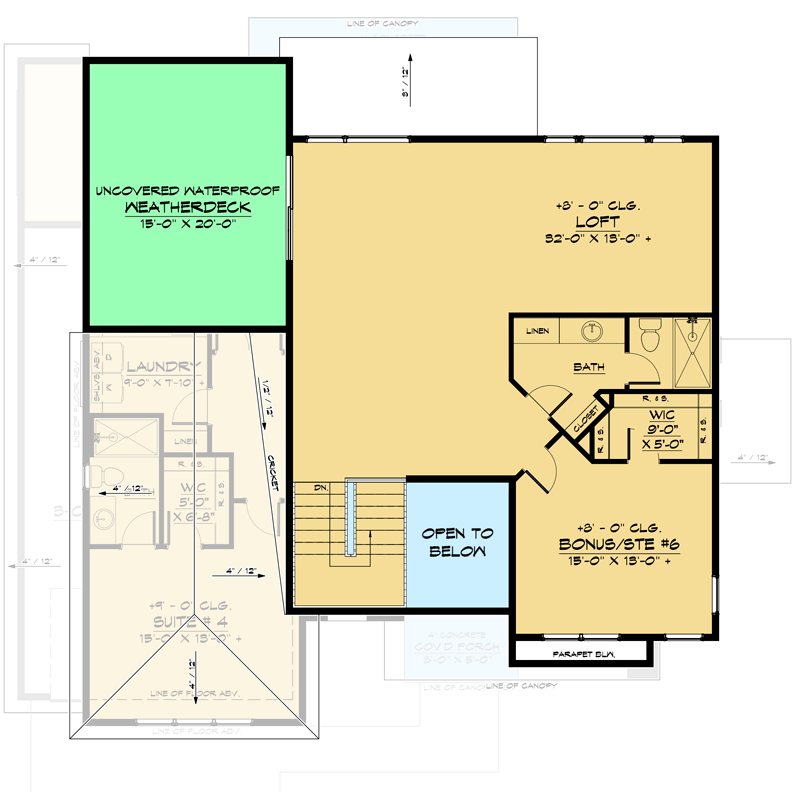

  • The third level provides a generous flex space with a 15' by 20' deck, along with an optional 6th bedroom. The bonus room and loft are factored into the total living area of the home.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

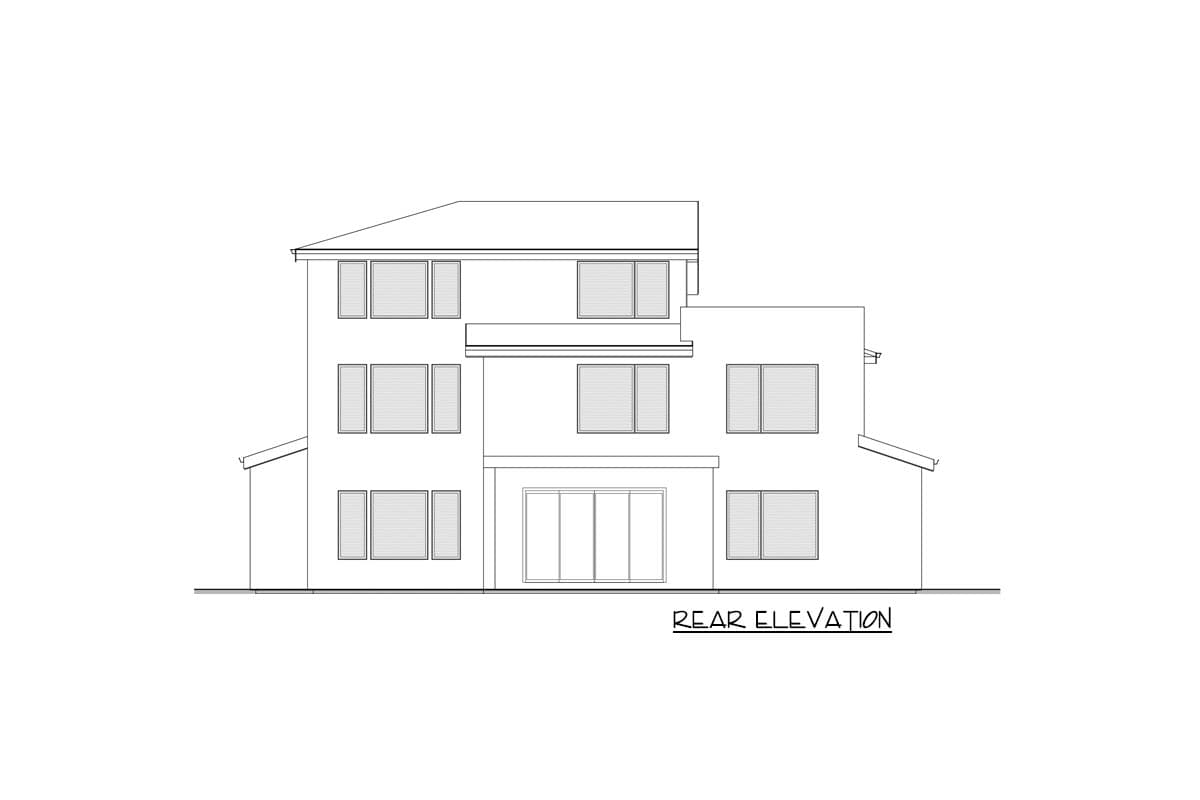

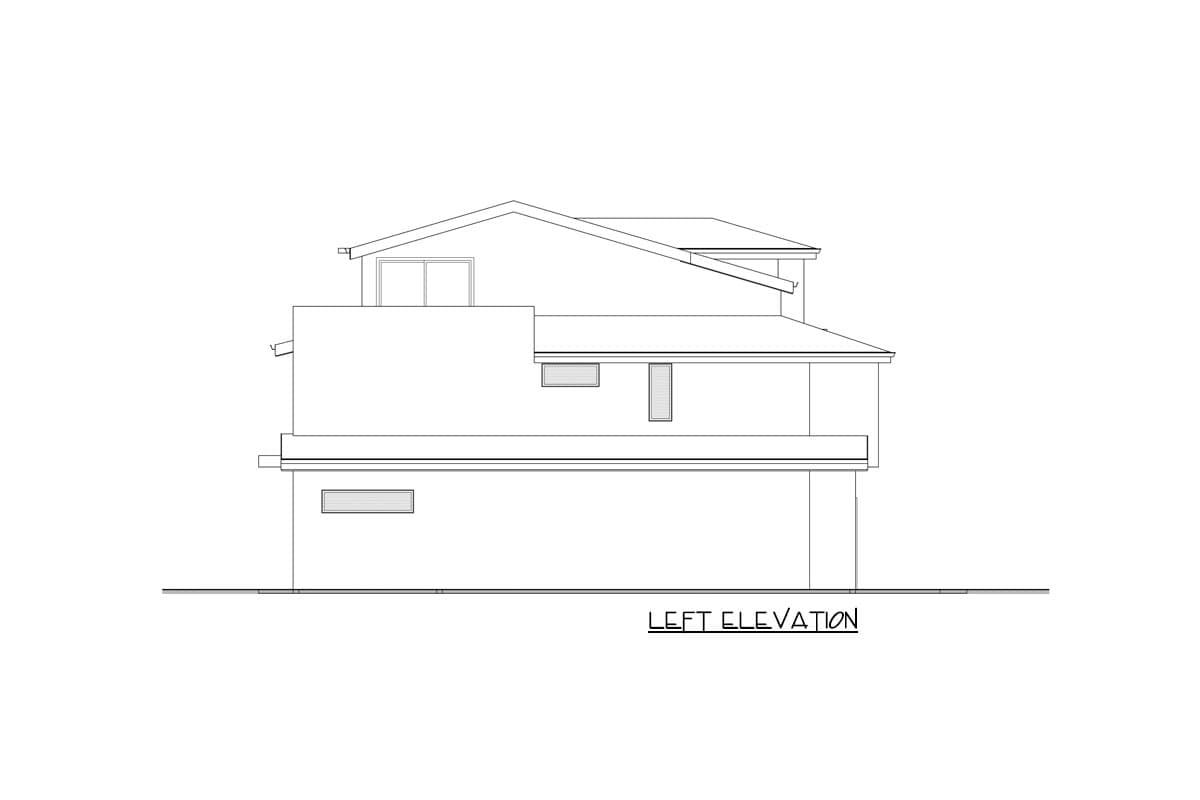

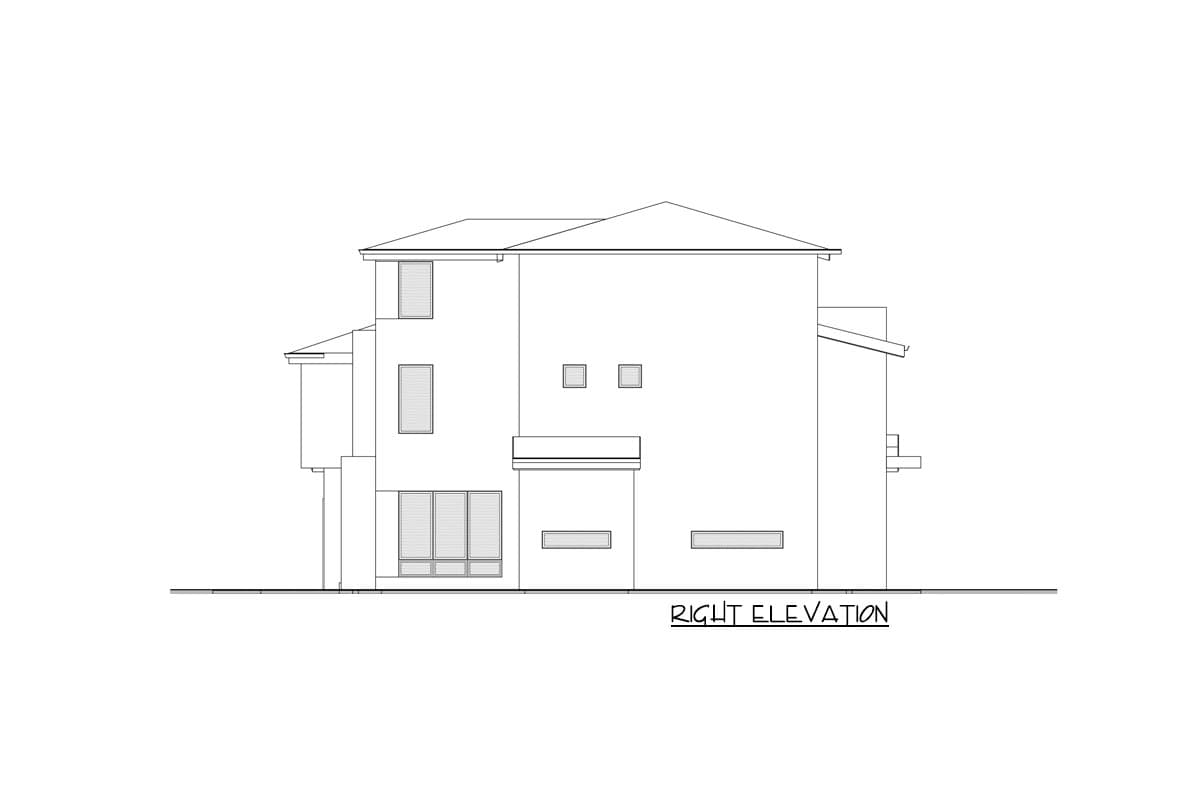

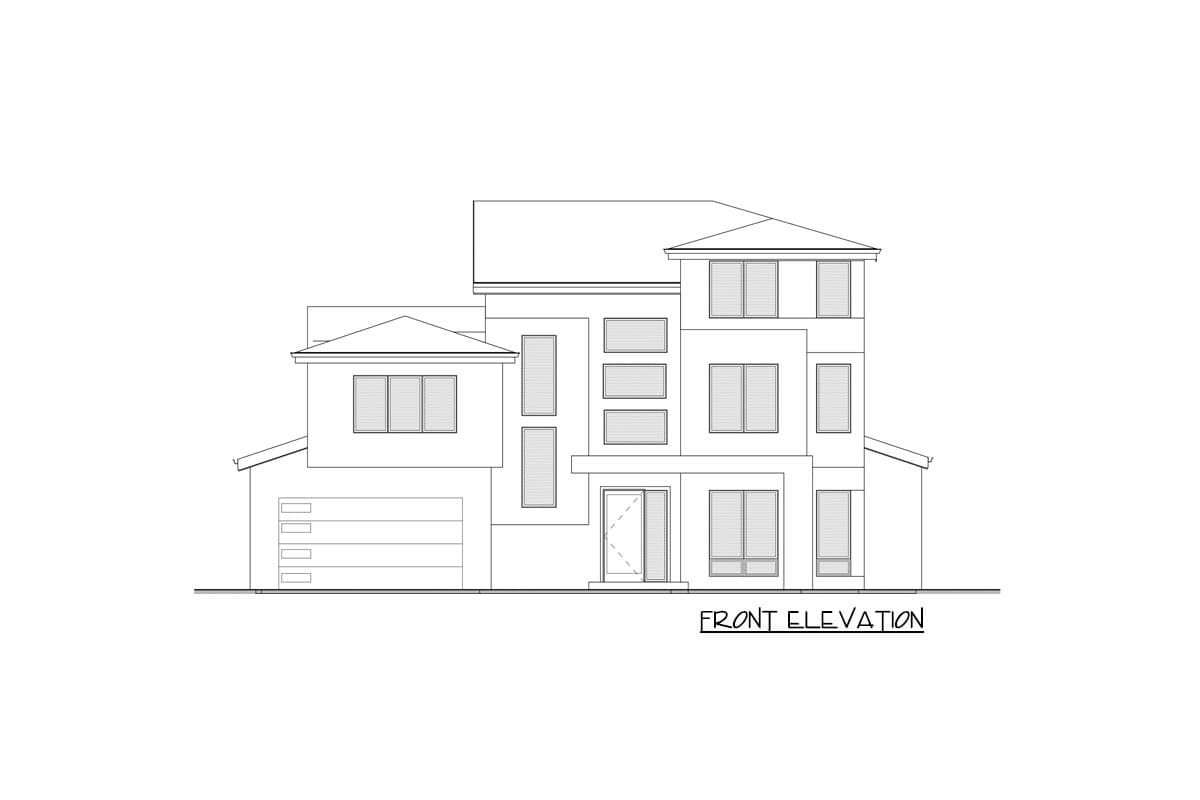

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Story Contemporary House Plan with Rooftop Deck

  • 4,761

    Heated s.f.

  • 5-6

    Beds

  • 5.5

    Baths

  • 3

    Floors

  • 3

    Car garage

Floor Plan

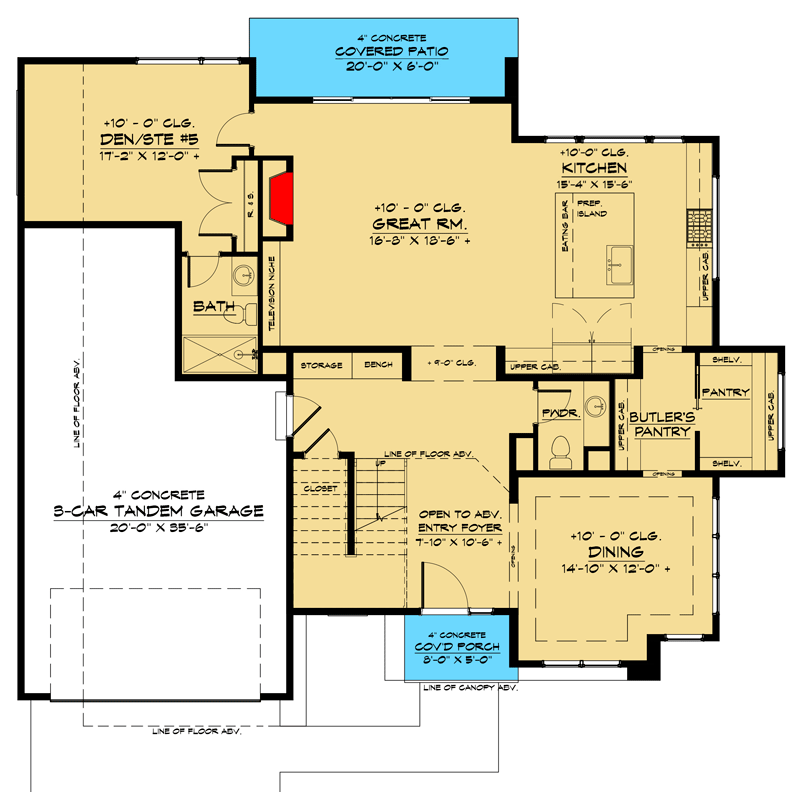

  • Main Level

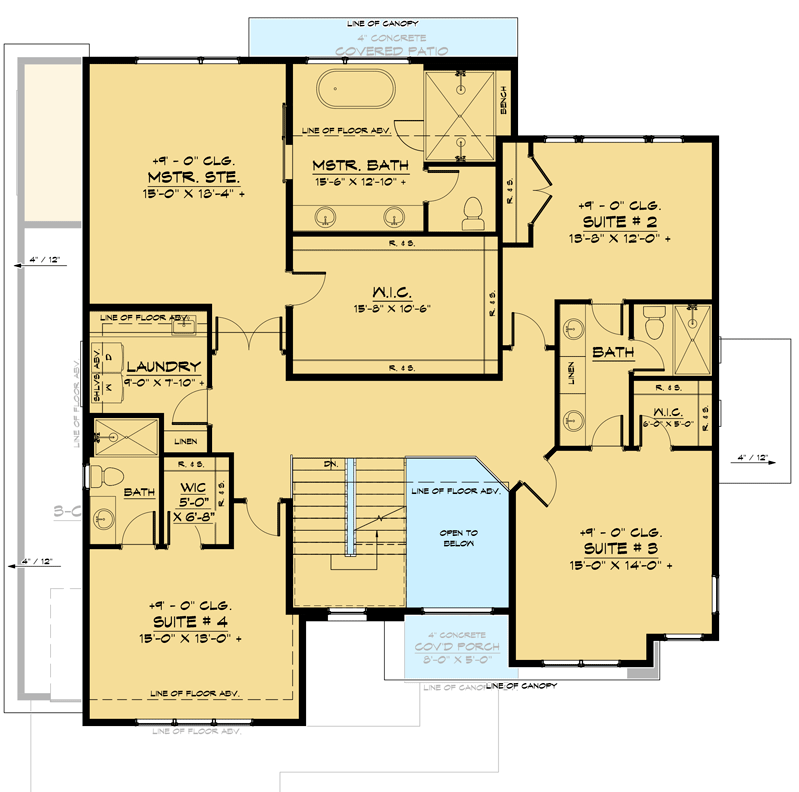

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,761 sq. ft.
  • 1st Floor: 1,721 sq. ft.
  • 2nd Floor: 1,975 sq. ft.
  • 3rd Floor: 1,065 sq. ft.
  • Weatherdeck: 329 sq. ft.

Dimensions

  • Width: 58' 6"
  • Depth: 49' 0"
  • Max ridge height: 34' 6"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 3 1/2 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
