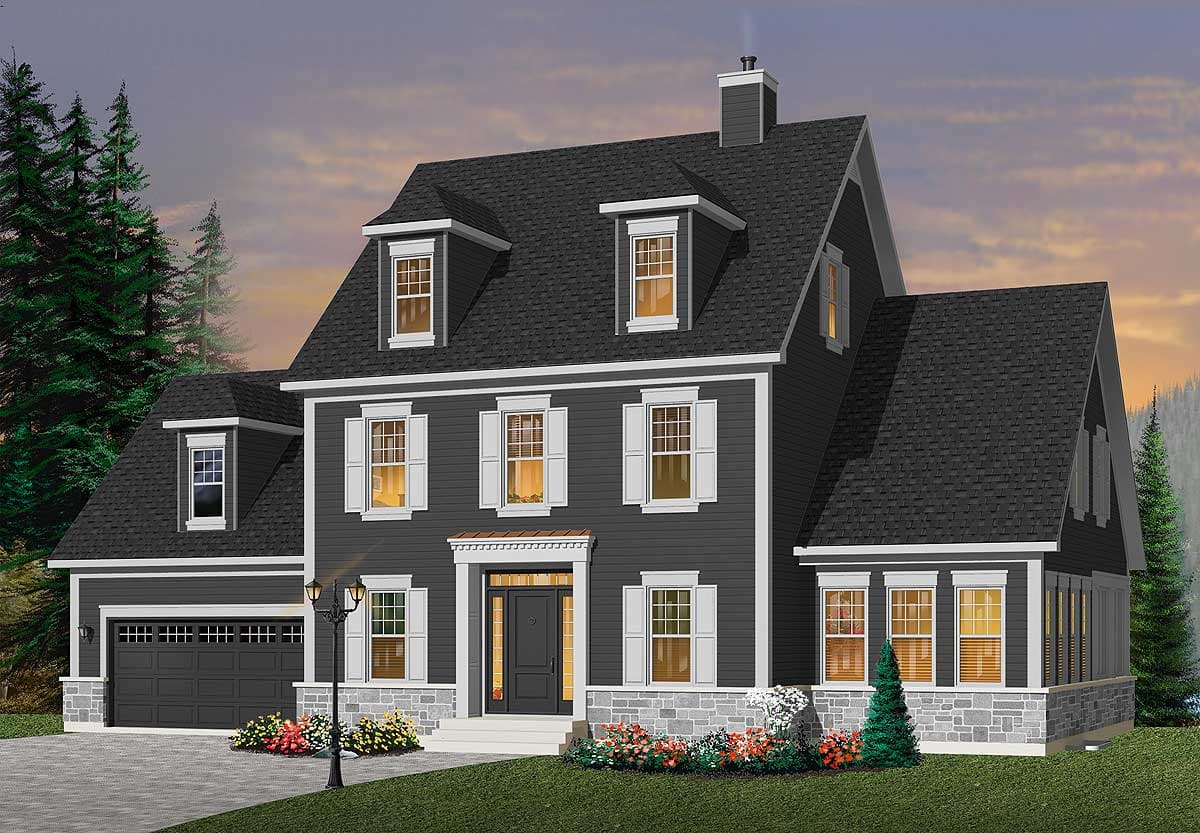

Plan 21743DR
3-Story House Plan with Third Floor Rec Room - 2786 Sq Ft
Heated S.F.
2,786
Beds
3 - 5
Baths
2.5
Stories
2-3
Cars
2
Floor Plan

Plan 21743DR

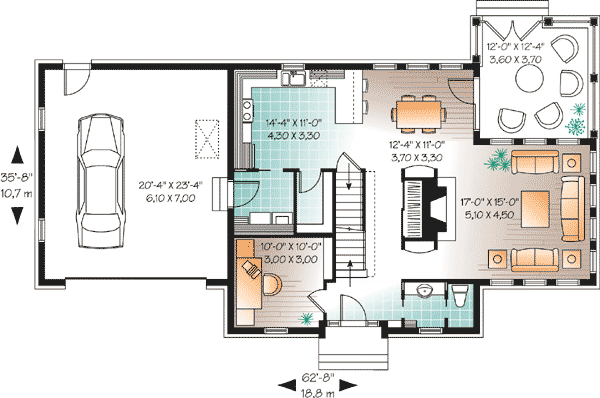

Main Level
slide image 0

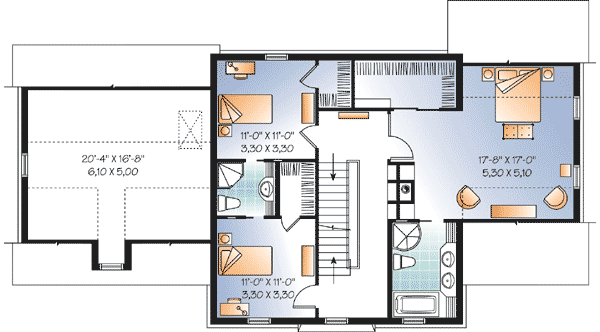

2nd Floor
slide image 1

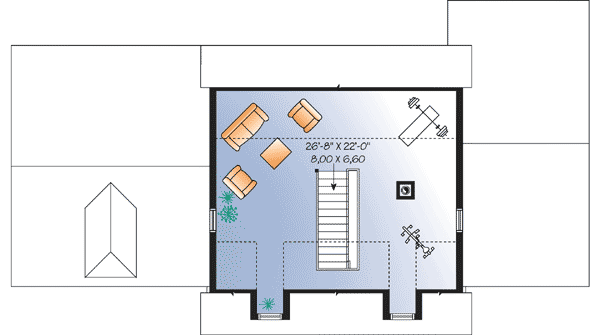

3rd Floor
slide image 2

Plan 21743DR

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
3rd Floor
floor plan image 3rd Floor
Plan Details
  • This 2,786 square foot Home & Garden > House Plans > Traditional house plan gives you 3-5 Beds 2.5 Baths and a 541 square foot 2 Cars garage
  • Architectural Designs primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

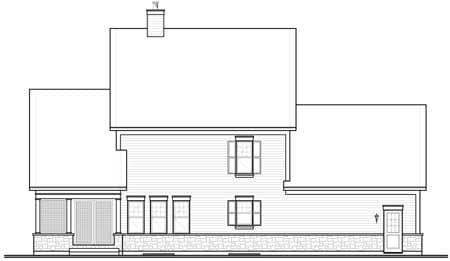

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,786 sq. ft.

1st Floor

1,078 sq. ft.

2nd Floor

1,058 sq. ft.

3rd Floor

650 sq. ft.

Basement Unfinished

1,078 sq. ft.

Bonus

377 sq. ft.

Porch, Front

148 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 8"

Depth

35' 8"

Max Ridge Height

360' 0"

Garage

Type

Attached

Area

541 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 6"

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

2,786 sq. ft.

1st Floor

1,078 sq. ft.

2nd Floor

1,058 sq. ft.

3rd Floor

650 sq. ft.

Basement Unfinished

1,078 sq. ft.

Bonus

377 sq. ft.

Porch, Front

148 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

62' 8"

Depth

35' 8"

Max Ridge Height

360' 0"

Garage

Type

Attached

Area

541 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8' 6"

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Traditional

Special Features

Bonus Room

Butler Walk-in Pantry

Game/Rec Room

Home Office

Jack & Jill Bath

Laundry - Upstairs

Master Suite - 2nd Floor

Plan Collections

Canadian House Plans

Metric
