Plan 666215RAF

3-Story Modern Duplex with Matching 2573 Square Foot 4 Bed Units

Heated S.F.
5,146
Units
2
Width
Depth

Floor Plan

Plan 666215RAF

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 666215RAF

M-F 9am-5pm EST |

1-203-761-8500

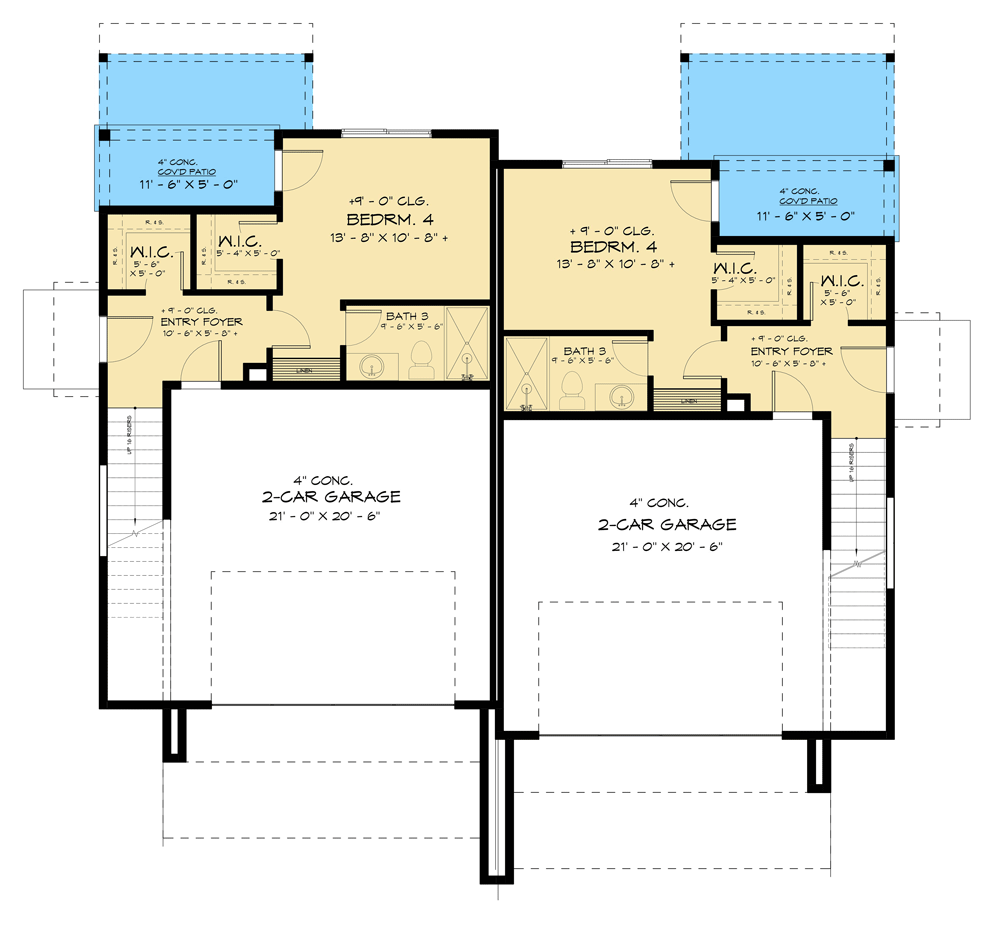

Main Level

Plan 666215RAF: 3-Story Modern Duplex with Matching 2573 Square Foot 4 Bed Units - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

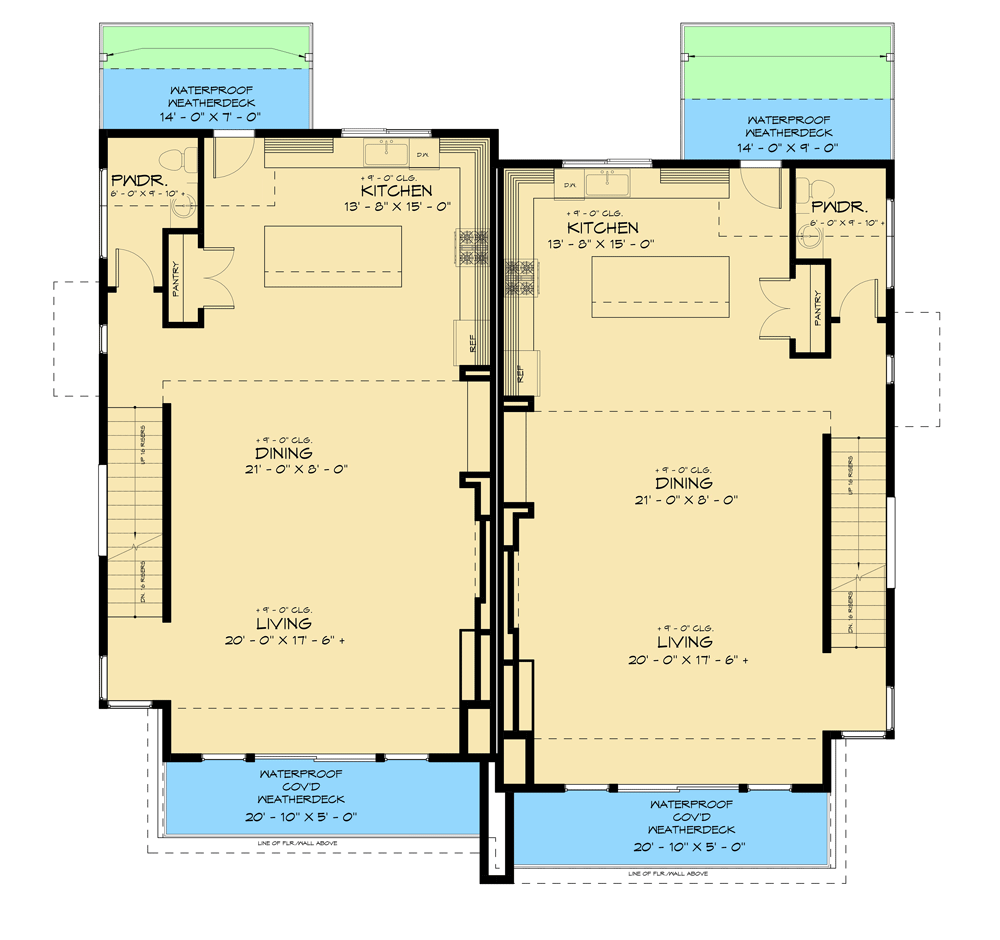

2nd Floor

Plan 666215RAF: 3-Story Modern Duplex with Matching 2573 Square Foot 4 Bed Units - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern

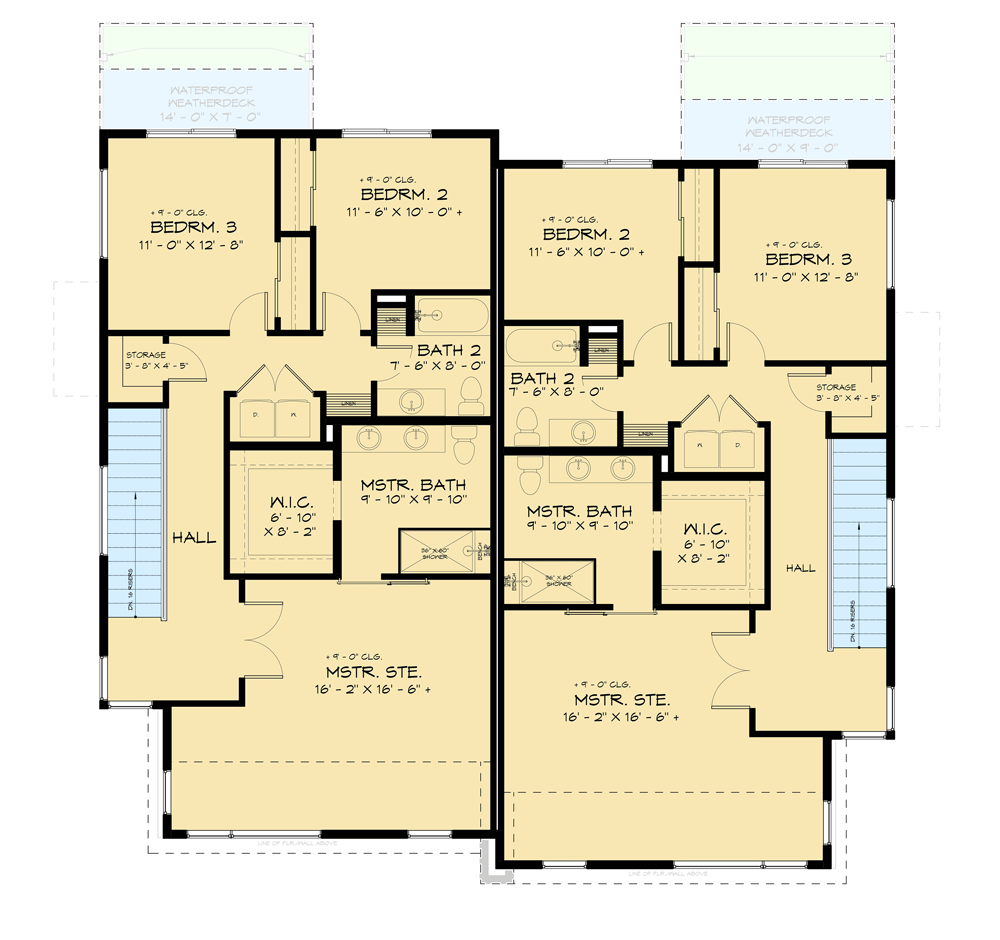

3rd Floor

Plan 666215RAF: 3-Story Modern Duplex with Matching 2573 Square Foot 4 Bed Units - Floor Plan - 3rd Floor - Contemporary, Mid Century Modern, Modern

Plan Details

  • This modern duplex house plan gives you side-by-side 2,573 square foot 4 bed, 3 bath units (455 square feet on the main floor, 1,001 square feet on the main floor and 1,117 square feet on the second floor) and 2-car (448 square foot) garages.
  • Behind the garage on the ground level, you'll find a bedroom suite with covered patio access off the entry foyer.
  • The second floor is open front to back and has a 5'-deep deck in front.
  • Laundry and three bedrooms are on the third floor.
Unit A
Heated Area
2,573Sq. Ft.
455 Sq. Ft. 1st
1001 Sq. Ft. 2nd
1117 Sq. Ft. 3rd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
448 Sq. Ft.
Dimensions
25'width
49'depth
37'height
Unfinished Areas
448 Sq. Ft. Garage
Unit B
Heated Area
2,573Sq. Ft.
455 Sq. Ft. 1st
2002 Sq. Ft. 2nd
117 Sq. Ft. 3rd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
448 Sq. Ft.
Dimensions
25'width
49'depth
37'height
Unfinished Areas
448 Sq. Ft. Garage

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,146 sq. ft.

1st Floor

910 sq. ft.

2nd Floor

2,002 sq. ft.

3rd Floor

2,334 sq. ft.

Porch, Front

66 sq. ft.

Deck

431 sq. ft.

Balcony / Veranda

97 sq. ft.

Covered Patio

116 sq. ft.

Storage

28 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 2"

Depth

49' 6"

Max Ridge Height

37' 6"

Garage

Type

Drive Under

Area

896 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom

Square Footage Breakdown

Total Heated Area

5,146 sq. ft.

1st Floor

910 sq. ft.

2nd Floor

2,002 sq. ft.

3rd Floor

2,334 sq. ft.

Porch, Front

66 sq. ft.

Deck

431 sq. ft.

Balcony / Veranda

97 sq. ft.

Covered Patio

116 sq. ft.

Storage

28 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 2"

Depth

49' 6"

Max Ridge Height

37' 6"

Garage

Type

Drive Under

Area

896 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Mudroom
