Plan 666238RAF

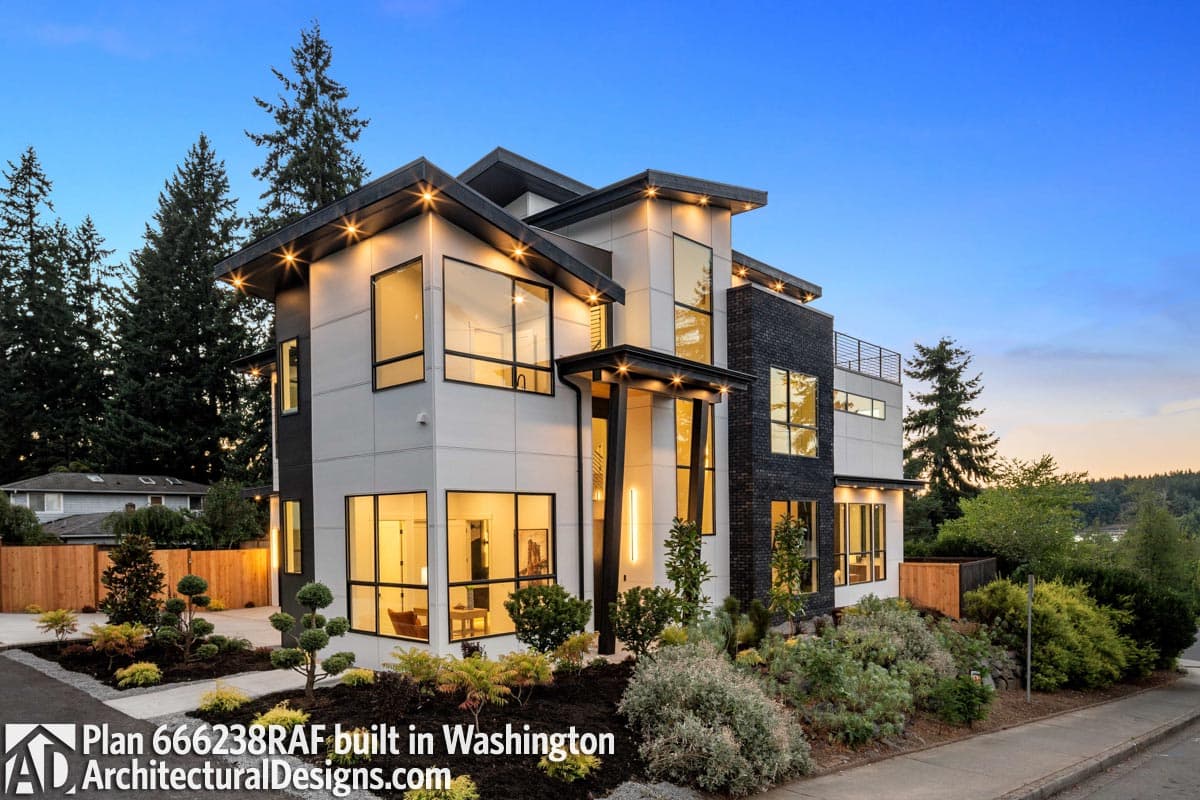

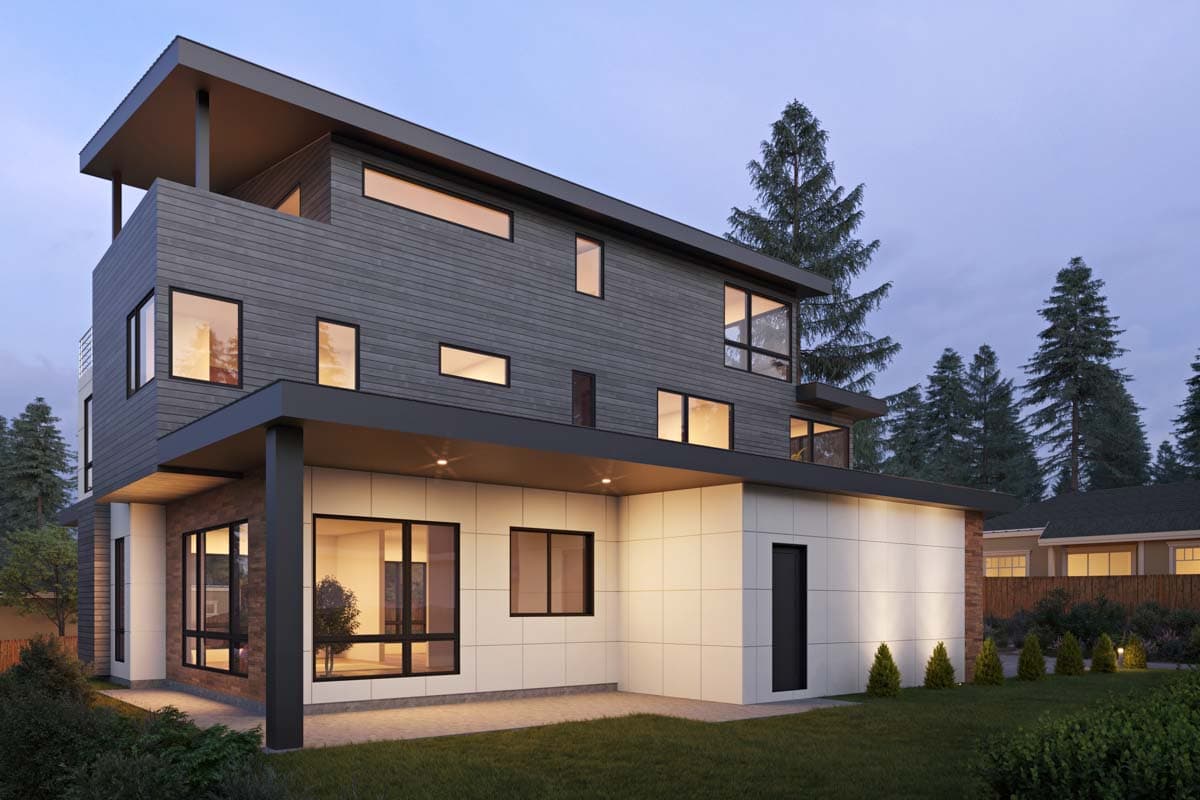

3-Story Modern Home Plan with Elevator and Side Garage - 4237 Sq Ft
Heated S.F.
4,237
Beds
4-6
Baths
5.5
Stories
3
Cars
3
Photos
What's Included
Plan Details
  • An elevator services all three levels of this 4,237 square foot modern house plan. With a main floor flex room and a third floor bonus room with full bath nearby, this modern home gives you anywhere from 4 to 6 bedrooms.
  • In addition to the flex room and parking for 3-cars in the garage in back (695 square feet), the main floor has a kitchen open to the great room and with covered patio access. The dining room is located across from the elevator.
  • The second floor is dedicated to four bedrooms with a large laundry room.
  • On the third floor - in addition to the bonus/media room (factored into the total living area) - there is a kitchenette open to a rec room. Enjoy the fresh air on the open deck in front and a covered deck on the right.
  • Related Plan: Get a front-facing garage with house plan 666239RAF.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Story Modern Home Plan with Elevator and Side Garage - 4237 Sq Ft

  • 4,237

    Heated s.f.

  • 4-6

    Beds

  • 5.5

    Baths

  • 3

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,237 sq. ft.
  • 1st Floor: 1,628 sq. ft.
  • 2nd Floor: 1,739 sq. ft.
  • 3rd Floor: 870 sq. ft.

Dimensions

  • Width: 49' 6"
  • Depth: 63' 0"
  • Max ridge height: 35' 5"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 695 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0" Third Floor 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 1/4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

3-Story Modern Home Plan with Elevator and Side Garage - 4237 Sq Ft

  • 4,237

    Heated s.f.

  • 4-6

    Beds

  • 5.5

    Baths

  • 3

    Floors

  • 3

    Car garage

3-Story Modern Home Plan with Elevator and Side Garage - 4237 Sq Ft

  • 4,237

    Heated s.f.

  • 4-6

    Beds

  • 5.5

    Baths

  • 3

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,237 sq. ft.
  • 1st Floor: 1,628 sq. ft.
  • 2nd Floor: 1,739 sq. ft.
  • 3rd Floor: 870 sq. ft.

Dimensions

  • Width: 49' 6"
  • Depth: 63' 0"
  • Max ridge height: 35' 5"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 695 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0" Third Floor 8' 0"

Roof

  • Primary Pitch: 2 on 12
  • Secondary Pitch: 1/4 on 12
  • Framing Type: Truss

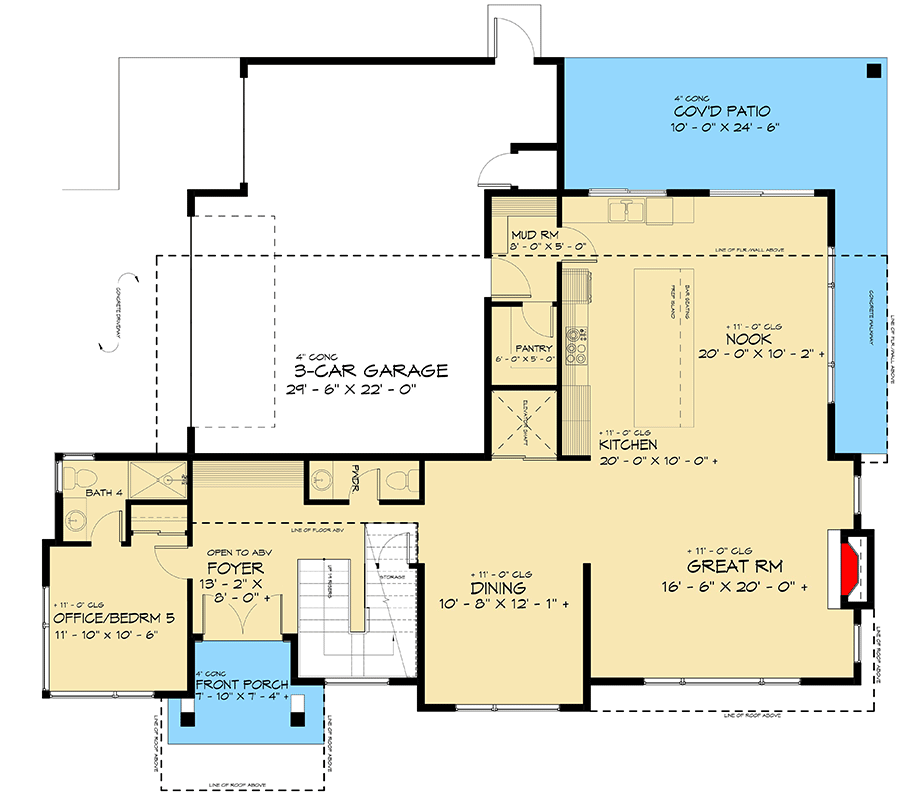

    Main Level

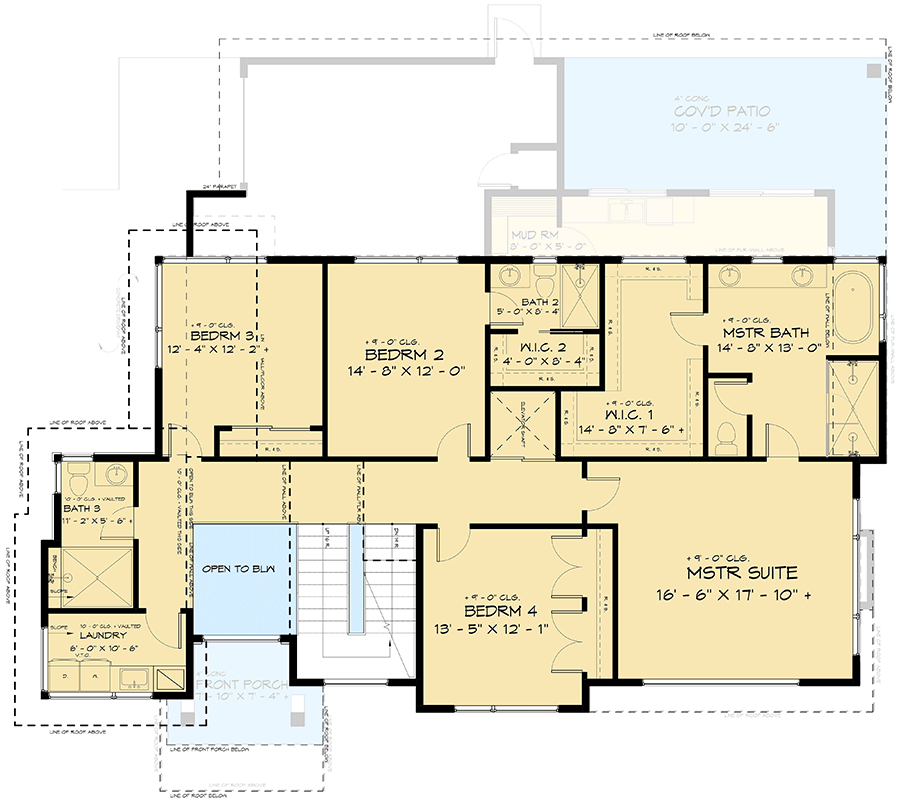

    2nd Floor

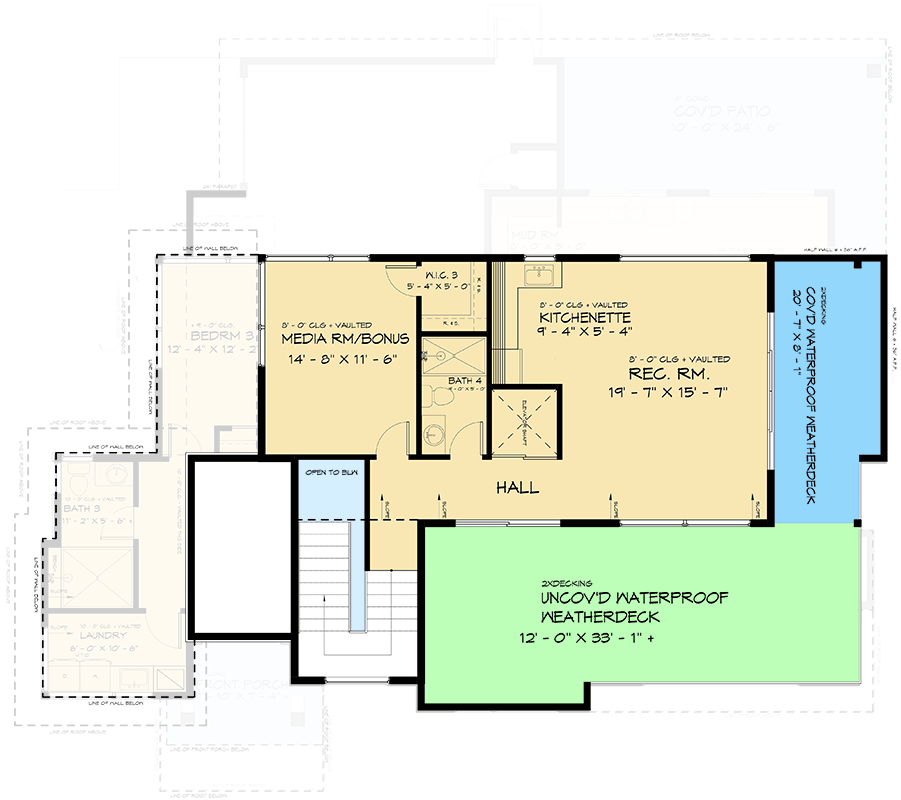

    3rd Floor
