3-Story Modern House Plan with Elevator and Front Garage - 4237 Sq Ft

Heated S.F.
4,237
Beds
4 - 6
Baths
5.5
Stories
3
Cars
2

Floor Plan

Plan 666239RAF

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 666239RAF

M-F 9am-5pm EST |

1-203-761-8500

Main Level

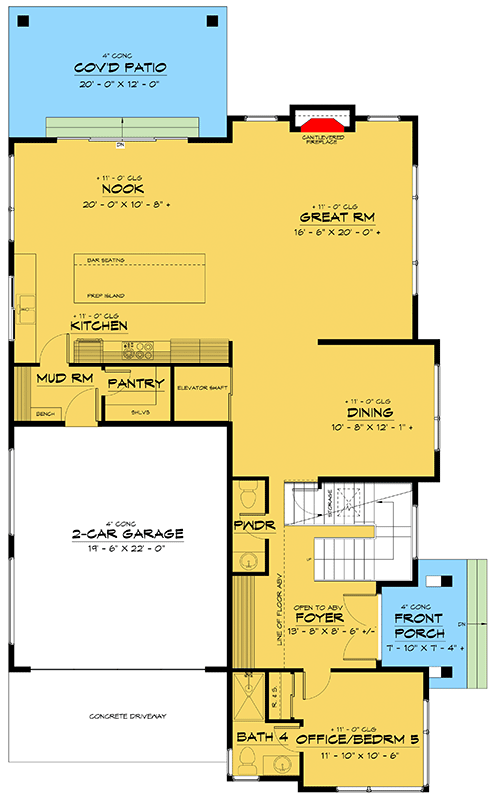

Plan 666239RAF: 3-Story Modern House Plan with Elevator and Front Garage - 4237 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

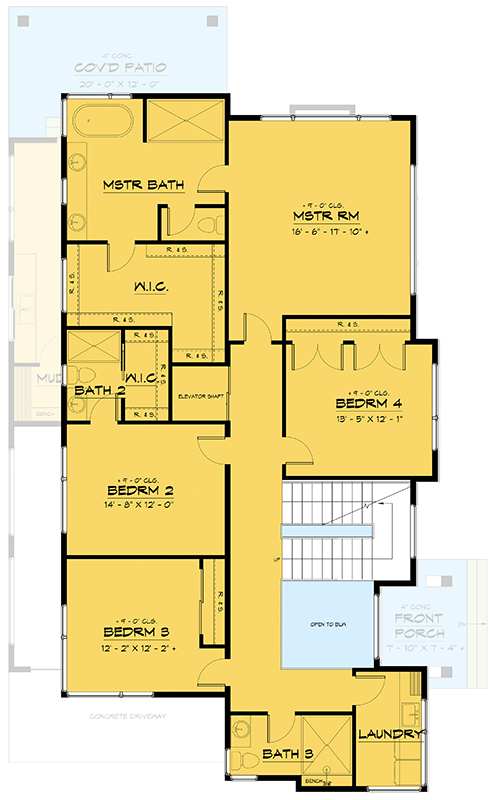

2nd Floor

Plan 666239RAF: 3-Story Modern House Plan with Elevator and Front Garage - 4237 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern

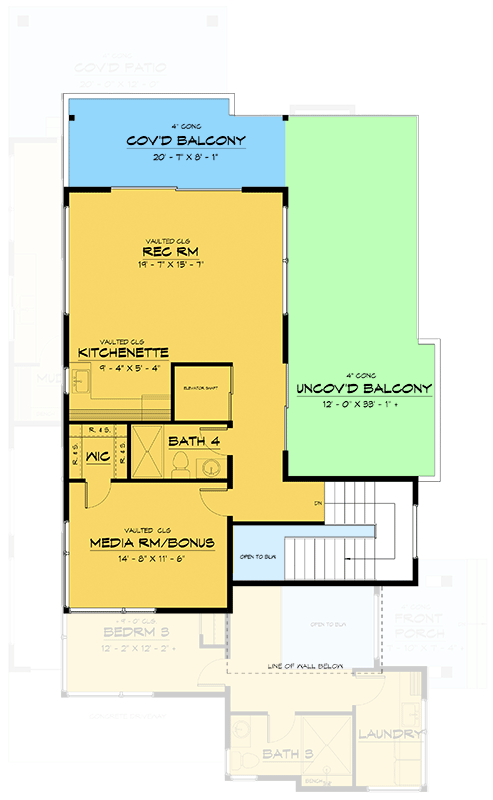

3rd Floor

Plan 666239RAF: 3-Story Modern House Plan with Elevator and Front Garage - 4237 Sq Ft - Floor Plan - 3rd Floor - Contemporary, Mid Century Modern, Modern

Plan Details

  • An elevator services all three levels of this 4,237 square foot modern house plan. With a main floor flex room and a third floor bonus room with full bath nearby, this modern home plan gives you anywhere from 4 to 6 bedrooms.
  • In addition to the flex room and parking for 2-cars in the 450 square foot garage, the main floor has a kitchen open to the great room with fireplace and tot he nook with sliding door access to the covered patio. The dining room is located across from the elevator.
  • The second floor is dedicated to four bedrooms and a laundry room.
  • On the third floor - in addition to the bonus/media room (factored into the total living area) - there is a kitchenette open to a rec room. Enjoy the fresh air on the open deck in front and a covered deck on the right.
  • Related Plan: Get a side garage with house plan 666238RAF.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,237 sq. ft.

1st Floor

1,628 sq. ft.

2nd Floor

1,739 sq. ft.

3rd Floor

870 sq. ft.

Porch, Front

76 sq. ft.

Deck

420 sq. ft.

Balcony / Veranda

167 sq. ft.

Covered Patio

240 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

63' 0"

Max Ridge Height

35' 5"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

11'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

4-Jan on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Breakfast Nook

Elevator

Flex Room

Formal Dining

Game/Rec Room

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Media Room

Mudroom

Optionally Finished Bonus Room

Wet Bar

Square Footage Breakdown

Total Heated Area

4,237 sq. ft.

1st Floor

1,628 sq. ft.

2nd Floor

1,739 sq. ft.

3rd Floor

870 sq. ft.

Porch, Front

76 sq. ft.

Deck

420 sq. ft.

Balcony / Veranda

167 sq. ft.

Covered Patio

240 sq. ft.

Beds/Baths

Bedrooms

4, 5, or 6

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

63' 0"

Max Ridge Height

35' 5"

Garage

Type

Attached

Area

450 sq. ft.

Count

2 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

11'

Second Floor

9'

Third Floor

8' 0''

Roof Details

Primary Pitch

2 on 12

Secondary Pitch

4-Jan on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Breakfast Nook

Elevator

Flex Room

Formal Dining

Game/Rec Room

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Media Room

Mudroom

Optionally Finished Bonus Room

Wet Bar
