3-Unit Multi-Family Home Plan

Plan 42585DB

This plan plants 3 trees

6,195
Heated s.f.
3
Units
84'
Width
50'
Depth

This multi-family home offers 3 identical units; each with the front entrance to the left of a double garage, an open-concept floor plan on the main level, and sleeping rooms on the second level. Each unit gives you 2,065 sq. ft. of heated living space (809 sq. ft. on the main floor; 1,256 sq. ft. on the second floor) and a 483 sq. ft. garage.
A pocket office for the work-at home resident resides near the formal entry.
The corner fireplace can be enjoyed throughout the family room, dining area, and kitchen, and a sliding door extends living space to a covered patio for dining or lounging.
The double-bowl sink is located in the kitchen island, and a pantry beneath the stairs provides plenty of dry storage space.
Upstairs, the rear-facing owner's suite boasts dual closets and a tray ceiling. The owner's bath offers a separate tub and shower, and for added convenience, the laundry room sits between the 3 bedrooms.
A loft provides distance between the owner's suite and bedrooms 2 and 3, which share a full bath.

This house plan set has the following details:

General Notes

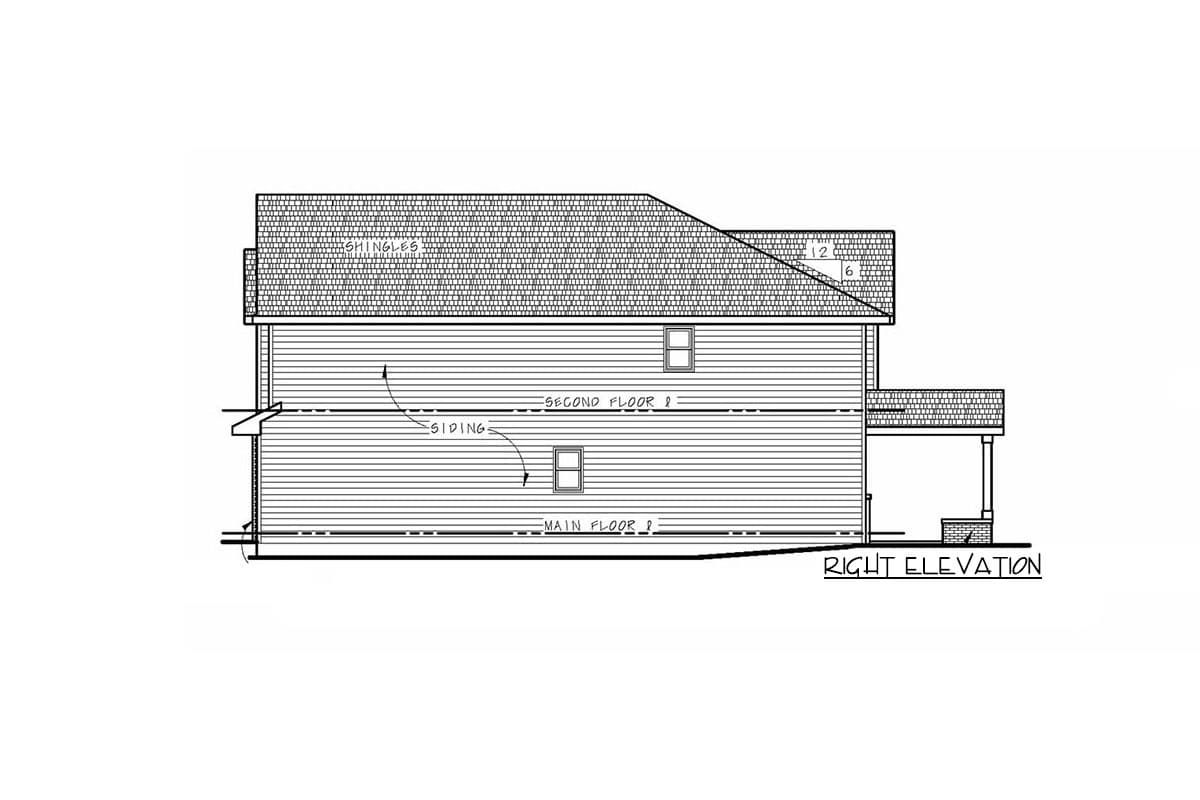

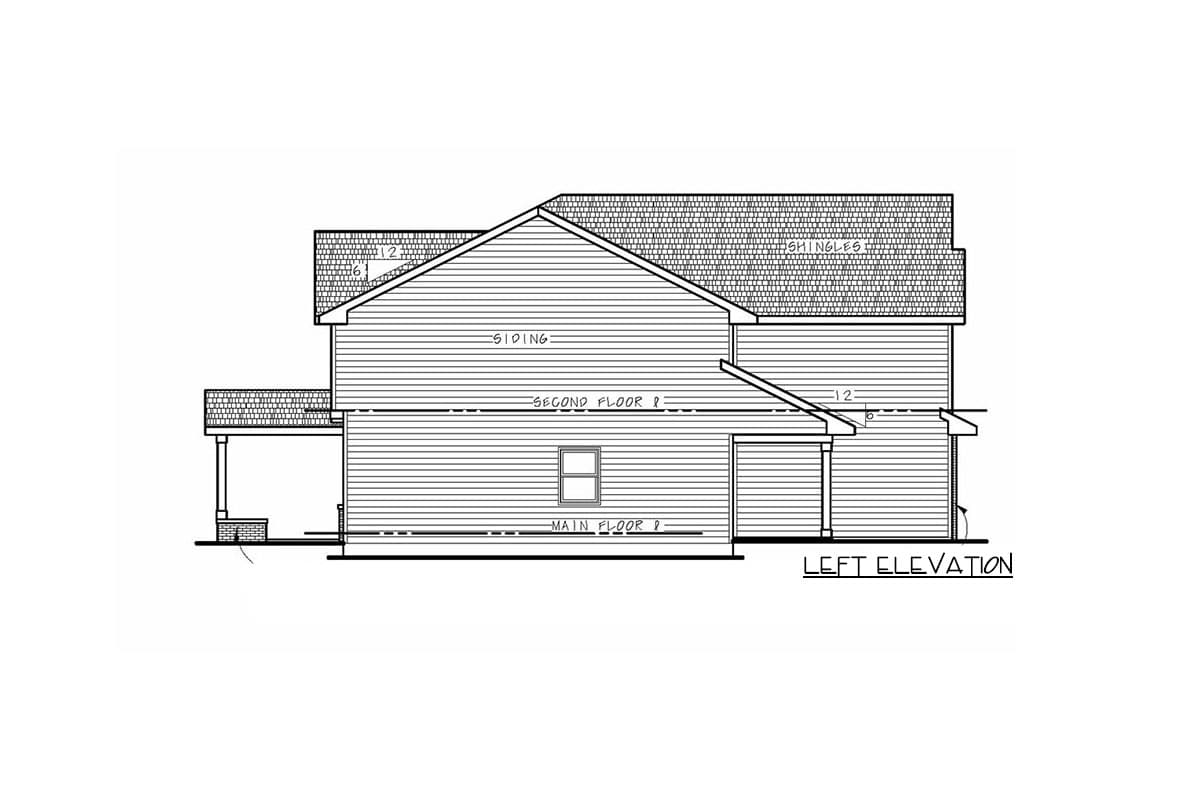

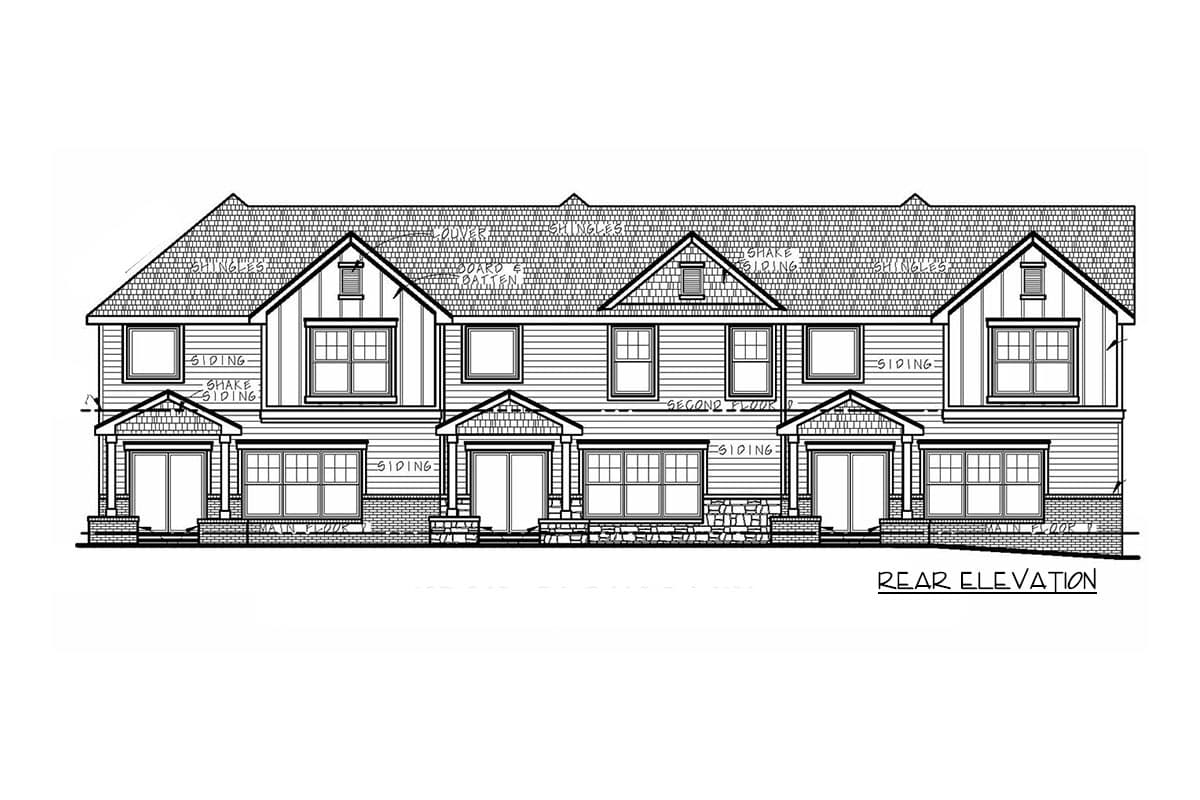

Front, Rear, Left, Right Elevations
Roof Plan - Birds Eye View
Foundation plan, Wall Section, Stair Section
Main Level Floor Plan
Second Level Floor Plan (if applicable)
Electrical Plan (showing fixtures, switches, outlets)

*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

B

2,065 sqft

809 sqft 1st Floor

1256 sqft 2nd Floor

3 beds

2 full baths

1 half bath

2 vehicle

Attached

483 sqft

28' w 50' d 32' h

C

2,065 sqft

809 sqft 1st Floor

1256 sqft 2nd Floor

3 beds

2 full baths

1 half bath

2 vehicle

Attached

483 sqft

28' w 50' d 32' h

A

2,065 sqft

809 sqft 1st Floor

1256 sqft 2nd Floor

3 beds

2 full baths

1 half bath

2 vehicle

Attached

483 sqft

28' w 50' d 32' h

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

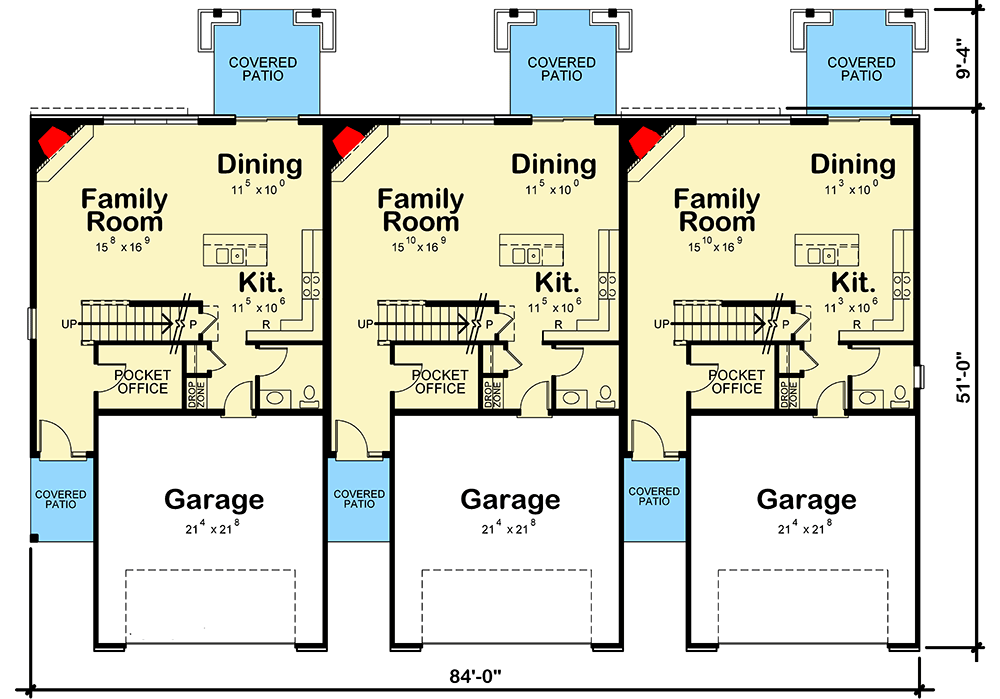

3-Unit Multi-Family Home Plan - 42585DB floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

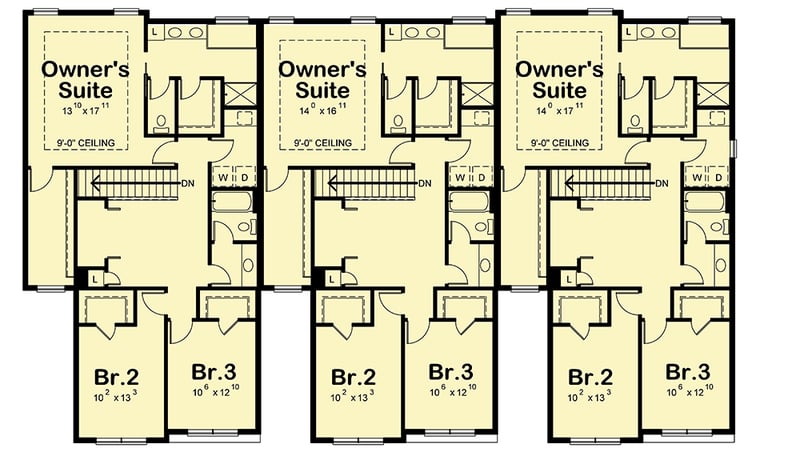

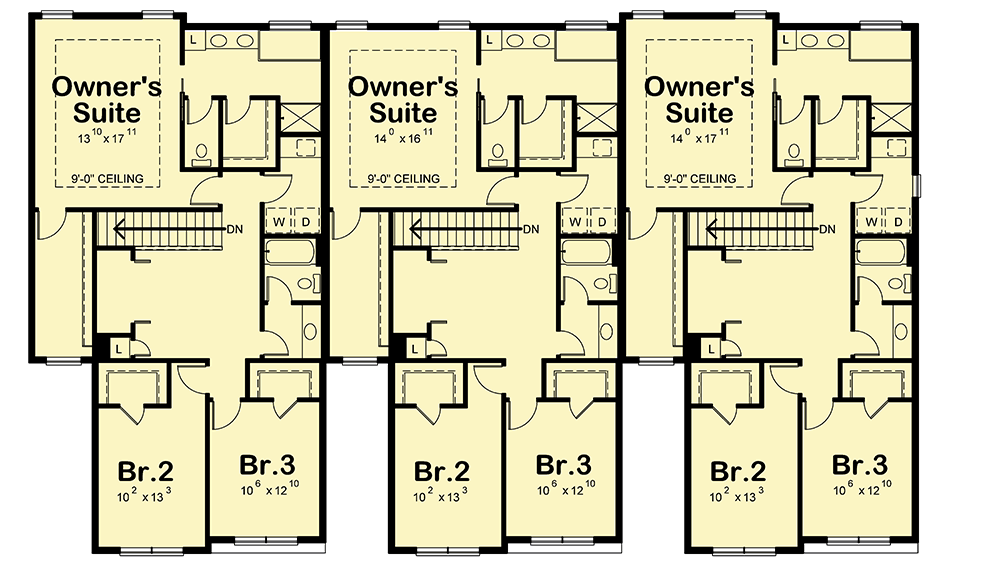

3-Unit Multi-Family Home Plan - 42585DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 6,195 sq. ft.
1st Floor: 2,427 sq. ft.
2nd Floor: 3,768 sq. ft.

Beds/Baths

Bedrooms: 9

Full bathrooms: 6
Half bathrooms: 3

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 84' 0"
Depth: 50' 0"
Max ridge height: 32' 0"

Garage

Type: Attached
Area: 1449 sq. ft.
Count: 6 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 6 on 12
Secondary Pitch: 6 on 12

Architectural Style

Special features
