3000 Square Foot Craftsman Home Plan with Luxurious Master Suite

Plan 81606AB

  • 3,037

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Rustic on the outside, this Craftsman home plan is filled with luxury inside.
  • Special ceiling treatments can be found throughout the home and built-ins flank the fireplace of the great room with its coffered ceiling.
  • The first floor master suite is extra-special with a walk-in linen closet and huge bath that would rival any spa!
  • The enormous kitchen has plenty of counter space, two islands and has views of the eating nook and great room.
  • Dine or relax outdoors on your open deck or covered porch complete with outdoor fireplace.
  • A beautiful curved staircase leads to the finished lower level with a second kitchen, play room, theater room with raised platforms for seating and two more bedrooms and baths.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

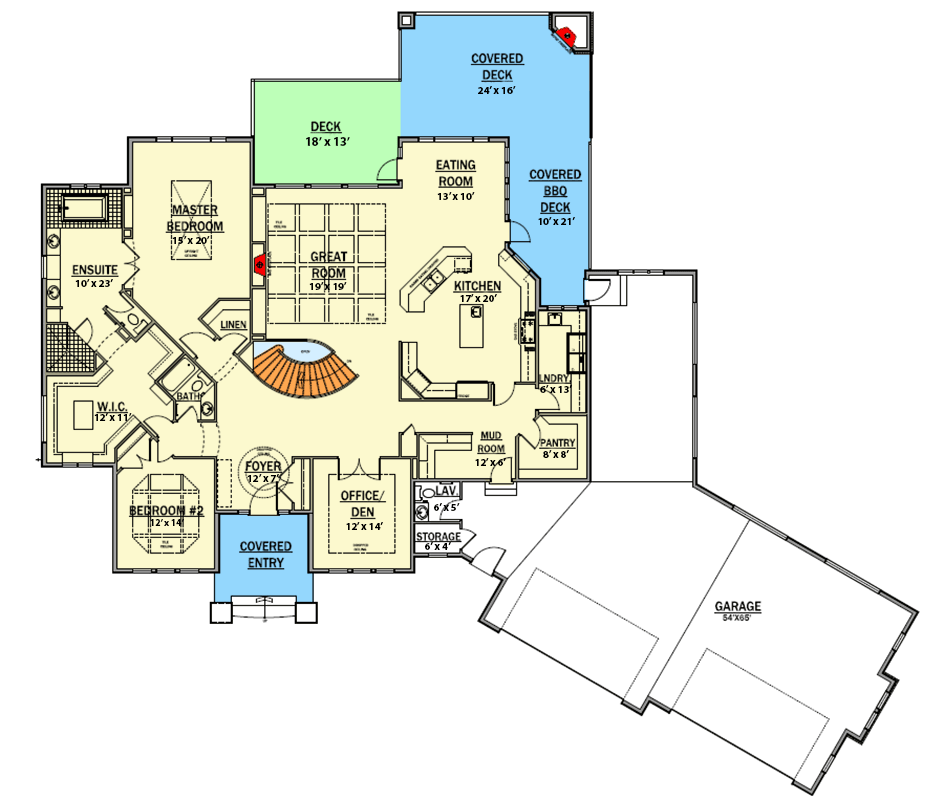

3000 Square Foot Craftsman Home Plan with Luxurious Master Suite - 81606AB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

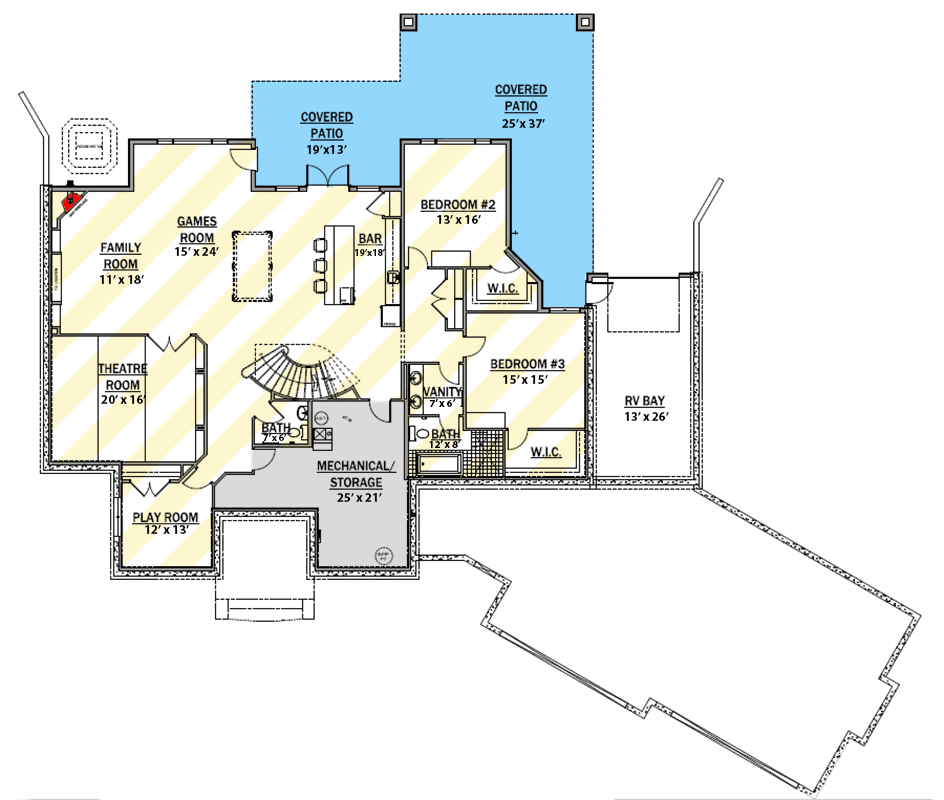

3000 Square Foot Craftsman Home Plan with Luxurious Master Suite - 81606AB floor plan - Lower Level

3000 Square Foot Craftsman Home Plan with Luxurious Master Suite

  • 3,037

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,037 sq. ft.
  • 1st Floor: 3,037 sq. ft.

Dimensions

  • Width: 112' 0"
  • Depth: 100' 0"
  • Max ridge height: 34' 3"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1835 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Courtyard

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
