3035 Square Foot New American House Plan with Upstairs Secret Room

Plan 260026RVC

  • 3,035

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • A few features in this 3,035 square foot New American house plan give benefits to the young and old inside: a stackable washer/dryer in the master suite, a flex bedroom/home office on the main floor and a secret gaming room  in one of the upstairs bedrooms.
  • The back porch gives you 152 square feet of fresh air space to enjoy and is accessible from the dining room and the primary bedroom.
  • The kitchen has a large island and pantry and is set at the juncture of the dining and family rooms.
  • Enter the home from the garage and benches and cubbies greet you in the mud room, helping control clutter.
  • Laundry is centrally located to the three upstairs bedrooms and a loft (unfinished) can be put to many uses.

This house plan includes the follow details:


Title sheet with general notes
Elevations
Foundation plan
Detailed floor plans
Roof framing plan
Cross sections & details
Interior trim details

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3035 Square Foot New American House Plan with Upstairs Secret Room - 260026RVC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

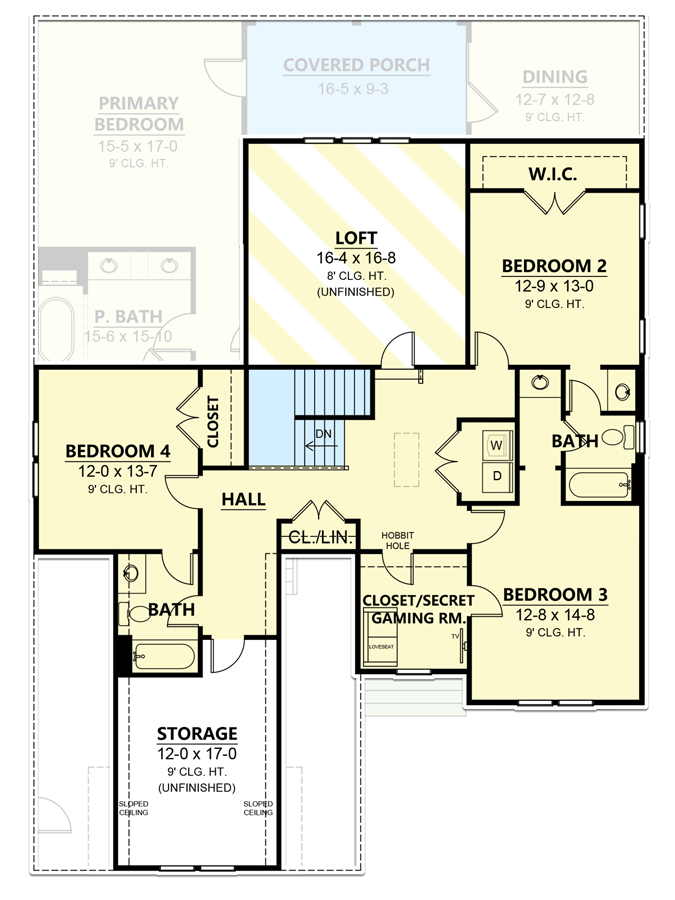

3035 Square Foot New American House Plan with Upstairs Secret Room - 260026RVC floor plan - 2nd Floor

3035 Square Foot New American House Plan with Upstairs Secret Room

  • 3,035

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,035 sq. ft.
  • 1st Floor: 1,828 sq. ft.
  • 2nd Floor: 1,207 sq. ft.

Dimensions

  • Width: 41' 11"
  • Depth: 64' 3"
  • Max ridge height: 36' 7"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 586 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick And Truss
