Plan 623109DJ 3100 Square Foot 4 Bed New American Ranch Home Plan

3100 Square Foot 4 Bed New American Ranch Home Plan

Plan 623109DJ

  • 3,168

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3,100 square foot modern New American ranch-style house plan has an exterior combining board and batten siding and lap siding paired with a metal roof.
  • Just inside the front covered porch, you'll find yourself in a beautiful entry that features built-in niches. The formal dining room lies under an 11' trayed ceiling with beams and has access to the kitchen through a servery. The kitchen includes a large walk-in pantry, ample counter space, and a massive island with a snack ledge.
  • The great room has a cathedral ceiling and a fireplace and flows perfectly with the kitchen and dinette in an open layout. The dinette leads out to a rear covered porch that is a perfect way to expand your homes outdoor entertainment options.
  • The master suite is on the left side of the home and has an 11' trayed ceiling. The master bathroom includes an amazing soaking tub, his/her vanities, dual linen closets, and a walk-in shower. The master walk-in closet has access to the laundry room through a pocket door.
  • Three guest bedrooms each have access to their own walk-in closets. Bedrooms 2 and 3 share a Jack and Jill bathroom.
  • A 3-car garage accesses the home through a convenient mudroom that includes a bench and lockers.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

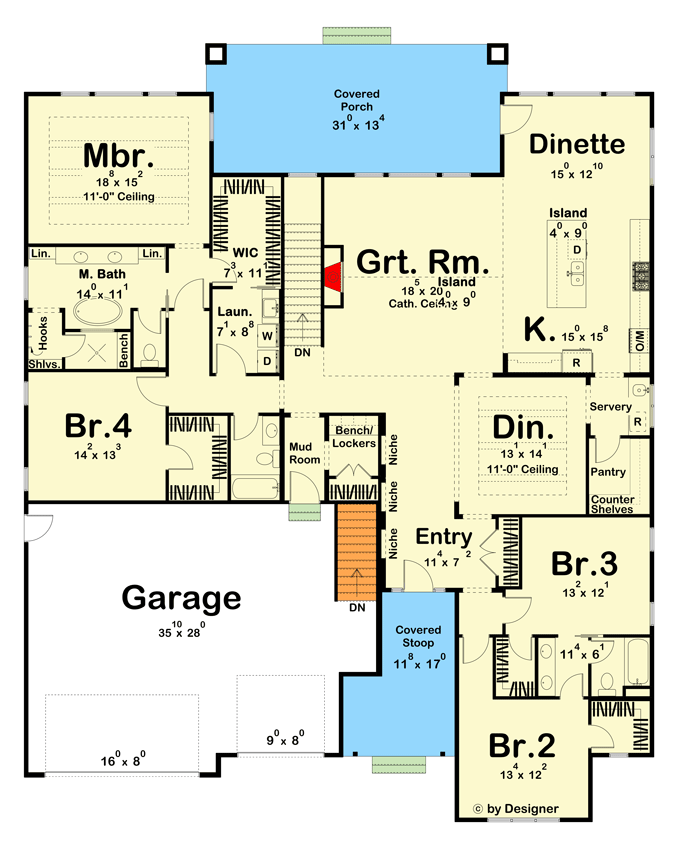

3100 Square Foot 4 Bed New American Ranch Home Plan - 623109DJ floor plan - Main Level

Plan details

3100 Square Foot 4 Bed New American Ranch Home Plan

  • 3,168

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • PDF - Unlimited Build $2,200
  • CAD + PDF - Single-Build $2,200
  • CAD - Unlimited Build $2,700
  • View all purchase option online

About This Plan

  • This 3,100 square foot modern New American ranch-style house plan has an exterior combining board and batten siding and lap siding paired with a metal roof.
  • Just inside the front covered porch, you'll find yourself in a beautiful entry that features built-in niches. The formal dining room lies under an 11' trayed ceiling with beams and has access to the kitchen through a servery. The kitchen includes a large walk-in pantry, ample counter space, and a massive island with a snack ledge.
  • The great room has a cathedral ceiling and a fireplace and flows perfectly with the kitchen and dinette in an open layout. The dinette leads out to a rear covered porch that is a perfect way to expand your homes outdoor entertainment options.
  • The master suite is on the left side of the home and has an 11' trayed ceiling. The master bathroom includes an amazing soaking tub, his/her vanities, dual linen closets, and a walk-in shower. The master walk-in closet has access to the laundry room through a pocket door.
  • Three guest bedrooms each have access to their own walk-in closets. Bedrooms 2 and 3 share a Jack and Jill bathroom.
  • A 3-car garage accesses the home through a convenient mudroom that includes a bench and lockers.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,168 sq. ft.
  • 1st Floor: 3,168 sq. ft.
  • Porch, Rear: 397 sq. ft.
  • Covered Stoop: 161 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 8"
  • Depth: 80' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
