Plan 23276JD

32-Foot-Wide Craftsman House Plan with Flex Room - 2652 Sq Ft

Heated S.F.
2,652
Beds
3 - 4
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 23276JD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 23276JD

M-F 9am-5pm EST |

1-203-761-8500

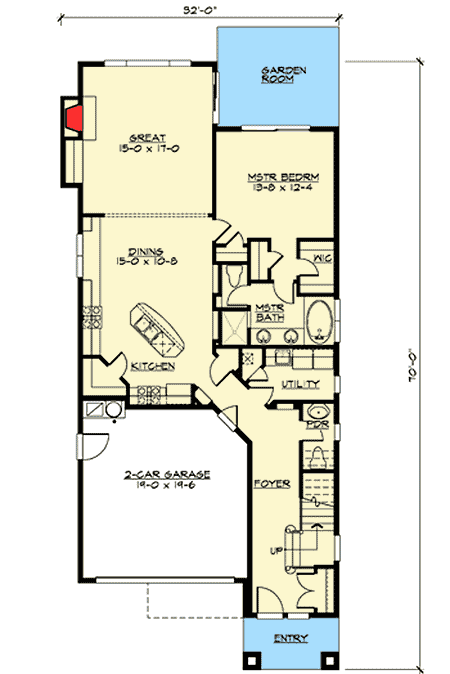

Main Level

Plan 23276JD: 32-Foot-Wide Craftsman House Plan with Flex Room - 2652 Sq Ft - Floor Plan - Main Level - Craftsman, New American, Northwest

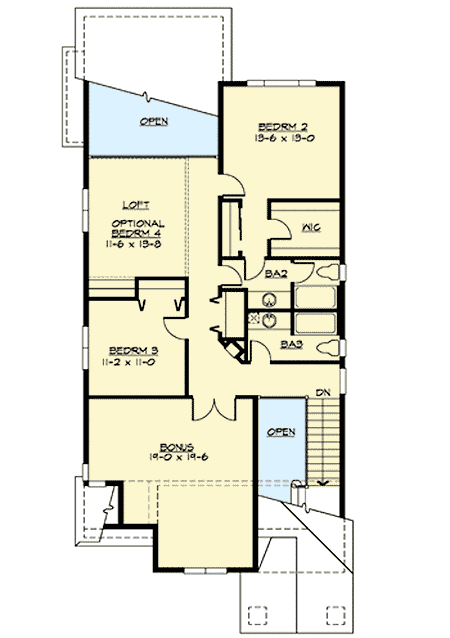

2nd Floor

Plan 23276JD: 32-Foot-Wide Craftsman House Plan with Flex Room - 2652 Sq Ft - Floor Plan - 2nd Floor - Craftsman, New American, Northwest

Plan Details

  • This narrow lot Craftsman house plan comes in two exteriors, both featuring attractive sheltered covered entries.

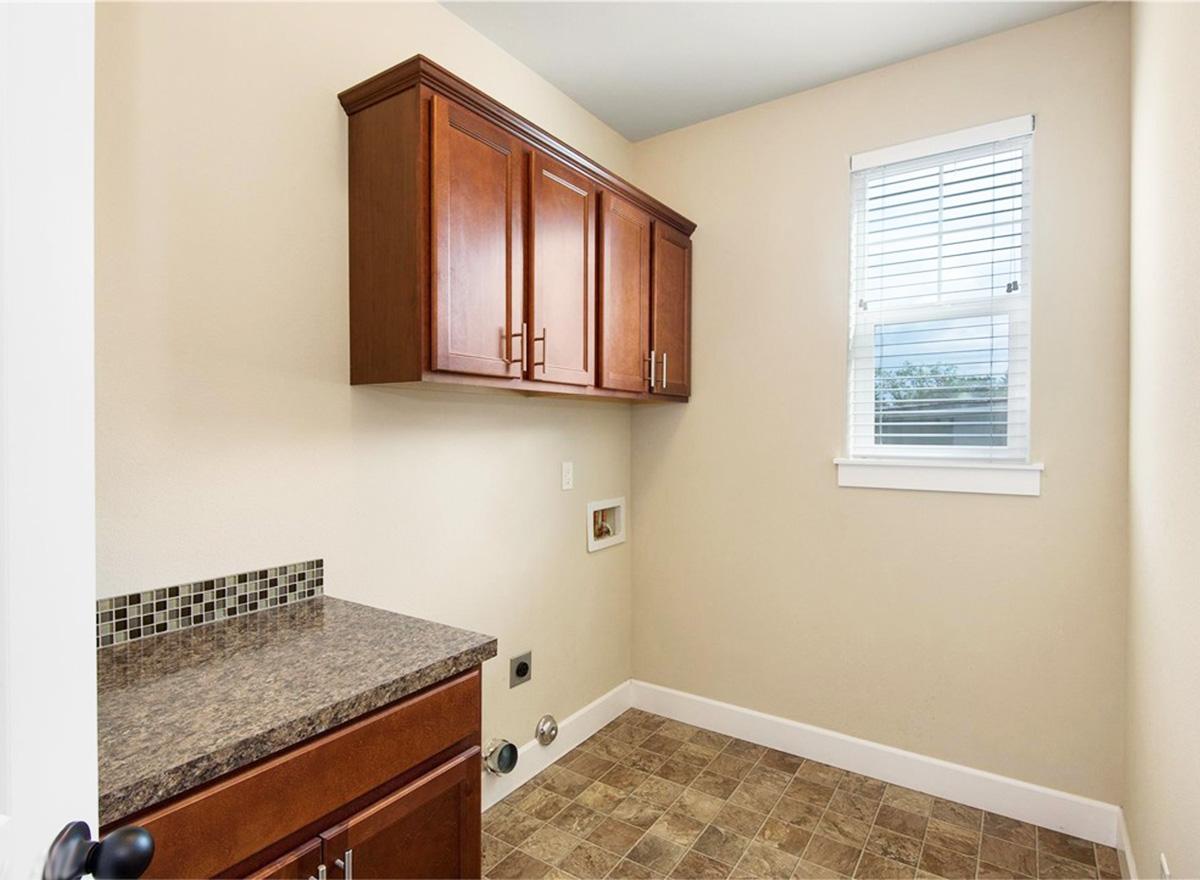

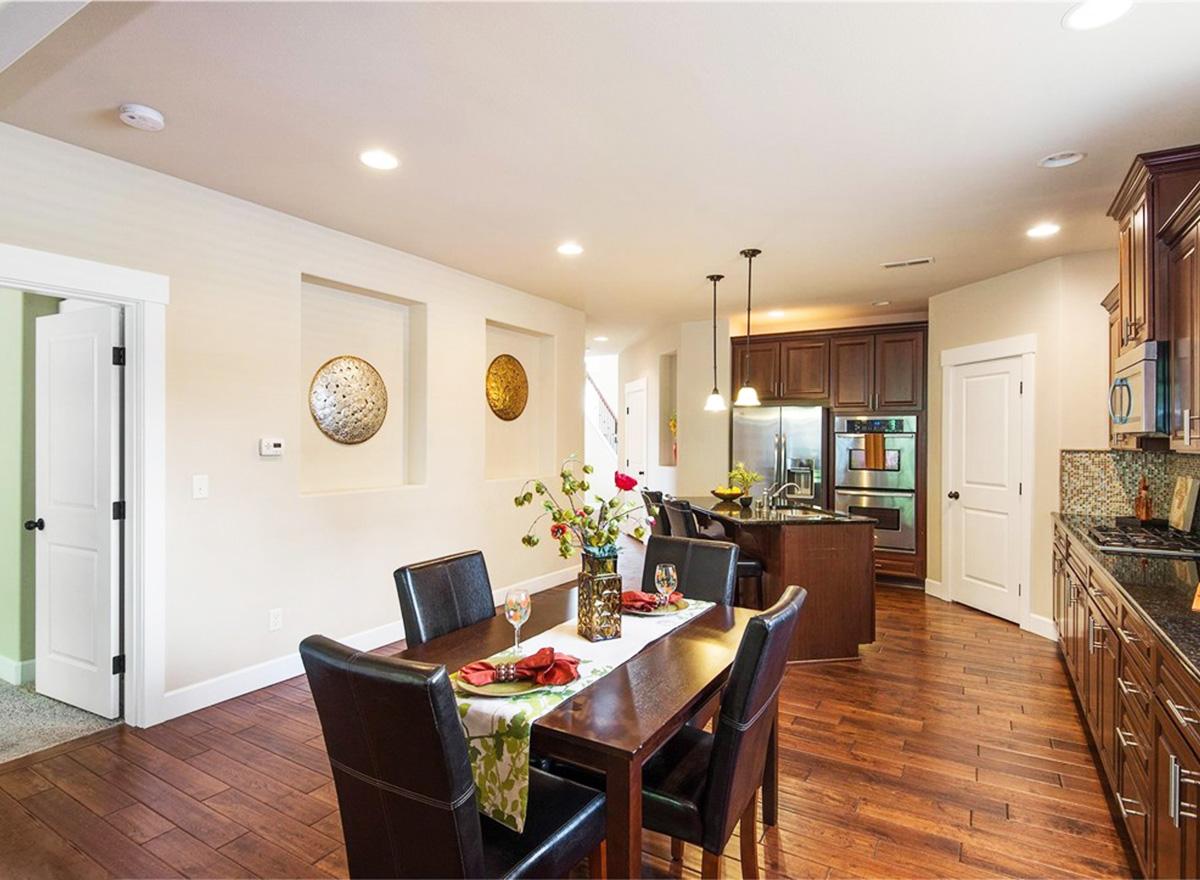

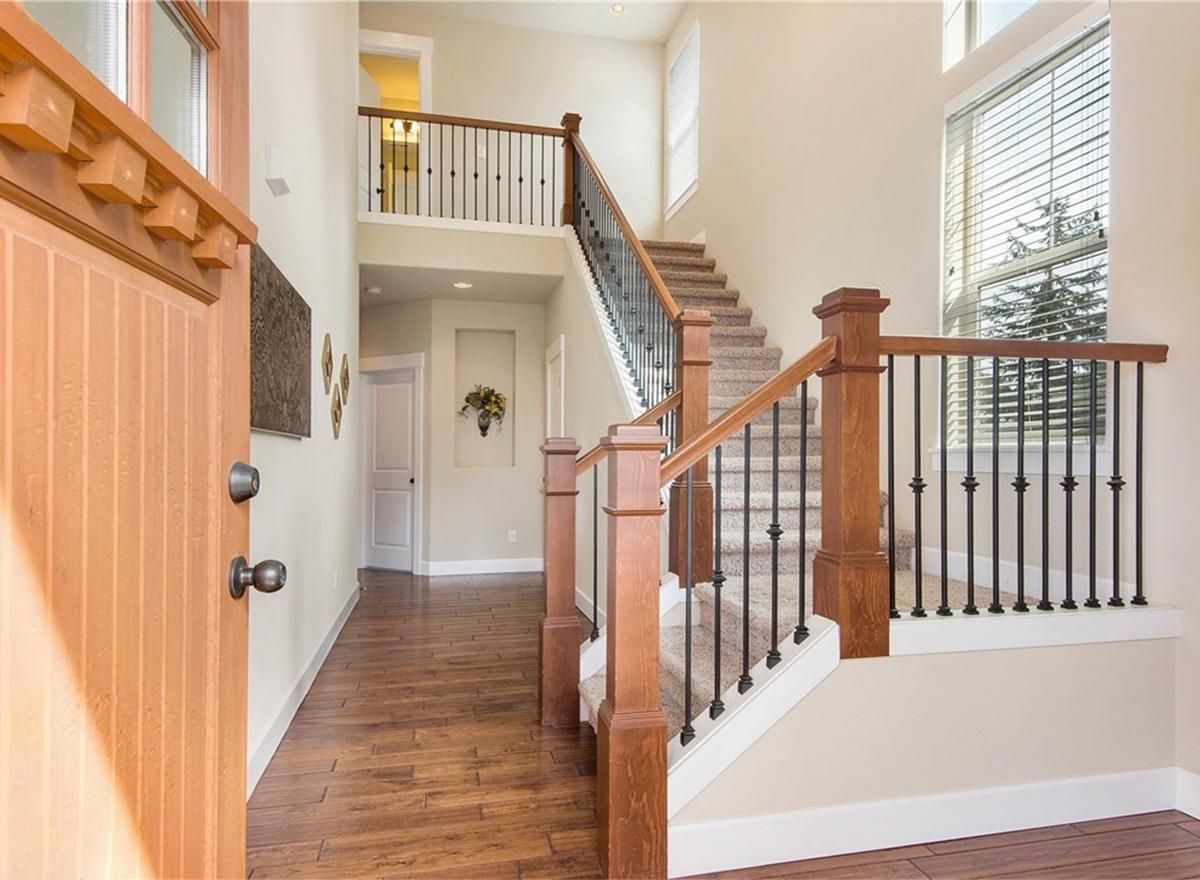

  • An angled passageway off the foyer (with powder room, utility room and stairs going up) leads to the open kitchen/dining room. A corner pantry is a nice feature here.

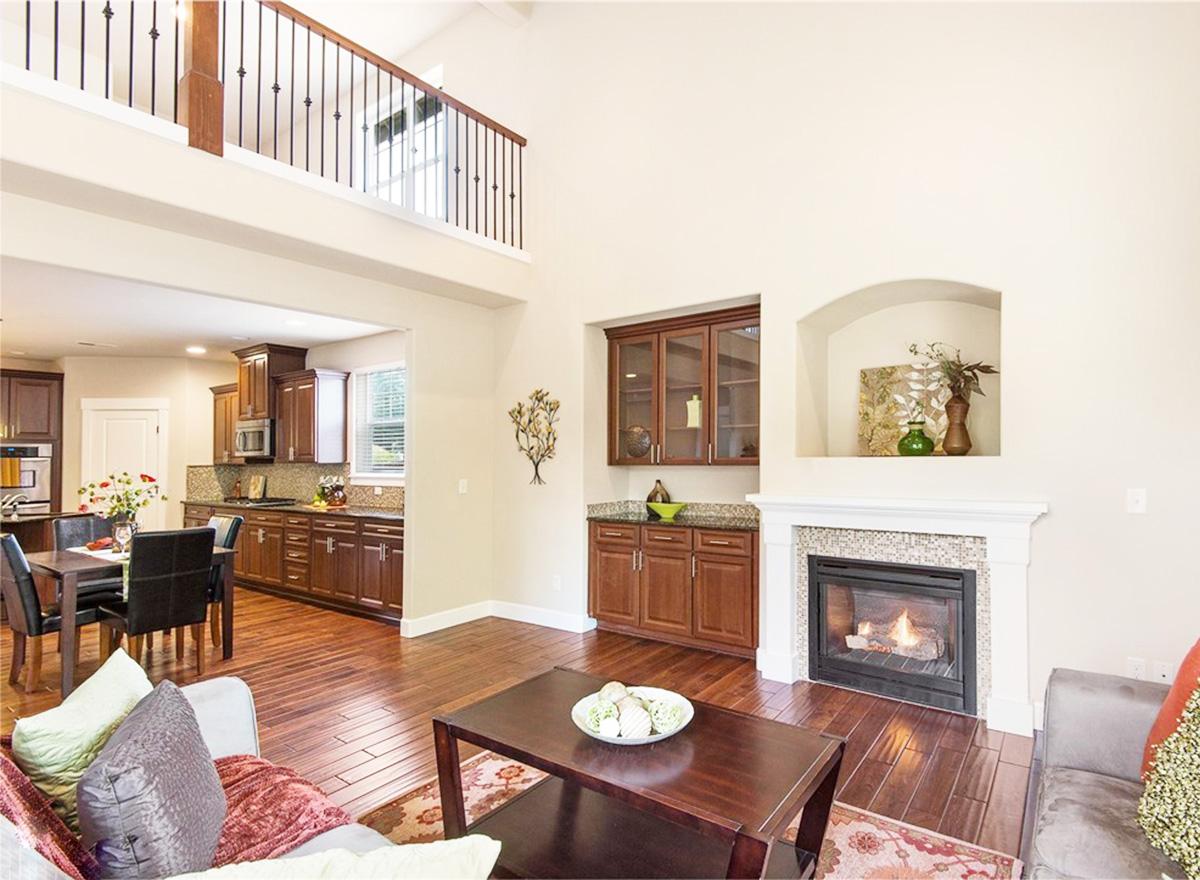

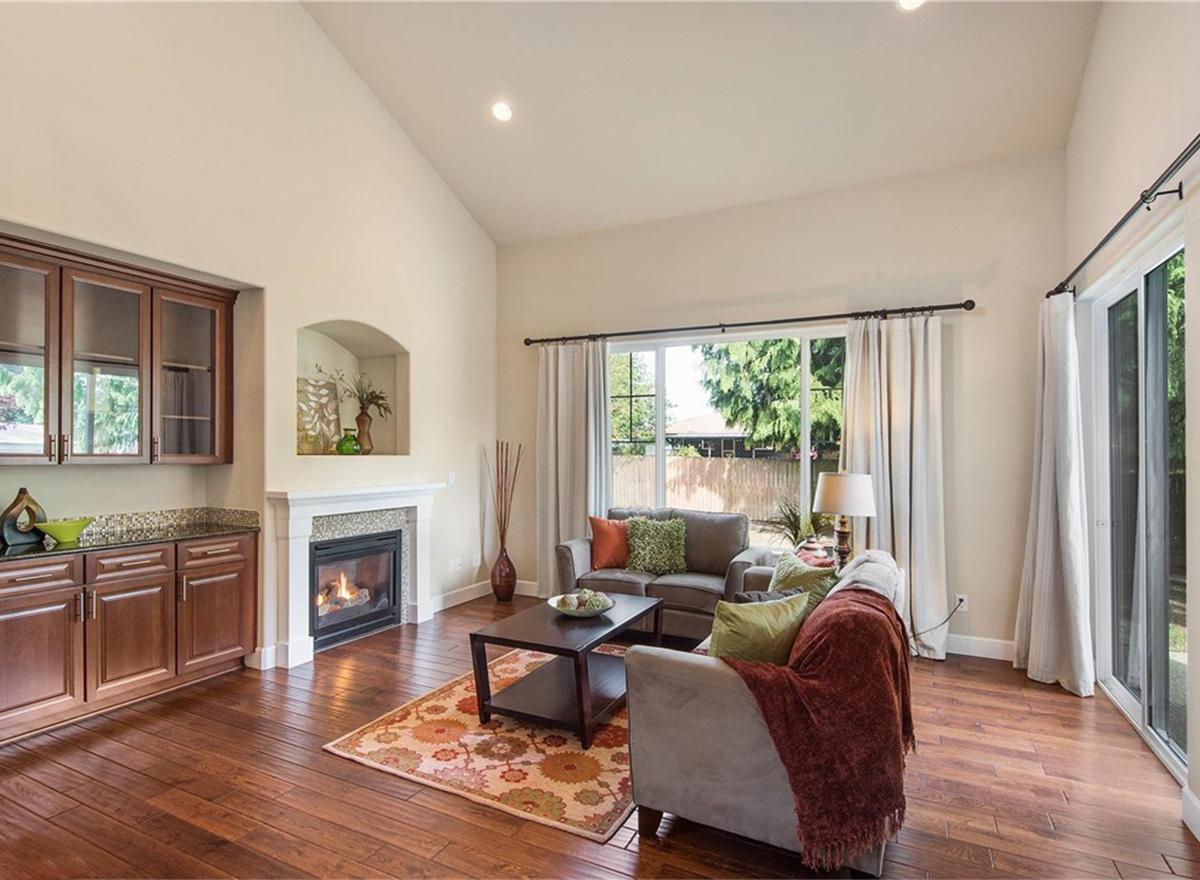

  • The great room is set off by an arched openning. A fireplace is accompanied by built-in shelving and windows along the back wall let in natural light.

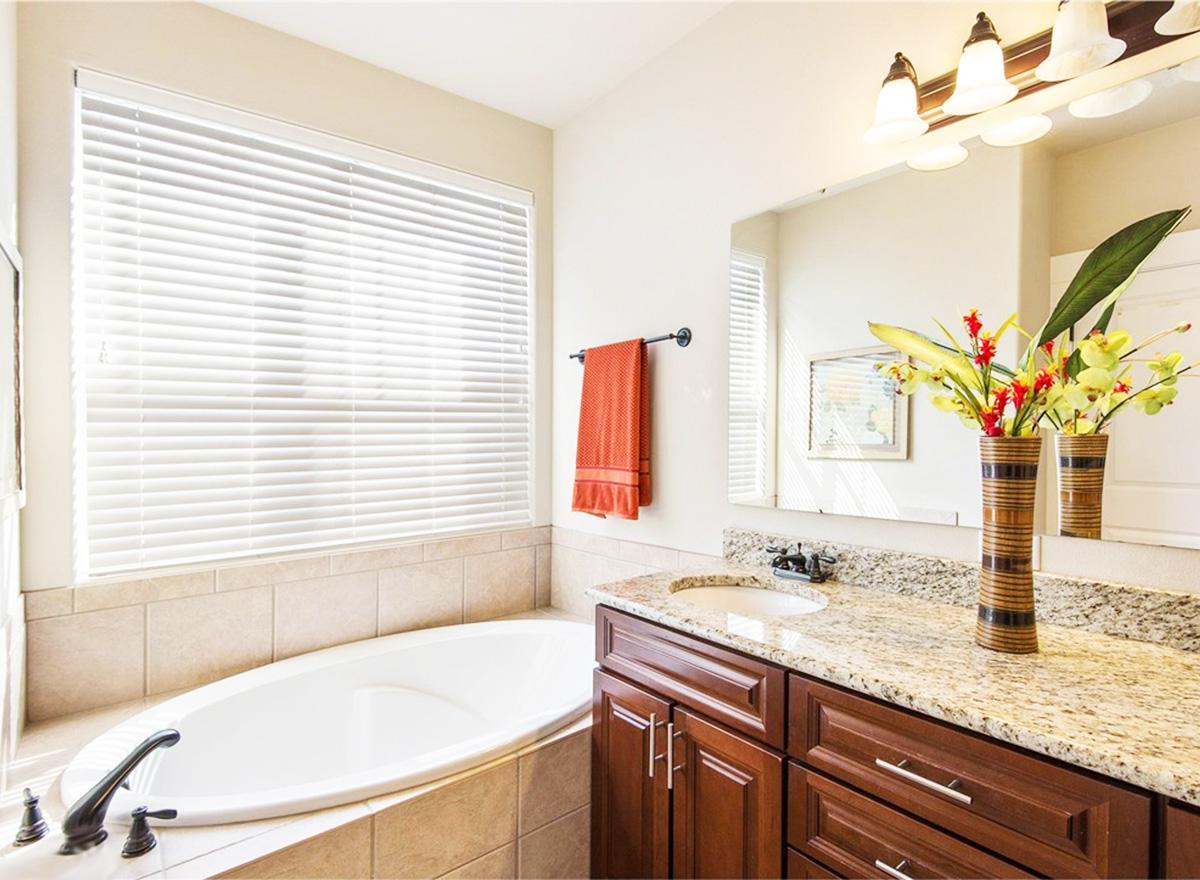

  • The garden room is accessible from both the great room and the master suite which has two closets (one a walk-in), dual vanities, spa tub and stand-up shower.

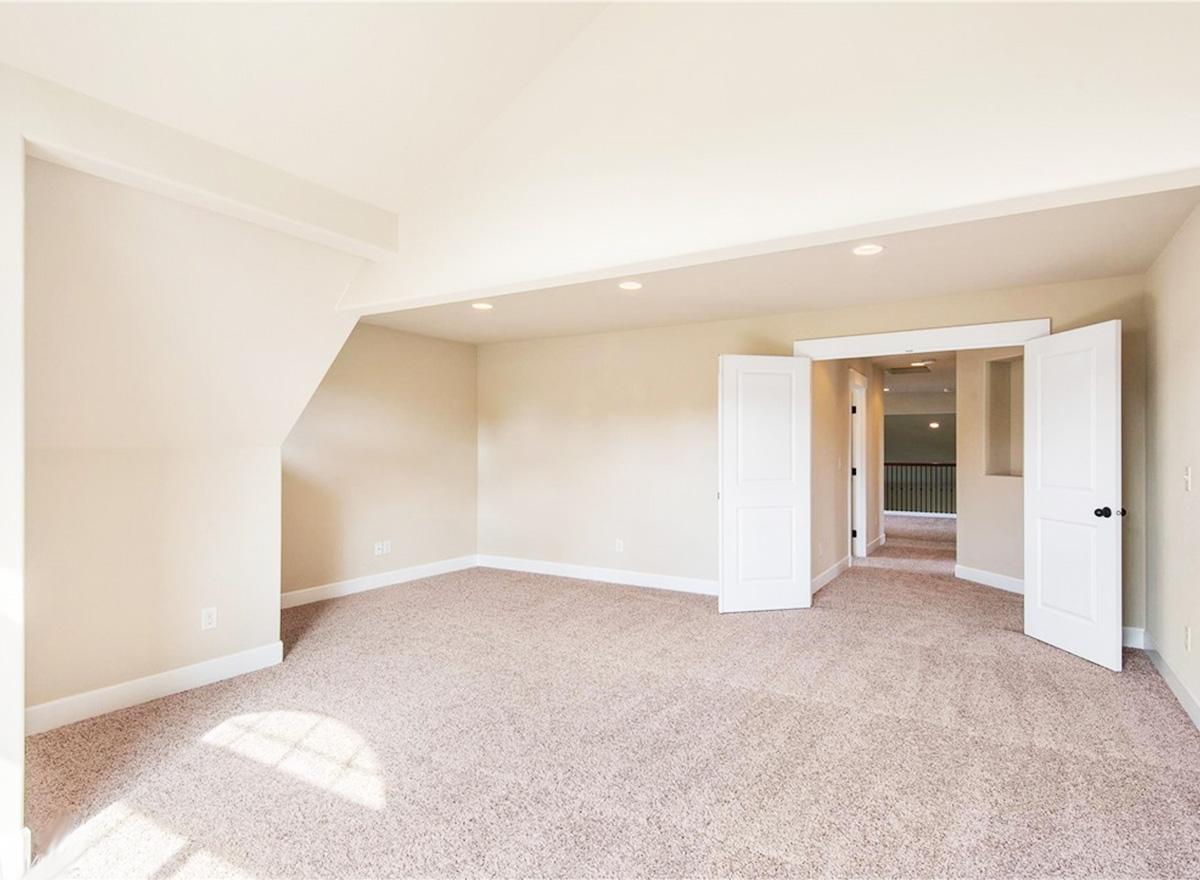

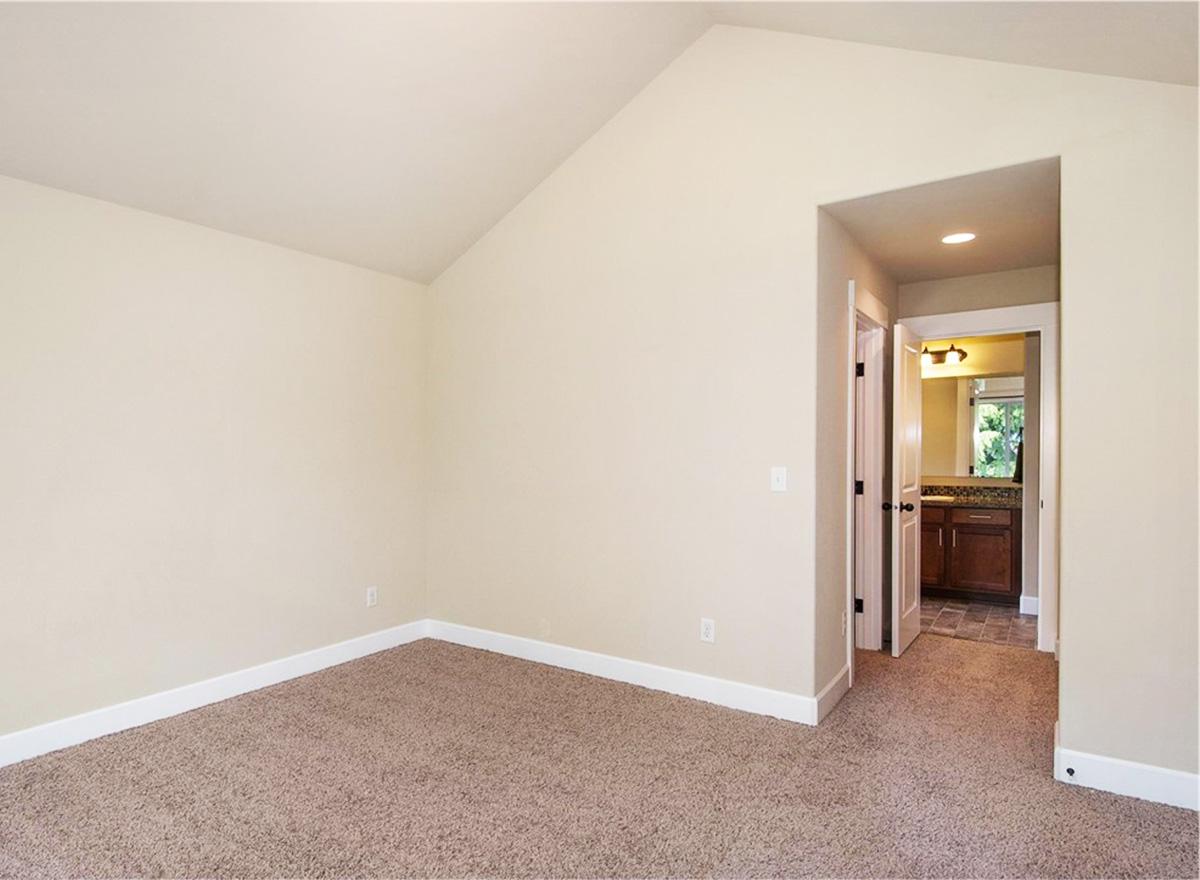

  • The second floor offers up to 3 additional bedrooms plus bonus space over the 2-car garage.
  • Related Plan: For an alternate elevation, see house plan 23275JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

    •

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan
