Plan 680046VR 3400 Square Foot Mid-Century Modern Lake House Plan

3,433 4 3 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3400 Square Foot Mid-Century Modern Lake House Plan

Plan 680046VR

  • 3,433

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This lake house plan has sloping rooflines and three levels with outdoor living with a focus on views to the back while shaving off a couple hundred square feet of heated living area.
  • The main level consists of an open and airy living space with casual dining at the kitchen island, along with space for a formal dining table.
  • The wrap-around deck provides ample space for grilling, dining outdoors, or just relaxing with a view.
  • Two bedrooms can be found on the main level, separated by a full bath, while the master suite consumes the upper floor and includes a 5-fixture bathroom, private balcony, and an exercise room (or second closet).
  • Plenty of storage is available on the lower level that opens onto a patio, designed for a future expansion with a bedroom, a full bath, a game room and large recreation room.
  • Related Plans: Get alternate versions with house plans 68753VR and 680011VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

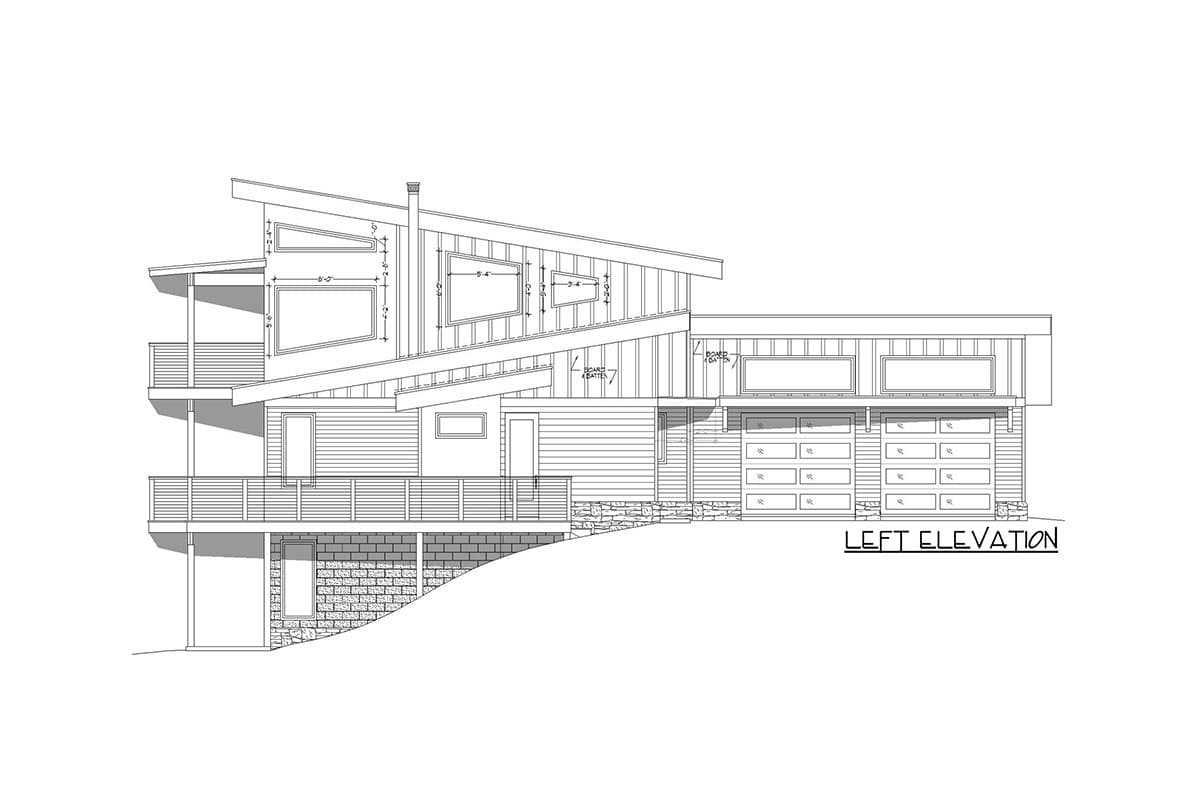

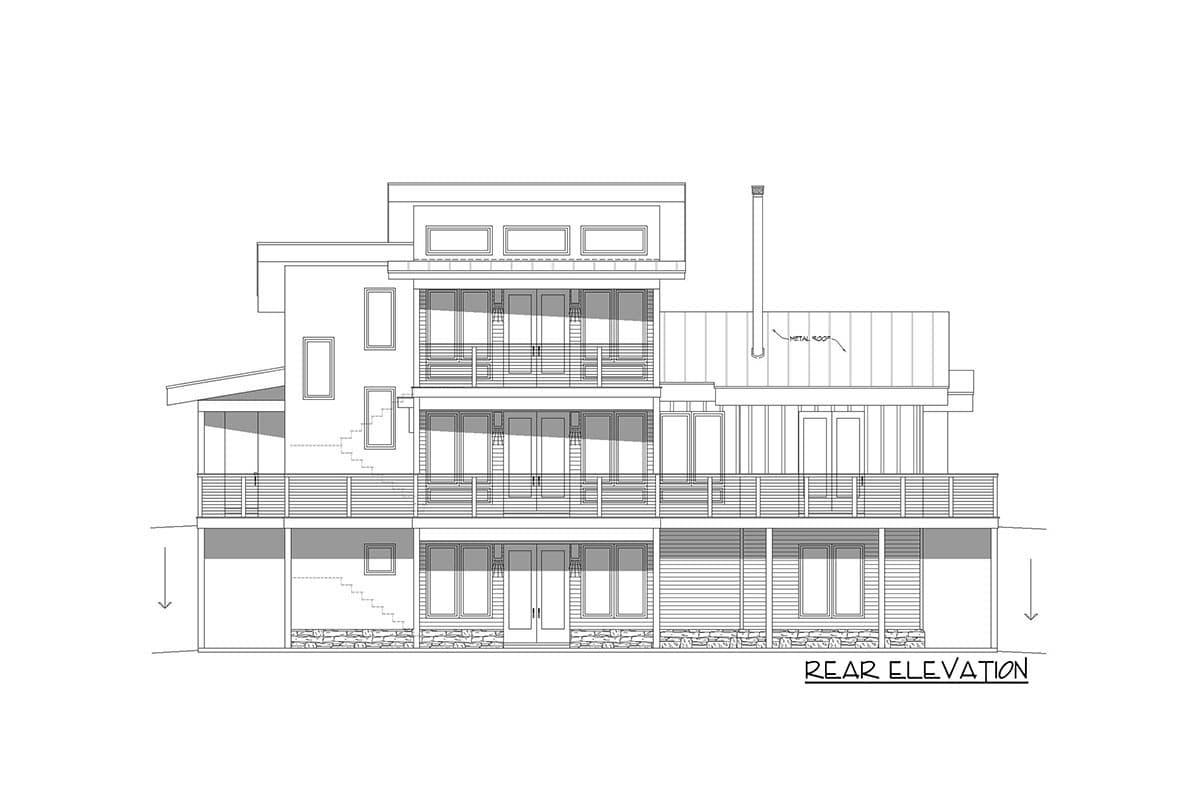

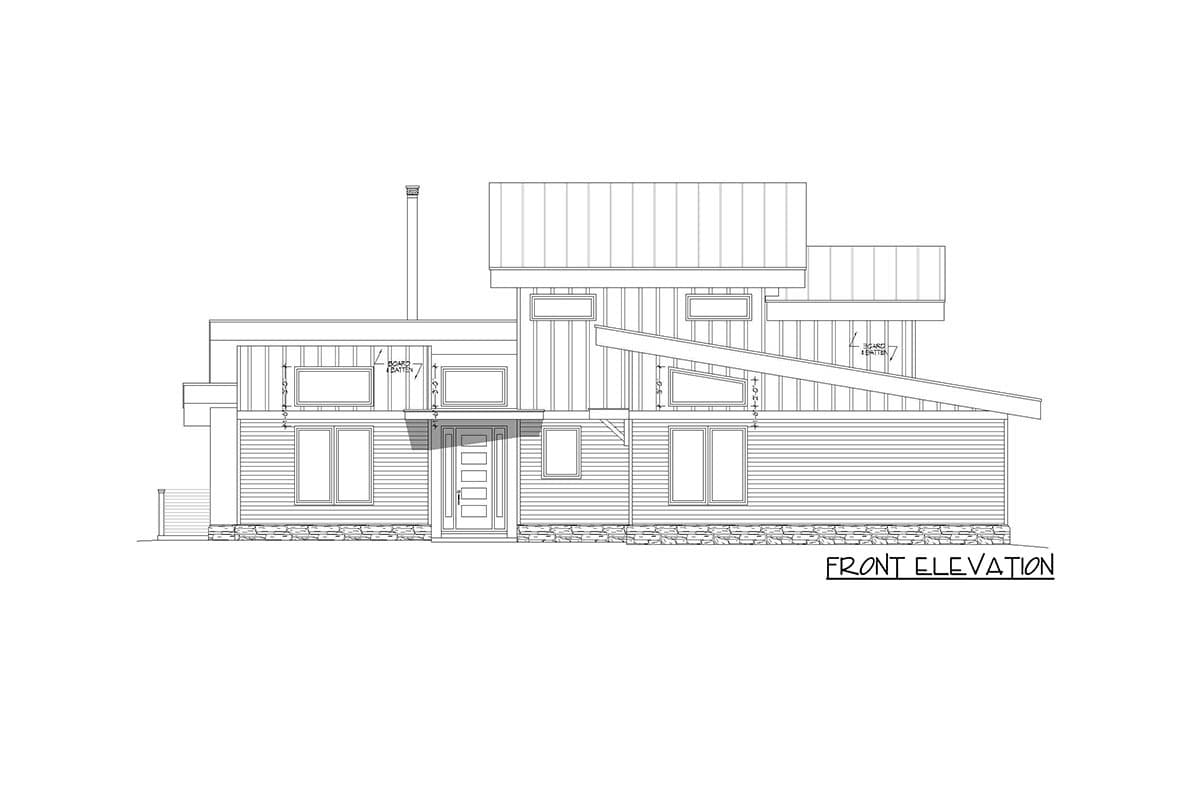

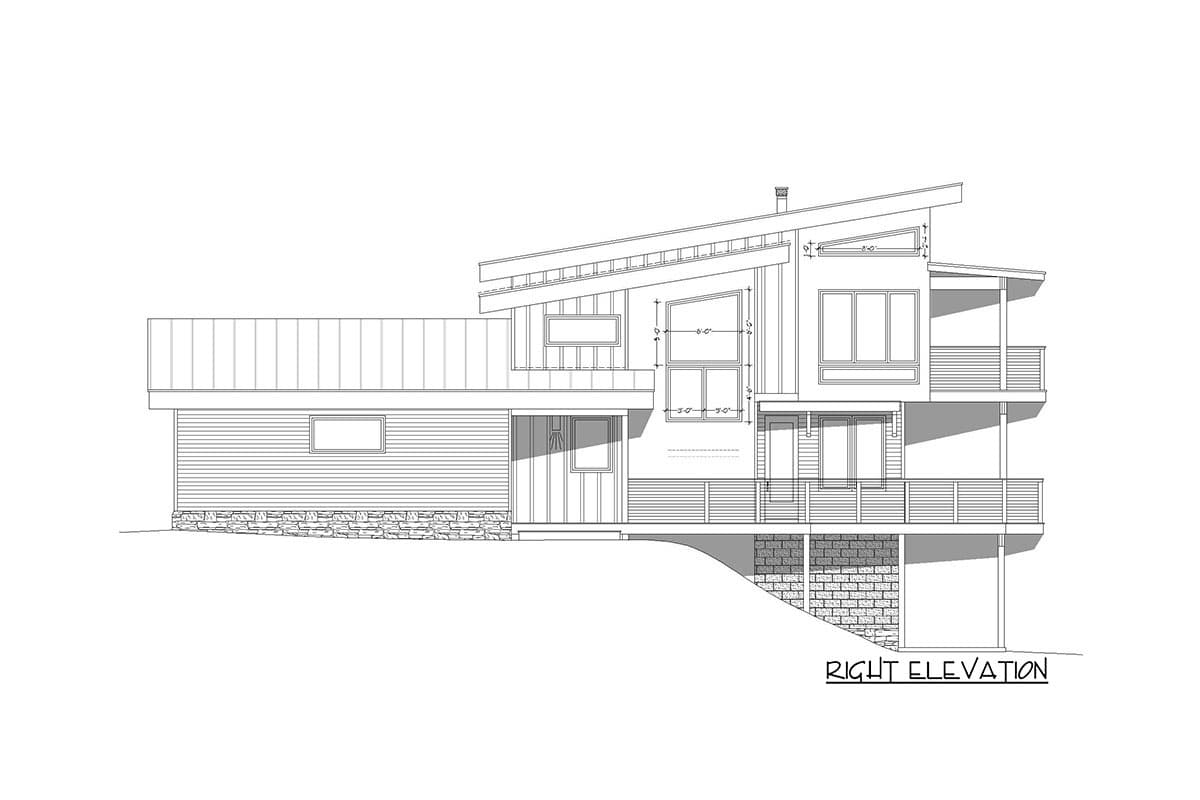

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

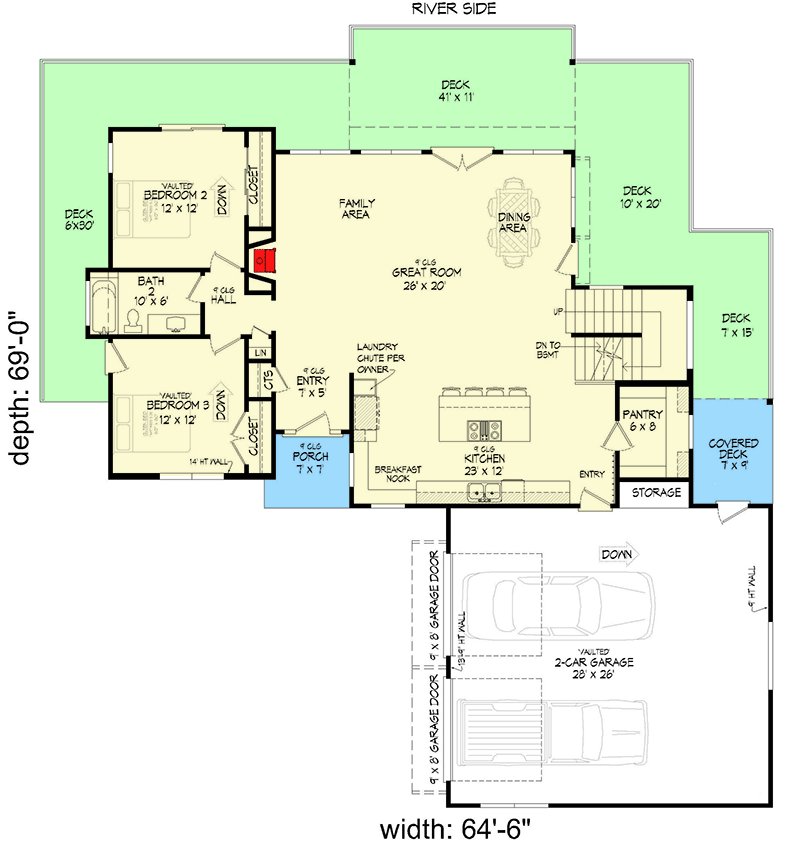

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3400 Square Foot Mid-Century Modern Lake House Plan - 680046VR floor plan - Main Level

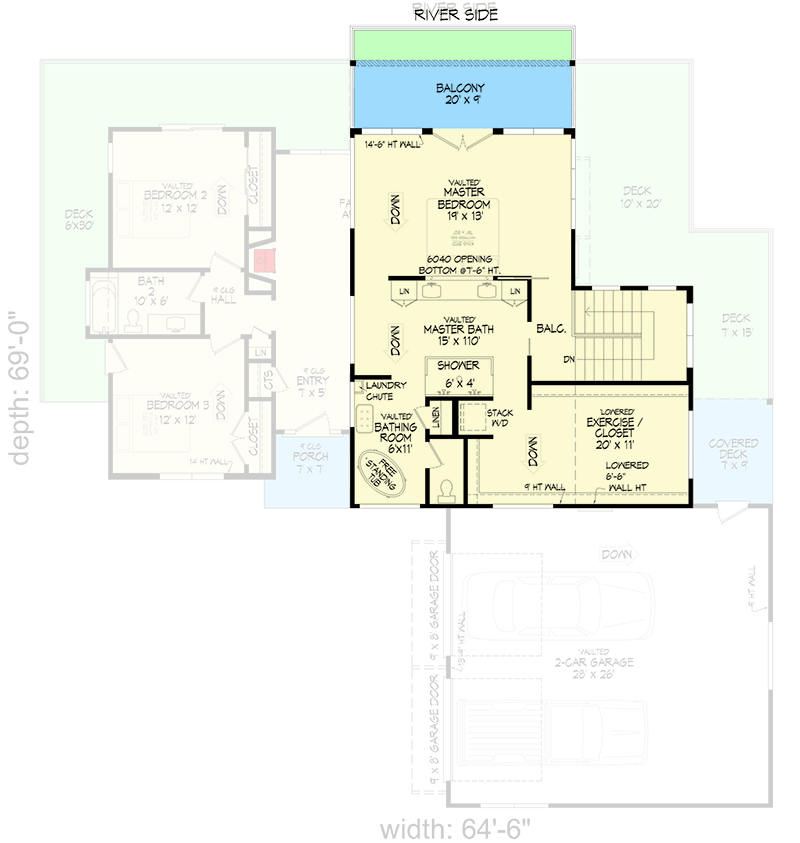

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3400 Square Foot Mid-Century Modern Lake House Plan - 680046VR floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3400 Square Foot Mid-Century Modern Lake House Plan - 680046VR floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,433 sq. ft.

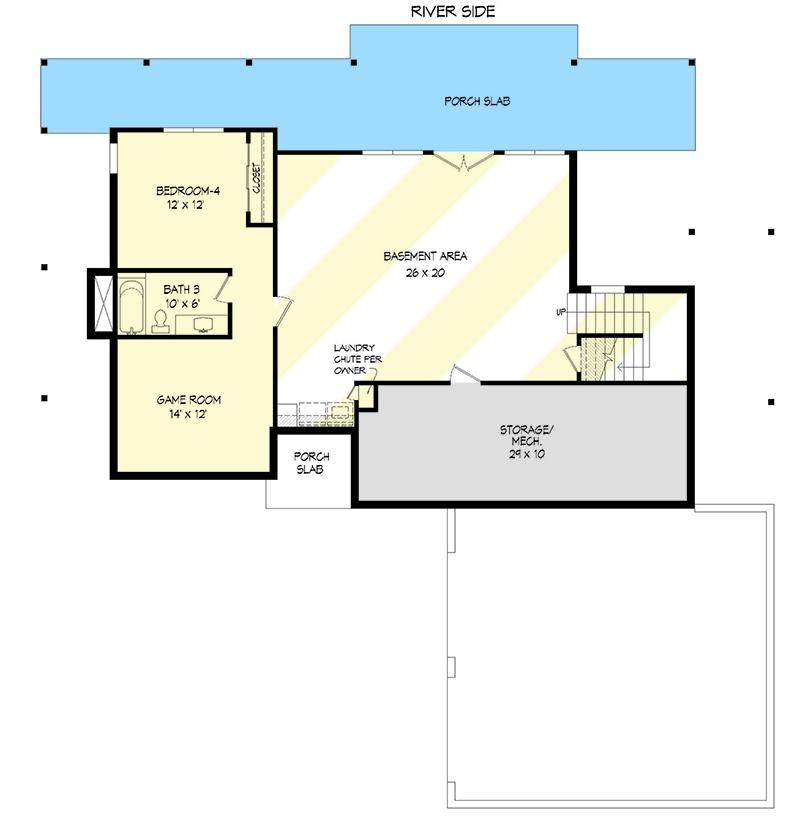

  • Lower Level: 1,115 sq. ft.
  • 1st Floor: 1,448 sq. ft.
  • 2nd Floor: 870 sq. ft.
  • Porch, Combined: 1,602 sq. ft.
  • Basement Unfinished: 335 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Crawl, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 6"
  • Depth: 69' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 2 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

3400 Square Foot Mid-Century Modern Lake House Plan

  • 3,433

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $2,075
  • 5 Sets $2,160
  • 5 Sets + PDF $2,324
  • CAD + PDF - Single-Build $2,625
  • View all purchase option online

About This Plan

  • This lake house plan has sloping rooflines and three levels with outdoor living with a focus on views to the back while shaving off a couple hundred square feet of heated living area.
  • The main level consists of an open and airy living space with casual dining at the kitchen island, along with space for a formal dining table.
  • The wrap-around deck provides ample space for grilling, dining outdoors, or just relaxing with a view.
  • Two bedrooms can be found on the main level, separated by a full bath, while the master suite consumes the upper floor and includes a 5-fixture bathroom, private balcony, and an exercise room (or second closet).
  • Plenty of storage is available on the lower level that opens onto a patio, designed for a future expansion with a bedroom, a full bath, a game room and large recreation room.
  • Related Plans: Get alternate versions with house plans 68753VR and 680011VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,433 sq. ft.
  • Lower Level: 1,115 sq. ft.
  • 1st Floor: 1,448 sq. ft.
  • 2nd Floor: 870 sq. ft.
  • Porch, Combined: 1,602 sq. ft.
  • Basement Unfinished: 335 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 64' 6"
  • Depth: 69' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 775 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 2 on 12
  • Framing Type: Stick
