Plan 93200EL
EXCLUSIVE
3410 Square Foot Transitional House Plan with Upstairs Home Office
Heated S.F.
3,410
Beds
4
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • This 3,410 square foot Transitional house plan gives you 4 beds, 4.5 baths and has a 3-car (778) square foot courtyard-entry garage). A painted brick exterior with two gables is complimented by board and batten siding on the right, decorative roof brackets and curved window and covered entry opening adds up to give it great curb appeal.
  • A beamed ceiling and fireplace are two winning features of the living room. Sliding doors open to connect this space with the outdoor living room with fireplace in back.
  • The island kitchen sits at the juncture of the living room and dining room and has a large walk-in pantry located across from the garage opening.
  • One of the four bedrooms - the master suite - is on the main floor has outdoor access. Upstairs, three bedrooms plus a home office and a bonus room (included in the total living area) with wet bar complete the home.
  • NOTE: Please allow 5-7 business days for plan delivery.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet

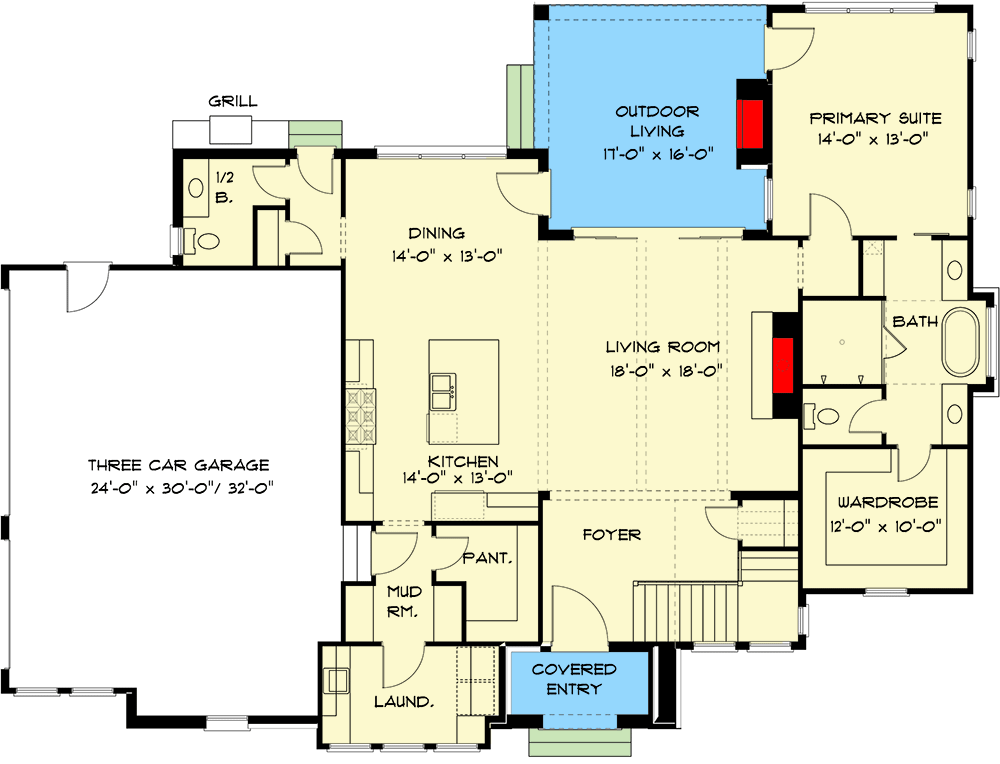

  • First Floor Plan

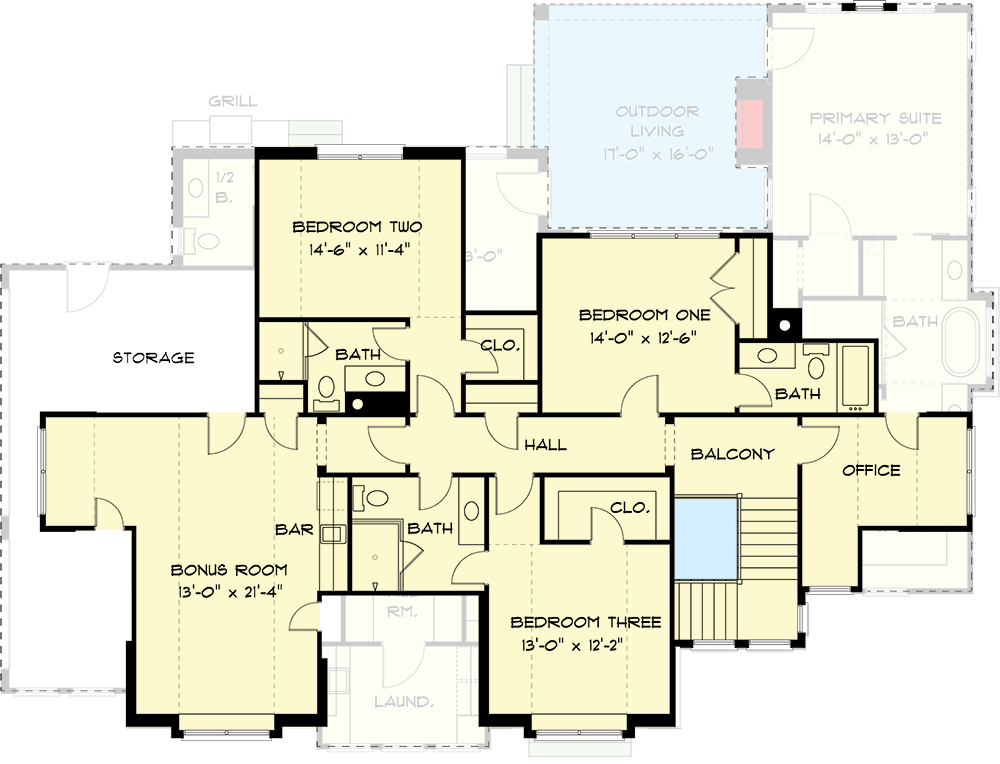

  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation

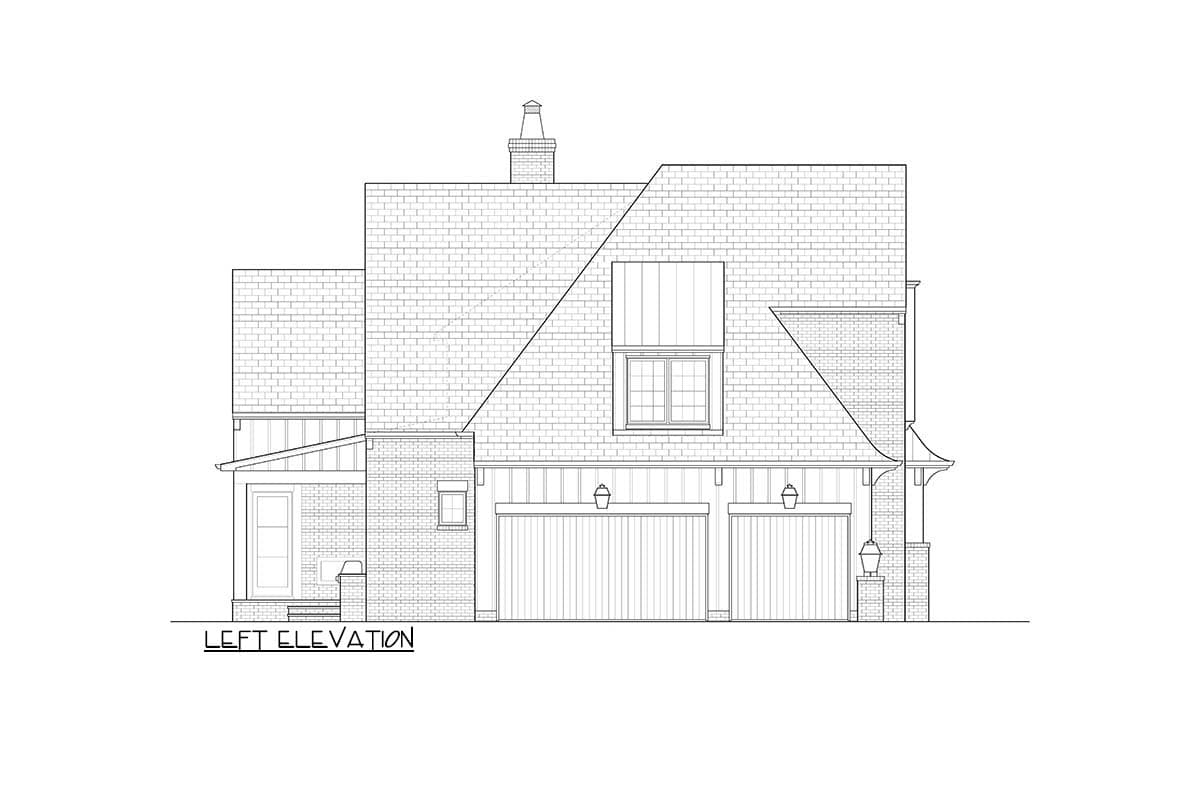

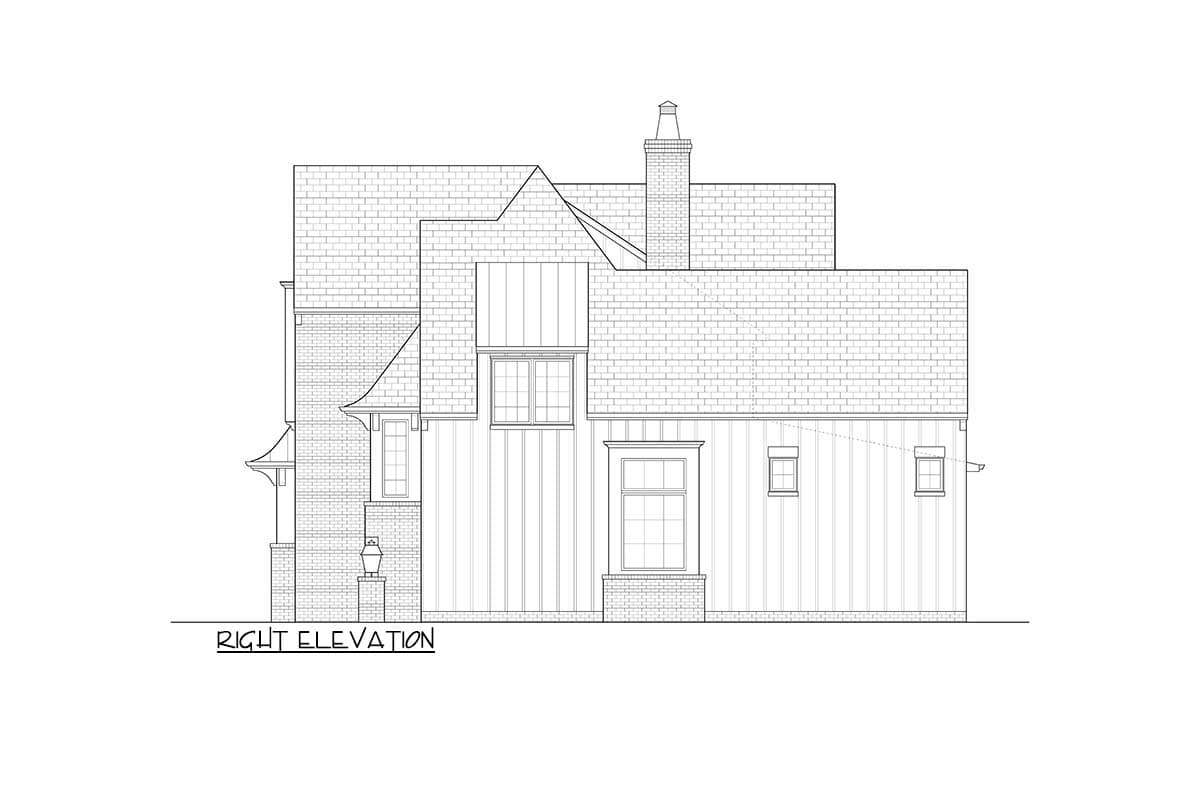

  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3410 Square Foot Transitional House Plan with Upstairs Home Office

  • 3,410

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,410 sq. ft.
  • 1st Floor: 1,814 sq. ft.
  • 2nd Floor: 1,596 sq. ft.

Dimensions

  • Width: 71' 8"
  • Depth: 54' 6"
  • Max ridge height: 33' 5"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 778 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 16 on 12
