3574 Square Foot 3 Bed Transitional House Plan with Expansion
Heated S.F.
3,574
Beds
3
Baths
2.5
Stories
1-2
Cars
3
What's Included
Plan Details

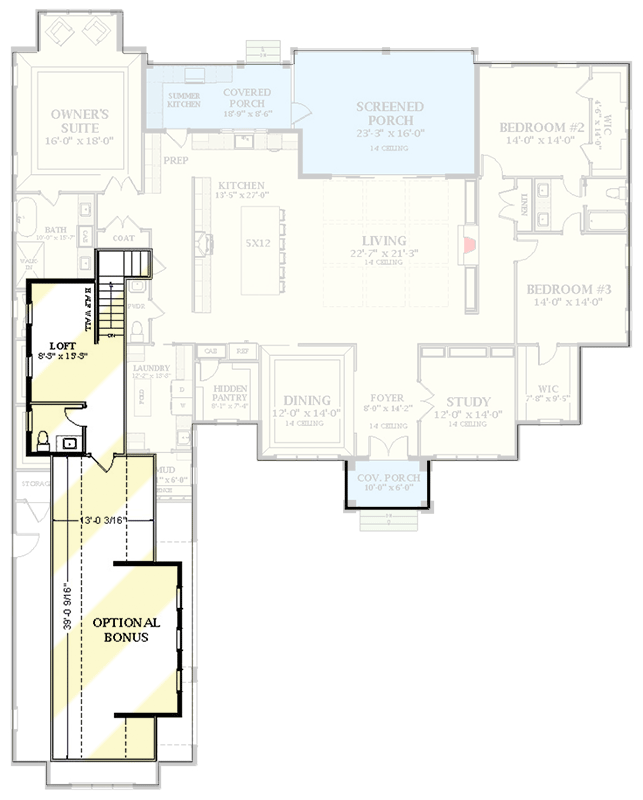

  • This 3 bed, 2.5 bath Transitional-style house plan gives you 3,574 square feet of heated living space and has 862 square foot of bonus expansion above the garage.

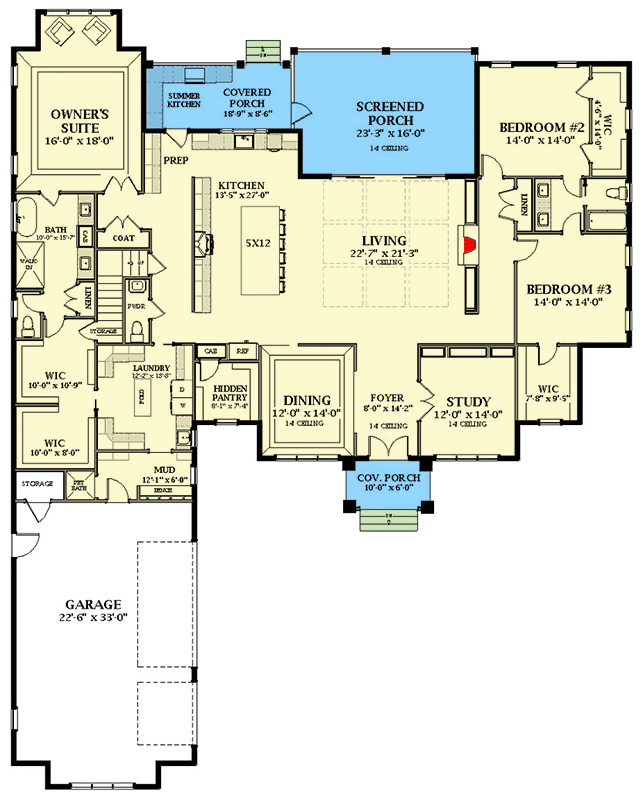

  • French doors open to the foyer with the dining room and study to either side. Ahead, the living room with 14' coffered ceiling has a fireplace and access to the 16'-deep screened porch through a collapsible back wall.
  • The master suite occupies the entire left side of the home and has two walk-in closets and direct access to the laundry room. Across the home, two bedrooms - each with walk-in closets - share a Jack and Jill bath.
  • NOTE: Please allow 20 to 25 business days for plan delivery.
What's Included
  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
