Plan 490059NAH
3860 Sq Ft Hipped Roof Contemporary House Plan
Heated S.F.
3,860
Beds
4-6
Baths
3.5 - 4.5
Stories
2
Cars
4
What's Included
Floor Plan
PRINT PLANS

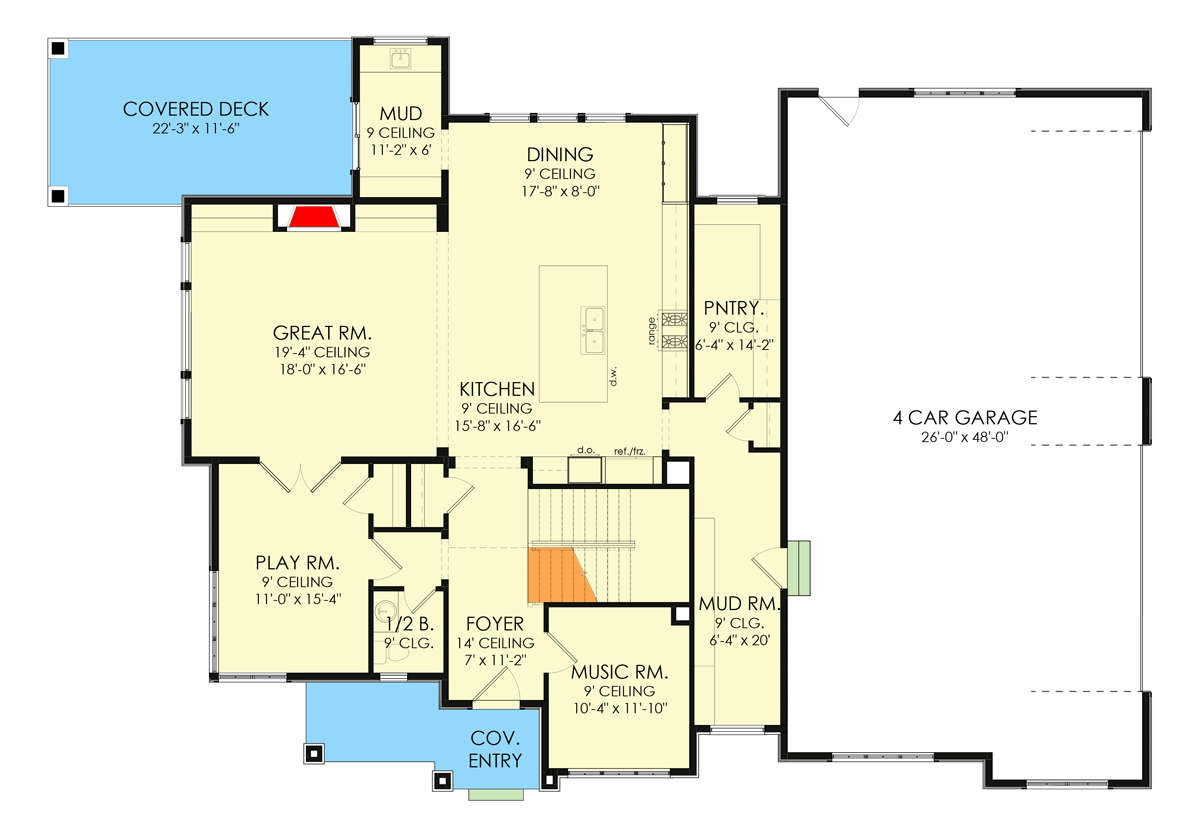

Main Level
Reverse Floor Plan
3860 Sq Ft Hipped Roof Contemporary House Plan - 490059NAH floor plan - Main Level

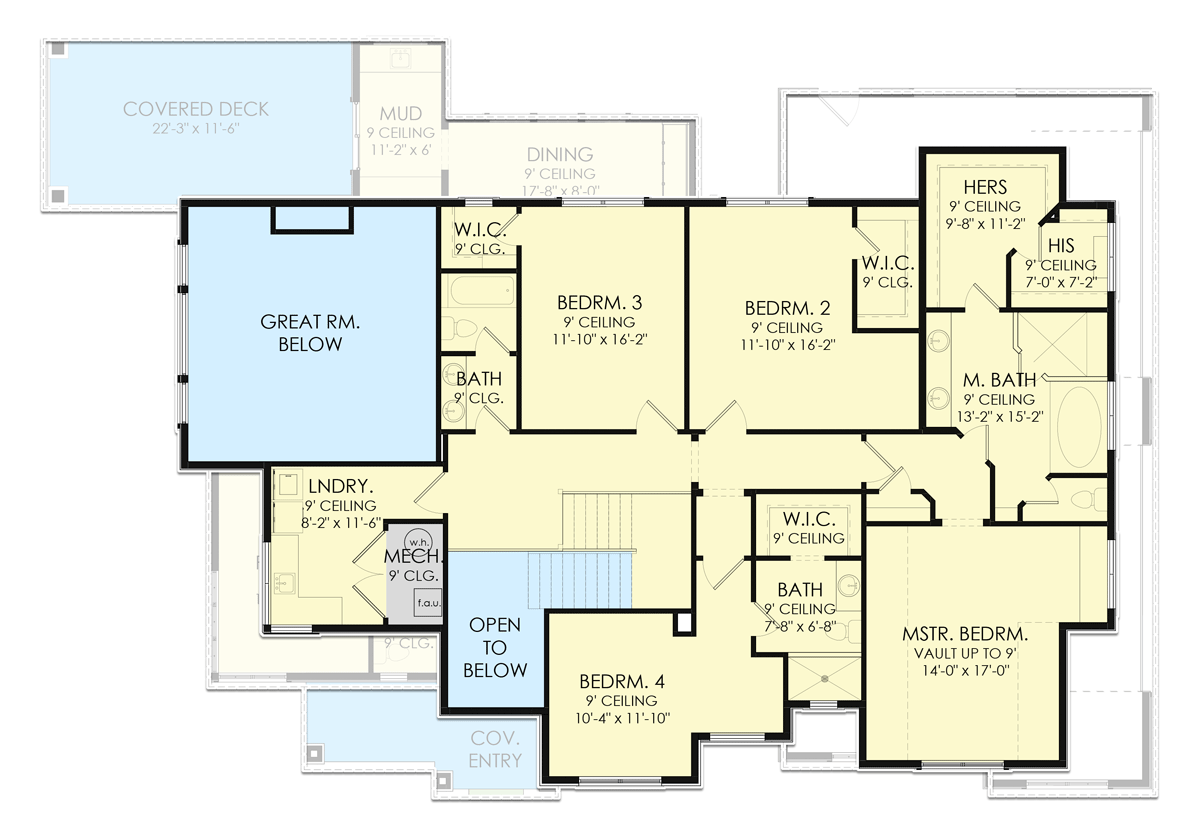

2nd Floor
Reverse Floor Plan
3860 Sq Ft Hipped Roof Contemporary House Plan - 490059NAH floor plan - 2nd Floor

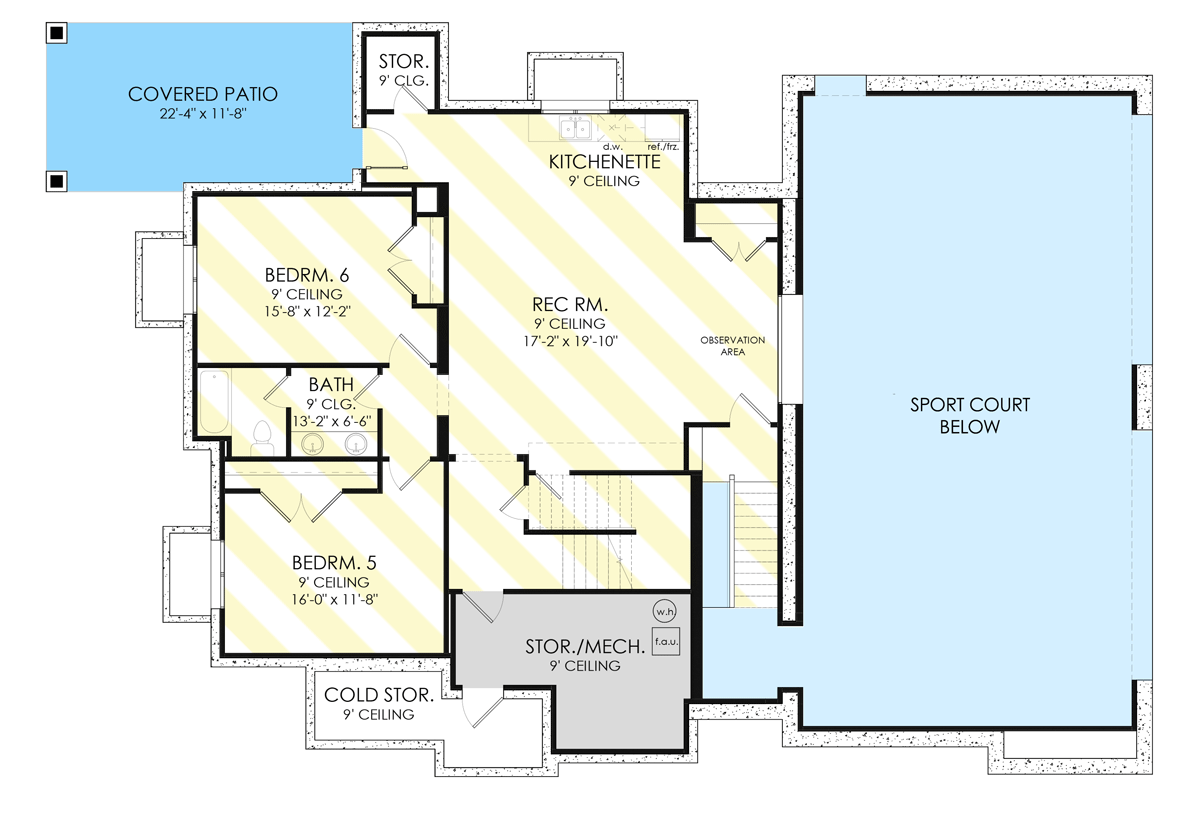

Optionally Finished Walkout Foundation
Reverse Floor Plan
3860 Sq Ft Hipped Roof Contemporary House Plan - 490059NAH floor plan - Optionally Finished Walkout Foundation

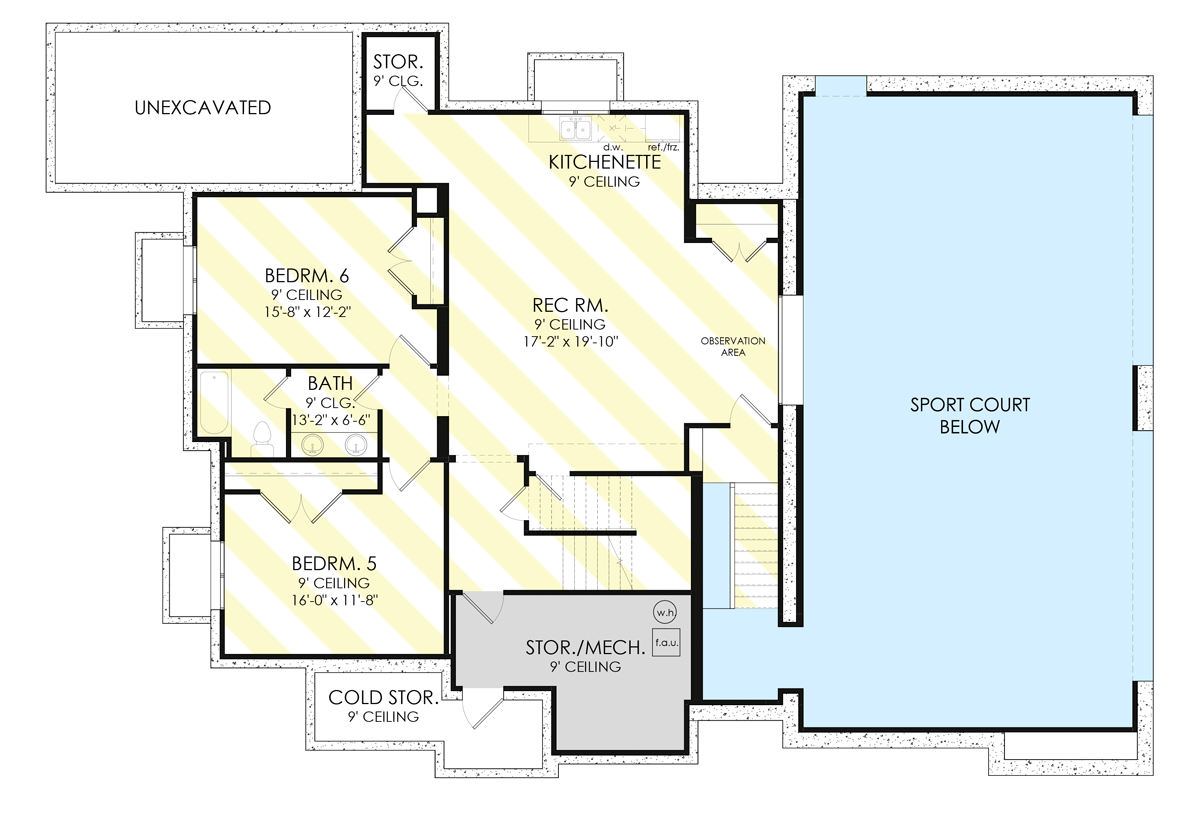

Optionally Finished Basement Foundation
Reverse Floor Plan
3860 Sq Ft Hipped Roof Contemporary House Plan - 490059NAH floor plan - Optionally Finished Basement Foundation

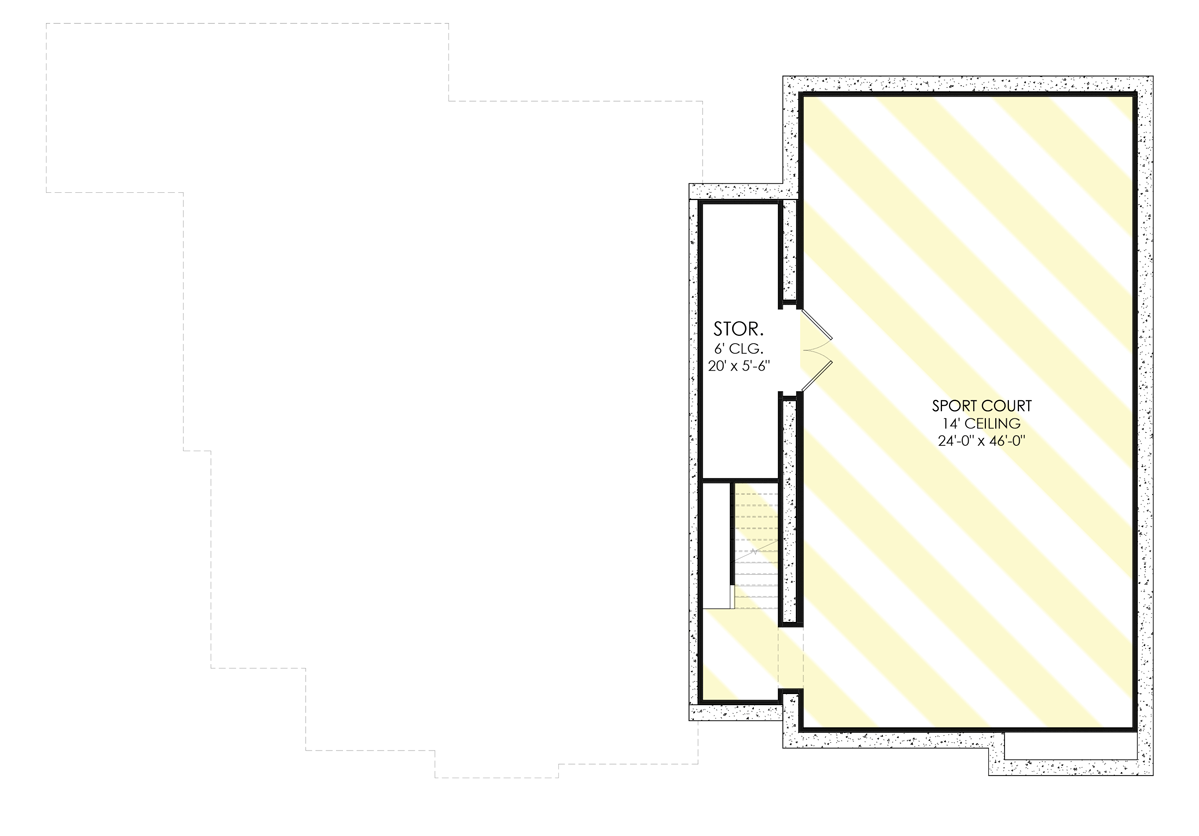

Sub-Basement Sport Court
Reverse Floor Plan
3860 Sq Ft Hipped Roof Contemporary House Plan - 490059NAH floor plan - Sub-Basement Sport Court
Plan Details
  • This contemporary European house plan offers a covered porch in the front and a covered patio in the rear. Hipped roofs help this house adds to the curb appeal.
  • With the open concept design, the kitchen is centered across from the 2-story great room's windows with the dining room off to the side. A moderate island and pantry make this a comfortable kitchen for all types of cooks.
  • Off the great room, you'll find a play room for when you need the kids to play when guests are over. Off the foyer is a music room that can be converted to an at-home office.
  • Upstairs, you'll find the master bedroom and accompanying bathroom with a standing shower, full-size tub, separate walk-in closets, and double vanities.
  • Along with the master bedroom, you'll find 3 more bedrooms with walk-in closets and a laundry room.
  • This home plan offers basement expansion (1,385 square feet when finished as shown) with a recreation room, kitchenette, 2 more bedrooms, plenty of storage, and soccer court with observation area underneath the garage.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
