4 Bed 4100 Square Foot Barndo-style House Plan with RV Garage and Man Cave

Heated S.F.
4,110
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 135196GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135196GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

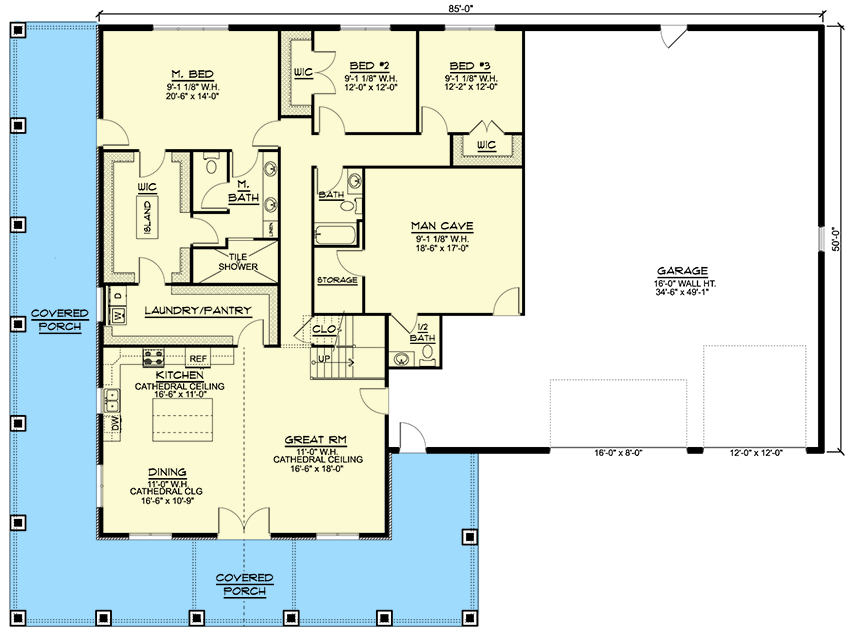

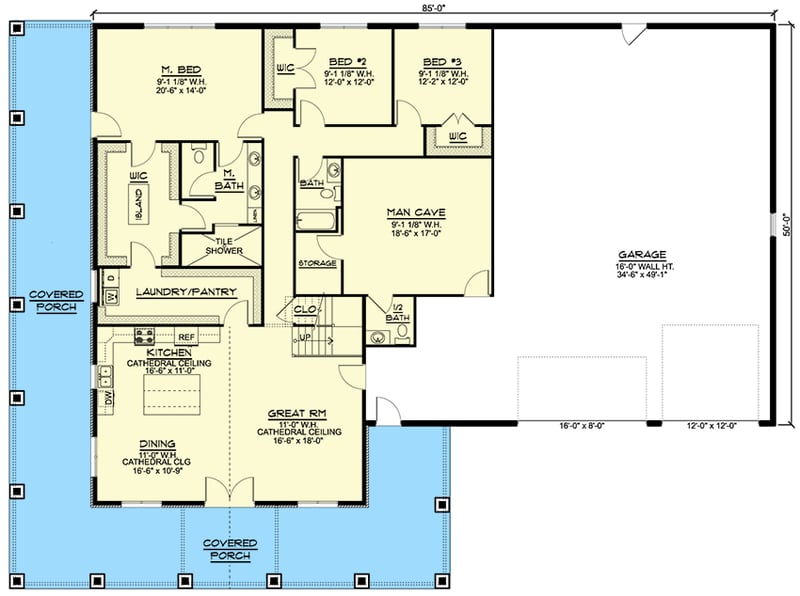

Plan 135196GRA: 4 Bed 4100 Square Foot Barndo-style House Plan with RV Garage and Man Cave - Floor Plan - Main Level

2nd Floor

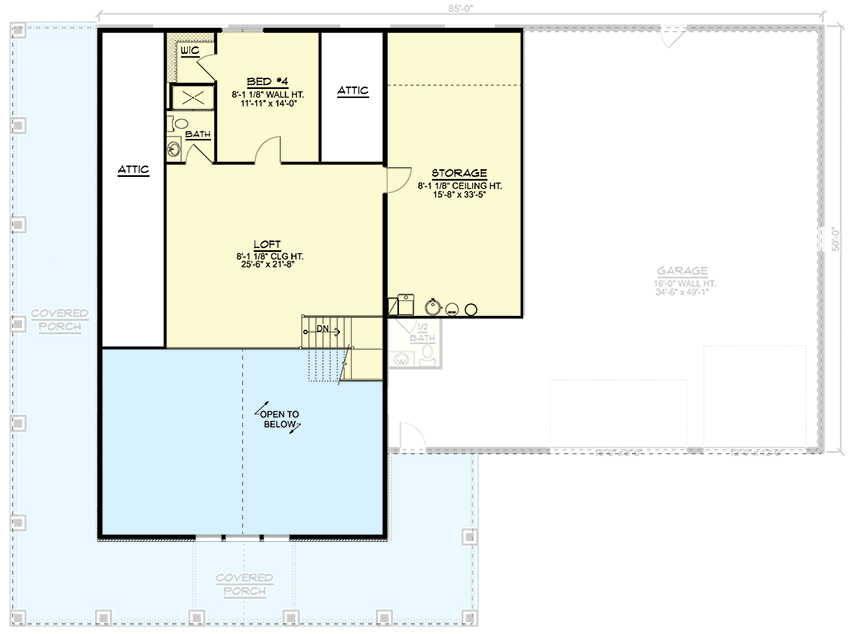

Plan 135196GRA: 4 Bed 4100 Square Foot Barndo-style House Plan with RV Garage and Man Cave - Floor Plan - 2nd Floor

Plan Details

  • The right half of this Farmhouse-inspired Barndominium features a 1,996 square foot garage / workshop with a 16' by 8' garage door and an RV-friendly 12' by 12' one.
  • A door inside the garage takes you to a man cave - with half bath - giving you a great place to watch the game, hang with friends and have a good time without destroying the home.
  • From the wraparound porch, French doors open into a combined great room, kitchen with roomy island and dining area.
  • Three bedrooms line the back of the home including the master suite with laundry access from the walk-in closet.
  • Upstairs, a loft overlooks the great room below and you'll find a fourth bedroom with bath and a large storage area.
  • The exterior finish is a combination of brick and corrugated metal siding.
  • Related Plans: Get alternate versions with house plans 135072GRA, 135173GRA and 135199GRA. Get a version with an apartment in addition to the main home with house plan 135209GRA.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,110 sq. ft.

1st Floor

2,624 sq. ft.

2nd Floor

1,486 sq. ft.

Porch, Combined

1,329 sq. ft.

Storage

550 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 0"

Depth

70' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached, RV Garage

Area

1966 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

0' 8"

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Workshop

Square Footage Breakdown

Total Heated Area

4,110 sq. ft.

1st Floor

2,624 sq. ft.

2nd Floor

1,486 sq. ft.

Porch, Combined

1,329 sq. ft.

Storage

550 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 0"

Depth

70' 0"

Max Ridge Height

25' 8"

Garage

Type

Attached, RV Garage

Area

1966 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

0' 8"

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Special Features

Bedrooms - Clustered

Laundry Access from Master Suite

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Workshop
