Plan 51724HZ

4 Bed Acadian with Open Floor Plan

Heated S.F.
2,141
Beds
4
Baths
2.5
Stories
1
Cars
2

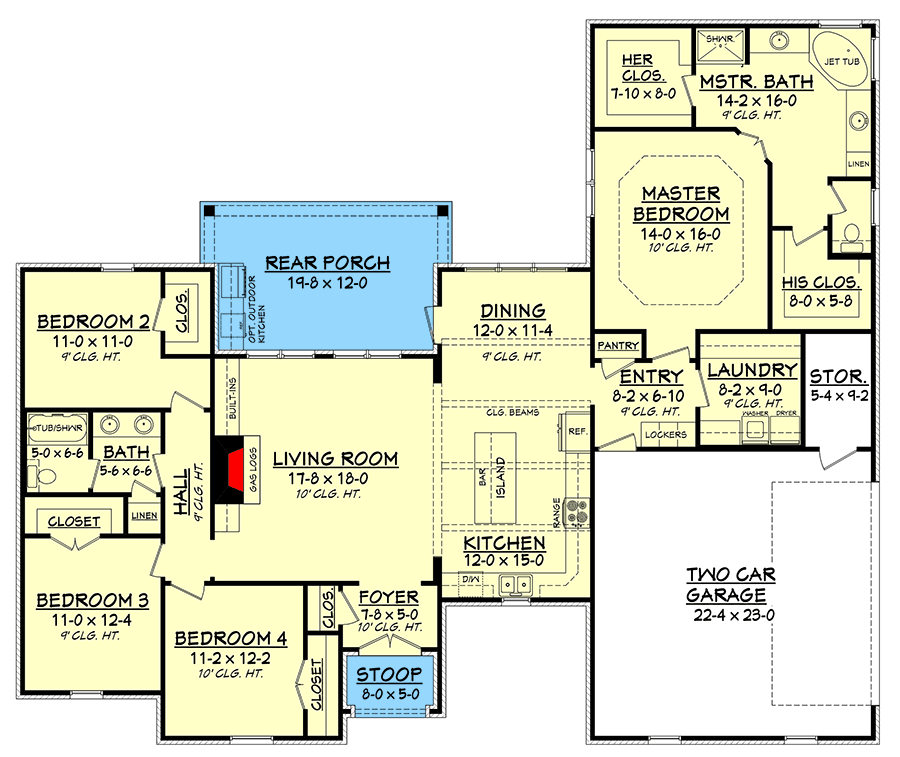

Floor Plan

Plan 51724HZ

Main Level
Main Level

Plan 51724HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51724HZ: 4 Bed Acadian with Open Floor Plan - Floor Plan - Main Level - Acadian, French Country, Louisiana-Style, Ranch

Plan Details

  • This wonderful 4 bedrom 2 bath Acadian-style house plan features an open floor plan with a large rear porch and an outdoor kitchen.
  • The open design allows for entertaining and flexibility and splits the msater from the family bedrooms enhancing your privacy.
  • There is a fireplace in the great room with built-ins on either side. You can see this from the roomy kitchen.
  • The kitchen island has a counter for casual seating.
  • Lockers by the garage entry minimize clutter and help keep the family organized.
  • The master suite has tray ceilings and the bath offers a separate tub and shower with dual walk in closets.
  • The roof is stick framed with a 12:12 main pitch and a 9:12 secondary pitch.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

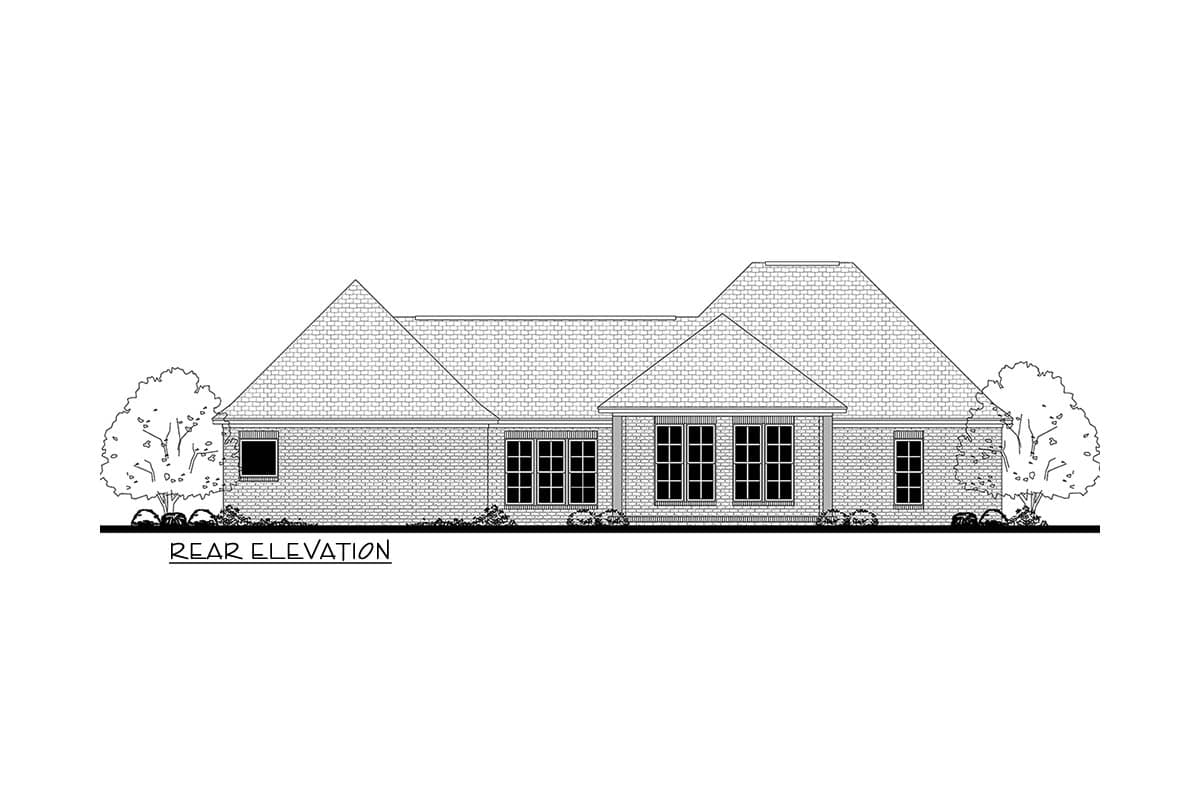

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,141 sq. ft.

1st Floor

2,141 sq. ft.

Porch, Front

40 sq. ft.

Porch, Rear

224 sq. ft.

Storage

54 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 0"

Depth

57' 10"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

533 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

USDA Approved

Square Footage Breakdown

Total Heated Area

2,141 sq. ft.

1st Floor

2,141 sq. ft.

Porch, Front

40 sq. ft.

Porch, Rear

224 sq. ft.

Storage

54 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 0"

Depth

57' 10"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

533 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Acadian

French Country

Louisiana-Style

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Plan Collections

USDA Approved
