Plan 810014RBT

4-Bed Barndominium-Style Home Plan with Central Den and Workshop - 2800 Sq Ft

Heated S.F.
2,800
Beds
4
Baths
3.5
Stories
1
Cars
2- 3

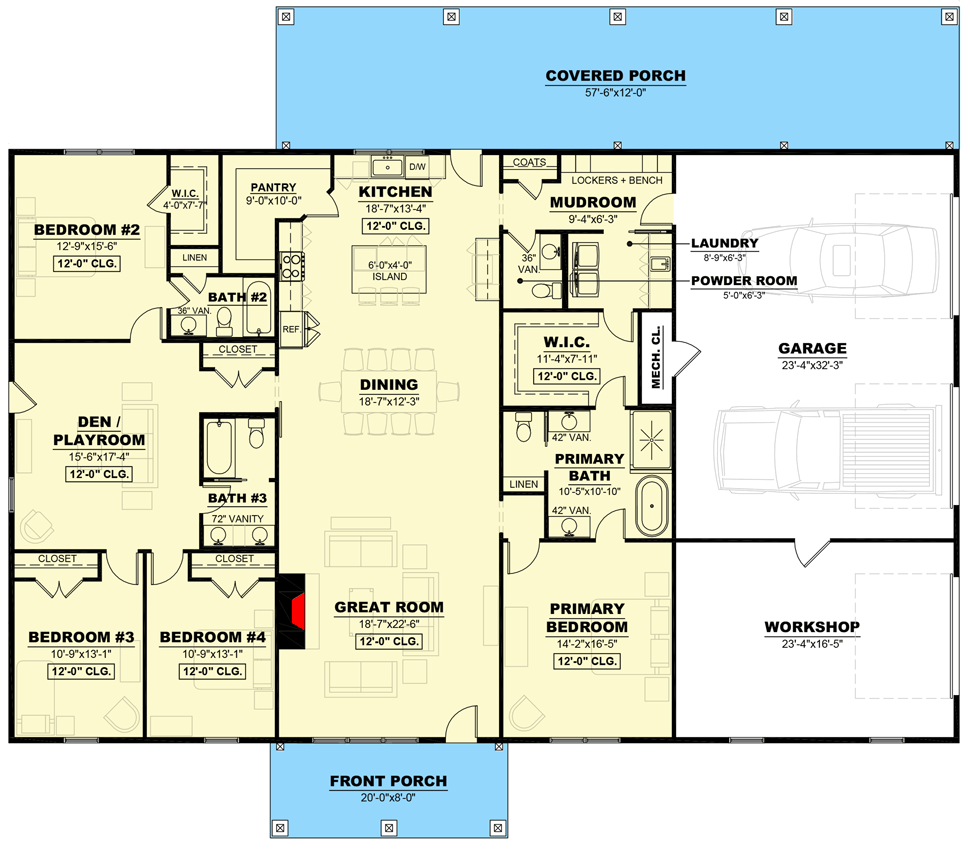

Floor Plan

Plan 810014RBT

Main Level
Main Level

Plan 810014RBT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 810014RBT: 4-Bed Barndominium-Style Home Plan with Central Den and Workshop - 2800 Sq Ft - Floor Plan - Main Level - Barndominium, Country, Ranch

Plan Details

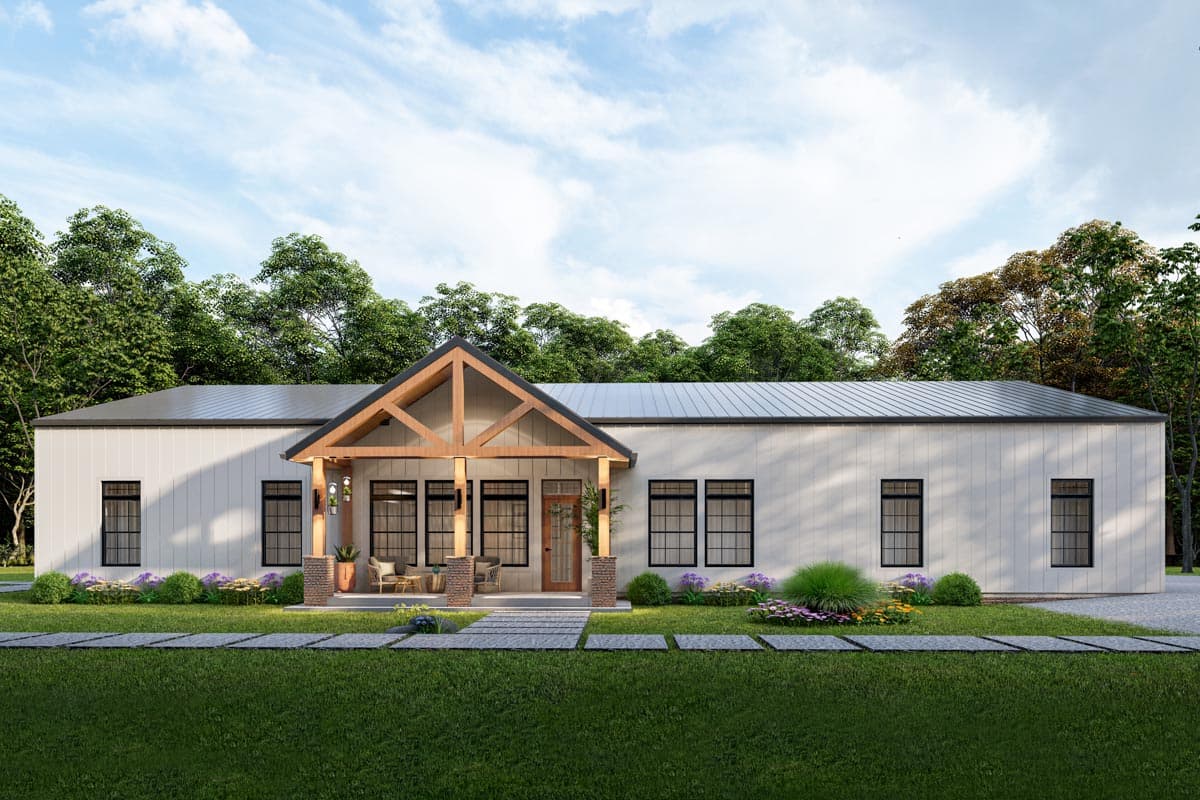

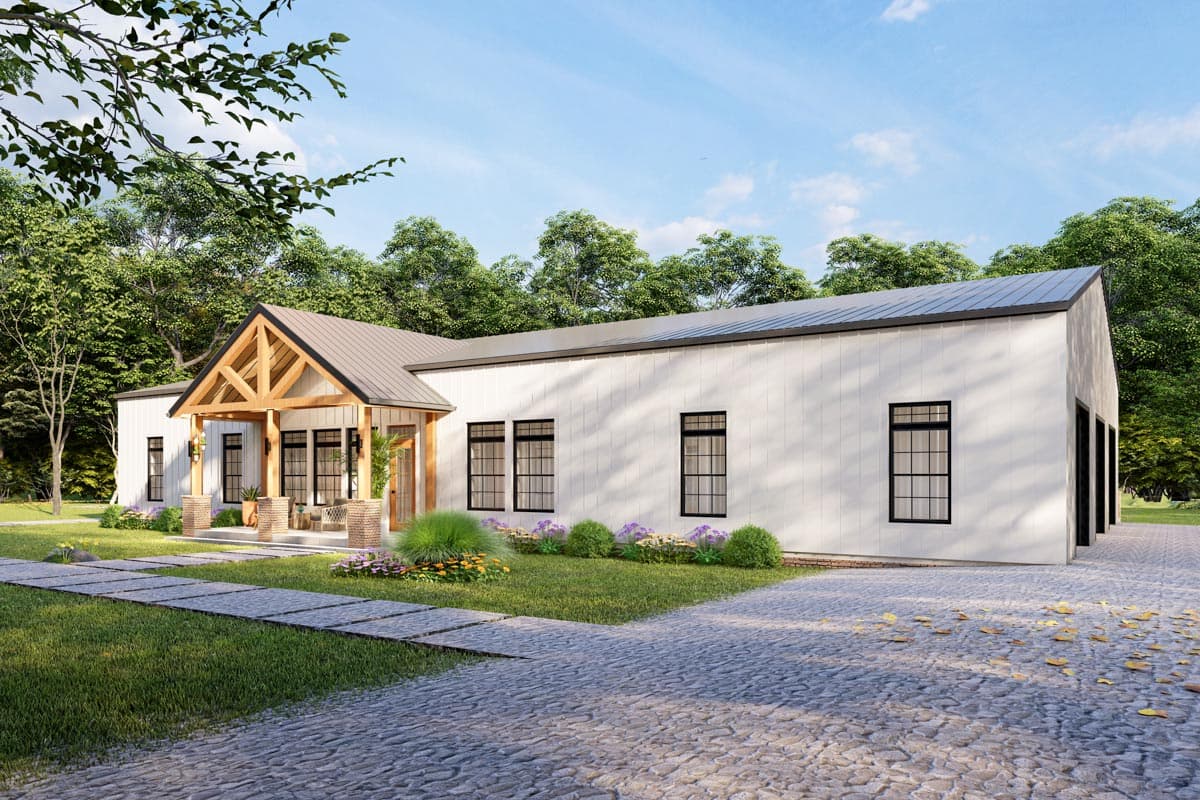

  • Vertical siding, a metal roof, timber truss and supports for the front porch and large multi-paned windows give this 2,800 square foot 4-bed barndominium house plan an industrial vibe.
  • This plan is designed with conventional wood framing - with 2x6 exterior walls.
  • Step in off the 8'-deep front porch and you find yourself in a space, open front to back, with 10' ceilings giving you a great room with fireplace, a dining room and an island kitchen. The kitchen sink is set below a window that looks out across the 12'-deep back porch.
  • The left side of the home has three bedrooms set around a central playroom or den. On the right, the master suite has a large walk-in closet set between the dual vanity bathroom and the laundry room.

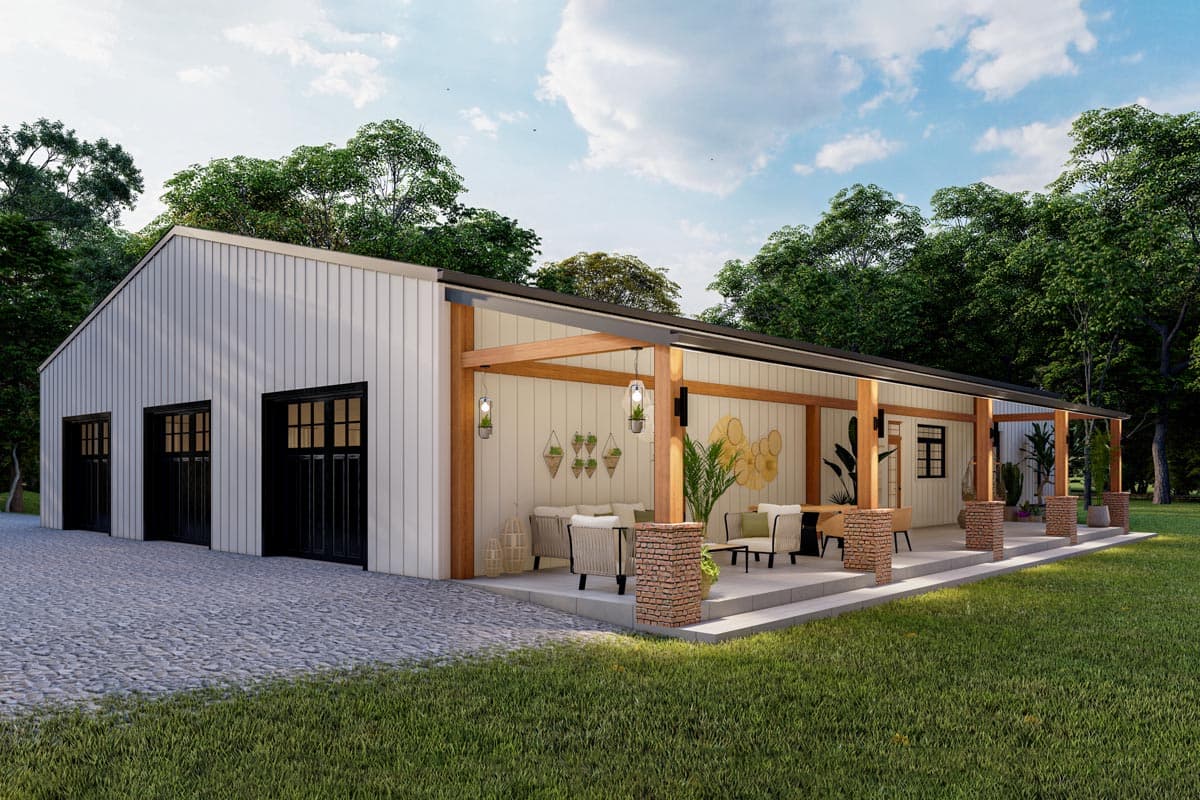

  • There are 3 overhead garage doors on the right, with the one towards the front giving you workshop potential.
  • Related Plan: Get an additional bedroom with house plan 810012RBT (2,800 sq. ft.).

What's Included

  • Cover sheet with General Notes, Area Tabulation, Index, Drawing Symbol Key, Rendering, Abbreviations, + Materials Legend
  • Main Level Floor Plan with Notes, Wall Type Legend, + General Plan Notes
  • Main Level Floor Plan with Dimensions, Wall Type Legend, + General Plan Notes
  • Roof Plan + General Roof Plan Notes
  • Front + Left Exterior Elevations, General Elevation Notes
  • Rear + Right Exterior Elevations, General Elevations Notes
  • Enlarged Kitchen Plan + Interior Kitchen Elevations
  • Electrical Lighting Plan, Electrical Legend, + Electrical Notes
  • Foundation Plan, Foundation Plan Notes, + Wall Type Legend
  • Foundation Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,800 sq. ft.

1st Floor

2,800 sq. ft.

Porch, Front

160 sq. ft.

Covered Patio

690 sq. ft.

Workshop

410 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 0"

Depth

62' 0"

Max Ridge Height

19' 2"

Garage

Type

Attached

Area

783 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Roof Details

Primary Pitch

3 on 12

Architectural Style

Barndominium

Country

Ranch

Special Features

Bedrooms - Split

Den

Flex Room

Game/Rec Room

Home Office

In-Law Suite

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Playroom

Two Master Suites

Walk-in Pantry

Workshop
