Plan 623319DJ
4-Bed Barndominium-Style House Plan with Loft Overlook - 3263 Sq Ft
Heated S.F.
3,263
Beds
4
Baths
2.5
Stories
2
Cars
3
Tour
What's Included
Plan Details
  • This 1.5-story barndominium-style house plan gives you 4 beds, 2.5 baths and 3,263 square feet of heated living. The 3-car garage has 1,182 square feet of parking and has two bays in front and a third overhead door on the side.
  • The exterior features board and batten siding, weathered wood accents, and expansive windows that allow natural light to fill the interior. A vaulted 10' by 8' porch provides cover for the French door entry.
  • An open floor plan reveals itself as you step in side with a 2-story great room with fireplace that transitions into a spacious kitchen with ample counter space, a large island and a double sink set below windows looking out front.
  • On the main level, a substantial garage/shop space awaits, providing ample room for vehicles, storage, and DIY projects. The garage area is integrated into the overall design with a mud room with built-in benches and lockers
  • Upstairs, a loft overlooks the great room below. This versatile area can serve as a family room, game room, or a quiet retreat. Three bedrooms - all with walk-in closets - and a shared bathroom and a mechanical room complete the home.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

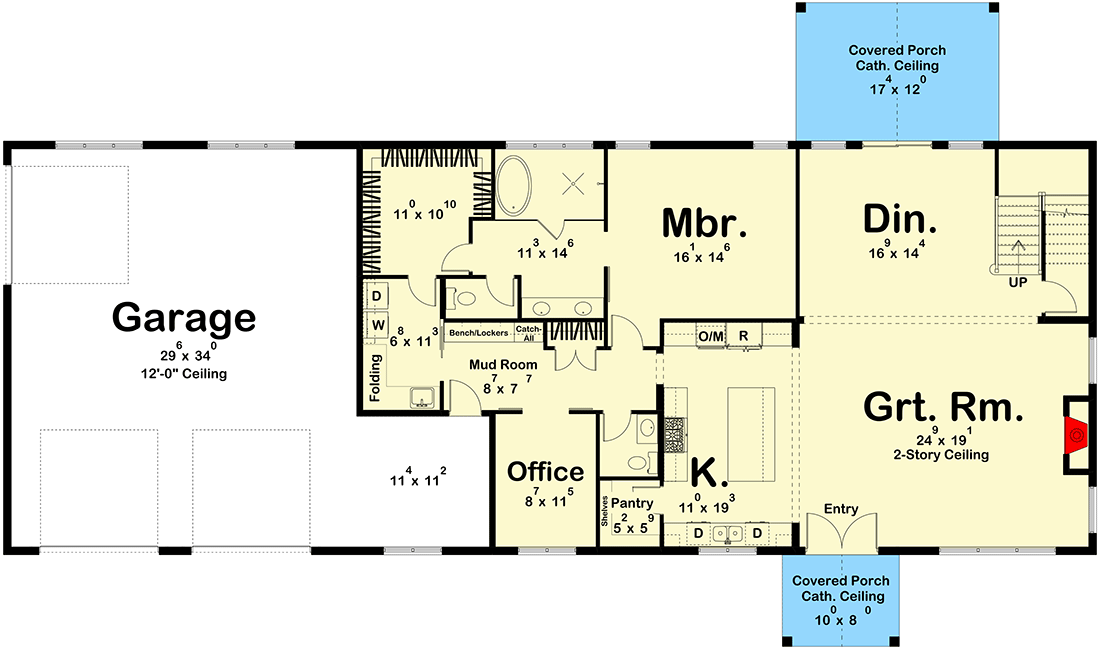

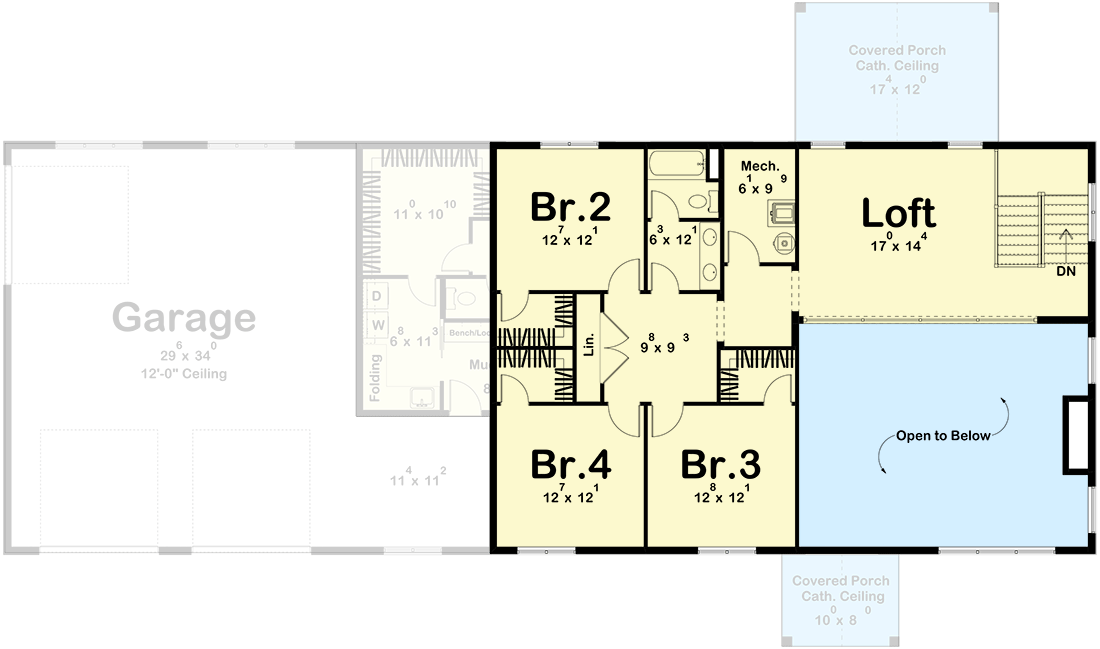

  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
