Plan 135145GRA 4-Bed Barndominium with Open Living Space and Storage Mezzanine

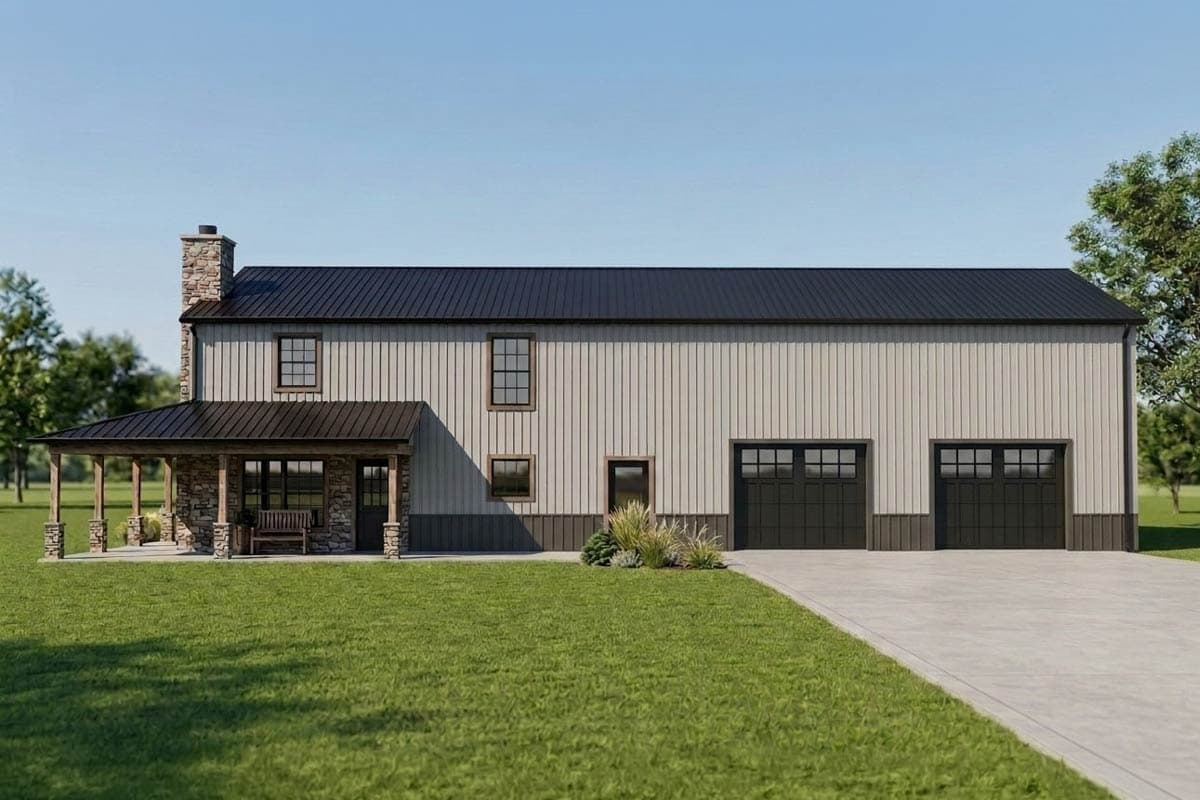

4-Bed Barndominium with Open Living Space and Storage Mezzanine

Plan 135145GRA

  • 2,152

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

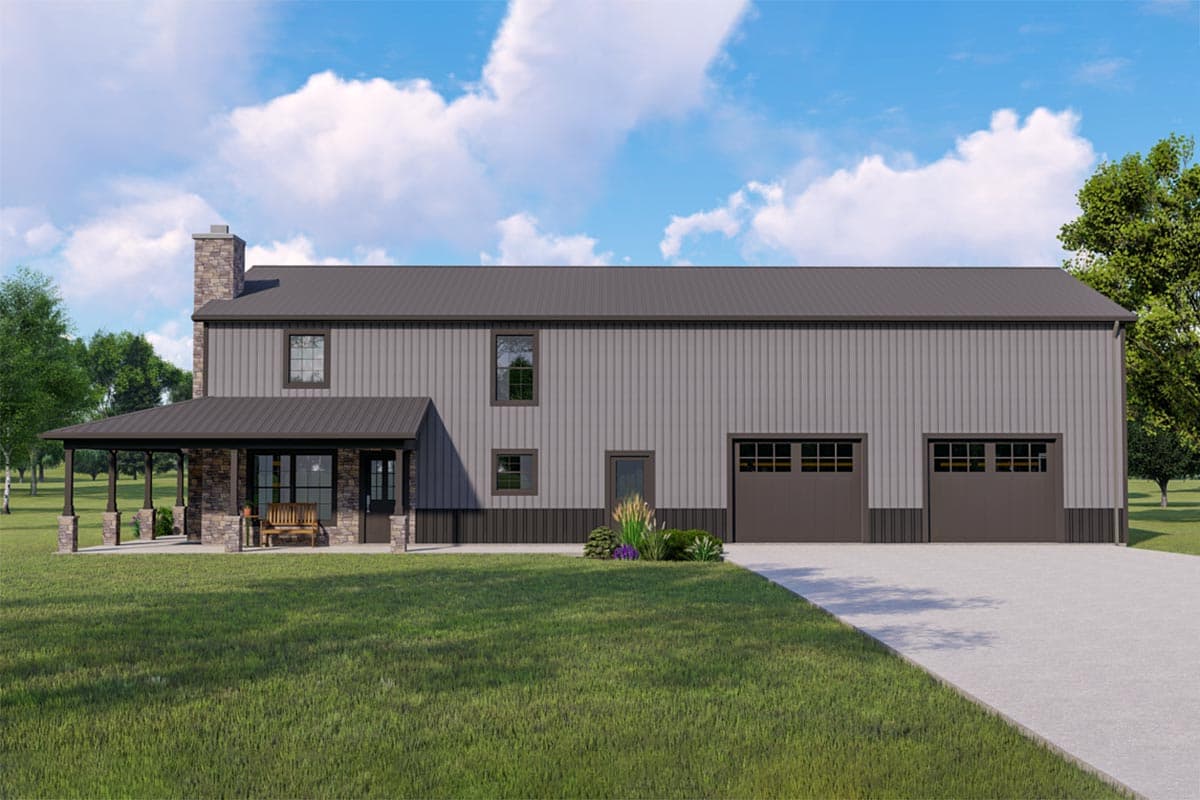

  • The simplicity and convenience afforded by this Barndominium plan make it a standout design.
  • The oversized garage is attached to the right side of the home and features a 36'2" wide by 8'4" deep, storage mezzanine.

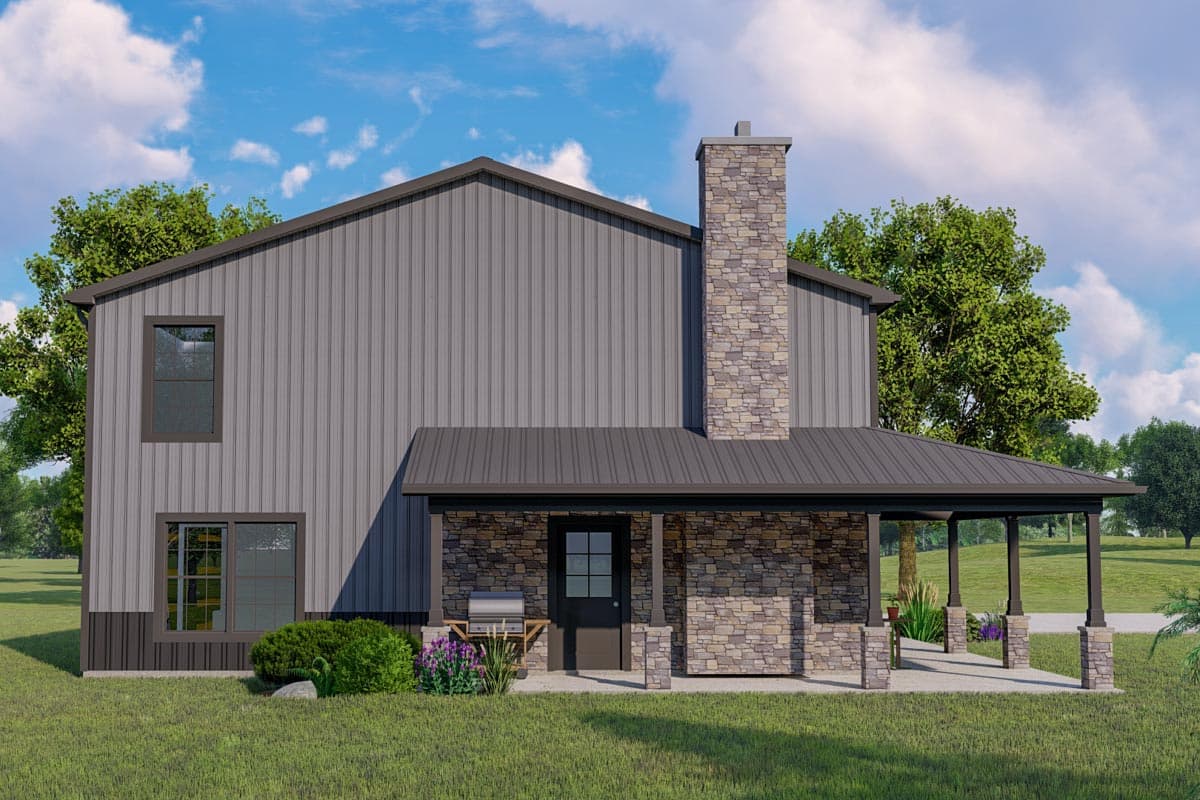

  • The wraparound porch welcomes you into the open living room and island kitchen with a fireplace that adds a touch of warmth and ambiance to the living space.
  • The master bedroom is tucked towards the rear of the main level and enjoys access to the laundry room.
  • Upstairs, a generous loft leads to 3 bedrooms that share a full bathroom with a linen closet and double-sink vanity.

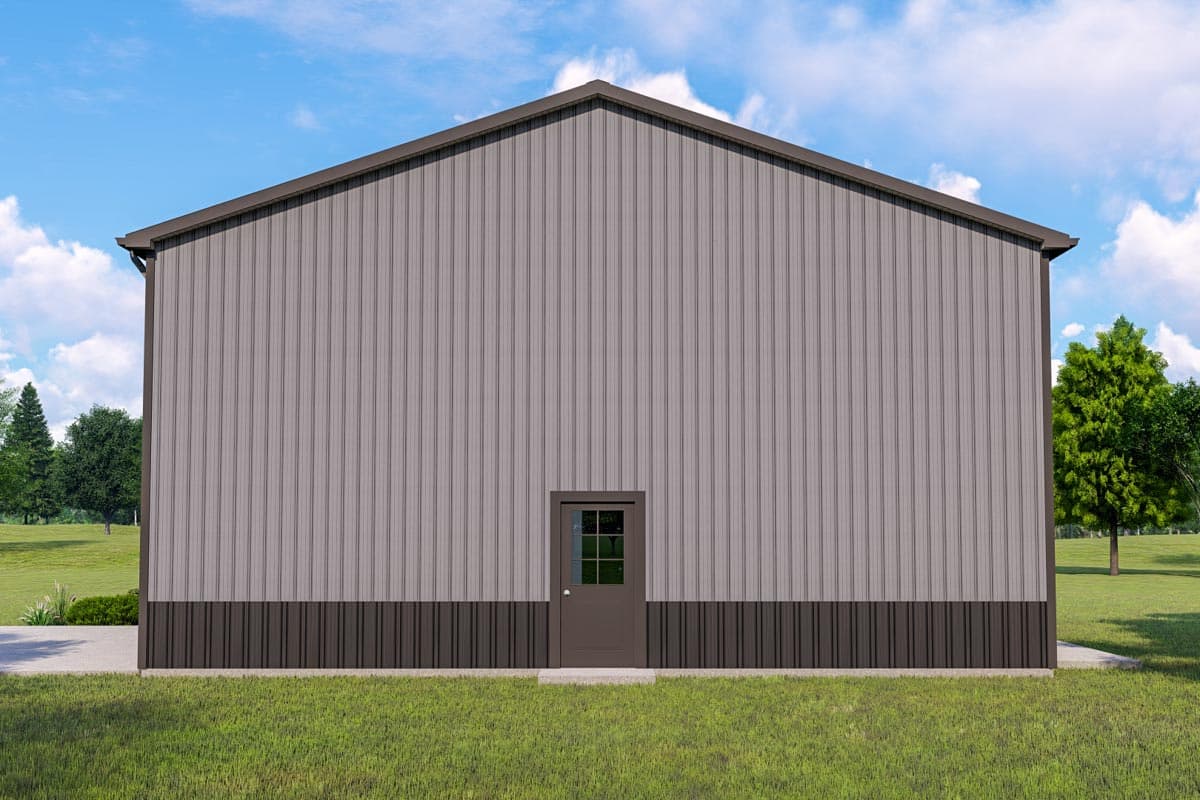

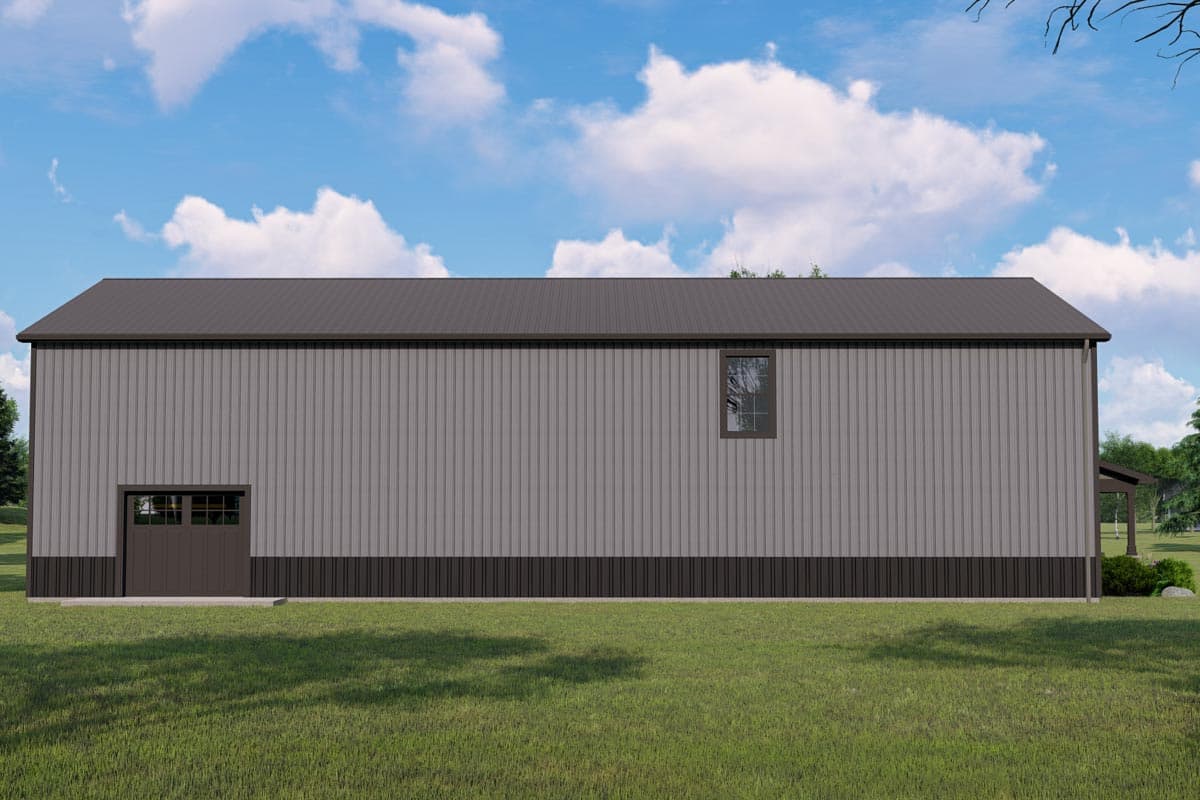

  • The exterior finish is spec'd for corrugated metal siding.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

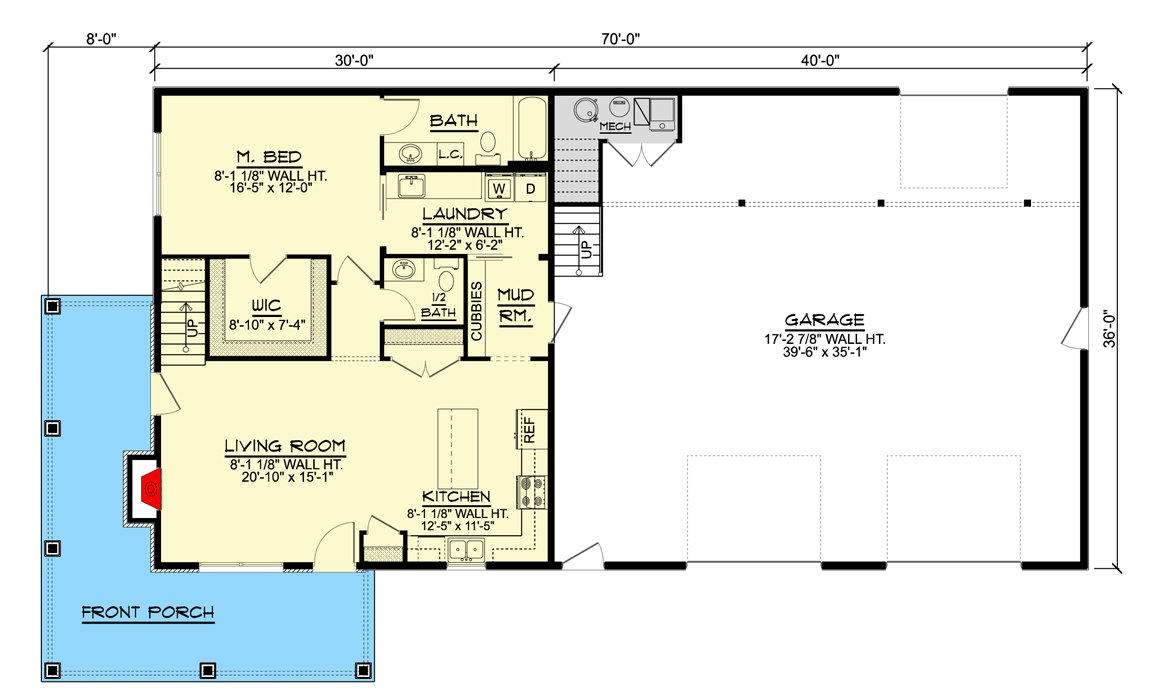

4-Bed Barndominium with Open Living Space and Storage Mezzanine - 135145GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

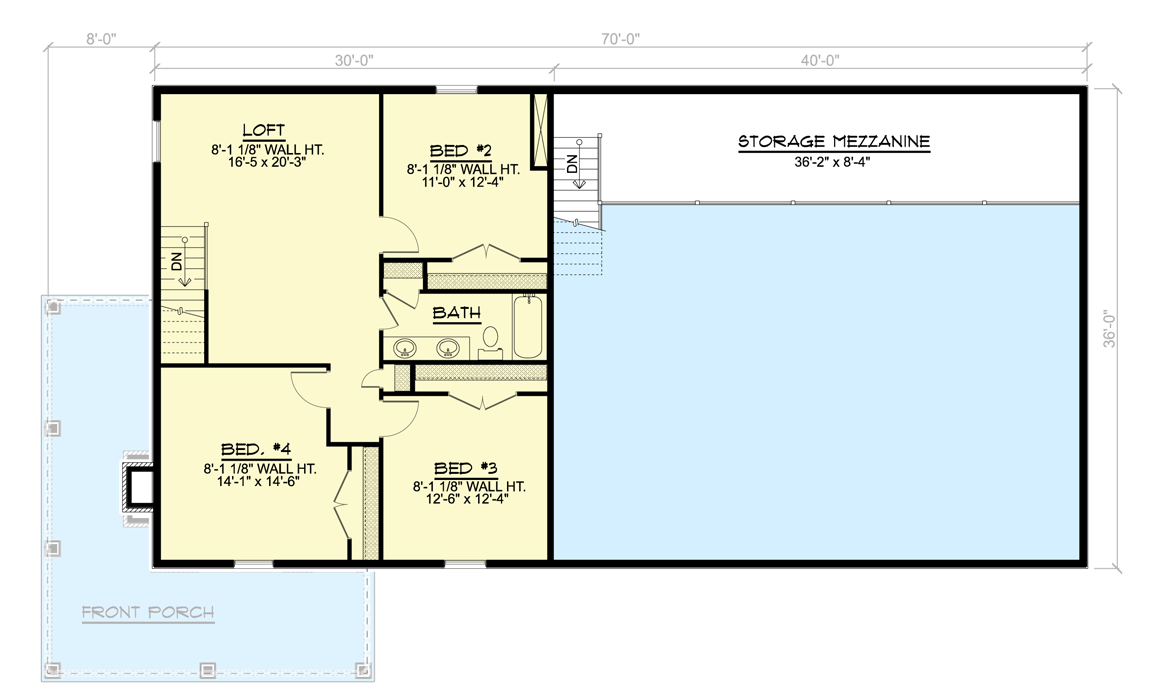

4-Bed Barndominium with Open Living Space and Storage Mezzanine - 135145GRA floor plan - 2nd Floor

Plan details

4-Bed Barndominium with Open Living Space and Storage Mezzanine

  • 2,152

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,050
  • 5 Sets $1,200
  • 5 Sets + PDF $1,300
  • PDF - Unlimited Build $1,550
  • CAD + PDF - Single-Build $2,100
  • CAD - Unlimited Build $2,600
  • View all purchase option online

About This Plan

  • The simplicity and convenience afforded by this Barndominium plan make it a standout design.
  • The oversized garage is attached to the right side of the home and features a 36'2" wide by 8'4" deep, storage mezzanine.
  • The wraparound porch welcomes you into the open living room and island kitchen with a fireplace that adds a touch of warmth and ambiance to the living space.
  • The master bedroom is tucked towards the rear of the main level and enjoys access to the laundry room.
  • Upstairs, a generous loft leads to 3 bedrooms that share a full bathroom with a linen closet and double-sink vanity.
  • The exterior finish is spec'd for corrugated metal siding.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,152 sq. ft.
  • 1st Floor: 1,080 sq. ft.
  • 2nd Floor: 1,072 sq. ft.
  • Storage: 362 sq. ft.
  • Porch, Combined: 371 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 78' 0"
  • Depth: 44' 0"
  • Max ridge height: 23' 0"

Garage

  • Type: Attached
  • Area: 1440 sq. ft.
  • Count: 3 Cars

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
